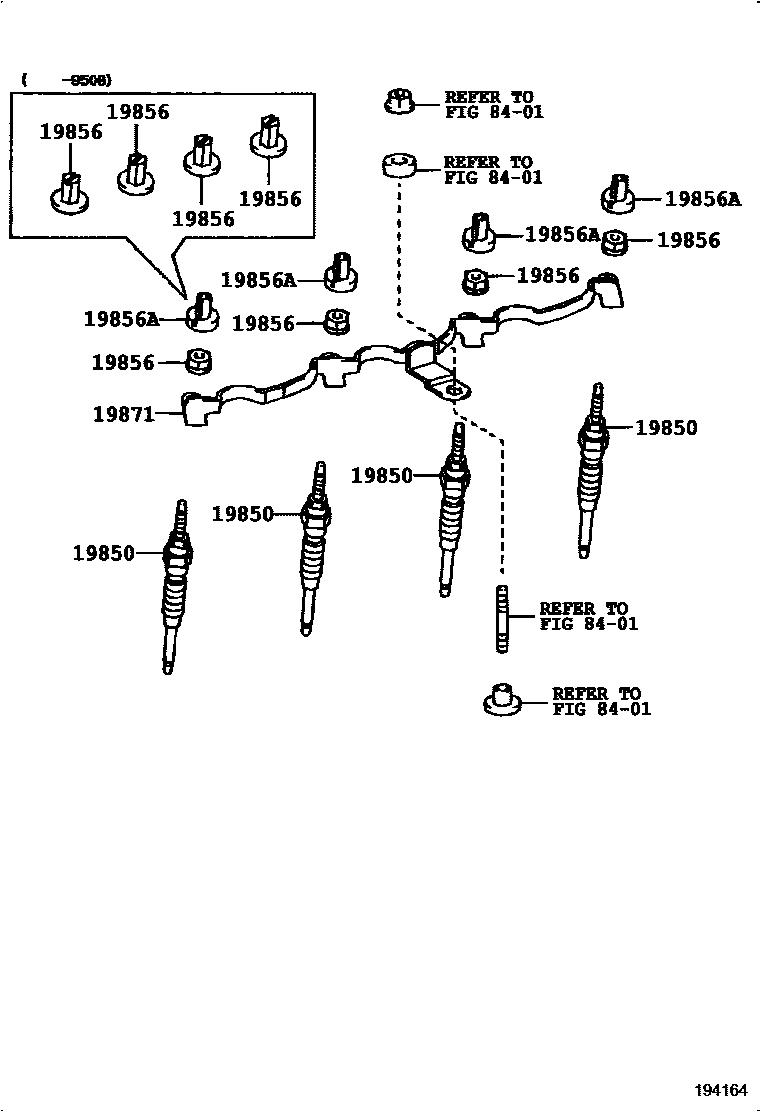

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

19850PLUG ASSY, GLOW

main19850-54090i3L..LN86..ARL,V;2L..LN85..LHD..TH;2L,3L..LN80,81,85..GEN,V198808-199901

*BV-GV=12V-11V

main19850-54110i2L..LN85..LHD..5F..GEN..CBU199508-199609

*BV-GV=12V-11V,BRAZIL SPEC

sub19850-54130

main19850-54120i2L,3L..LN80,85,9#..RHD..TH199608-199909

*BV-GV=12V-11V

main19850-54130i2L..LN85..LHD..5F..GEN..CBU199609-199708

*BV-GV=12V-11V,BRAZIL SPEC

main19850-54130i3L..LN86..GEN199703-200412

*BV-GV=12V-11V

19856NUT, CONNECTING(FOR GLOW PLUG)

main90179-04019i2L,3L..LN8#,90198808-199508

main90179-04030i2L,3L..LN8#,9#199508-200412

19856AGROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)

main90189-04024i2L,3L..LN8#,9#199508-200412

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i3L..LN86..ARL,V;2L,3L..LN80,81,85,9#198808-199909

main19871-54040i2L..LN85..LHD..5F..GEN..CBU199508-199708

BRAZIL SPEC

main19871-54040i3L..LN86..GEN199703-200412

8401

5 parts on this diagram · 7 diagrams in section
