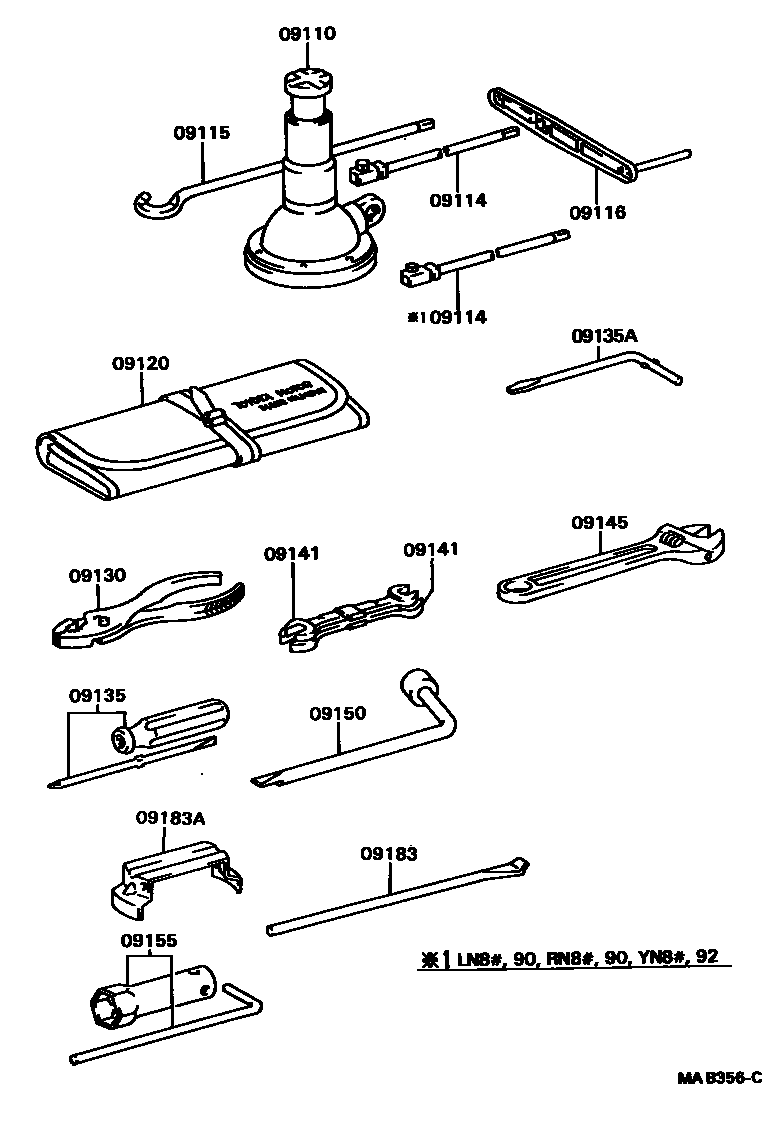

STANDARD TOOL

09110JACK ASSY

main09110-35180iLN86,RN85,90,YN85..ARL199312-199609

main09110-35181iLN86,RN85,90,YN85..ARL199609-199708

main09110-35200iRN85..EFI..IV3;RN85..(GEN,V)..CBU;RN85..RHD..GEN..IV3;LN8#,9#,RN80,90,YN8#,92..GEN,TH,V199705-200106

main09110-35210iLN200,RZN200200106

main09110-89102iLN85,86,RN85,90,YN85..ARL198808-199312

main09111-89101iRN125198907-199308

main09111-89102iLN8#,90,RN8#,90,YN8#,92..GEN,TH,V199001-199312

main09111-89104iLN8#,90,RN8#,90,YN8#,9#..GEN,TH,V199312-199609

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iRN125199211-199308

main09114-35031×2iLN8#,90,RN8#,90,YN8#,92198808-198901

main09114-60050iRN125198907-199211

main09114-89101×2iRN85..ARL,GEN;LN8#,9#,RN90,YN8#,9#199108-199705

09115ROD SUB-ASSY, JACK HANDLE

main09115-35070iRN125199108-199308

main09115-35080iRN125198907-199108

main09115-89101iLN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH199001-199108

main09115-89102iLN81,86,RN8#,YN81,86..V198901-199108

09116LEVER, JACK HANDLE

main09116-35031iLN8#,90,RN8#,90,YN8#,92..ARL,GEN,V198808-199001

main09116-35041iRN125198907-199308

main09116-35060iRN85..ARL,GEN;LN8#,9#,RN90,YN8#,9#199311-199705

09120BAG, TOOL

main09120-26021iLN8#,90,RN8#,90,YN8#,92199001-199012

main09120-35060iRN125198907-199012

main09120-35080iLN8#,90,RN8#,90,YN8#,92199012-199108

main09120-35090iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU198910-199012

VW BRAND

main09120-35100iLN85..TW1..IV3;LN85..RHD..5F..GEN..CBU199012-199108

VW BRAND

main09120-35110iRN125199012-199212

main09120-35120iRN125199212-199308

09130PLIERS

main99913-11500iLN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V198808-199001

09135DRIVER, SCREW

main90080-99005iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU198910-199108

VW BRAND

main99915-10700iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN8#,9#,RN90,YN8#,92199705-200106

09135ABIT, SCREW DRIVER

main09135-00012iRN125198907-199308

09141SPANNER

main90080-99006iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU198910-199108

8 X 10,VW BRAND

main90080-99007iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU198910-199108

12 X 14,VW BRAND

main99914-10810iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN8#,9#,RN90,YN8#,92199705-200106

8 X 10

main99914-11012iLN8#,90,RN125,8#,90,YN8#,92199001-199108

10 X 12

main99914-11214iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN8#,9#,RN90,YN8#,92199705-200106

12 X 14

main99914-11417iLN8#,90,RN125,8#,90,YN8#,92199001-199108

14 X 17

09145WRENCH, MONKEY

main99911-11200iLN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V198808-199001

09150WRENCH, HUB NUT BOX

main09150-35020iLN8#,90,RN8#,90,YN8#,92198808-199305

main09150-35040iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU198910-199108

VW BRAND

main09150-40010iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

main09150-60020iRN125198907-199308

09155WRENCH, SPARK PLUG

main09155-26010iRN125,8#,90198808-199909

main09155-41010iYN8#,9#198808-199909

09183WRENCH, WHEEL CAP

main09183-00030iRN125198907-199308

09183AREPLACER, WHEEL CAP

main09183-35010iRN125198907-199108

main09183-60010iRN125199108-199308

14 parts on this diagram · 1 diagram in section
