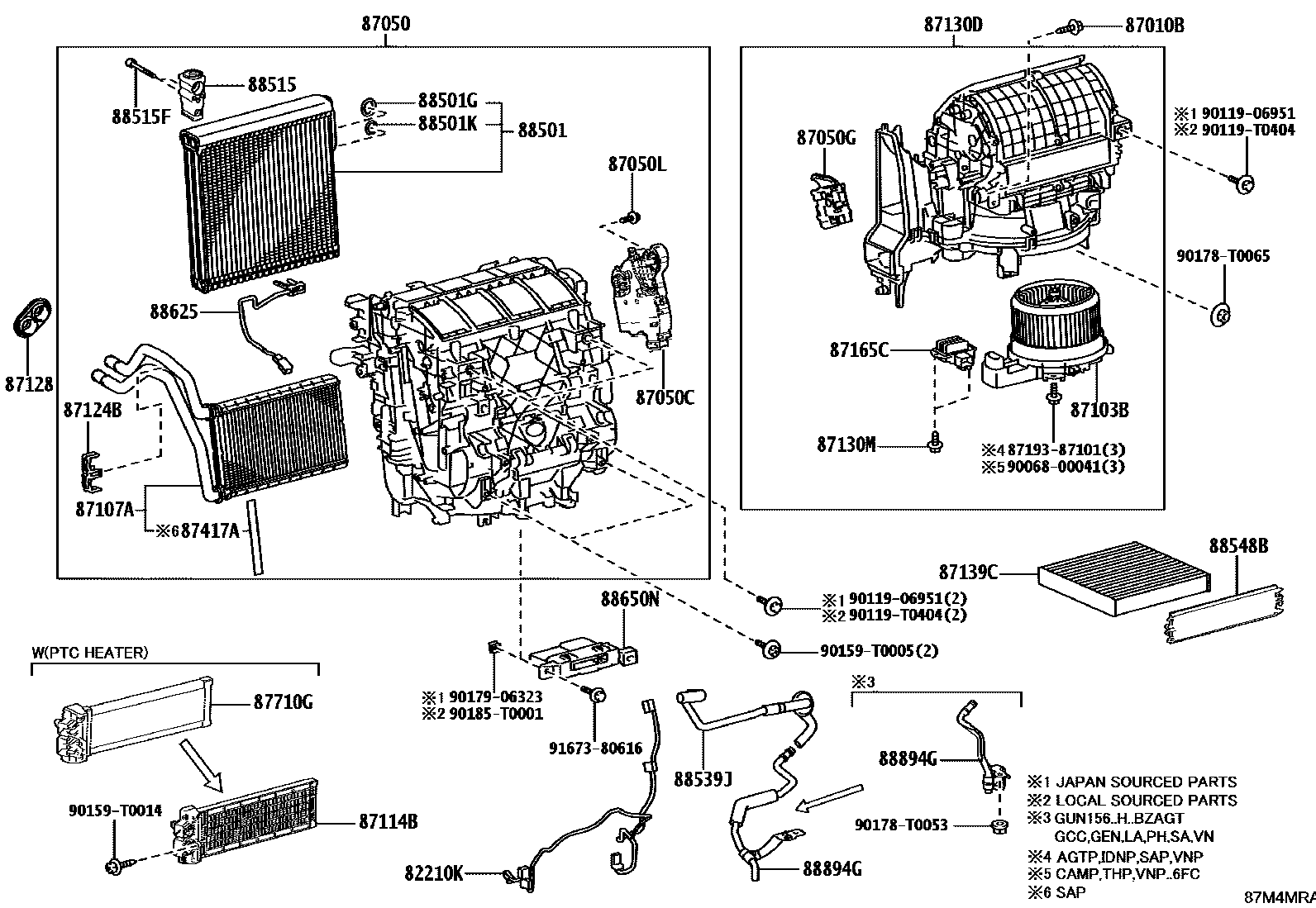

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL COOLER 0004 1AUTO AIR CONDITIONER 0005 1MANUAL AIR CONDITIONER 0006 1MANUAL COOLER 0007 1REAR AUTO COOLER 0008 1REAR MANUAL COOLER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0K050iGUN156..THP..L;GUN165..RHD..(IDNP,THP);GUN15#,166,TGN156,166..RHD..(IDNP,KENP,MAP,SAP,THP)..(H,S)202408

main82212-0K060iGGN155,GUN15#,16#,TGN156,166..LHD..(6F,6FC)..(H,S); TGN166..L..LA;GUN16#,TGN156..L..(GCC,GEN,LA)202408

FRONT AIR CONDITIONER-AUTO

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020×2iGUN165..VNP..L202409

main90068-00042×2iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP,VNP);GGN155,GUN155,16#,TGN156,166..(THP,VNP)..6FC202408

main90094-90426×2iGGN155,GUN156,16#,TGN156,166..AGTP202411

main90099-00968×2iGUN155..SAP..S;GGN155,GUN155,165,TGN166..IDNP,MAP;GUN156,166,TGN156..(IDNP,KENP,MAP,SAP)..(DCRL,HTWC)..(GCC,GEN,IDN,KEN,MA,PH,SA,VN)202409

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KD00iGUN156..IDNP..ARL202409

main87050-0KD10iGUN165..VNP..L202409

main87050-0KD30iGUN155,TGN156,166..THP..L202408

main87050-0KE30iGUN165..L..PH202409

main87050-0KE40iGUN155,165,TGN156..IDNP..L..(GEN,VN)202409

main87050-0KE50iGUN155,TGN156,166..IDNP..L..GCC202409

main87050-0KE90iGUN156,16#,TGN156,166..(L,S)..LA202411

main87050-0KG20iGUN155,165..L..(KEN,SA)202411

main87050-0KJ00iGUN155..MA202409

main87050-0KK90iGUN156,16#,TGN166..IDN202409

main87050-0KP30iGUN15#,165,TGN166..(CAMP,THP,VNP)..6FC..(GEN,VN)202408

main87050-0KP40iGGN155,GUN15#,TGN156..THP..(H,S)..GCC; TGN156..THP..L202408

FRONT AIR CONDITIONER-AUTO

main87050-0KP70supersedes 87050-0KP80iGUN165..L..TH202411

main87050-0KP90iGUN156..THP..ARL202408

main87050-0KQ20iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP..(H,S)..(GEN,PH,SA,VN); TGN156..L..GEN202409

FRONT AIR CONDITIONER-AUTO

main87050-0KQ30iGGN155,GUN15#,TGN156..IDNP..(H,S)..GCC; TGN156..IDNP..L..GCC202409

FRONT AIR CONDITIONER-AUTO

main87050-0KQ40iGUN15#,165,TGN156,166..RHD..GEN202409

main87050-0KQ60iGUN156,166,TGN166..AGTP..H; GUN16#,TGN156,166..L..LA202411

FRONT AIR CONDITIONER-AUTO

main87050-0KQ80iGUN15#,TGN156..LHD..SAP202411

main87050-0KQ90iGUN156,166..RHD..DCRL..(KEN,SA)202411

main87050-0KR00iGUN156,TGN156..MA202409

main87050-0KR20iGGN155..LA202411

main87050-0KT60iGUN156,166..MHV..SA202411

main87050-0KS30iGUN156,166..IDN202409

TOYOTA STOP & START SYSTEM-WITH

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4060iGUN156,165..THP..L;GGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP)..(6F,6FC)..(H,S); TGN166..L..LA;GUN16#,TGN156..L..(GCC,GEN,LA)202408

FRONT AIR CONDITIONER-AUTO

87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

main87106-0K220iGUN156..(AGTP,IDNP)..L;TGN166..(L,S)..(GCC,LA);GUN155,16#,TGN156..L..(GCC,GEN,KEN,LA,MA,PH,SA,VN)202408

main87106-0K241iGGN155,GUN15#,16#,TGN156,166..LHD..(6F,6FC)..(H,S); TGN166..L..LA;GUN16#,TGN156..L..(GCC,GEN,LA)202408

FRONT AIR CONDITIONER-AUTO

main87106-0K251iGUN156..THP..L;GUN165..RHD..(IDNP,THP);GUN15#,166,TGN156,166..RHD..(IDNP,KENP,MAP,SAP,THP)..(H,S)202408

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main88718-0A020iGUN165..VNP..L202409

main90068-00042×11iGGN155,GUN15#,165,TGN156,166..LHD..(CAMP,THP,VNP)..(H,S); GUN15#,16#..(H,S)..TH; GUN156..THP..ARL;GUN155,165,TGN156,166..THP..L; TGN156..THP..L202408

FRONT AIR CONDITIONER-AUTO; TOYOTA STOP & START SYSTEM-WITHOUT

main90094-90426×11iGGN155,GUN156,166,TGN166..AGTP..H; GUN156,16#,TGN156,166..(L,S)..LA; GUN16#,TGN156,166..L..LA202411

FRONT AIR CONDITIONER-AUTO

main90099-00968×6iGGN155,GUN15#,16#,TGN156,166..LHD..(IDNP,SAP)..(H,S); GUN155,165..IDNP..L..(GCC,GEN,VN);TGN156,166..(IDNP,MAP)..(H,L)..(GCC,GEN,IDN,MA);GUN15#,16#..RHD..(IDNP,KENP,MAP,SAP)..(H,S)..DCRL; GUN155..MA; GUN156,166..IDN; GUN165..L..PH; TGN156..IDNP..L202409

FRONT AIR CONDITIONER-AUTO; TOYOTA STOP & START SYSTEM-WITH

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K381iGUN15#,16#..ARL,TH202408

main87103-0K391iGGN155,GUN15#,165,TGN156,166..LHD..(CAMP,THP,VNP)202408

main87103-0K421iGUN165..L..PH202409

main87103-0K431iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202409

main87103-0K441iGUN165..S..PH;GUN165..LHD..IDNP..(GEN,VN);GGN155,GUN15#,166,TGN156,166..LHD..IDNP202409

main87103-0K461iGGN155,GUN156,16#,TGN156,166..AGTP202411

main87103-0K491iGUN15#,16#..RHD..(KEN,SA)202411

main87103-0K501iGUN15#,TGN156..LHD..SAP202411

main87103-0K531iGUN155..MA202409

main87103-0K541iGUN156,TGN156..MA202409

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP,VNP);GGN155,GUN155,16#,TGN156,166..THP,VNP202408

main87107-0K130iGUN165..S..PH;GUN165..IDNP..(GEN,VN);GGN155,GUN15#,166,TGN156,166..IDNP..(GCC,GEN,PH,SA,VN)202409

main87107-0K150iGGN155,GUN156,16#,TGN156,166..AGTP202411

main87107-0K170iGUN15#,16#,TGN156..KENP,SAP202411

main87107-0K180iGUN156,TGN156..MA202409

main87107-0K210iGUN156,16#,TGN166..IDN202409

87114BCOVER, HEATER

main87114-0K040iGGN155,GUN15#,16#,TGN156,166..CAMP,THP,VNP202408

main87114-0K050iGUN15#,16#,TGN156..KENP,SAP202411

main87114-0K060iGGN155,GUN15#,16#,TGN156,166..IDNP202409

main87114-0K070iGGN155,GUN156,16#,TGN156,166..LA202411

main87114-0K090iGUN15#,TGN156..MA202409

87124BCLAMP, HEATER

main87124-06140iGUN165..S..PH;GUN165..GEN,IDN,TH,VN;GUN156,TGN156..CAMP,IDNP,MAP,THP,VNP;GGN155,GUN155,166,TGN166..IDNP,THP,VNP202408

main87124-0K220iGGN155,GUN156,16#,TGN156,166..AGTP202411

main87124-0K230iGUN15#,16#,TGN156..KENP,SAP202411

87128GROMMET, HEATER

main87128-0K150iGUN165..S..PH;GUN165..IDNP..(GEN,IDN,VN);GGN155,GUN15#,166,TGN156,166..IDNP202409

main87128-0K180iGGN155,GUN15#,16#,TGN156,166..CAMP,THP,VNP202408

main87128-0K190iGGN155,GUN156,16#,TGN156,166..AGTP202411

main87128-0K200iGUN15#,16#,TGN156..KENP,SAP202411

main87128-0K210iGUN155..MA202409

main87128-0K250iGUN156,TGN156..MA202409

87130DBLOWER ASSY

main87130-0K571iGUN156..IDNP..ARL202409

main87130-0K591iGUN155,165,TGN156,166..LHD..(THP,VNP)..L202408

main87130-0K601iGUN15#,TGN156..LHD..SAP202411

main87130-0K621iGUN15#,16#..RHD..THP202408

main87130-0K631iGGN155,GUN15#,165,TGN156,166..LHD..(CAMP,THP,VNP)..(H,S); TGN156..THP..L202408

FRONT AIR CONDITIONER-AUTO

main87130-0K651iGUN165..L..PH202409

main87130-0K661iGUN155,165,TGN156,166..IDNP..L..(GCC,GEN,VN)202409

main87130-0K681iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP..(H,S); TGN156..IDNP..L202409

FRONT AIR CONDITIONER-AUTO

main87130-0K691iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202409

main87130-0K721iGUN156,16#,TGN156,166..(L,S)..LA202411

main87130-0K731iGGN155,GUN156,166,TGN166..AGTP..H; GUN16#,TGN156,166..L..LA202411

FRONT AIR CONDITIONER-AUTO

main87130-0K801iGUN155,165..L..(KEN,SA)202411

main87130-0K811iGUN156,166..RHD..(KEN,SA)202411

main87130-0K841iGUN155..MA202409

main87130-0K851iGUN156,TGN156..MA202409

87130MSCREW(FOR BLOWER)

main88718-0A020×5iGUN165..VNP..L202409

main90068-00042×5iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP,VNP);GGN155,GUN155,16#,TGN156,166..(THP,VNP)..6FC202408

main90094-90426×5iGGN155,GUN156,16#,TGN156,166..AGTP202411

main90099-00968×5iGUN155..SAP..S;GGN155,GUN155,165,TGN166..IDNP,MAP;GUN156,166,TGN156..(IDNP,KENP,MAP,SAP)..(DCRL,HTWC)..(GCC,GEN,IDN,KEN,MA,PH,SA,VN)202409

87139CFILTER, CLEAN AIR

main87139-06130iGUN15#,16#..TH202408

MICRO DUST FILTER

main87139-0K030iGUN156,16#,TGN166..IDN,PH202409

POLLEN FILTER

main87139-0K040iGGN155,GUN15#,165,TGN156,166..IDNP..(ARL,GCC,GEN,SA,VN)202409

POLLEN FILTER

main87139-0K070iGGN155,GUN15#,165,TGN156,166..(CAMP,THP,VNP)..(ARL,GCC,GEN,VN)202408

POLLEN FILTER

main87139-0K080iGGN155,GUN156,16#,TGN156,166..AGTP202411

POLLEN FILTER

main87139-0K090iGUN15#,16#,TGN156..KENP,SAP202411

POLLEN FILTER

main87139-0K100iGUN15#,TGN156..MA202409

POLLEN FILTER

main87139-58010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

main87165-0K060iGUN156,165..THP..L;GGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP)..(6F,6FC)..(H,S); TGN166..L..LA;GUN16#,TGN156..L..(GCC,GEN,LA)202408

FRONT AIR CONDITIONER-AUTO

87417APACKING, AIR DUCT

main87417-0K050iGUN15#,16#,TGN156..KENP,SAP202411

87710GQUICK HEATER ASSY

main87710-0K120iGUN156..BZAGT202411

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K320supersedes 88501-0K330iGUN15#,16#..(H,S)..TH; GUN156..ARL;GUN165..L..TH202408

TOYOTA STOP & START SYSTEM-WITHOUT

main88501-0K390iGGN155,GUN15#,165,TGN156,166..LHD..(CAMP,THP,VNP)202408

main88501-0K420iGUN15#,TGN156..LHD..SAP202411

main88501-0K430iGUN15#,16#..RHD..DCRL..(KEN,SA)202411

main88501-0K450iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202409

main88501-0K460iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202409

main88501-0K480iGGN155,GUN156,16#,TGN156,166..AGTP202411

main88501-0K500iGUN156,166..MHV..SA202411

main88501-0K510iGUN15#,TGN156..MA202409

main88501-0K620iGUN156,166..IDN202409

TOYOTA STOP & START SYSTEM-WITH

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14044iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP,VNP);GGN155,GUN155,16#,TGN156,166..(THP,VNP)..6FC202408

ID=10.2,OD=15.0

main90069-38042iGUN15#,166,TGN156..(KENP,SAP)..S..(DCRL,HTWC)202411

ID=13.4,OD=18.27

main90099-14121iGUN165..VNP..L;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP)..(BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,VN)202409

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90068-14043iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP,VNP);GGN155,GUN155,16#,TGN156,166..(THP,VNP)..6FC202408

ID=13.4,OD=18.2

main90069-38041iGUN15#,166,TGN156..(KENP,SAP)..S..(DCRL,HTWC)202411

ID=10.8,OD=15.47

main90099-14120iGUN165..VNP..L;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP)..(BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,VN)202409

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-0K580iGUN15#,16#..(H,S)..TH; GUN165..L..TH;GGN155,GUN155..GEN,KEN,MA,SA;GUN156,16#,TGN156,166..(DCRL,HTWC)..(ARL,BZAGT,GEN,IDN,KEN,LA,MA,PH,SA,VN)202408

TOYOTA STOP & START SYSTEM-WITHOUT

main88515-0K590iGGN155,GUN155..GCC,LA;GUN156,TGN156,166..GCC202408

main88515-0K670iGUN15#,16#..(H,S)..TH202408

main88515-0K680iGUN156,166..MHV..SA202411

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04042×2iGGN155,GUN156,16#,TGN156,166..AGTP202411

main90068-04062×2iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP,VNP);GGN155,GUN155,16#,TGN156,166..(THP,VNP)..6FC202408

main90099-04542×2iGUN155..SAP..S;GUN165..VNP..L;GUN155,165..IDNP,MAP;GGN155,GUN156,166,TGN156,166..(IDNP,KENP,MAP,SAP)..(DCRL,HTWC)..(GCC,GEN,IDN,KEN,MA,PH,SA,VN)202409

88539JHOSE, DRAIN COOLER

main88539-0K330iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202409

main88539-0K340iGUN15#,16#,TGN156,166..RHD..IDNP202409

main88539-0K380iGGN155,GUN15#,165,TGN156,166..LHD..(CAMP,THP,VNP)202408

main88539-0K390iGUN15#,16#..RHD..THP202408

main88539-0K410iGGN155,GUN156,16#,TGN156,166..AGTP202411

main88539-0K420iGUN15#,TGN156..LHD..SAP202411

main88539-0K430iGUN15#,16#..RHD..(KEN,SA)202411

main88539-0K470iGUN15#,TGN156..MA202409

88548BCASE, AIR FILTER

main88548-0K091iGGN155,GUN15#,16#,TGN156,166..IDNP202409

main88548-0K111iGGN155,GUN156,16#,TGN156,166..AGTP202411

main88548-0K121iGUN15#,16#,TGN156..KENP,SAP202411

main88548-0K131iGUN15#,TGN156..MA202409

main88899-06330iGGN155,GUN15#,16#,TGN156,166..CAMP,THP,VNP202408

88625THERMISTOR, COOLER, NO.1

main88620-0K010iGUN15#,16#..(H,S)..TH; GUN165..L..TH;GGN155,GUN15#,16#,TGN156,166..(DCRL,HTWC)..(ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,SA,VN)202408

TOYOTA STOP & START SYSTEM-WITHOUT

main88620-0K020iGUN156,166..MHV..SA;GUN15#,16#..(H,S)..TH202408

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K470iGUN155,165..L..(MA,PH)202409

main88650-0K730iGUN155..S..SA;GUN156,165..THP..L;GUN155..RHD..(GEN,TH);GGN155,GUN156,16#,TGN156,166..(IDNP,KENP,MAP,SAP,THP,VNP)..(H,S)..(ARL,GEN,IDN,KEN,MA,PH,SA,TH,VN)202408

main88650-0K830iGUN156..IDNP..ARL;GUN155,165,TGN156,166..L..(GCC,GEN,KEN,SA,VN)202408

main88650-0K840iGUN156,16#,TGN156,166..(L,S)..LA202411

main88650-0K850iGGN155,GUN155,TGN156..S..GCC; TGN156..L..GCC202408

FRONT AIR CONDITIONER-AUTO

main88650-0K870iGGN155,GUN15#..H..GCC202408

main88650-0K880iGGN155,GUN156,166,TGN166..AGTP..H; GUN16#,TGN156,166..L..LA202411

FRONT AIR CONDITIONER-AUTO

main88650-0K890iGUN155..RHD..GEN;GUN165,TGN156,166..6FC..GEN;GUN156,166..(AGTP,IDNP,THP)..(BZAGT,GEN,PH); GUN156..CAMP;GUN155..LHD..H..GEN202408

SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGGN155,GUN15#,165,TGN156,166..LHD..(CAMP,THP,VNP)202408

main88894-0K020iGUN15#,16#..RHD..THP202408

main88894-0K040iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202409

main88894-0K050iGUN15#,16#,TGN156,166..RHD..IDNP202409

main88894-0K100iGUN15#,TGN156..LHD..SAP202411

main88894-0K110iGUN15#,16#..RHD..(KEN,SA)202411

main88894-0K130iGUN15#,TGN156..MA202409

main88894-0K280iGGN155,GUN156,16#,TGN156,166..AGTP202411

8719387101

main87193-87101

9006800041

main90068-00041

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0053

main90178-T0053

90178T0065

main90178-T0065

9017906323

main90179-06323

90185T0001

main90185-T0001

9167380616

main91673-80616

38 parts on this diagram · 8 diagrams in section
