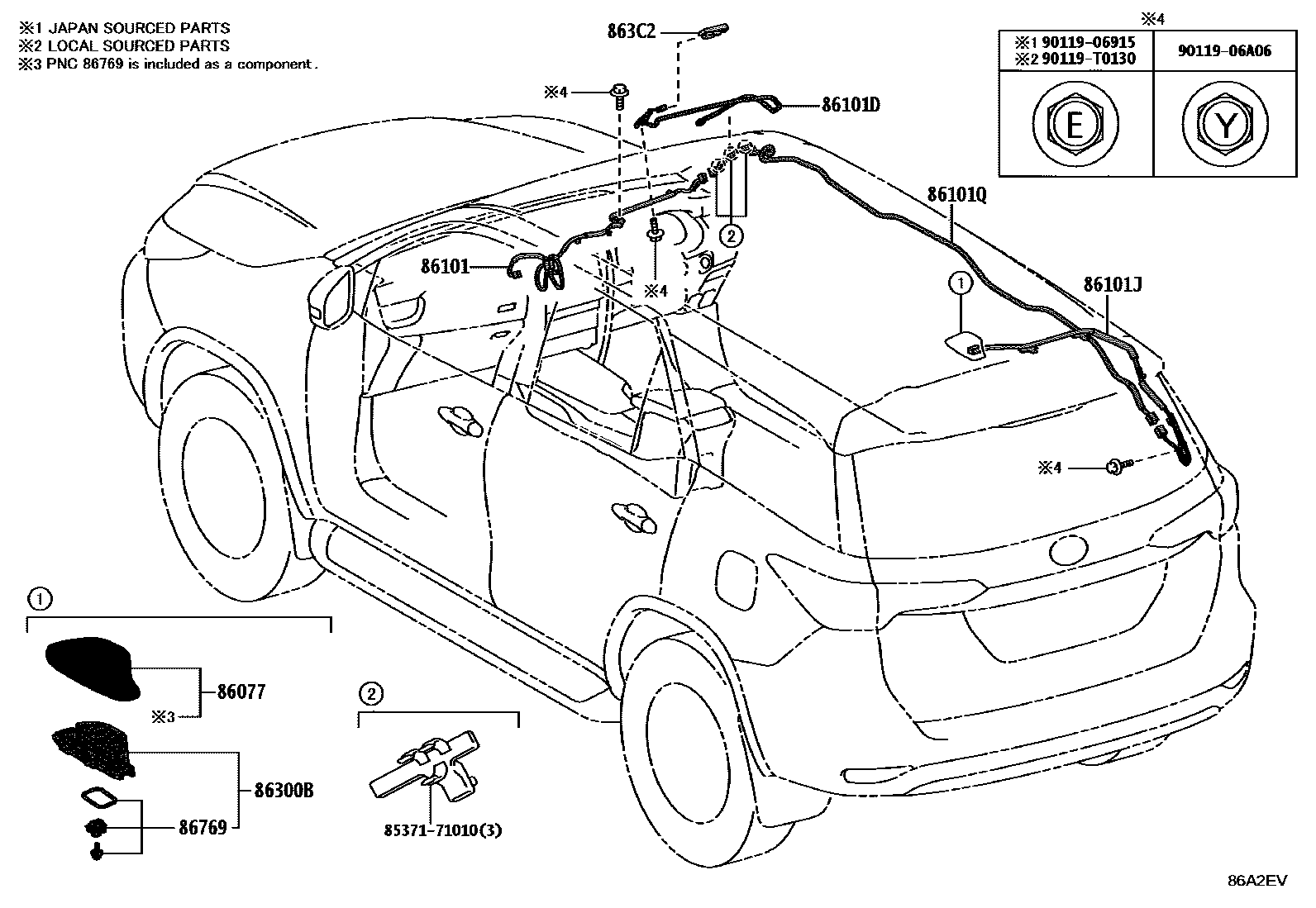

ANTENNA
86077COVER KIT, ANTENNA
main86077-0K010-A1iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH,VN202408-202412
SUPER WHITE 2,040
main86077-0K010-A3iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN202408-202412
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
SILVER ME.,1D6
MEDIUM SILVER ME.,1F8
main86077-0K010-B3iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN202408-202412
GRAY ME.,1G3
main86077-0K010-B8iGUN156..L..LA;GUN156..H..(ARL,BZAGT,GCC,GEN,LA,TH);GGN155,GUN155,16#,TGN156,166..GCC,GEN,LA,TH202408-202412
SILVER ME.,1L0
main86077-0K010-C0iGUN156,166,TGN166..IDN,PH; GUN156..MA; GUN156..VNP;TGN166..IDNP..VN;GUN156,166..RHD..SA;GUN165,TGN156..H..VN202409-202412
ATTITUDE BLACK MC.,218 ,2PS; ATTITUDE BLACK MC.,218 ,2PS ,2QY; ATTITUDE BLACK MC.,218 ,2UE ,2VM
SPARKLING BLACK PEARL CS.,220
main86077-0K010-D3iGUN156..H..(ARL,GCC,GEN,TH);GGN155,GUN155,16#,TGN156,166..GCC,GEN,TH202408-202412
EMOTIONAL RED 2,3U5
AVANT-GARDE BRONZE ME.,4V8
main86077-0K010-E1iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH,VN202408-202412
PHANTOM BROWN ME.,4W9
BRONZE M.M.,4T3
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
main86077-0K010-J3iGUN156..H..(ARL,GCC,GEN,TH);GGN155,GUN155,16#,TGN156,166..GCC,GEN,TH202408-202412
DK. BLUE MC.,8X8
CKD COLOR,000
main86077-0K060-A1iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,MAP,SAP,THP)..(BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH,VN)202412
SUPER WHITE 2,040
main86077-0K060-A2iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,SAP,THP)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)202412
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
main86077-0K060-B1iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,KENP,SAP)..(GCC,GEN,IDN,KEN,PH,SA,VN)202412
SILVER ME.,1D6
MEDIUM SILVER ME.,1F8
main86077-0K060-B3iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,KENP,SAP,THP)..(BZAGT,GCC,GEN,IDN,KEN,LA,PH,SA,TH,VN)202412
GRAY ME.,1G3
main86077-0K060-B4iGUN156..L..LA;GUN156..(AGTP,CAMP,THP)..H;GGN155,GUN155,16#,TGN156,166..AGTP,THP202412
SILVER ME.,1L0
main86077-0K060-C0iGGN155,GUN156,16#,TGN156,166..AGTP; GUN155,16#..H..TH;GUN156..(CAMP,THP)..(GEN,TH); GUN155..S..TH;GUN156..LHD..SAP;GUN156..THP..H..(ARL,GCC);GUN165..(IDNP,SAP,THP)..(L,S);GUN156..(IDNP,KENP)..(GCC,GEN,KEN,SA,VN);GGN155,GUN155,TGN156,166..GCC,GEN,KEN,MA,SA; GUN156,165..VNP..H; GUN156,166,TGN166..IDN,PH; GUN156,166..RHD..SA;TGN156,166..IDNP..VN; GUN156..MA202412
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS; ATTITUDE BLACK MC.,218 ,2PS ,2QY; ATTITUDE BLACK MC.,218 ,2PS ,2SC; ATTITUDE BLACK MC.,218 ,2PS ,M12; ATTITUDE BLACK MC.,218 ,2UE ,2VM; ATTITUDE BLACK MC.,2PS
SPARKLING BLACK PEARL CS.,220
EMOTIONAL RED 2,3U5
BRONZE M.M.,4T3
AVANT-GARDE BRONZE ME.,4V8
main86077-0K060-E2iGUN156..H..ARL;GGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,MAP,SAP,THP)..(BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH,VN)202412
PHANTOM BROWN ME.,4W9
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),SUPER WHITE 2,040; SUPER WHITE 2,040
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),PLATINUM WHITE PEARLMC.,089; PLATINUM WHITE PEARL MC.,089
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),GRAY ME.,1G3; GRAY ME.,1G3
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),SILVER ME.,1D6; SILVER ME.,1D6
ATTITUDE BLACK MC.,218; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),EMOTIONAL RED 2,3U5
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),PHANTOM BROWN ME.,4W9; PHANTOM BROWN ME.,4W9
DK. BLUE MC.,8X8; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),DK. BLUE MC.,8X8
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),SILVER ME.,1L0; SILVER ME.,1L0
86101CORD SUB-ASSY, ANTENNA
AUDIO-*DA(8INCH) & *BT; AUDIO-AUDIO (IN LINE ACCESSORY)
main86101-0KF81supersedes 86101-0K800iGUN156..THP..GCC; GUN156..THP..GEN;GGN155,GUN155,165,TGN156..LHD..THP..(H,S)202408
GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
main86101-0KJ71iGUN156..CAMP,VNP;GUN156,165..(H,S)..PH;GUN16#,TGN156..H..(PH,VN); GUN156..LHD..IDNP..GEN; GUN165..(L,S)..VN;GUN155,TGN166..(L,S)..(GEN,VN);GGN155,GUN165,TGN156..LHD..(H,L)..(GEN,PH); TGN156..VN;GUN156..LHD..IDNP..GEN202409
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); AUDIO-WITHOUT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0KJ81supersedes 86101-0K820iGUN155,165..LHD..(IDNP,VNP)..H;GUN155,165..LHD..(IDNP,SAP)..S..(GEN,PH,SA);GUN156..LHD..(CAMP,IDNP,SAP,VNP)..(GEN,PH,SA,VN);GGN155,GUN166,TGN156..LHD..(IDNP,SAP)..(H,S)..(GCC,PH,SA,VN); GUN156..IDNP..GCC; GUN165,TGN166..S..VN; TGN156,166..IDNP..L..GCC202409
AUDIO-*DA(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT; GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
AUDIO-WITHOUT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT & DAB
main86101-0KP60supersedes 86101-0KQ20iGGN155..IDNP..S;GUN15#,TGN156..LHD..SAP; GUN155..IDNP..L..GCC; GUN155..IDNP..S..GCC;TGN156,166..IDNP..L..GCC202409
AUDIO-*DA(FOR EMERGING MARKET); GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
main86101-0K820iGGN155..IDNP..GCC; GGN155..IDNP..H..GCC; GUN155..IDNP..S..GCC; GUN156..IDNP..GCC202409
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
MLM PACKAGE & ACCESSORY
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY
main86101-0KQ20iGGN155..IDNP..S;TGN156..IDNP..L..GCC; GUN155..IDNP..L..GCC; TGN156..IDNP..L..GCC;GGN155,TGN166..IDNP..(L,S)..GCC202409
SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-0KB80iGGN155..THP; GGN155..THP..H; GGN155..THP..S; GUN155..THP..L;GUN156..THP..(H,S)..(ARL,GCC); GUN156..L..ARL; TGN156,166..THP..L; TGN156..THP..L;GUN155..THP..S..GCC202408
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86101-0KL00iGGN155..IDNP..GCC; GGN155..IDNP..H..GCC; GGN155..IDNP..S;TGN156..IDNP..L..GCC; GUN155..IDNP..S..GCC; GUN16#..SA;GUN156..IDNP..GCC;GUN156..RHD..6FC..SA;GUN155..(IDNP,SAP)..6FC..L; TGN156..IDNP..L..GCC;GGN155,TGN166..IDNP..(L,S)..GCC202409
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-0KK90iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,KENP,MAP,SAP,VNP)..(GCC,GEN,IDN,KEN,MA,PH,SA,VN)202409
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-0KK81iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,KENP,MAP,SAP,VNP)..(GCC,GEN,IDN,KEN,MA,PH,SA,VN)202409
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-0K140iGGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,MAP,SAP,VNP)..(BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,VN)202409-202412
main86300-0K340iGGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,KENP,MAP,SAP,VNP)..(BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,SA,VN)202412
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
main863C2-0K010iGGN155..THP; GGN155..THP..H; GGN155..THP..S; GUN155..THP..L;GUN156..THP..(H,S)..(ARL,GCC); GUN155..THP..L;GUN156..THP..GCC; GUN156..THP..L; TGN156,166..THP..L; TGN156..THP..L;GUN155..THP..S..GCC202408
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY; SAUDI ARABIA SPEC; UAE SPEC
main863C2-0K030iGUN15#,165..RHD..6FC..DCRL..SA; GUN155,16#..RHD..SA;GUN156..RHD..6FC..SA; GUN156..RHD..6FC..DCRL..SA202411
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET)
main863C2-0K020iGGN155..IDNP..GCC; GGN155..IDNP..H..GCC; GUN155..IDNP..S..GCC; GUN156..IDNP..ARL; GUN156..IDNP..GCC;GUN155..IDNP..L..GCC; TGN156..IDNP..L..GCC;GGN155,TGN166..IDNP..(L,S)..GCC202409
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY; UAE SPEC
86769HOUSING, ROOF ANTENNA
main86769-0K020iGGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,IDNP,MAP,SAP,VNP)..(BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,VN)202409-202412
8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-71010
9011906915
main90119-06915
9011906A06
main90119-06A06
90119T0130
main90119-T0130
12 parts on this diagram · 1 diagram in section
