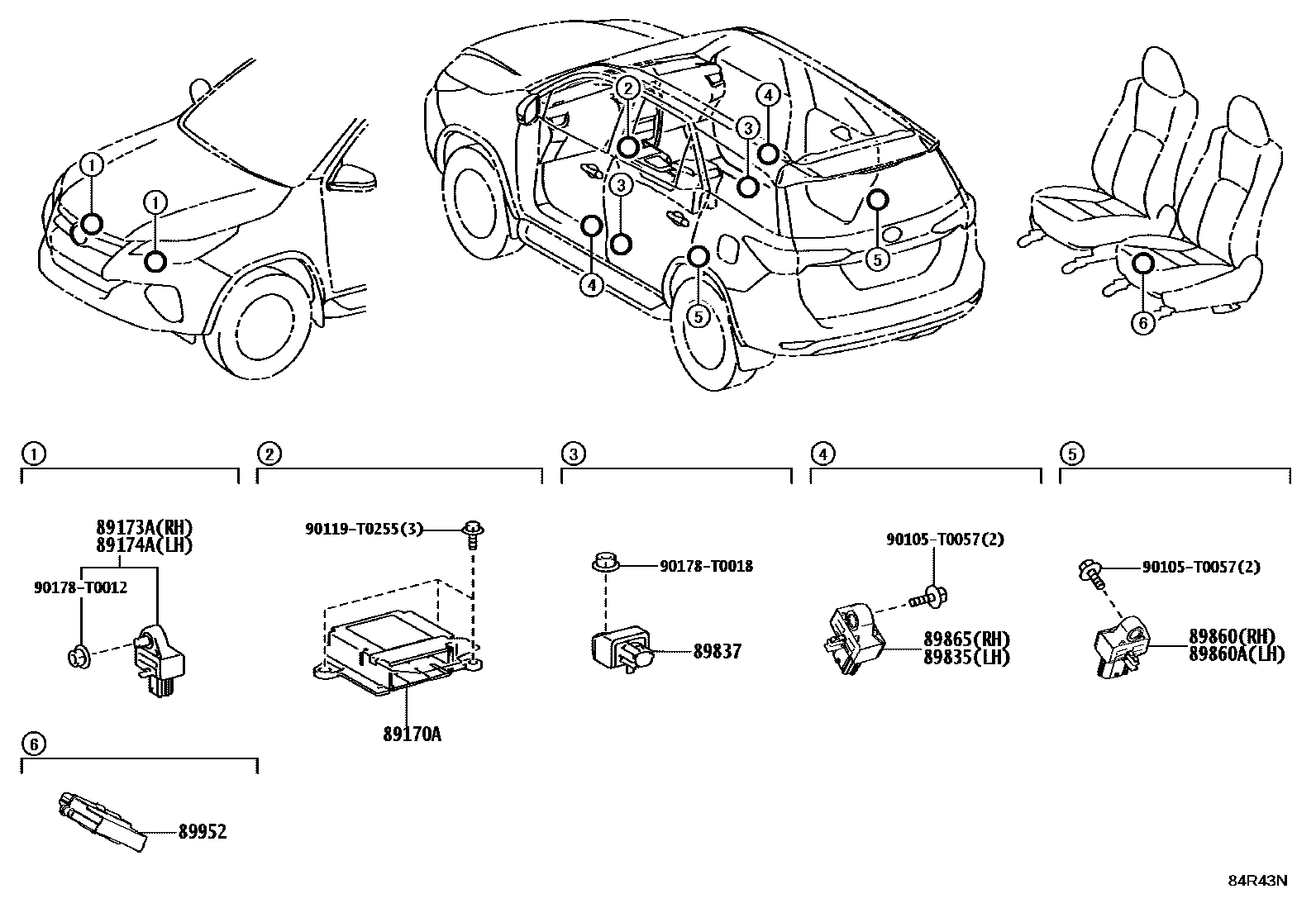

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K630iGUN156..THP..GCC;GGN155,GUN155..H..GCC;GUN165..(SAP,THP)..(GEN,SA);GUN156,165..LHD..IDNP..(GCC,GEN);GUN156,166..RHD..DCRL..(GEN,KEN,SA);GUN155,TGN156..(6F,6FC)..(H,L)..(GEN,KEN,SA)202408
main89170-0KB90iGUN165..PH,VN;TGN156..L..GEN;GUN156..(CAMP,THP)..GEN;GUN165..RHD..(IDNP,THP);GUN15#,TGN156..IDN,MA,PH,TH,VN;GGN155,GUN166,TGN166..GEN,IDN,PH,TH,VN202408
main89170-0KF60iGGN155,GUN15#,TGN156,166..LHD..(L,S)..(GCC,SA); GUN155..IDNP..H..GCC;GGN155,GUN156..H..GCC202408
SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-WITH(*DRP)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-0K040iGUN155..IDNP..H..GCC;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC; GUN155..L..GEN;GUN156..LHD..(H,L);TGN156..GEN,LA,MA,VN;GGN155,GUN155..LHD..H;GUN15#..RHD..(IDNP,KENP,MAP,SAP,THP);GUN16#,TGN166..GEN,IDN,LA,PH,SA,TH,VN202408
SRS AIR BAG-WITH(*DRP)
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-0K070iGUN155..IDNP..H..GCC;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC; GUN155..L..GEN;GUN156..LHD..(H,L);TGN156..GEN,LA,MA,VN;GGN155,GUN155..LHD..H;GUN15#..RHD..(IDNP,KENP,MAP,SAP,THP);GUN16#,TGN166..GEN,IDN,LA,PH,SA,TH,VN202408
SRS AIR BAG-WITH(*DRP)
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89831-0K070iGUN155..IDNP..H..GCC;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC; GUN155..L..GEN;GUN156..LHD..(H,L);TGN156..GEN,LA,MA,VN;GGN155,GUN155..LHD..H;GUN15#..RHD..(IDNP,KENP,MAP,SAP,THP);GUN16#,TGN166..GEN,IDN,LA,PH,SA,TH,VN202408
SRS AIR BAG-WITH(*DRP)
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-0K040iGUN155..IDNP..H..GCC;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC; GUN155..L..GEN;GUN156..LHD..(H,L);TGN156..GEN,LA,MA,VN;GGN155,GUN155..LHD..H;GUN15#..RHD..(IDNP,KENP,MAP,SAP,THP);GUN16#,TGN166..GEN,IDN,LA,PH,SA,TH,VN202408
SRS AIR BAG-WITH(*DRP)
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
13 parts on this diagram · 1 diagram in section
