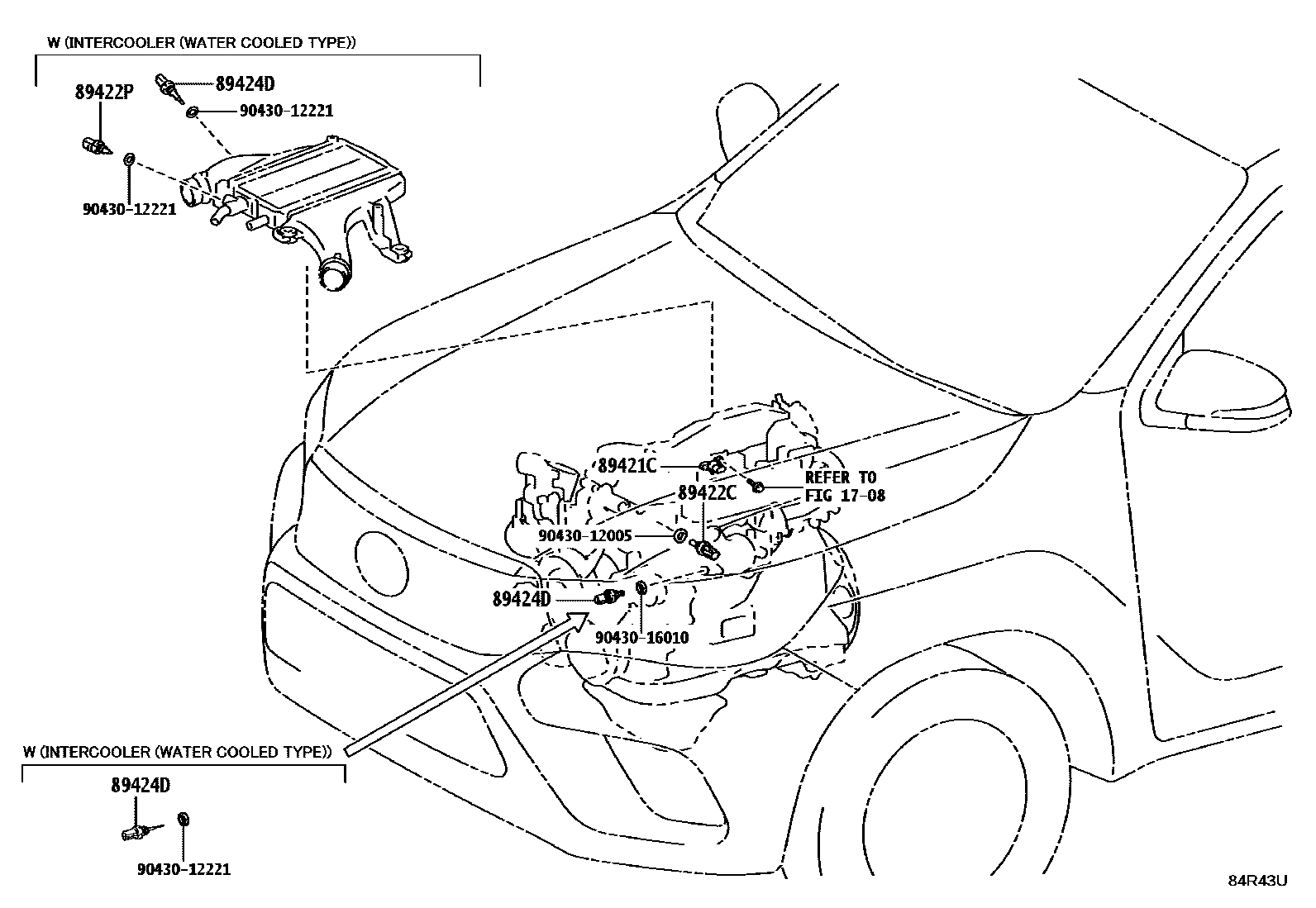

ELECTRONIC CONTROLED DIESEL (ECD)

1708VACUUM PIPING

→ Go to FIG 17-08

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030i202408

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030i202408

89422PSENSOR, WATER TEMPERATURE

main89422-33030i202411

EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS)

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010i202408

main89424-60020i202411

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),INTERCOOLER SIDE; EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),INTERCOOLER SIDE; EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS),INTERCOOLER SIDE; EXHAUST EMISSION CONTROL-WITHOUT,INTERCOOLER SIDE; INTERCOOLER SIDE

9043012005

main90430-12005

9043012221

main90430-12221

9043016010

main90430-16010

8 parts on this diagram · 2 diagrams in section
