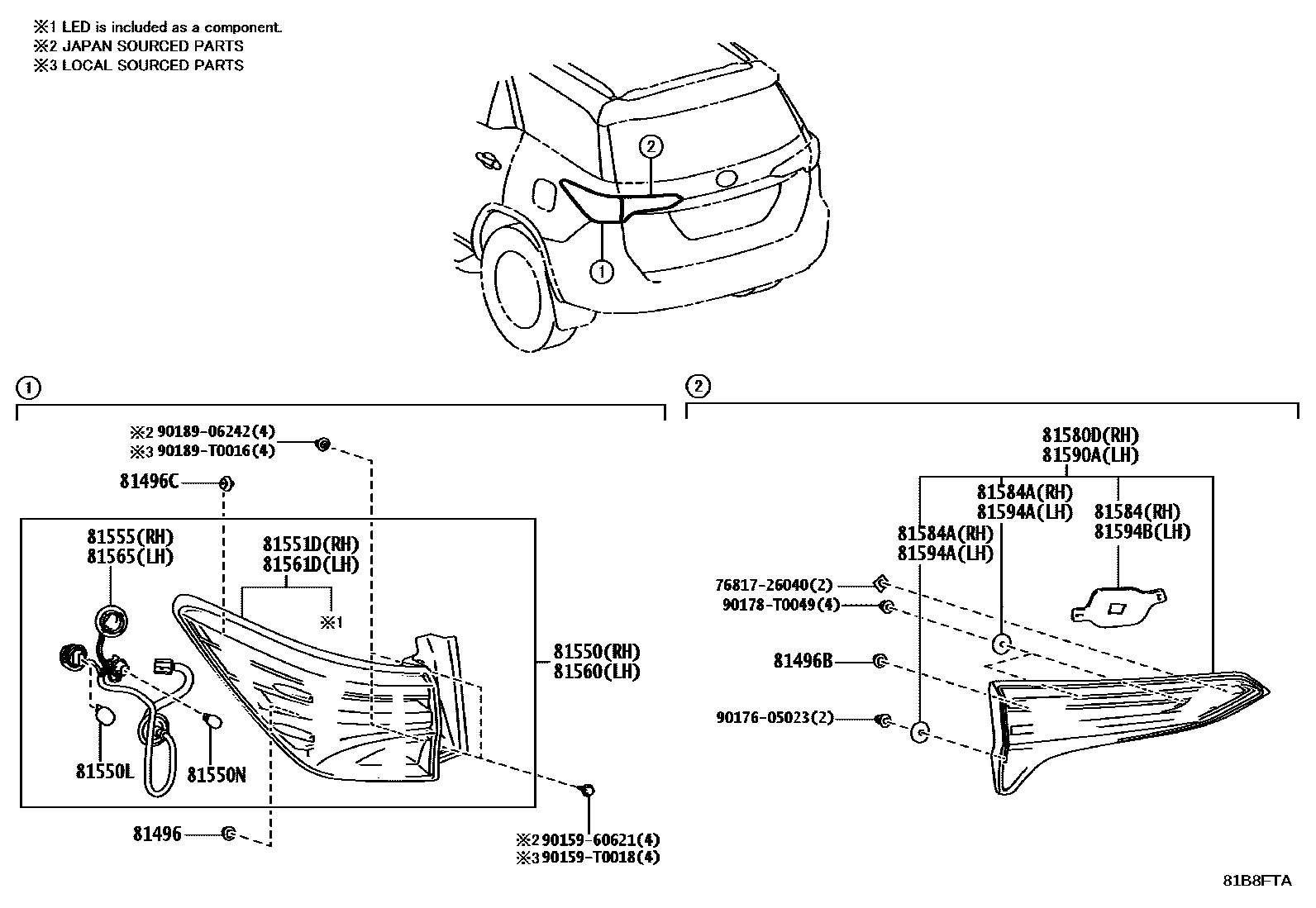

REAR COMBINATION LAMP
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LAMP ASSY, REAR COMBINATION, RH
main81550-0K352iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81550-0K512iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81550-0K531iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81550-0K522iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81550-0K541iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81550LBULB, REAR TURN SIGNAL LAMP
main90981-15011×2iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(L,S)..(ARL,GCC,GEN,KEN,LA,MA,SA,VN)202408
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81551DLENS & BODY, REAR COMBINATION LAMP, RH
main81551-0K352iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81551-0K512iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81551-0K530iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81551-0K522iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81551-0K540iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-0K350iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81555-0K510iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81555-0K530iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81555-0K520iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81555-0K540iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81560LAMP ASSY, REAR COMBINATION, LH
main81560-0K352iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81560-0K512iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81560-0K531iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81560-0K522iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81560-0K541iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81561DLENS & BODY, REAR COMBINATION LAMP, LH
main81561-0K352iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81561-0K512iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81561-0K530iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81561-0K522iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81561-0K540iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-0K350iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81555-0K510iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81555-0K530iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81555-0K520iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81555-0K540iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81580DLAMP ASSY, REAR, RH
main81580-0K082iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81580-0K181iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81580-0K200iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81580-0K191iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81580-0K210iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81584PACKING, REAR LAMP RH
main81582-0K180iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81582-0K200iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81584AGASKET, REAR LAMP RH
main81584-0K180×3iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81584-0K200×3iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81590ALAMP ASSY, REAR, LH
main81590-0K082iGGN155,GUN15#,16#,TGN156,166..(KENP,MAP,SAP,THP)..(L,S)..(ARL,GCC,GEN,KEN,MA,SA)202408
main81590-0K181iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81590-0K200iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL)
BRAZIL SPEC&GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); BRAZIL SPEC&MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81590-0K191iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..THP..GEN;GUN156,166..RHD..(MA,SA)202408
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
main81590-0K210iGUN156..IDNP..(IDN,PH,VN); GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH); GUN166..PH;GUN156..IDN202409
GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81594AGASKET, REAR LAMP LH
main81584-0K180×3iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81584-0K200×3iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81594BPACKING, REAR LAMP LH
main81582-0K180iGUN16#,TGN156..MA,TH;GUN155..THP..(GEN,TH);GUN156..(CAMP,MAP,THP)..H;GGN155,GUN155..THP..H..GCC202408
main81582-0K200iGUN165..S..(IDN,PH);GGN155,GUN15#,16#,TGN156,166..(IDNP,VNP)..H; TGN166..IDNP..VN202409
HEADLAMP-LED & WITH(*DRL); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
main76817-26040
9015960621
main90159-60621
90159T0018
main90159-T0018
9017605023
main90176-05023
90178T0049
main90178-T0049
9018906242
main90189-06242
90189T0016
main90189-T0016
24 parts on this diagram · 2 diagrams in section
