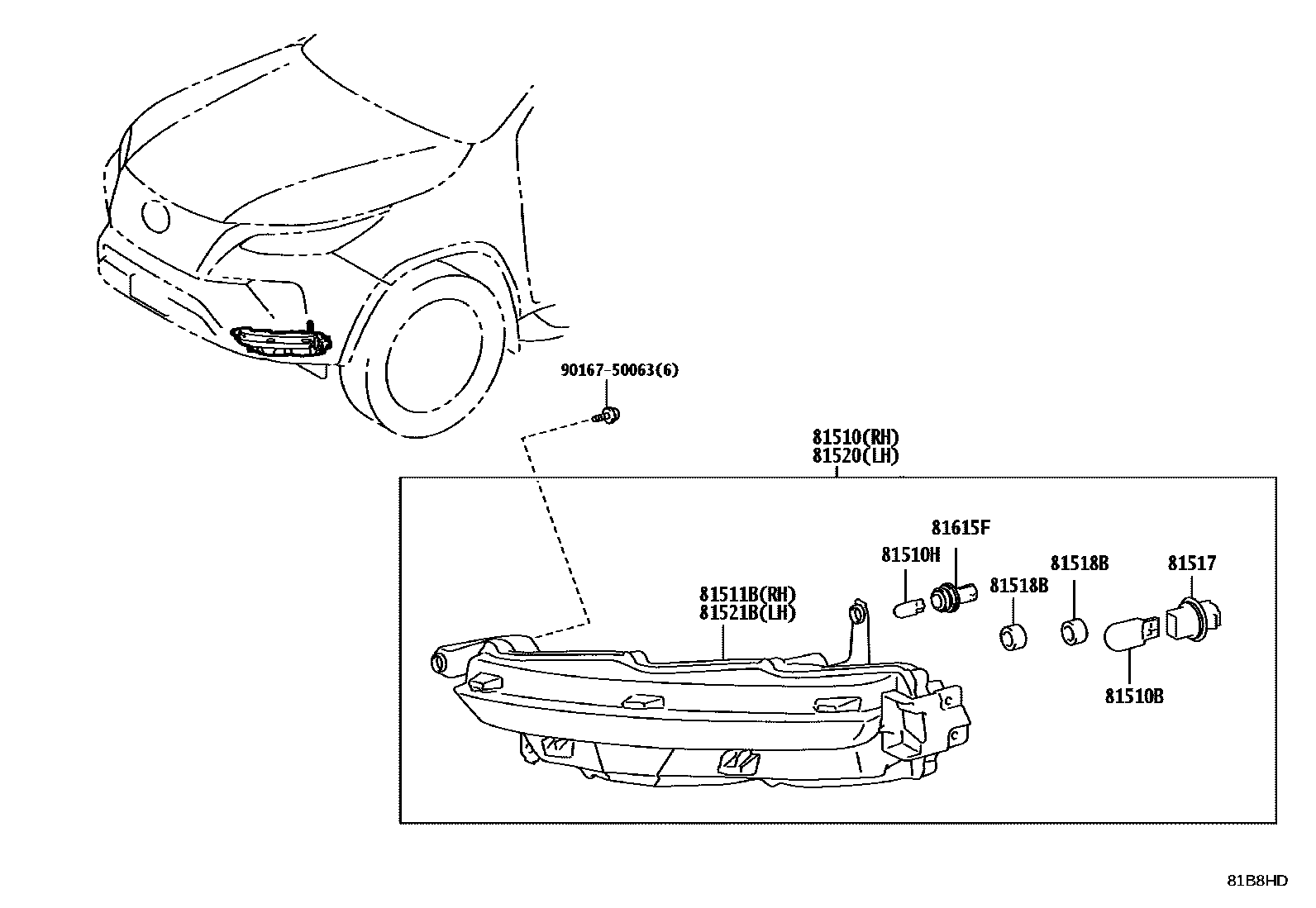

FRONT TURN SIGNAL LAMP
81510LAMP ASSY, FRONT TURN SIGNAL, RH
main81510-0K040iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP,THP,VNP)..(L,S)..(ARL,GCC,GEN,LA,MA,SA,VN)202408
main81510-0K052iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..VNP;GUN156..MA,PH;GUN165,TGN156..H..VN;GUN156..LHD..(IDNP,THP)..GEN; GUN165..S..PH;GUN165..IDN,TH;GUN155..6FC..(GEN,TH);GUN155,165..H..(GCC,VN);GGN155,GUN156,166,TGN156,166..(AGTP,CAMP,IDNP,MAP,THP,VNP)..H; GUN166..LHD..H;GUN156..H..(BZAGT,IDN,LA);GGN155,GUN155,165..H..(LA,TH)202408
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81510-0K070iGUN15#,16#,TGN156..KENP,SAP; GUN156..6FC..DCRL..SA; GUN156..6FC..KEN;GUN155,165..L..SA; GUN156..RHD..SA;GUN155,166..SAP..S;GUN156..LHD..6FC..SA202411
FRONT BUMPER-PAINTED(GR SPORT)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81510-0K062iGUN156..H..(IDN,LA); GUN156..IDNP..VN; GUN156..PH; GUN166,TGN166..IDNP..(PH,VN); GUN166..LHD..H;GGN155,GUN156..H..(BZAGT,IDN,LA)202409
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81510BBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021×2iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(L,S)..(ARL,GCC,GEN,KEN,LA,MA,SA,VN)202408
12V 21W,AMBER
81510HBULB (FOR FRONT CLEARANCE LAMP)
main90981-11069×2iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(L,S)..(ARL,GCC,GEN,KEN,LA,MA,SA,VN)202408
81511BLENS & BODY, FRONT TURN SIGNAL LAMP, RH
main81511-0K040iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP,THP,VNP)..(L,S)..(ARL,GCC,GEN,LA,MA,SA,VN)202408
main81511-0K070iGUN15#,16#,TGN156..KENP,SAP; GUN156..6FC..DCRL..SA; GUN156..6FC..KEN;GUN155,165..L..SA; GUN156..RHD..SA;GUN155,166..SAP..S;GUN156..LHD..6FC..SA202411
FRONT BUMPER-PAINTED(GR SPORT)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81517SOCKET, FRONT TURN SIGNAL LAMP
main90075-60028×2iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP,THP,VNP)..(L,S)..(ARL,GCC,GEN,LA,MA,SA,VN)202408
81518BSOCKET COVER, FRONT TURN SIGNAL LAMP
main90075-15509×4iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP,THP,VNP)..(L,S)..(ARL,GCC,GEN,LA,MA,SA,VN)202408
81520LAMP ASSY, FRONT TURN SIGNAL, LH
main81520-0K040iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP,THP,VNP)..(L,S)..(ARL,GCC,GEN,LA,MA,SA,VN)202408
main81520-0K052iGUN15#,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; GUN156..VNP;GUN156..MA,PH;GUN165,TGN156..H..VN;GUN156..LHD..(IDNP,THP)..GEN; GUN165..S..PH;GUN165..IDN,TH;GUN155..6FC..(GEN,TH);GUN155,165..H..(GCC,VN);GGN155,GUN156,166,TGN156,166..(AGTP,CAMP,IDNP,MAP,THP,VNP)..H; GUN166..LHD..H;GUN156..H..(BZAGT,IDN,LA);GGN155,GUN155,165..H..(LA,TH)202408
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81520-0K070iGUN15#,16#,TGN156..KENP,SAP; GUN156..6FC..DCRL..SA; GUN156..6FC..KEN;GUN155,165..L..SA; GUN156..RHD..SA;GUN155,166..SAP..S;GUN156..LHD..6FC..SA202411
FRONT BUMPER-PAINTED(GR SPORT)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main81520-0K062iGUN156..H..(IDN,LA); GUN156..IDNP..VN; GUN156..PH; GUN166,TGN166..IDNP..(PH,VN); GUN166..LHD..H;GGN155,GUN156..H..(BZAGT,IDN,LA)202409
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81521BLENS & BODY, FRONT TURN SIGNAL LAMP, LH
main81521-0K040iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP,THP,VNP)..(L,S)..(ARL,GCC,GEN,LA,MA,SA,VN)202408
main81521-0K070iGUN15#,16#,TGN156..KENP,SAP; GUN156..6FC..DCRL..SA; GUN156..6FC..KEN;GUN155,165..L..SA; GUN156..RHD..SA;GUN155,166..SAP..S;GUN156..LHD..6FC..SA202411
FRONT BUMPER-PAINTED(GR SPORT)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81615FSOCKET, CLEARANCE LAMP
main90075-60066×2iGUN165..L..PH;GGN155,GUN15#,16#,TGN156,166..(AGTP,IDNP,MAP,THP,VNP)..(L,S)..(ARL,GCC,GEN,LA,MA,SA,VN)202408
9016750063
main90167-50063
10 parts on this diagram · 2 diagrams in section
