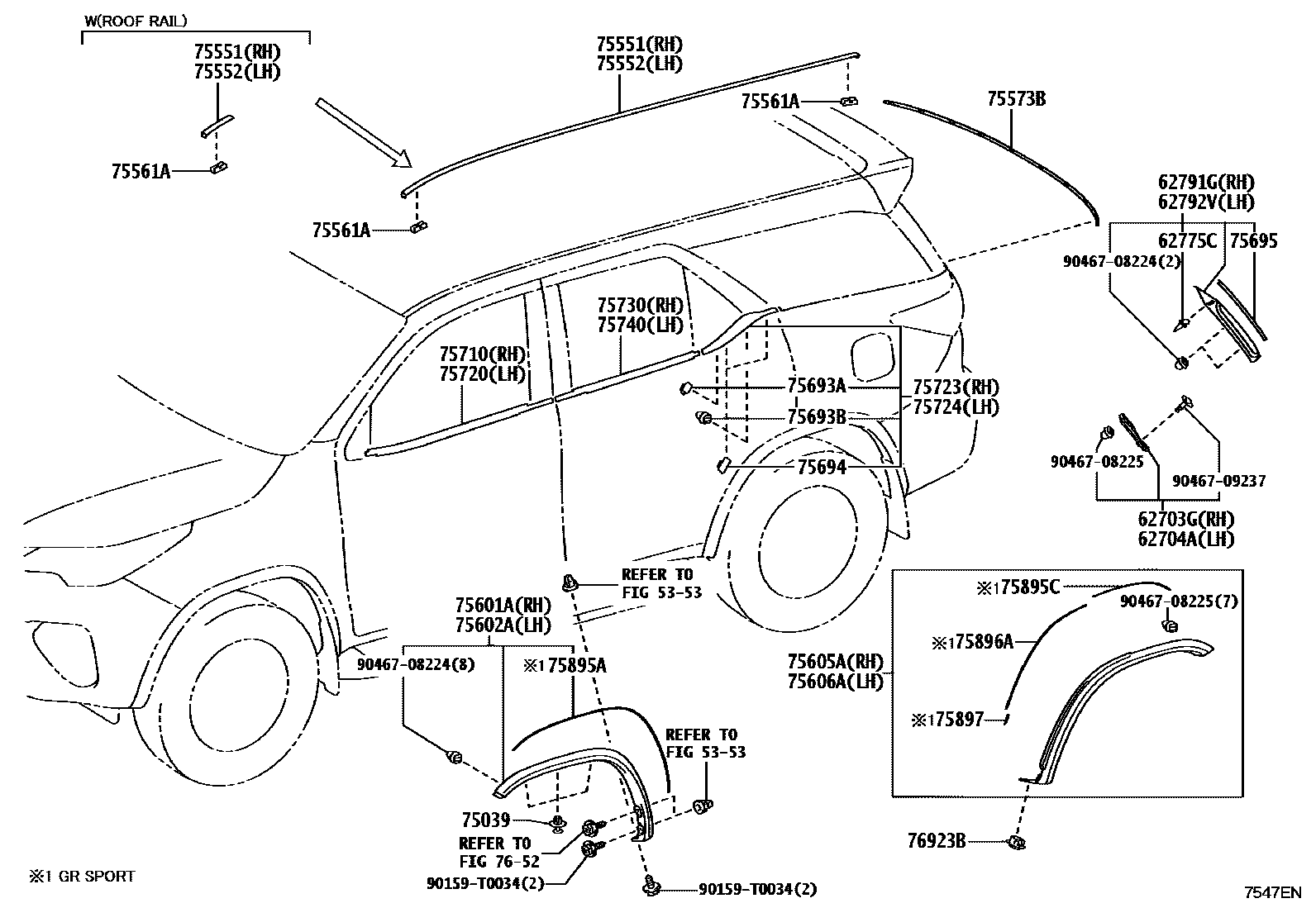

MOULDING
5353HOOD & FRONT FENDER
62703GRETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR RH
62704ARETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR LH
62775CCLIP, QUARTER WINDOW
62791GMOULDING, QUARTER WINDOW, UPPER RH
62792VMOULDING, QUARTER WINDOW, UPPER LH
75039CLIP SUB-ASSY, OUTSIDE MOULDING
(J); GR SPORT
(J)
(L); GR SPORT & ACCESSORY
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
main75551-0K200iGUN15#,TGN156..LHD..SAP;GUN156,165,TGN166..THP..L; TGN166..L..LA;GUN15#,16#,TGN156..LHD..(AGTP,THP)..6FC..L202408
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITHOUT
main75551-0K210iGUN165,TGN166..IDNP..(H,S);TGN156..IDNP..(GCC,GEN,VN);GGN155,GUN15#,166..IDNP..(GCC,GEN,IDN,PH,SA,VN); TGN156..IDNP..SA;GUN165..IDNP..L..VN202409
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITH
main75551-0K220iGUN155,TGN156..IDNP..(6F,6FC)..L;GGN155,TGN166..LHD..IDNP..(GEN,VN); TGN156..IDNP..SA;GUN156,165,TGN166..IDNP..L202409
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITHOUT
main75551-0K230iGUN156..RHD..(KEN,SA);GGN155,GUN16#,TGN166..LA,SA;GUN15#,TGN156..(AGTP,KENP,SAP)..(H,L)202410
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITH
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITHOUT
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
main75552-0K200iGUN15#,TGN156..LHD..SAP;GUN156,165,TGN166..THP..L; TGN166..L..LA;GUN15#,16#,TGN156..LHD..(AGTP,THP)..6FC..L202408
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITHOUT
main75552-0K210iGUN165,TGN166..IDNP..(H,S);TGN156..IDNP..(GCC,GEN,VN);GGN155,GUN15#,166..IDNP..(GCC,GEN,IDN,PH,SA,VN); TGN156..IDNP..SA;GUN165..IDNP..L..VN202409
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITH
main75552-0K220iGUN155,TGN156..IDNP..(6F,6FC)..L;GGN155,TGN166..LHD..IDNP..(GEN,VN); TGN156..IDNP..SA;GUN156,165,TGN166..IDNP..L202409
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITHOUT
main75552-0K230iGUN156..RHD..(KEN,SA);GGN155,GUN16#,TGN166..LA,SA;GUN15#,TGN156..(AGTP,KENP,SAP)..(H,L)202410
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITH
NO PAINT REQ.; NO PAINT REQ.,ROOF RAIL-WITHOUT
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-52020×2iGGN155..GEN;GUN156,TGN166..6FC..(L,S)..(LA,VN);GUN155,16#,TGN156..(6F,6FC)..L..(GCC,GEN,LA); GUN155..L..SA;GUN165..H..VN;GUN165..GEN,IDN,LA,SA;TGN166..GEN,IDN,LA,VN;TGN156..GCC,GEN,LA,MA,VN;GUN155..IDNP,KENP,MAP,THP;GGN155,GUN166..AGTP,IDNP,SAP,THP;GUN165..(IDNP,THP)..(H,S)..(PH,TH,VN);GUN156..LHD..(AGTP,CAMP,IDNP,THP,VNP);GUN156..RHD..(IDNP,KENP,MAP,SAP,THP)..(H,S); TGN156..SA;GUN156,165,TGN166..(IDNP,THP)..L;GUN15#,165..LHD..(SAP,VNP)..(L,S)202408
ROOF RAIL-WITHOUT
75573BMOULDING, BACK WINDOW, OUTSIDE
main75573-0K010iTGN166..(AGTP,IDNP,VNP)..6FC..(H,S);GGN155,GUN15#,16#,TGN156..(AGTP,CAMP,IDNP,MAP,THP,VNP)..H202408
main75573-0K060iTGN166..(L,S)..(GCC,LA);GGN155,GUN15#,16#,TGN156..(L,S)..(ARL,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
GR SPORT & ACCESSORY,PLATINUM WHITE PEARL MC.,2PS
GR SPORT & ACCESSORY,ATTITUDE BLACK MC.,218
GR SPORT & ACCESSORY,EMOTIONAL RED 2,2SC
GR SPORT,PLATINUM WHITE PEARL MC.,089; GR SPORT,PLATINUM WHITE PEARL MC.,2PS
GR SPORT,ATTITUDE BLACK MC.,218
GR SPORT,PLATINUM WHITE PEARL MC.,089
GR SPORT,ATTITUDE BLACK MC.,218
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
GR SPORT & ACCESSORY,PLATINUM WHITE PEARL MC.,2PS
GR SPORT & ACCESSORY,ATTITUDE BLACK MC.,218
GR SPORT & ACCESSORY,EMOTIONAL RED 2,2SC
GR SPORT,PLATINUM WHITE PEARL MC.,089; GR SPORT,PLATINUM WHITE PEARL MC.,2PS
GR SPORT,ATTITUDE BLACK MC.,218
GR SPORT,PLATINUM WHITE PEARL MC.,089
GR SPORT,ATTITUDE BLACK MC.,218
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
GR SPORT & ACCESSORY,PLATINUM WHITE PEARL MC.,2PS
GR SPORT & ACCESSORY,ATTITUDE BLACK MC.,218
GR SPORT & ACCESSORY,EMOTIONAL RED 2,2SC
GR SPORT,PLATINUM WHITE PEARL MC.,089; GR SPORT,PLATINUM WHITE PEARL MC.,2PS
GR SPORT,ATTITUDE BLACK MC.,218
GR SPORT,PLATINUM WHITE PEARL MC.,089
GR SPORT,ATTITUDE BLACK MC.,218
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
GR SPORT & ACCESSORY,PLATINUM WHITE PEARL MC.,2PS
GR SPORT & ACCESSORY,ATTITUDE BLACK MC.,218
GR SPORT & ACCESSORY,EMOTIONAL RED 2,2SC
GR SPORT,PLATINUM WHITE PEARL MC.,089; GR SPORT,PLATINUM WHITE PEARL MC.,2PS
GR SPORT,ATTITUDE BLACK MC.,218
GR SPORT,PLATINUM WHITE PEARL MC.,089
GR SPORT,ATTITUDE BLACK MC.,218
75693ARETAINER, QUARTER BELT MOULDING
75693BRETAINER, QUARTER BELT REAR MOULDING, NO.1
75694RETAINER, QUARTER BELT REAR MOULDING, NO.2
75695PAD, QUARTER OUTSIDE MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
main68160-0K100iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202409
75720MOULDING ASSY, FRONT DOOR BELT, LH
main68210-0K100iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202409
75723MOULDING, REAR DOOR BELT, REAR RH
main75723-0K051iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202409
75724MOULDING, REAR DOOR BELT, REAR LH
main75724-0K051iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202409
75730MOULDING ASSY, REAR DOOR BELT, RH
main68180-0K100iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202409
75740MOULDING ASSY, REAR DOOR BELT, LH
main68230-0K100iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202409
75895ATAPE, MOULDING, NO.1
GR SPORT; GR SPORT & ACCESSORY
75895CTAPE, MOULDING, NO.3
GR SPORT; GR SPORT & ACCESSORY
75896ATAPE, MOULDING, NO.2
GR SPORT; GR SPORT & ACCESSORY
75897TAPE, MOULDING, NO.3
GR SPORT; GR SPORT & ACCESSORY
7652SPOILER & SIDE MUDGUARD
76923BRETAINER, SIDE MUDGUARD
90159T0034
main90159-T0034
9046708224
main90467-08224
9046708225
main90467-08225
9046709237
main90467-09237
35 parts on this diagram · 1 diagram in section
