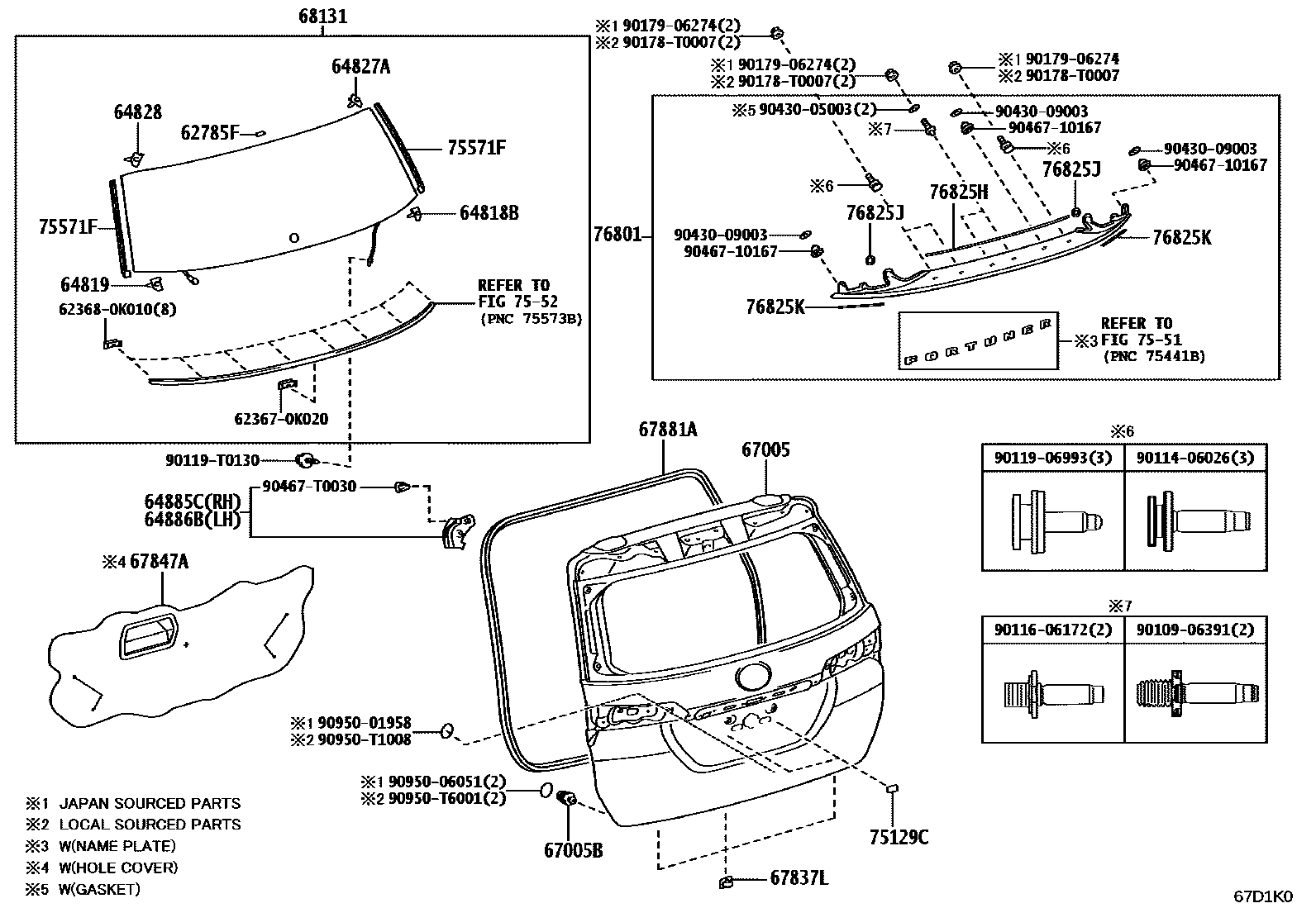

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
main67005-KK010iGGN155..S; GUN165..L..PH;GUN155..IDNP..S..GCC;GUN155,TGN156..L..(GCC,GEN,MA,SA);GUN165,TGN166..(L,S)..(GCC,IDN,SA,VN)202408
BACK MONITOR-WITHOUT
main67005-KK020iGGN155,GUN166..GEN,IDN;GUN156,TGN156,166..IDN,MA; GUN156..LHD..IDNP..GEN; TGN156..IDNP..H; TGN166..VN;GUN165..VNP..S202409
AUDIO-WITHOUT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER); BACK MONITOR-WITHOUT; POWER BACK DOOR-WITH
main67005-KK060iGUN155..(SAP,THP)..S;GUN156..(L,S)..(ARL,SA);GUN165..(L,S)..(GEN,TH);GUN155..(IDNP,KENP)..(KEN,SA);GGN155,GUN165,TGN156..S..(GCC,PH,SA); TGN166..GCC,VN;TGN156..L..GCC;GUN155..IDNP..S..GCC;GUN155,165..(SAP,THP)..6FC..L..(GCC,SA)202408
BACK MONITOR-WITH
main67005-KK070iGGN155..H..GCC;GUN156..H..ARL;GUN166..PH,SA,TH;GUN156..GCC,GEN,KEN,PH,TH,VN;GUN155,165,TGN156,166..H..(GCC,GEN,TH,VN); GUN156,165..RHD..S..(SA,TH)202408
POWER BACK DOOR-WITH
BACK MONITOR-WITH
main67005-KK090supersedes 67005-KK040iGUN156,TGN166..H..LA; GUN156..BZAGT;GGN155,GUN166..H..LA202411
BACK MONITOR-WITH; BACK MONITOR-WITH(*PVM)
BRAZIL SPEC
67005BCUSHION(FOR BACK DOOR PANEL)
67837LSEAL, DOOR DUST PROOF
67847ACOVER, BACK DOOR SERVICE HOLE
BRUNEI SPEC; CENTRAL AND SOUTH AMERICA SPEC
SPEAKER-11SPEAKER & JBL
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
main68105-0K340iGUN165..H..VN;GUN155..RHD..GEN;GGN155,GUN156,166,TGN156,166..(IDNP,VNP)..6FC..(GEN,PH,VN)202409
BACK GLASS-FIX TYPE(PRIVACY)
main68105-0K430iTGN166..IDNP..GCC;GGN155,GUN15#,165,TGN156..(IDNP,VNP)..(L,S)..(ARL,GCC,GEN,PH,SA,VN)202409
BACK GLASS-FIX TYPE(PRIVACY)
BACK GLASS-FIX TYPE(PRIVACY)
SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
DOOR BELT MOULDING-WITH(PLATING); FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
main68105-0K600iGUN15#..LHD..SAP..6FC; GUN156,166..RHD..DCRL..SA; TGN156..SAP;GUN156..LHD..SAP..6F202411
BACK GLASS-FIX TYPE(PRIVACY)&DOOR BELT MOULDING-WITH(PLATING); BACK GLASS-FIX TYPE(PRIVACY)&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED); DOOR BELT MOULDING-WITH(PLATING)
DOOR BELT MOULDING-WITH(PLATING)
75129CCUSHION, REAR LICENCE PLATE
7551EMBLEM & NAME PLATE
7552MOULDING
75571FMOULDIMG, BACK DOOR WINDOW
RH
RH
LH
LH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-0K330iGUN156..THP..L;GUN155,16#..L..(KEN,LA,TH); GUN165,TGN156..(SAP,THP)..6FC..L..(GCC,SA);GUN15#,TGN166..(AGTP,SAP,THP)..L..(GCC,LA,SA)202408
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH
main76801-0K340supersedes 76801-0K350iGUN155,165..H..TH; GUN155..S..TH; GUN156,166..TH; GUN156..(CAMP,KENP,SAP,THP)..(H,S);GGN155,GUN155,16#,TGN156..(AGTP,SAP,THP)..(H,S); GUN156..TH; GUN156..THP..GEN; GUN156..THP..GEN;GUN156,166..RHD..SA; GUN166..H..LA;GUN165..(H,S)..TH;GGN155,GUN155..H..(LA,TH);GUN15#..(KENP,SAP)..6FC..S202408
PLATED; PLATED,GR SPORT & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); PLATED,MLM BASIC PACKAGE; PLATED,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM); PLATED,MLM PACKAGE; PLATED,MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); PLATED,MLM PACKAGE & ACCESSORY&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH
NO PAINT REQ.
main76801-0K460iGGN155..IDNP..GCC;GUN155,165..IDNP..S..(GEN,PH,SA);GUN155,166,TGN166..IDNP..H..(GCC,GEN,PH);GUN156,TGN156..IDNP..(H,S)..(GCC,GEN,PH,SA,VN); GUN155,TGN166..IDNP..S..(GCC,VN); GUN156..IDNP..VN; GUN156..LHD..IDNP..GEN; GUN156..PH; GUN165..IDNP..S..VN; GUN166,TGN156..LHD..IDNP..H;GUN156..LHD..IDNP..(GEN,PH); GUN166..PH; TGN156..VN; TGN166..IDNP..VN202409
PLATED; PLATED,AUDIO-AVN(8INCH) & *BT; PLATED,BACK MONITOR-WITH; PLATED,BACK MONITOR-WITH(*PVM); PLATED,GR SPORT; PLATED,GR SPORT&BACK MONITOR-WITH(*PVM); PLATED,MLM BASIC PACKAGE; PLATED,MLM PACKAGE; PLATED,MLM PACKAGE&AUDIO-WITHOUT; PLATED,MLM PACKAGE&BACK MONITOR-WITHOUT
main76801-0K470iGGN155..IDNP..S;TGN156..IDNP..H; GUN156,166,TGN166..IDN; GUN156..IDN; GUN156..IDN;GGN155,GUN166..GEN,IDN;TGN166..IDNP..(IDN,VN);GUN155,165..IDNP..S..(GCC,IDN,VN); GUN156..LHD..IDNP..GEN; TGN166..IDNP..VN202409
PLATED; PLATED,AUDIO-WITHOUT; PLATED,AUDIO-WITHOUT & WITH(AUDIO LESS COVER); PLATED,BACK MONITOR-WITHOUT; PLATED,GR SPORT; PLATED,MLM BASIC PACKAGE; PLATED,MLM PACKAGE; PLATED,MLM PACKAGE&BACK MONITOR-WITH(*PVM)
main76801-0K560iTGN166..(AGTP,THP)..(L,S);GUN156,TGN156..LHD..(AGTP,THP)..L;GUN155,165..(SAP,THP)..L..(GCC,SA)202408
NO PAINT REQ.
PLATED; PLATED,MLM PACKAGE
NO PAINT REQ.
PLATED
PLATED; PLATED,GR SPORT; PLATED,GR SPORT & ACCESSORY; PLATED,GR SPORT & ACCESSORY&BACK MONITOR-WITH; PLATED,GR SPORT & ACCESSORY&BACK MONITOR-WITH(*PVM); PLATED,GR SPORT&BACK MONITOR-WITH; PLATED,GR SPORT&BACK MONITOR-WITH(*PVM); PLATED,MLM BASIC PACKAGE; PLATED,MLM BASIC PACKAGE&BACK MONITOR-WITH; PLATED,MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM); PLATED,MLM PACKAGE & ACCESSORY; PLATED,MLM PACKAGE & ACCESSORY&BACK MONITOR-WITH; PLATED,MLM PACKAGE & ACCESSORY&BACK MONITOR-WITH(*PVM)
PLATED; PLATED,GR SPORT & ACCESSORY; PLATED,MLM BASIC PACKAGE; PLATED,MLM PACKAGE & ACCESSORY
PLATED; PLATED,AUDIO-AVN(8INCH) & *BT; PLATED,BACK MONITOR-WITH; PLATED,BACK MONITOR-WITH(*PVM); PLATED,MLM PACKAGE
main76801-YP170iGUN155,165..H..TH; GUN155..S..TH; GUN156,166..TH; GUN156..THP..GEN; GUN156..THP..GEN;GUN156,166..RHD..SA; GUN165..TH;GUN166..H..LA;GGN155,GUN155..H..(LA,TH);GUN15#..(KENP,SAP)..6FC..S202408
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); NO PAINT REQ.,MLM PACKAGE & ACCESSORY&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
main76801-YP200iGUN166,TGN156..LHD..IDNP..H;GUN156..LHD..IDNP..(GEN,PH); GUN166..PH; TGN166..IDNP..VN202409
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&AUDIO-WITHOUT; NO PAINT REQ.,MLM PACKAGE&BACK MONITOR-WITHOUT
NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM PACKAGE & ACCESSORY
NO PAINT REQ.,MLM PACKAGE
PAINT REQ.,GR SPORT; PAINT REQ.,GR SPORT&BACK MONITOR-WITH(*PVM)
PAINT REQ.,GR SPORT & ACCESSORY&BACK MONITOR-WITH; PAINT REQ.,GR SPORT & ACCESSORY&BACK MONITOR-WITH(*PVM); PAINT REQ.,GR SPORT&BACK MONITOR-WITH; PAINT REQ.,GR SPORT&BACK MONITOR-WITH(*PVM)
PAINT REQ.,GR SPORT; PAINT REQ.,GR SPORT & ACCESSORY
76825HPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76825KPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.3
623670K020CLIP, DOOR WINDOW GLASS, NO.1
main62367-0K020
623680K010CLIP, DOOR WINDOW GLASS, NO.2
main62368-0K010
9010906391
main90109-06391
9011406026
main90114-06026
9011606172
main90116-06172
9011906993
main90119-06993
90119T0130
main90119-T0130
90178T0007
main90178-T0007
9017906274
main90179-06274
9043005003
main90430-05003
9043009003
main90430-09003
9046710167
main90467-10167
90467T0030
main90467-T0030
9095001958
main90950-01958
9095006051
main90950-06051
90950T1008
main90950-T1008
90950T6001
main90950-T6001
38 parts on this diagram · 2 diagrams in section
