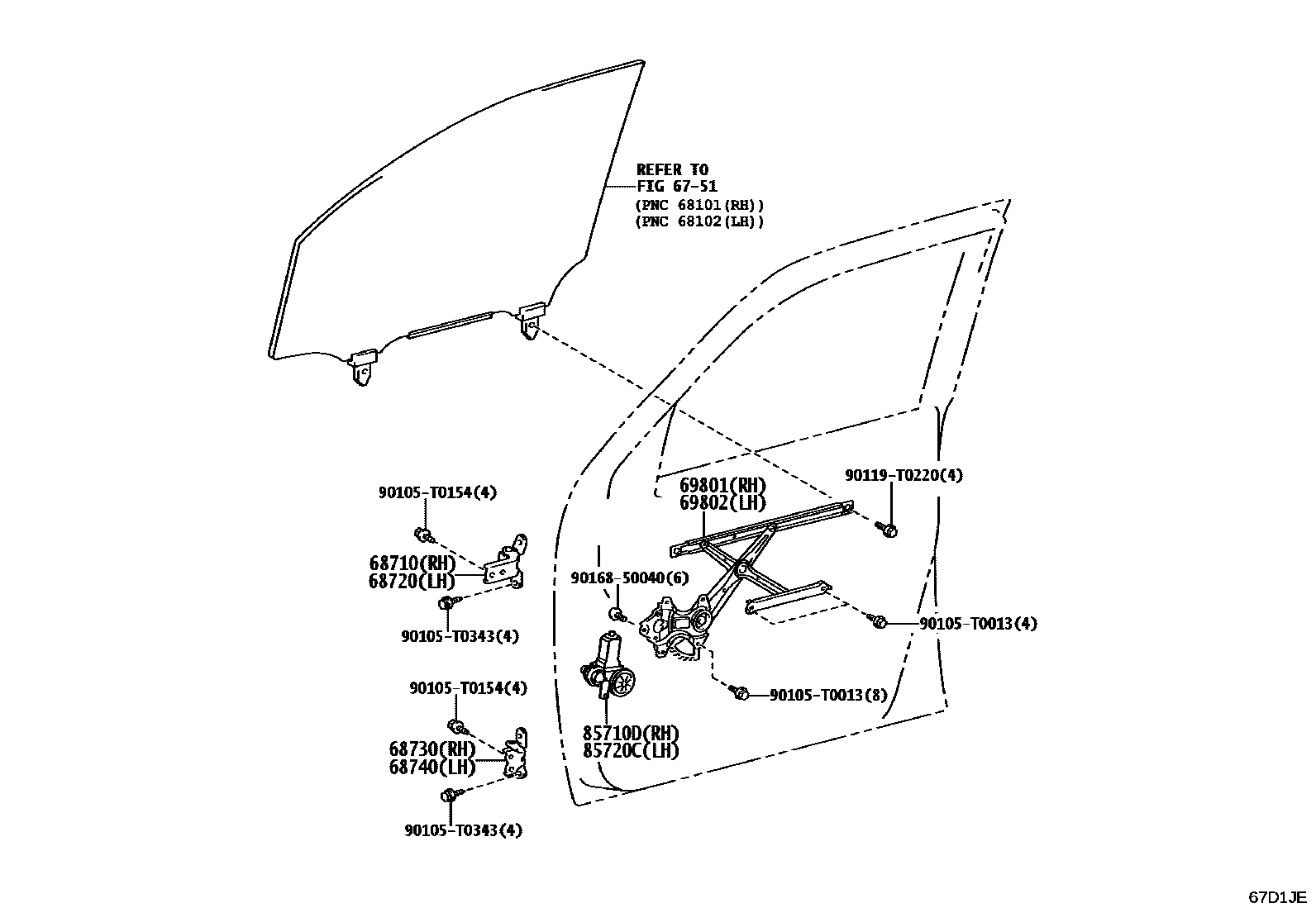

FRONT DOOR WINDOW REGULATOR & HINGE

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGUN15#,16#,TGN156..KENP,SAP202411

main68710-0D050iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP202408

main68710-0K010iGGN155,GUN156,16#,TGN156,166..AGTP202411

main68710-0K020iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGUN15#,16#,TGN156..KENP,SAP202411

main68720-0D050iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP202408

main68720-0K010iGGN155,GUN156,16#,TGN156,166..AGTP202411

main68720-0K020iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iGUN15#,16#,TGN156..KENP,SAP202411

main68730-02100iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP,THP,VNP202408

main68730-0K050iGGN155,GUN156,16#,TGN156,166..AGTP202411

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iGUN15#,16#,TGN156..KENP,SAP202411

main68740-02100iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP,THP,VNP202408

main68740-0K050iGGN155,GUN156,16#,TGN156,166..AGTP202411

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D351iGGN155,GUN15#,16#,TGN156,166..(MAP,THP)..(GCC,MA,TH)202408

main69801-0K140iGUN15#,165..(CAMP,THP)..(ARL,GEN)202408

main69801-0K150iGUN15#,16#,TGN156..KENP,SAP202411

main69801-0K160iGGN155,GUN156,16#,TGN156,166..AGTP202411

main69801-0K170iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D331iGGN155,GUN15#,16#,TGN156,166..(MAP,THP)..(GCC,MA,TH)202408

main69802-0K140iGUN15#,165..(CAMP,THP)..(ARL,GEN)202408

main69802-0K150iGUN15#,16#,TGN156..KENP,SAP202411

main69802-0K160iGGN155,GUN156,16#,TGN156,166..AGTP202411

main69802-0K170iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D570iTGN156..THP..L;GGN155,GUN155,TGN166..THP..(L,S)..GCC202408

main85710-0K180iTGN156..LHD..(GEN,SA);GUN165,TGN156..(IDNP,VNP)..(6F,6FC)..L;GGN155,GUN15#,TGN166..LHD..(IDNP,SAP)..(L,S)..(GCC,GEN,SA); TGN166..VN202409

WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main85710-0K190iGUN155..IDNP..H..GCC;GUN155..6FC..(H,L)..(GEN,KEN,SA);GUN156..RHD..(ARL,GEN,IDN,KEN,SA);TGN156..IDNP..(H,S)..(GCC,GEN,VN);GUN156,165..(SAP,THP)..(H,L)..(GEN,SA);GGN155,GUN156..LHD..(CAMP,IDNP,VNP)..H;GUN16#,TGN166..(H,S)..(GEN,IDN,PH,SA,VN)202408

main85710-0K200iGGN155,GUN155..THP..S..GCC; GUN155,16#..MA,TH;GGN155,GUN155..THP..H..GCC;GUN156,TGN156..(MAP,THP)..(H,S)..(GCC,MA,TH)202408

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)

main85710-0K280iGGN155,GUN156,166,TGN166..AGTP..H202411

main85710-0K290iGUN156,16#,TGN156,166..(L,S)..LA202411

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D570iGUN165..L..TH202411

main85720-0K170iGUN165..(H,S)..TH;GGN155,GUN15#,166,TGN156,166..(MAP,THP)..(GCC,MA,TH)202408

main85720-0K180iGUN155,165..RHD..(IDNP,KENP)..(L,S)202409

main85720-0K190iGUN155..THP..GEN;GUN165..PH,SA,VN;GUN165..LHD..GEN;GUN156..IDNP..GCC;GUN156..ARL,GEN,IDN,KEN,PH,SA,VN;GGN155,GUN155,166,TGN156,166..IDNP,SAP,VNP202408

main85720-0K280iGGN155,GUN156,16#,TGN156,166..AGTP202411

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
