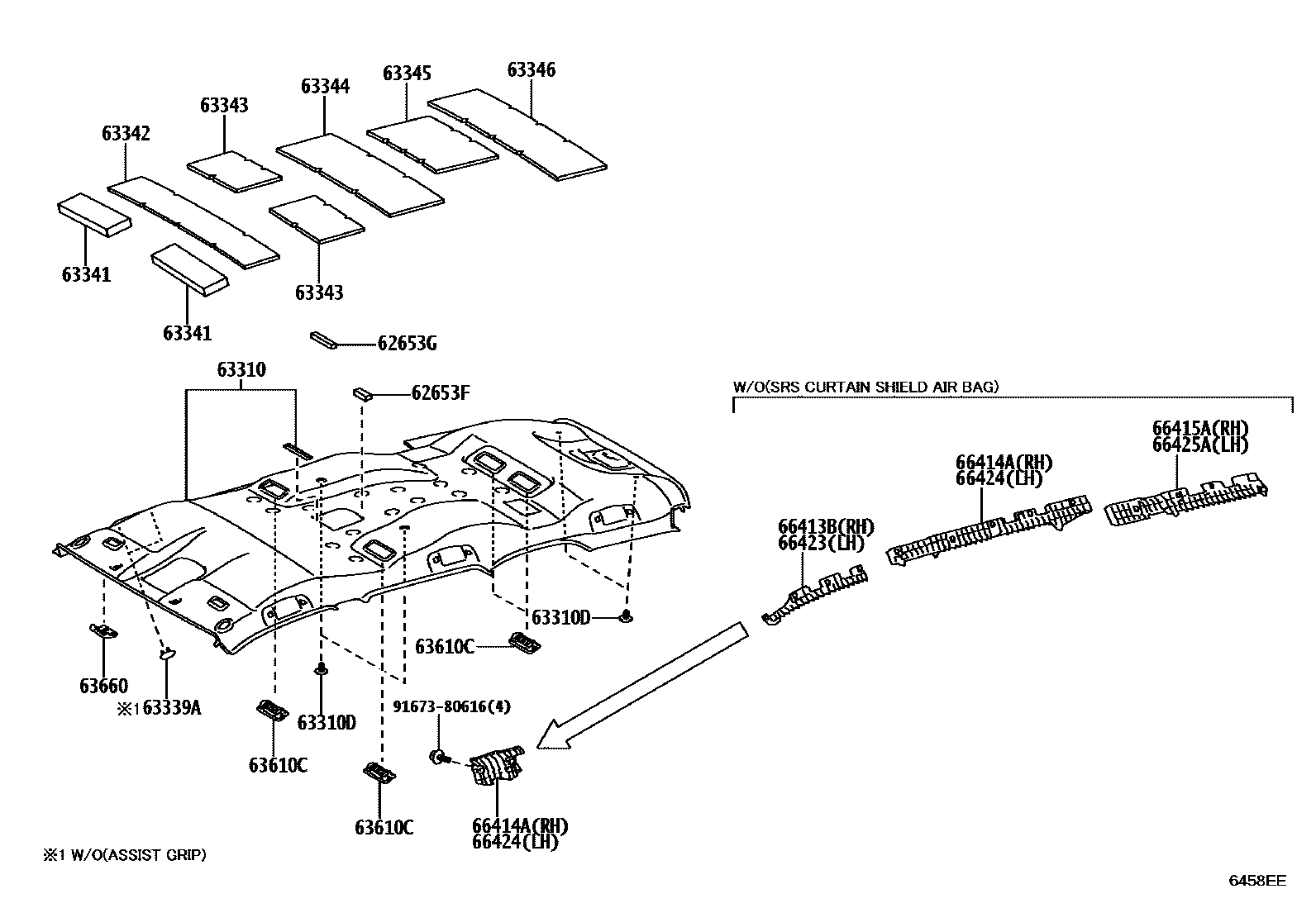

ROOF HEADLINING & SILENCER PAD
62653FPACKING (FOR ROOF HEADLINING)
main62653-0K600iGUN156..(L,S)..ARL; GUN156..H..ARL; GUN156..L..LA;GUN156..(AGTP,CAMP,MAP,THP)..H;GGN155,GUN155,16#,TGN156,166..AGTP,MAP,THP202408
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&DATA COMMUNICATION MODULE-WITH(AU-DCM),MADE IN THAILAND; MADE IN THAILAND
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&DATA COMMUNICATION MODULE-WITH(AU-DCM),MADE IN INDONESIA; MADE IN INDONESIA
62653GPACKING,(FOR ROOF HEADLINING)
main62653-0K850iGGN155,GUN15#,TGN156,166..LHD..(L,S)..(GCC,SA); GUN155..IDNP..H..GCC;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC202408
SRS AIR BAG-WITH(*DRP)
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM2#,4#
main63310-0KC71-B0supersedes 63310-0KV40-B0iGUN15#..IDNP..H..GEN;GGN155,TGN156,166..IDNP..H..(GCC,GEN); GUN155..IDNP..H..GCC; GUN156..IDNP..(IDN,PH,VN); GUN156..IDNP..GCC; GUN156..VNP;GUN166,TGN156,166..H..(IDN,PH,VN)202409
GCC SPEC EURO4 2018MY,LT. GRAY,TRIM4#; GCC SPEC EURO4 2022MY,LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22; LT. GRAY,TRIM4#
main63310-0KC71-C0iGUN156..IDNP..(IDN,VN); GUN156..LHD..IDNP..GEN; GUN156..PH; GUN156..VNP;GUN166,TGN156..LHD..IDNP..H202409
BLACK,TRIM0#,3#; BLACK,TRIM24; BLACK,TRIM24,3#; BLACK,TRIM3#
LT. GRAY,TRIM2#; LT. GRAY,TRIM22
main63310-0KF10-B0supersedes 63310-0KF00-B0iGUN15#..6FC..KEN;GUN155,TGN156..SAP..S;GUN156..(KENP,SAP)..6F; GUN155,165..6FC..L..SA; GUN156..LHD..6FC..SA; GUN156..RHD..6FC..DCRL..SA202411
AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM22; AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#; AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM22; LT. GRAY,TRIM2#; LT. GRAY,TRIM22
main63310-0KF10-C0supersedes 63310-0KF00-C0iGUN156..LHD..6FC..SA; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202411
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM24,3#; AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM24,3#; BLACK,TRIM24; BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM22; LT. GRAY,TRIM2#
main63310-0KL10-B0supersedes 63310-0KV30-B0iGUN155,165..(IDNP,VNP)..(IDN,PH,SA,VN);GUN156,TGN156,166..(IDNP,VNP)..S..(SA,VN); GUN155..IDNP..L..GCC; GUN155..L..GEN;TGN156,166..IDNP..L..GCC; TGN156..L..GEN;GUN165..RHD..GEN;GGN155,GUN155,TGN156..IDNP..S..GCC202409
GCC SPEC EURO4 2018MY,LT. GRAY,TRIM4#; GCC SPEC EURO4 2022MY,LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; LT. GRAY,TRIM22
BLACK,TRIM0#,24
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
BLACK,TRIM3#
main63310-0KY40-B0supersedes 63310-0KY30-B0iGGN155..THP..H;GUN15#..(CAMP,THP)..GEN; GUN155,16#..H..TH; GUN155..THP..H..GCC; GUN156..TH; GUN156..THP..GCC202408
GCC SPEC EURO4 2018MY,LT. GRAY,TRIM4#; GCC SPEC EURO4 2022MY,LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22; LT. GRAY,TRIM4#
BLACK,TRIM0#,24,3#; BLACK,TRIM0#,3#
main63310-0KY50-B0supersedes 63310-0KZ00-B0iGUN155,165..S..TH; GUN155..THP..L; GUN165..L..TH;GGN155,GUN155,TGN156..THP..S..GCC; TGN156,166..THP..L202408
GCC SPEC EURO4 2018MY,LT. GRAY,TRIM4#; GCC SPEC EURO4 2022MY,LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#,4#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&DATA COMMUNICATION MODULE-WITH(AU-DCM),LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM2#,4#
LT. GRAY,TRIM2#,4#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM0#,24
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),LT. GRAY,TRIM22
main63310-0KS00-C0supersedes 63310-0KF00-C0iGUN156..RHD..6FC..DCRL..SA; GUN166..SA;GUN156..MHV..SA202411
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),BLACK,TRIM24,3#; ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),BLACK,TRIM3#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM22; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGINGMARKET),LT. GRAY,TRIM22; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(8INCH) & *BT,BLACK,TRIM24,3#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGINGMARKET),BLACK,TRIM24,3#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),BLACK,TRIM3#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM22
main63310-0KS30-C0supersedes 63310-0KF00-C0iGUN156..RHD..6FC..DCRL..SA; GUN166..SA;GUN156..MHV..SA202411
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),BLACK,TRIM24,3#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),BLACK,TRIM3#
main63310-0KS50-B0supersedes 63310-0KF00-B0iGUN156..RHD..6FC..DCRL..SA; GUN166..SA;GUN156..MHV..SA202411
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM22
main63310-0KS50-C0supersedes 63310-0KF00-C0iGUN156..RHD..6FC..DCRL..SA; GUN166..SA;GUN156..MHV..SA202411
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24,3#; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM3#
main63310-0KV30-B0iGGN155..IDNP..S; GUN155..IDNP..L..GCC; GUN155..IDNP..S..GCC; TGN156,166..IDNP..L..GCC202409
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM4#; LT. GRAY,TRIM4#; UAE SPEC,LT. GRAY,TRIM2#,4#
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM22; GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM4#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24,3#; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#,4#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM22
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM4#
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
main63310-0KZ00-B0iGGN155..THP..S; GUN155..THP..L; GUN155..THP..S..GCC; TGN156,166..THP..L; TGN156..THP..L202408
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#; SAUDI ARABIA SPEC,LT. GRAY,TRIM4#; UAE SPEC,LT. GRAY,TRIM2#,4#; UAE SPEC,LT. GRAY,TRIM4#
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0×4iGUN155..L..GEN;GUN15#,TGN156,166..(H,L)..GCC; GUN155..S..GCC;GUN15#..6FC..(ARL,GEN);GUN165,TGN156..L..(GEN,TH);GGN155,GUN165,TGN156,166..(H,S)..(GCC,GEN); GUN156..(AGTP,IDNP,SAP,THP)..6FC..(H,S)..DCRL..(BZAGT,IDN,LA,PH,SA,TH,VN); GUN156..VNP;GUN156..MHV..SA;GUN165..(H,S)..TH;GUN156..6FC..L..LA;GUN156..(AGTP,SAP)..6F;GUN165..IDN,LA,PH,SA,VN;GUN156..(IDNP,KENP,MAP)..(KEN,MA,SA);GGN155,GUN155,166,TGN156,166..IDN,KEN,LA,MA,PH,SA,TH,VN202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
BLACK,TRIM0#,24,3#; BLACK,TRIM0#,3#
63339ACOVER, ROOF HEADLINING SERVICE HOLE
main63339-0D070-B1×2iGGN155,GUN155,TGN156..S..GCC; GGN155..H..GCC; GUN155,TGN156,166..L..GCC; GUN156..GCC;GUN155..IDNP..H..GCC202408
LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM4#; SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#; SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM4#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63344PAD, ROOF SILENCER, NO.4
63345PAD, ROOF SILENCER, NO.5
63346PAD, ROOF SILENCER, NO.6
63610CREGISTER ASSY, AIR OUTLET, NO.1
main63610-0K040-B0×4iGUN155,TGN156..IDNP..S..GCC;GUN15#,TGN156..IDNP..(5F,6FC)..(ARL,GEN);GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156..(AGTP,IDNP)..H..(BZAGT,IDN,LA,PH,VN); GUN156..VNP;GUN156..LHD..(AGTP,IDNP)..(L,S);GGN155,GUN155,16#,TGN156,166..(AGTP,IDNP,VNP)..(IDN,LA,PH,SA,VN)202409
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
BLACK,TRIM0#,24
main63610-0K060-B0×4iGUN15#,TGN156,166..THP..(H,L)..GCC; GUN156..6FC..DCRL..(SA,TH); GUN165..L..TH;GUN155..THP..S..GCC;GUN15#..(CAMP,THP)..(ARL,GEN);GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN165..SA;GUN156..KEN,MA;GUN156..SAP..6F;GUN156..MHV..SA;GUN165..(H,S)..TH;GUN155,166,TGN156..(KENP,MAP,SAP,THP)..(KEN,MA,SA,TH)202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
BLACK,TRIM24; BLACK,TRIM24,3#
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
main63359-0K040-B0iGGN155..GCC; GGN155..H..GCC; GGN155..S; GUN155..S..GCC; GUN156..(H,S)..ARL; GUN156..GCC;GUN155..L..GCC; GUN156..L..ARL; TGN156,166..THP..L; TGN156..THP..L202408
AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT.GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM4#; SAUDI ARABIA SPEC,LT.GRAY,TRIM4#; UAE SPEC,LT.GRAY,TRIM2#,4#; UAE SPEC,LT.GRAY,TRIM4#
LT.GRAY,TRIM2#; LT.GRAY,TRIM22
BLACK,TRIM24,3#; BLACK,TRIM3#
66413BSPACER, SIDE RAIL, FRONT RH
SRS AIR BAG-WITH(*DRP)
main66413-KK020iGGN155,GUN15#,TGN156,166..LHD..(IDNP,SAP)..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202409
SRS AIR BAG-WITH(*DRP)
66414ASPACER, SIDE RAIL, REAR RH
SRS AIR BAG-WITH(*DRP)
main66414-KK010iGUN155..IDNP..H..GCC;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC; GUN155..L..GEN;GUN156..LHD..(H,L);TGN156..GEN,LA,MA,VN;GGN155,GUN155..LHD..H;GUN15#..RHD..(IDNP,KENP,MAP,SAP,THP);GUN16#,TGN166..GEN,IDN,LA,PH,SA,TH,VN202408
SRS AIR BAG-WITH(*DRP)
main66414-KK050iGGN155,GUN15#,TGN156,166..LHD..(IDNP,SAP)..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202409
SRS AIR BAG-WITH(*DRP)
66415ASPACER, SIDE RAIL, REAR NO.2 RH
SRS AIR BAG-WITH(*DRP)
main66415-KK040iGGN155,GUN15#,TGN156,166..LHD..(IDNP,SAP)..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202409
SRS AIR BAG-WITH(*DRP)
66423SPACER, SIDE RAIL, FRONT LH
SRS AIR BAG-WITH(*DRP)
main66423-KK020iGGN155,GUN15#,TGN156,166..LHD..(IDNP,SAP)..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202409
SRS AIR BAG-WITH(*DRP)
66424SPACER, SIDE RAIL, REAR LH
SRS AIR BAG-WITH(*DRP)
main66424-KK010iGUN155..IDNP..H..GCC;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC; GUN155..L..GEN;GUN156..LHD..(H,L);TGN156..GEN,LA,MA,VN;GGN155,GUN155..LHD..H;GUN15#..RHD..(IDNP,KENP,MAP,SAP,THP);GUN16#,TGN166..GEN,IDN,LA,PH,SA,TH,VN202408
SRS AIR BAG-WITH(*DRP)
main66424-KK050iGGN155,GUN15#,TGN156,166..LHD..(IDNP,SAP)..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202409
SRS AIR BAG-WITH(*DRP)
66425ASPACER, SIDE RAIL, REAR NO.2 LH
SRS AIR BAG-WITH(*DRP)
main66425-KK040iGGN155,GUN15#,TGN156,166..LHD..(IDNP,SAP)..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202409
SRS AIR BAG-WITH(*DRP)
9167380616
main91673-80616
20 parts on this diagram · 1 diagram in section
