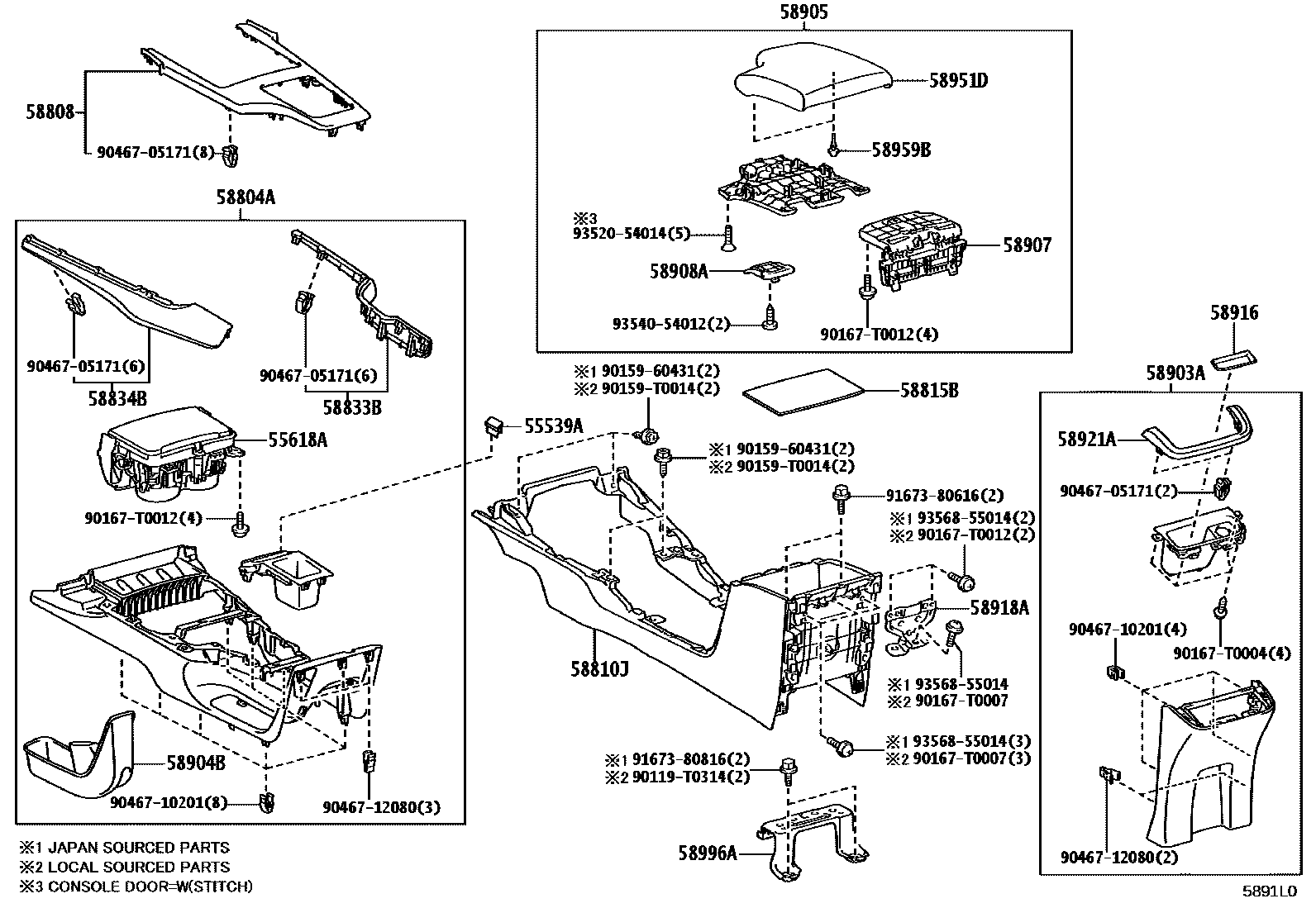

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55539ACOVER, SPARE SWITCH HOLE

main55539-KK030-C0iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

BLACK

55618AHOLDER, CONSOLE BOX CUP

main55620-0K010-B3iGUN165..RHD..GEN;GUN15#,TGN156,166..RHD..H..(ARL,GEN)202408

SILVER,TRIM2#,4#

main55620-0K010-B3iGUN156..RHD..6FC..DCRL..(IDN,SA,TH)202408

SILVER,TRIM2#

main55620-0K010-B3iGUN156..MHV..SA;GUN156..6FC..(KEN,MA);GUN155,16#,TGN156,166..RHD..6FC..(H,S)..(IDN,MA,SA,TH)202408

SILVER,TRIM22

main55620-0K010-B4iGUN156..RHD..6FC..DCRL..(IDN,SA,TH)202408

SMOKE SILVER METALLIC,TRIM24

main55620-0K010-C2iGUN156,166..RHD..6FC..(MA,SA)202409

GALAXY BLACK/SILVER,TRIM3#

main55620-0K010-C2iGUN15#,16#..H..TH202408

GALAXY BLACK/SILVER,TRIM0#,3#

main55620-0K020-B2iGUN165..L..TH;GUN156..(L,S)..ARL202408

SILVER,TRIM2#,4#

main55620-0K020-B2iGUN155,165..6FC..L..(KEN,MA,SA)202409

SILVER,TRIM2#

main55620-0K050-B3iGUN15#..H..GCC202408

SILVER,TRIM2#,4#

main55620-0K050-B3iGUN156,165..VNP..H;TGN166..LHD..6FC..(H,S);GGN155,GUN155,16#,TGN156..LHD..(AGTP,IDNP,SAP)..(H,S)..(LA,PH,SA,VN)202409

SILVER,TRIM2#

main55620-0K050-B3iGUN155..S..GCC;GUN15#..LHD..H..GEN;GGN155,GUN165,TGN156..LHD..(H,S)..(GCC,GEN)202408

SILVER,TRIM4#

main55620-0K050-B3iGUN156..LHD..(AGTP,IDNP,SAP)..6FC..(H,S)..(BZAGT,LA,PH,SA,VN)202409

SILVER,TRIM22

main55620-0K050-B4iGUN156..LHD..(AGTP,IDNP,SAP)..6FC..(H,S)..(BZAGT,LA,PH,SA,VN)202409

SMOKE SILVER METALLIC,TRIM24

main55620-0K050-C2iGUN156..LHD..GEN202408

GALAXY BLACK,TRIM0#,3#

main55620-0K050-C2iGUN156..PH;GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN)202409

GALAXY BLACK,TRIM3#

main55620-0K050-C2iGUN156..AGTP..H202411

GALAXY BLACK,TRIM0#

main55620-0K060-B1iTGN166..L..LA;GUN165..6FC..L..PH;GUN156,16#,TGN156..(AGTP,VNP)..6FC..(L,S)..(LA,VN)202409

SILVER,TRIM2#

main55620-0K060-B1iGUN155,TGN156,166..L..GCC202408

SILVER,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK480-C0iGUN155,165..H..TH;GUN156,166..RHD..6FC..(MA,SA,TH)202408

BLACK/CRIMSON,TRIM3#

main58804-KK480-C1iGUN15#,16#..H..TH202408

BLACK/GALAXY BLACK,TRIM0#

main58804-KK480-C2iGUN156..MHV..SA;GUN156..6FC..(KEN,MA);GUN155,16#,TGN156..RHD..(H,S)..(MA,SA,TH)202408

BLACK/GRAY,TRIM2#,4#

main58804-KK480-C2iGUN156..H..ARL202408

BLACK/GRAY,TRIM2#

main58804-KK480-C2iGUN156..H..ARL202408

BLACK/GRAY,TRIM22

main58804-KK480-C3iGUN156..RHD..6FC..DCRL..(SA,TH)202408

BLACK/GR RED,TRIM24

main58804-KK490-C0iGUN156..RHD..6F..SA202411

BLACK/CRIMSON,TRIM3#

main58804-KK490-C1iGUN156..RHD..6F..S202411

BLACK/GRAY,TRIM2#

main58804-KK500-C0iGUN165..6F..SA202411

BLACK/GRAY,TRIM2#

main58804-KK520-C0iGUN155,165..6FC..L..(KEN,MA,SA)202409

BLACK/SILVER,TRIM2#

main58804-KK520-C0iGUN165..L..TH;GUN156..THP..(L,S)202408

BLACK/SILVER,TRIM2#,4#

main58804-KK530-C1iGUN156..LHD..6F..SA202411

BLACK/GRAY,TRIM2#

main58804-KK540-C0iGUN156,TGN166..MTM..LA202411

BLACK/GRAY,TRIM2#

main58804-KK590-C0iGUN165..6F..IDN202409

BLACK,TRIM2#

main58804-KK600-C0iGUN15#,165,TGN156,166..RHD..GEN202409

BLACK,TRIM22

main58804-KK600-C0iGUN156..IDN202409

BLACK,TRIM2#,4#

main58804-KK600-C0iGUN156..IDN202409

BLACK,TRIM2#

main58804-KK600-C2iGUN156..IDN202409

SMOKE SILVER METALLIC,TRIM24

main58804-KK610-C0iGUN165..LHD..6F202409

BLACK,TRIM2#

main58804-KK610-C0iGUN165..LHD..6F202409

BLACK,TRIM2#,4#

main58804-KK610-C0iGUN165..LHD..6F202409

BLACK,TRIM4#

main58804-KK620-C0iGUN165..VNP..S;GUN165..6FC..L..PH202409

BLACK,TRIM2#

main58804-KK620-C0iGUN165..VNP..S;GUN165..6FC..L..PH202409

BLACK,TRIM4#

main58804-KK630-C0iGUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH)202409

BLACK/CRIMSON,TRIM3#

main58804-KK630-C1iGUN156..LHD..IDNP..GEN202409

BLACK/GRAY,TRIM0#

main58804-KK630-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM4#

main58804-KK630-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM22

main58804-KK630-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM2#,4#

main58804-KK630-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM2#

main58804-KK630-C3iGUN156..IDNP..(PH,VN)202409

BLACK/GR RED,TRIM24

main58804-KK660-C0iGUN156..(CAMP,THP)..GEN202408

BLACK/CRIMSON,TRIM3#

main58804-KK660-C1iGUN156..(CAMP,THP)..GEN202408

BLACK/SILVER,TRIM0#

main58804-KK660-C2iGUN155,TGN156..SAP..S202411

BLACK/GRAY,TRIM2#

main58804-KK660-C2iGUN156..LHD..6FC..SA202411

BLACK/GRAY,TRIM22

main58804-KK660-C2iGUN15#..THP..H..GCC202408

BLACK/GRAY,TRIM4#

main58804-KK660-C2iGUN15#..THP..H..GCC202408

BLACK/GRAY,TRIM2#,4#

main58804-KK660-C3iGUN156..LHD..6FC..SA202411

BLACK/GR RED,TRIM24

main58804-KK670-C0iGUN155,TGN156,166..THP..L202408

BLACK,TRIM4#

main58804-KK680-C0iGUN156..AGTP..H202411

BLACK/S.SILVER ME./GR RED,TRIM24

main58804-KK680-C1iGUN156..AGTP..H202411

BLACK/SILVER/GALAXY BLACK,TRIM0#

main58804-KK680-C2iGUN156..AGTP..H202411

BLACK/SILVER/GRAY,TRIM22

main58804-KK680-C2iGUN156..AGTP..H202411

BLACK/SILVER/GRAY,TRIM2#

main58804-KK690-C0iGUN156,16#,TGN156,166..6FC..L..LA202411

BLACK/GRAY/SILVER,TRIM2#

main58804-KK720-C0iGUN156..IDNP..ARL202409

BLACK/GRAY,TRIM2#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-KK020-B1iGUN156..RHD..6FC..DCRL..(IDN,SA,TH)202408

GRAY,TRIM2#,4#

main58808-KK020-B1iGUN165..RHD..GEN;GUN15#,TGN156,166..RHD..H..(ARL,GEN)202408

GRAY,TRIM2#

main58808-KK020-B1iGUN165..RHD..GEN;GUN15#,TGN156,166..RHD..H..(ARL,GEN)202408

GRAY,TRIM22

main58808-KK020-B2iGUN156..RHD..6FC..DCRL..(IDN,SA,TH)202408

MATTE CARBON PATTERN PRIN,TRIM24

main58808-KK020-C1iGUN15#,16#..H..TH202408

GALAXY BLACK,TRIM0#,3#

main58808-KK020-C1iGUN156,166..RHD..6FC..(MA,SA)202409

GALAXY BLACK,TRIM3#

main58808-KK030iGUN156..(L,S)..ARL;GUN155,165..RHD..6FC..L202408

main58808-KK050-B1iGUN155..S..GCC;GUN15#..LHD..H..GEN;GGN155,GUN165,TGN156..LHD..(H,S)..(GCC,GEN)202408

GRAY,TRIM2#,4#

main58808-KK050-B1iGUN15#..H..GCC202408

GRAY,TRIM4#

main58808-KK050-B1iGUN156..LHD..(AGTP,IDNP,SAP)..6FC..(H,S)..(BZAGT,LA,PH,SA,VN)202409

GRAY,TRIM22

main58808-KK050-B1iGUN156,165..VNP..H;TGN166..LHD..6FC..(H,S);GGN155,GUN155,16#,TGN156..LHD..(AGTP,IDNP,SAP)..(H,S)..(LA,PH,SA,VN)202409

GRAY,TRIM2#

main58808-KK050-B2iGUN156..LHD..(AGTP,IDNP,SAP)..6FC..(H,S)..(BZAGT,LA,PH,SA,VN)202409

MATTE CARBON PATTERN PRIN,TRIM24

main58808-KK050-C2iGUN156..LHD..GEN202408

GALAXY BLACK,TRIM0#,3#

main58808-KK050-C2iGUN156..PH;GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN)202409

GALAXY BLACK,TRIM3#

main58808-KK050-C2iGUN156..AGTP..H202411

GALAXY BLACK,TRIM0#

main58808-KK060iGUN165..6FC..L..PH;GUN165..(AGTP,VNP)..6FC..(L,S);GUN15#,166,TGN156,166..6FC..L..(GCC,LA)202408

58810JBOX ASSY, CONSOLE

main58810-KK090-C0iGUN156..IDNP..ARL202409

BLACK,TRIM2#,4#

main58810-KK110-C0iGUN165..6F..SA;GUN156..LHD..SAP..6F;GUN156,TGN166..MTM..(KEN,LA)202411

BLACK,TRIM2#,3#

main58810-KK110-C0iGUN165..6F..SA;GUN156..LHD..SAP..6F;GUN156,TGN166..MTM..(KEN,LA)202411

BLACK,TRIM2#

main58810-KK180-C0iGUN165..L..TH202410

BLACK,TRIM2#,4#

main58810-KK180-C0iGUN156,166..RHD..6FC..(MA,SA)202409

BLACK,TRIM2#,3#

main58810-KK180-C0iGUN15#,16#..H..TH202408

BLACK,TRIM2#

main58810-KK180-C0iGUN155..RHD..(L,S);GUN156,165..6FC..S..(KEN,TH);GUN165,TGN156..RHD..6FC..(MA,SA)202408

BLACK,TRIM0#,2#,3#

main58810-KK210-C0iGUN15#,TGN156,166..THP..(H,L)..GCC202408

BLACK,TRIM0#,2#,3#,4#

main58810-KK210-C0iGUN156..AGTP..H202411

BLACK,TRIM0#,2#

main58810-KK210-C0iGUN156..AGTP..H202411

BLACK,TRIM2#

main58810-KK210-C0iGUN156..(CAMP,THP)..GEN202408

BLACK,TRIM2#,4#

main58810-KK210-C0iGUN156..(CAMP,THP)..GEN202408

BLACK,TRIM4#

main58810-KK250-C0iGUN156..THP..ARL202408

BLACK,TRIM2#,4#

main58810-KK431-C2iGUN165..6F..IDN202409

BLACK/GRAY,TRIM2#

main58810-KK451-C2iGUN15#,165,TGN156,166..RHD..GEN202409

BLACK/CHAMOIS,TRIM4#

main58810-KK451-C4iGUN156..RHD..GEN;GUN155,16#,TGN156,166..RHD..IDNP..6FC202409

BLACK/GRAY,TRIM22

main58810-KK451-C4iGUN156..IDN202409

BLACK/GRAY,TRIM2#

main58810-KK451-C5iGUN156..IDN202409

BLACK/GR RED,TRIM24

main58810-KK460-C2iGUN165..LHD..6F202409

BLACK,TRIM2#

main58810-KK460-C2iTGN156..L..GEN202409

BLACK,TRIM2#,4#

main58810-KK460-C2iTGN156..L..GEN202409

BLACK,TRIM4#

main58810-KK480-C2iGUN155,TGN156,166..IDNP..L..GCC202409

BLACK,TRIM2#

main58810-KK480-C2iGUN155,TGN156,166..IDNP..L..GCC202409

BLACK,TRIM4#

main58810-KK491-C2iGGN155,GUN15#,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202409

BLACK/CHAMOIS,TRIM4#

main58810-KK491-C4iGUN156..LHD..IDNP..GEN202409

BLACK/GRAY,TRIM2#

main58810-KK491-C4iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM0#,2#

main58810-KK491-C4iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM22

main58810-KK491-C5iGUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH)202409

BLACK/CRIMSON,TRIM3#

main58810-KK491-C6iGUN156..IDNP..(PH,VN)202409

BLACK/GR RED,TRIM24

main58810-KK511-C4iGUN156..IDNP..SA202411

BLACK/GRAY,TRIM2#

58815BCARPET, CONSOLE BOX

main58815-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-KK040iGUN156,165..RHD..6F..S202409

main58833-KK050iGUN165..6F..SA202411

main58833-KK060iGUN156..LHD..6F..SA202411

main58833-KK070iGUN15#,165,TGN156,166..MTM..(GEN,LA,PH,VN)202409

main58833-KK130-B0iGUN166..SA;GUN156..MA;GUN156..MHV..SA202409

SILVER,TRIM22

main58833-KK130-B0iGUN166..SA;GUN156..MA;GUN156..MHV..SA202409

SILVER,TRIM2#,3#

main58833-KK130-B0iGUN155,16#..H..TH202408

SILVER,TRIM2#,4#

main58833-KK130-B0iGUN166,TGN156,166..IDN,MA;GUN15#,165..6FC..S..(IDN,KEN,TH)202408

SILVER,TRIM0#,22,3#

main58833-KK130-B0iGUN166,TGN156,166..IDN,MA;GUN15#,165..6FC..S..(IDN,KEN,TH)202408

SILVER,TRIM0#,2#,3#

main58833-KK130-B0iGUN166,TGN156,166..IDN,MA;GUN15#,165..6FC..S..(IDN,KEN,TH)202408

SILVER,TRIM2#

main58833-KK130-B0iGUN156..RHD..6FC..DCRL..SA202411

SILVER,TRIM22,3#

main58833-KK130-B2iGUN156..RHD..6FC..DCRL..(IDN,SA,TH)202408

SMOKE SILVER METALLIC,TRIM24

main58833-KK140iGUN156..(L,S)..ARL;GUN155,165..RHD..6FC..L202408

main58833-KK150-B1iGUN165..IDNP..S..(PH,VN);TGN166..(AGTP,VNP)..6FC..(H,S);GGN155,GUN155,166,TGN156..LHD..(H,S)..(LA,SA)202409

SILVER,TRIM2#,3#

main58833-KK150-B1iGUN165..IDNP..S..(PH,VN);TGN166..(AGTP,VNP)..6FC..(H,S);GGN155,GUN155,166,TGN156..LHD..(H,S)..(LA,SA)202409

SILVER,TRIM2#

main58833-KK150-B1iGUN165..IDNP..S..(PH,VN);TGN166..(AGTP,VNP)..6FC..(H,S);GGN155,GUN155,166,TGN156..LHD..(H,S)..(LA,SA)202409

SILVER,TRIM22

main58833-KK150-B1iGUN156..LHD..(IDNP,SAP)..6FC..(SA,VN)202409

SILVER,TRIM22,3#

main58833-KK150-B1iGUN156..LHD..GEN202408

SILVER,TRIM0#,2#,3#,4#

main58833-KK150-B1iGUN156..LHD..GEN202408

SILVER,TRIM2#,4#

main58833-KK150-B1iGUN156..LHD..GEN202408

SILVER,TRIM4#

main58833-KK150-B1iGUN156..AGTP..H202411

SILVER,TRIM0#,22

main58833-KK150-B2iGUN156..LHD..(AGTP,IDNP,SAP)..6FC..(H,S)..(BZAGT,LA,PH,SA,VN)202409

SMOKE SILVER METALLIC,TRIM24

main58833-KK160iGUN165..6FC..L..PH;GUN165..(AGTP,VNP)..6FC..(L,S);GUN15#,166,TGN156,166..6FC..L..(GCC,LA)202408

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-KK040iGUN156,165..RHD..6F..S202409

main58834-KK050iGUN165..6F..SA202411

main58834-KK060iGUN156..LHD..6F..SA202411

main58834-KK070iGUN15#,165,TGN156,166..MTM..(GEN,LA,PH,VN)202409

main58834-KK080-B0iGUN156..TH202408

SILVER,TRIM0#,2#,3#

main58834-KK080-B0iGUN156..IDN202409

SILVER,TRIM22

main58834-KK080-B0iGUN156..IDN202409

SILVER,TRIM2#,3#

main58834-KK080-B0iGUN156..TH202408

SILVER,TRIM0#,22,3#

main58834-KK080-B0iGUN156..TH202408

SILVER,TRIM2#

main58834-KK080-B0iGUN156..TH202408

SILVER,TRIM2#,4#

main58834-KK080-B0iGUN156..RHD..6FC..DCRL..SA202411

SILVER,TRIM22,3#

main58834-KK080-B2iGUN156..RHD..6FC..DCRL..(IDN,SA,TH)202408

SMOKE SILVER METALLIC,TRIM24

main58834-KK090iGUN156..(L,S)..ARL;GUN155,165..RHD..6FC..L202408

main58834-KK100-B1iGUN156..LHD..(IDNP,SAP)..6FC..(SA,VN)202409

SILVER,TRIM22

main58834-KK100-B1iGUN156..PH202409

SILVER,TRIM22,3#

main58834-KK100-B1iGUN156..PH202409

SILVER,TRIM2#,3#

main58834-KK100-B1iGUN156..PH202409

SILVER,TRIM2#

main58834-KK100-B1iGUN156..LHD..GEN202408

SILVER,TRIM0#,2#,3#,4#

main58834-KK100-B1iGUN156..LHD..GEN202408

SILVER,TRIM2#,4#

main58834-KK100-B1iGUN156..LHD..GEN202408

SILVER,TRIM4#

main58834-KK100-B1iGUN156..AGTP..H202411

SILVER,TRIM0#,22

main58834-KK100-B2iGUN156..LHD..(AGTP,IDNP,SAP)..6FC..(H,S)..(BZAGT,LA,PH,SA,VN)202409

SMOKE SILVER METALLIC,TRIM24

main58834-KK110iGUN165..6FC..L..PH;GUN165..(AGTP,VNP)..6FC..(L,S);GUN15#,166,TGN156,166..6FC..L..(GCC,LA)202408

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK030-C1iGUN156..TH202408

GR SPORT & ACCESSORY,BLACK/SILVER,TRIM2#

main58903-KK030-C1iGUN156,165..VNP..H;GUN156,166..RHD..6FC..SA202409

MLM PACKAGE,BLACK/SILVER,TRIM2#,3#

main58903-KK030-C1iGUN156,165..VNP..H;GUN156,166..RHD..6FC..SA202409

MLM PACKAGE,BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156,165..VNP..H;GUN156,166..RHD..6FC..SA202409

BLACK/SILVER,TRIM2#,3#

main58903-KK030-C1iTGN156,166..IDNP..VN202409

GR SPORT,BLACK/SILVER,TRIM2#

main58903-KK030-C1iTGN156,166..IDNP..VN202409

MLM PACKAGE,BLACK/SILVER,TRIM2#

main58903-KK030-C1iGUN156..LHD..IDNP..GEN;GUN15#..RHD..H..(ARL,GEN)202408

BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156..LHD..IDNP..GEN;GUN15#..RHD..H..(ARL,GEN)202408

BLACK/SILVER,TRIM2#

main58903-KK030-C1iGUN156..LHD..IDNP..GEN;GUN15#..RHD..H..(ARL,GEN)202408

MLM PACKAGE & ACCESSORY,BLACK/SILVER,TRIM2#

main58903-KK040-C2iGUN156..RHD..GEN202409

CENTRAL AND SOUTH AMERICA SPEC,SILVER,TRIM2#,4#

main58903-KK040-C2iGUN15#..H..GCC202408

SILVER,TRIM4#

main58903-KK040-C2iGUN15#..H..GCC202408

SILVER,TRIM2#,4#

main58903-KK040-C2iGUN15#..H..GCC202408

MLM PACKAGE,SILVER,TRIM2#,4#

main58903-KK040-C2iGUN15#..H..GCC202408

MLM PACKAGE & ACCESSORY,SILVER,TRIM2#,4#

main58903-KK040-C2iGUN156..SAP..6F;GUN156..LHD..6FC..SA;GUN166..(AGTP,IDNP)..H;GUN156..(IDNP,KENP,MAP)..(IDN,KEN,MA,PH,SA);GGN155,GUN155,165,TGN156,166..(6F,6FC)..(H,S)..(IDN,LA,MA,PH,SA)202409

SILVER,TRIM2#

main58903-KK040-C2iGUN156..SAP..6F;GUN156..LHD..6FC..SA;GUN166..(AGTP,IDNP)..H;GUN156..(IDNP,KENP,MAP)..(IDN,KEN,MA,PH,SA);GGN155,GUN155,165,TGN156,166..(6F,6FC)..(H,S)..(IDN,LA,MA,PH,SA)202409

BRUNEI SPEC,SILVER,TRIM2#,4#

main58903-KK040-C2iGUN156..SAP..6F;GUN156..LHD..6FC..SA;GUN166..(AGTP,IDNP)..H;GUN156..(IDNP,KENP,MAP)..(IDN,KEN,MA,PH,SA);GGN155,GUN155,165,TGN156,166..(6F,6FC)..(H,S)..(IDN,LA,MA,PH,SA)202409

ASEAN GENERAL SPEC,SILVER,TRIM2#,4#

main58903-KK040-C2iGUN156..SAP..6F;GUN156..LHD..6FC..SA;GUN166..(AGTP,IDNP)..H;GUN156..(IDNP,KENP,MAP)..(IDN,KEN,MA,PH,SA);GGN155,GUN155,165,TGN156,166..(6F,6FC)..(H,S)..(IDN,LA,MA,PH,SA)202409

MLM PACKAGE,SILVER,TRIM2#

main58903-KK040-C2iGUN156..SAP..6F;GUN156..LHD..6FC..SA;GUN166..(AGTP,IDNP)..H;GUN156..(IDNP,KENP,MAP)..(IDN,KEN,MA,PH,SA);GGN155,GUN155,165,TGN156,166..(6F,6FC)..(H,S)..(IDN,LA,MA,PH,SA)202409

GR SPORT,SILVER,TRIM2#

main58903-KK040-C2iGUN156..H..LA202411

SILVER,TRIM0#,2#

main58903-KK040-C2iGUN156..H..LA202411

BRAZIL SPEC,SILVER,TRIM2#

main58903-KK040-C2iGUN156..H..LA202411

MLM PACKAGE & ACCESSORY,SILVER,TRIM0#,2#

main58903-KK040-C2iGUN156..H..LA202411

GR SPORT,SILVER,TRIM0#,2#

main58903-KK040-C2iGUN156..H..LA202411

GR SPORT & ACCESSORY,SILVER,TRIM0#,2#

main58903-KK040-C2iGUN156..H..LA202411

EXPORT FROM SA,SILVER,TRIM2#

main58903-KK050-C0iGUN156,TGN156..(L,S)..(ARL,GEN)202408

BLACK,TRIM4#

main58903-KK050-C0iTGN166..(L,S)..LA;GUN15#,16#,TGN156..L..(KEN,LA,MA,PH,SA)202409

BLACK,TRIM2#

main58903-KK050-C0iGUN156,TGN156..(L,S)..(ARL,GEN)202408

BLACK,TRIM2#,4#

main58903-KK060-C0iGUN165..VNP..(L,S);GUN165..IDNP..L..VN202409

BLACK,TRIM2#

main58903-KK060-C0iGUN165..L..TH202411

BLACK,TRIM2#,4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK020-C1iGUN15#,165,TGN156,166..RHD..IDNP..(ARL,GEN)202409

BLACK/GRAY,TRIM22

main58904-KK020-C1iGUN15#,165,TGN156,166..RHD..IDNP..(ARL,GEN)202409

BLACK/GRAY,TRIM2#

main58904-KK020-C1iGUN15#,165,TGN156,166..RHD..IDNP..(ARL,GEN)202409

BLACK/GRAY,TRIM2#,4#

main58904-KK020-C2iGUN156..IDN202409

BLACK/GR RED,TRIM24

main58904-KK030-C1iGUN156..VNP;GUN155,16#,TGN156,166..(IDNP,VNP)..(PH,SA,VN)202409

BLACK/GRAY,TRIM2#,4#

main58904-KK030-C1iGUN156..VNP;GUN155,16#,TGN156,166..(IDNP,VNP)..(PH,SA,VN)202409

BLACK/GRAY,TRIM2#

main58904-KK030-C1iGUN156..LHD..IDNP..GEN202409

BLACK/GRAY,TRIM0#,2#,4#

main58904-KK030-C1iGUN156..LHD..IDNP..GEN202409

BLACK/GRAY,TRIM22

main58904-KK030-C1iGUN156..LHD..IDNP..GEN202409

BLACK/GRAY,TRIM4#

main58904-KK030-C2iGUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH)202409

BLACK/CRIMSON,TRIM3#

main58904-KK030-C3iGUN156..IDNP..(PH,VN)202409

BLACK/GR RED,TRIM24

main58904-KK060-C2iGUN155,165..H..TH;GUN156,166..RHD..(MA,SA,TH)202408

BLACK/CRIMSON,TRIM3#

main58904-KK060-C3iGUN155,16#..H..TH202408

BLACK,TRIM2#,4#

main58904-KK060-C3iGUN156..TH202408

BLACK,TRIM0#,22

main58904-KK060-C3iGUN156..TH202408

BLACK,TRIM0#,2#

main58904-KK060-C3iGUN156..TH202408

BLACK,TRIM2#

main58904-KK060-C3iGUN156..RHD..6FC..DCRL..SA202411

BLACK,TRIM22

main58904-KK060-C4iGUN156..RHD..6FC..DCRL..(SA,TH)202408

BLACK/GR RED,TRIM24

main58904-KK070-C2iGUN156..(CAMP,THP)..GEN202408

BLACK/CRIMSON NO.69,TRIM3#

main58904-KK070-C3iGUN156..(CAMP,THP)..GEN202408

BLACK,TRIM0#,2#,4#

main58904-KK070-C3iGUN15#,TGN156,166..THP..(H,L)..GCC202408

BLACK,TRIM4#

main58904-KK070-C3iGUN156..(CAMP,THP)..GEN202408

BLACK,TRIM2#,4#

main58904-KK070-C3iGUN156..LHD..6FC..SA202411

BLACK,TRIM22

main58904-KK070-C3iGUN156..LHD..6FC..SA202411

BLACK,TRIM2#

main58904-KK070-C3iGUN156..LHD..SAP..6F;GUN156..LHD..(AGTP,IDNP)..(L,S);GGN155,GUN155,16#,TGN156,166..LHD..(AGTP,SAP)202411

BLACK,TRIM0#,22

main58904-KK070-C4iGUN156..LHD..(AGTP,SAP)..6FC..(H,S)202411

BLACK/GR RED,TRIM24

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK010-C7iGUN155,165..L..(KEN,MA,SA)202409

BLACK/BLACK,TRIM2#

main58905-KK010-C7iGUN165..L..TH;GUN156..(L,S)..ARL202408

BLACK/BLACK,TRIM2#,4#

main58905-KK020-C4iGUN155,TGN156,166..(6F,6FC)..L..(GCC,GEN)202408

BLACK/BLACK,TRIM4#

main58905-KK020-C4iTGN156..L..GEN202409

BLACK/BLACK,TRIM2#,4#

main58905-KK020-C4iTGN156..L..GEN202409

BLACK/BLACK,TRIM2#

main58905-KK030-20iGUN156,166..RHD..(MA,SA)202409

BLACK/CRIMSON,TRIM3#

main58905-KK030-24iGUN156..KEN,MA;GUN156..MHV..SA;GUN156..RHD..6F..SA;GUN166,TGN156..RHD..(MA,SA)202409

BLACK/GRAY,TRIM2#

main58905-KK030-24iGUN156..RHD..6FC..DCRL..SA202410

BLACK/GRAY,TRIM22

main58905-KK030-25iGUN156..RHD..6FC..DCRL..SA202410

BLACK/GR RED,TRIM24

main58905-KK040-23iGUN156..AGTP..H202411

BLACK/FROMAGE,TRIM0#

main58905-KK040-26iGUN156..LHD..(AGTP,SAP)..6FC..(H,S)202411

BLACK/GRAY,TRIM2#

main58905-KK040-26iGUN156..LHD..(AGTP,SAP)..6FC..(H,S)202411

BLACK/GRAY,TRIM22

main58905-KK040-27iGUN156..LHD..(AGTP,SAP)..6FC..(H,S)202411

BLACK/GR RED,TRIM24

main58905-KK110-C2iGUN15#,16#..H..TH202408

BLACK/BLACK/CRIMSON,TRIM3#

main58905-KK110-C3iGUN156..H..ARL202408

BLACK/CHAMOIS/IVORY,TRIM4#

main58905-KK110-C5iGUN156..TH202408

BLACK/GRAY,TRIM2#

main58905-KK110-C5iGUN156..TH202408

BLACK/GRAY,TRIM0#,22

main58905-KK110-C5iGUN156..TH202408

BLACK/GRAY,TRIM0#,2#

main58905-KK110-C7iGUN156..TH202408

BLACK/GR RED,TRIM24

main58905-KK120-C3iGGN155,GUN15#,165,TGN156..LHD..(CAMP,THP)..(H,S)202408

BLACK/CHAMOIS/IVORY,TRIM4#

main58905-KK120-C6iGUN156..(CAMP,THP)..GEN202408

BLACK/CRIMSON NO.69,TRIM3#

main58905-KK120-C7iGUN156..(CAMP,THP)..GEN202408

BLACK/GRAY,TRIM0#,2#

main58905-KK120-C7iGUN156..(CAMP,THP)..GEN202408

BLACK/GRAY,TRIM2#

main58905-KK130-C0iGUN15#,165,TGN156,166..RHD..GEN202409

BLACK/CHAMOIS,TRIM4#

main58905-KK130-C2iGUN156..IDN202409

BLACK/GRAY,TRIM22

main58905-KK130-C2iGUN156..IDN202409

BLACK/GRAY,TRIM2#

main58905-KK130-C3iGUN156..IDN202409

BLACK/GR RED,TRIM24

main58905-KK140-C0iGGN155,GUN15#,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202409

BLACK/CHAMOIS,TRIM4#

main58905-KK140-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM0#,2#

main58905-KK140-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM22

main58905-KK140-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM2#

main58905-KK140-C3iGUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH)202409

BLACK/CRIMSON,TRIM3#

main58905-KK140-C4iGUN156..IDNP..(PH,VN)202409

BLACK/GR RED,TRIM24

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0iGUN15#,16#..H..TH202408

BLACK,TRIM2#,4#

main58907-KK010-C0iGUN15#,16#..H..TH202408

BLACK,TRIM0#,2#,3#

main58907-KK010-C0iGUN15#,16#..H..TH202408

BLACK,TRIM0#,2#,3#,4#

main58907-KK010-C0iGUN15#,16#..H..TH202408

BLACK,TRIM4#

main58907-KK010-C0iGUN15#,16#..H..TH202408

BLACK,TRIM2#

main58907-KK010-C0iGUN156..PH;GUN156..VNP;GUN165,TGN156..H..VN;GUN156..RHD..(MA,SA);GUN166,TGN166..(IDNP,SAP)..(PH,SA,VN)202409

BLACK,TRIM2#,3#

main58907-KK010-C0iGUN156..AGTP..H202411

BLACK,TRIM0#,2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

58916MAT, BOX BOTTOM

main58916-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

58918ABRACKET, BOX SUPPORT

main58918-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

58921APANEL, REAR CONSOLE, UPPER

main58921-KK020-B0iGUN15#..H..GCC202408

SILVER,TRIM2#,4#

main58921-KK020-B0iGUN15#..H..GCC202408

MLM PACKAGE,SILVER,TRIM2#,4#

main58921-KK020-B0iGUN15#..H..GCC202408

MLM PACKAGE & ACCESSORY,SILVER,TRIM2#,4#

main58921-KK020-B0iGUN15#..H..GCC202408

MLM PACKAGE & ACCESSORY,SILVER,TRIM2#

main58921-KK020-B0iGUN15#..H..GCC202408

GR SPORT & ACCESSORY,SILVER,TRIM2#

main58921-KK020-B0iGUN165,TGN166..H..(IDN,VN);TGN166..(AGTP,VNP)..6FC..(H,S);GUN156..BZAGT,IDN,KEN,MA,PH,SA,TH,VN;GUN165..(IDNP,THP)..(H,S)..(IDN,PH,TH,VN);GGN155,GUN155,166,TGN156..(H,S)..(IDN,LA,MA,PH,SA,TH)202408

SILVER,TRIM4#

main58921-KK020-B0iGUN165,TGN166..H..(IDN,VN);TGN166..(AGTP,VNP)..6FC..(H,S);GUN156..BZAGT,IDN,KEN,MA,PH,SA,TH,VN;GUN165..(IDNP,THP)..(H,S)..(IDN,PH,TH,VN);GGN155,GUN155,166,TGN156..(H,S)..(IDN,LA,MA,PH,SA,TH)202408

SILVER,TRIM2#

main58921-KK020-B0iTGN156,166..IDNP..VN202409

GR SPORT,SILVER,TRIM2#

main58921-KK020-B0iGUN156..PH;GUN166..PH,SA;GUN156,165..VNP..H;GUN156..RHD..(MA,SA)202409

SILVER,TRIM2#,3#

main58921-KK020-B0iGUN156..PH;GUN166..PH,SA;GUN156,165..VNP..H;GUN156..RHD..(MA,SA)202409

MLM PACKAGE,SILVER,TRIM2#,3#

main58921-KK020-B0iGUN156..PH;GUN166..PH,SA;GUN156,165..VNP..H;GUN156..RHD..(MA,SA)202409

MLM PACKAGE,SILVER,TRIM2#

main58921-KK020-B0iGUN156..H..LA202411

SILVER,TRIM0#,2#

main58921-KK020-B0iGUN156..H..LA202411

BRAZIL SPEC&MLM PACKAGE & ACCESSORY,SILVER,TRIM2#

main58921-KK020-B0iGUN156..H..LA202411

BRAZIL SPEC&GR SPORT & ACCESSORY,SILVER,TRIM2#

main58921-KK020-B0iGUN156..H..LA202411

MLM PACKAGE & ACCESSORY,SILVER,TRIM0#,2#

main58921-KK020-B0iGUN156..H..LA202411

GR SPORT,SILVER,TRIM0#,2#

main58921-KK020-B0iGUN156..H..LA202411

GR SPORT & ACCESSORY,SILVER,TRIM0#,2#

main58921-KK020-B0iGUN156..H..LA202411

EXPORT FROM SA&MLM PACKAGE,SILVER,TRIM2#

main58921-KK020-B0iGUN156..H..LA202411

EXPORT FROM SA&GR SPORT,SILVER,TRIM2#

main58921-KK030iGUN155,166,TGN156..L;GUN165..(IDNP,THP)..L;GUN165..(AGTP,SAP,VNP)..(L,S);GUN156,TGN166..(L,S)..(ARL,GCC,LA)202408

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK010-C2iGUN165..L..TH;GUN156..(L,S)..ARL202408

BLACK,TRIM2#,4#

main58951-KK010-C2iGUN155,165..L..(KEN,MA,SA)202409

BLACK,TRIM2#

main58951-KK030-C3iGUN156,166..RHD..(MA,SA)202409

BLACK/CRIMSON,TRIM3#

main58951-KK030-C5iGUN156..RHD..6FC..DCRL..SA202410

BLACK/GRAY,TRIM22

main58951-KK030-C5iGUN156..KEN,MA;GUN156..MHV..SA;GUN156..RHD..6F..SA;GUN166,TGN156..RHD..(MA,SA)202409

BLACK/GRAY,TRIM2#

main58951-KK030-C6iGUN156..RHD..6FC..DCRL..SA202410

BLACK/GR RED,TRIM24

main58951-KK070-C1iGUN165..IDNP..L;TGN166..(L,S)..LA;GUN156,16#,TGN156..(AGTP,VNP)..(L,S)202409

BLACK,TRIM2#

main58951-KK070-C1iGUN165..IDNP..L;TGN166..(L,S)..LA;GUN156,16#,TGN156..(AGTP,VNP)..(L,S)202409

BLACK,TRIM2#,4#

main58951-KK070-C1iGUN155,TGN156,166..(6F,6FC)..L..(GCC,GEN)202408

BLACK,TRIM4#

main58951-KK090-A0iGUN156..AGTP..H202411

FROMAGE/WHITE NO.256,TRIM0#

main58951-KK090-C5iGUN156..LHD..(AGTP,SAP)..6FC..(H,S)202411

BLACK/GRAY,TRIM22

main58951-KK090-C5iGUN156..LHD..SAP..6F;GGN155,GUN155,166,TGN156,166..LHD..(AGTP,SAP)..6FC..(H,S)202411

BLACK/GRAY,TRIM2#

main58951-KK090-C6iGUN156..LHD..(AGTP,SAP)..6FC..(H,S)202411

BLACK/GR RED,TRIM24

main58951-KK120-C1iGUN15#,16#..H..TH202408

BLACK/CRIMSON,TRIM3#

main58951-KK120-C2iGUN156..H..ARL;GUN155,165..S..TH202408

BLACK/GRAY,TRIM0#,22

main58951-KK120-C2iGUN156..H..ARL;GUN155,165..S..TH202408

BLACK/GRAY,TRIM0#,2#

main58951-KK120-C2iGUN156..H..ARL;GUN155,165..S..TH202408

BLACK/GRAY,TRIM2#

main58951-KK120-C4iGUN156..TH202408

BLACK/GR RED,TRIM24

main58951-KK120-E1iGUN156..H..ARL202408

CHAMOIS/IVORY,TRIM4#

main58951-KK130-C2iGUN156..(CAMP,THP)..GEN202408

BLACK/CRIMSON NO.69,TRIM3#

main58951-KK130-C3iGUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S)202408

BLACK/GRAY,TRIM2#

main58951-KK130-C3iGUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S)202408

BLACK/GRAY,TRIM0#,2#

main58951-KK130-E1iGGN155,GUN15#,165,TGN156..LHD..(CAMP,THP)..(H,S)202408

CHAMOIS/IVORY,TRIM4#

main58951-KK140-C0iGUN156..IDN202409

BLACK/GRAY,TRIM2#

main58951-KK140-C0iGUN156..IDN202409

BLACK/GRAY,TRIM22

main58951-KK140-C1iGUN156..IDN202409

BLACK/GR RED,TRIM24

main58951-KK140-E0iGUN15#,165,TGN156,166..RHD..GEN202409

CHAMOIS/IVORY,TRIM4#

main58951-KK150-C0iGUN156..IDNP..SA;GUN156,165..VNP..H;GUN155..IDNP..S..GCC;GUN155,165..LHD..IDNP..(H,S)..(GEN,PH,SA,VN);GGN155,GUN166,TGN156,166..LHD..(IDNP,VNP)..(H,S)202409

BLACK/GRAY,TRIM2#

main58951-KK150-C0iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM0#,2#

main58951-KK150-C0iGUN156..IDNP..(PH,VN)202409

BLACK/GRAY,TRIM22

main58951-KK150-C1iGUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH)202409

BLACK/CRIMSON,TRIM3#

main58951-KK150-C2iGUN156..IDNP..(PH,VN)202409

BLACK/GR RED,TRIM24

main58951-KK150-E0iGGN155,GUN15#,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202409

CHAMOIS/IVORY,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-T0008iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0004

main90167-T0004

90167T0007

main90167-T0007

90167T0012

main90167-T0012

9046705171

main90467-05171

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9352054014

main93520-54014

9354054012

main93540-54012

9356855014

main93568-55014

33 parts on this diagram · 6 diagrams in section
