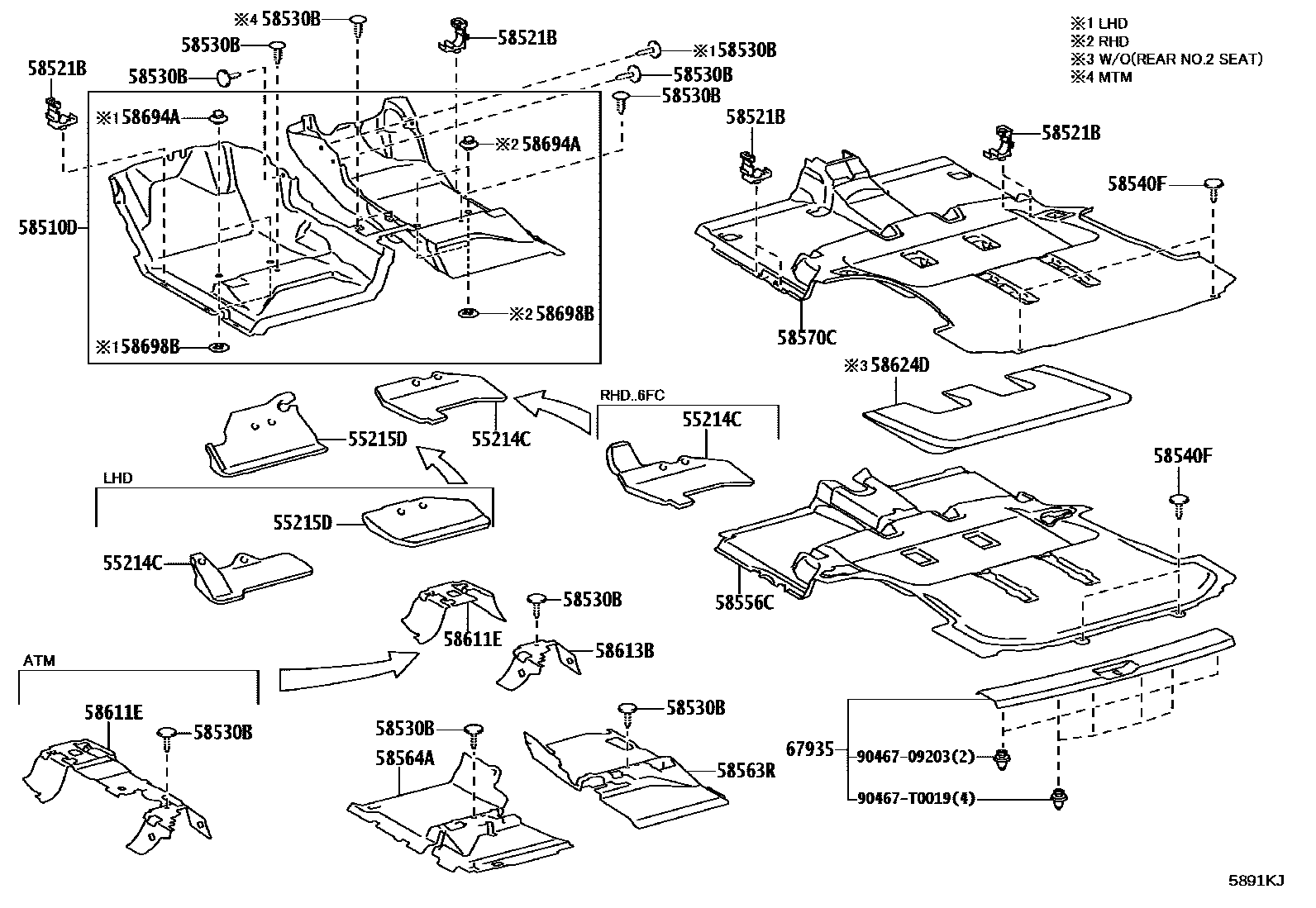

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#; BLACK,TRIM2#
BLACK,TRIM2#,4#; BLACK,TRIM4#
main58500-0K610-C0iGUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN155..IDNP..S..GCC;GUN155..LHD..IDNP..H..GEN;GGN155,GUN165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN); GUN156..LHD..IDNP..GEN202409
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
main58500-0K830-C0iGUN156,166..RHD..6FC..DCRL..SA; GUN156..6FC..KEN;GUN155,165..6FC..L..(KEN,SA)202411
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM2#
main58500-0KD80-C0iGUN156,166..PH;TGN156,166..IDNP..VN; GUN156..IDNP..VN;GUN165..IDNP..6FC..(PH,VN)202409
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
main58510-0KY70-C1iGUN15#,TGN156,166..THP..(H,L)..GCC; GUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..(CAMP,THP)..GEN202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
58521BHOOK, FLOOR CARPET
main58521-0K120×10iGGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,THP)..(BZAGT,GCC,GEN,LA,TH); GUN156..ARL202408
MADE IN THAILAND
MADE IN INDIA
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-T0031-C0×8iGUN15#,16#..H..TH; GUN15#,TGN156,166..(H,L)..GCC; GUN155..RHD..(L,S);GUN156..6FC..(IDN,KEN);GUN165..6FC..S..(IDN,TH);GUN16#,TGN156,166..6FC..(H,L)..(IDN,MA,SA); GUN155..S..GCC;GUN155..LHD..H..GEN;GGN155,GUN165,TGN156..LHD..(H,S)..(GCC,GEN); GUN156..LHD..GEN; GUN165..L..TH;GUN15#,165,TGN156,166..RHD..(ARL,GEN)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
58540FCLIP(FOR REAR FLOOR CARPET)
main90467-T0031-C0×4iGUN15#,16#..H..TH; GUN155..H..GEN;GUN155..S..GCC;GUN156..RHD..(ARL,GEN);GUN165,TGN156..L..(GEN,TH);GGN155,GUN165,TGN156,166..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..(H,L)..GCC; GUN156..LHD..GEN; TGN166..VNP;GUN165..S..TH;TGN156..LA,MA,SA;GGN155,GUN166,TGN166..IDN,LA;GUN155..(L,S)..(KEN,MA,SA,TH);GUN156..LHD..(AGTP,SAP)..(L,S);GUN165..(L,S)..(IDN,LA,PH,SA,VN);GUN156..(IDNP,KENP)..(IDN,KEN,SA,VN)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
58556CSILENCER, REAR FLOOR
main58569-0K010iGUN156..ARL,MA,TH;GUN156..LHD..(CAMP,THP);GGN155,GUN155,16#,TGN156,166..MAP,THP202408
REAR NO.2 SEAT-WITHOUT
58563RSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM2#; BLACK,TRIM2#,3#
main58570-0K600-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN156..(CAMP,THP)..GEN; GUN156..ARL; GUN165..L..TH;GUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,FASTENER = 5 PIECES; BLACK,TRIM4#
BLACK,TRIM2#,3#
main58570-0K700-C1iGUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH;TGN156,166..IDNP..VN; GUN156..IDNP..(IDN,SA,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..IDNP..(IDN,SA); GUN156..LHD..IDNP..GEN; GUN156..RHD..GEN;GUN155,TGN156..IDNP..S..GCC;GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN)202409
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM0#,2#; BLACK,TRIM2#
main58570-0KA00-C1iGUN156,166..RHD..DCRL..SA; GUN156..KEN;GUN156..LHD..SAP;GUN155,165,TGN156..KENP,SAP202411
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#; BLACK,TRIM2#,3#
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#
58611ESHEET, FRONT FLOOR SILENCER
58613BSHEET, FRONT FLOOR SILENCER, CENTER
58624DPAD, CENTER FLOOR SILENCER
REAR NO.2 SEAT-WITHOUT
58694APLATE, MAT SET, UPPER
main58694-78010×2iGUN156..RHD..(ARL,KEN,SA,TH);GUN156..LHD..(AGTP,CAMP,SAP,THP);GGN155,GUN155,16#,TGN156,166..AGTP,KENP,SAP,THP202408
58698BPLATE, MAT SET, LOWER
main58698-78010×2iGUN156..RHD..(ARL,KEN,SA,TH);GUN156..LHD..(AGTP,CAMP,SAP,THP);GGN155,GUN155,16#,TGN156,166..AGTP,KENP,SAP,THP202408
67935PLATE, BACK DOOR SCUFF
main67935-0K080-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN156..(CAMP,THP)..GEN; GUN165..L..TH;GUN156..THP..ARL;GUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); TGN156..MA;GUN165..S..TH;GUN155..(L,S)..(MA,TH)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main67935-KK010-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156..LHD..IDNP..GEN; GUN156..PH;GUN156..VNP;GUN156..RHD..SA;GUN165,TGN156..H..VN;GUN166,TGN166..(IDNP,SAP)..(PH,SA,VN); TGN166..VNP;GUN166..IDN,LA;GUN156..LHD..(AGTP,SAP)..(L,S);GUN165..(L,S)..(IDN,LA,PH,SA,VN);GUN156..(IDNP,KENP)..(IDN,KEN,SA,VN);GGN155,GUN155,TGN156,166..IDN,KEN,LA,SA202409
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
9046709203
main90467-09203
90467T0019
main90467-T0019
18 parts on this diagram · 3 diagrams in section
