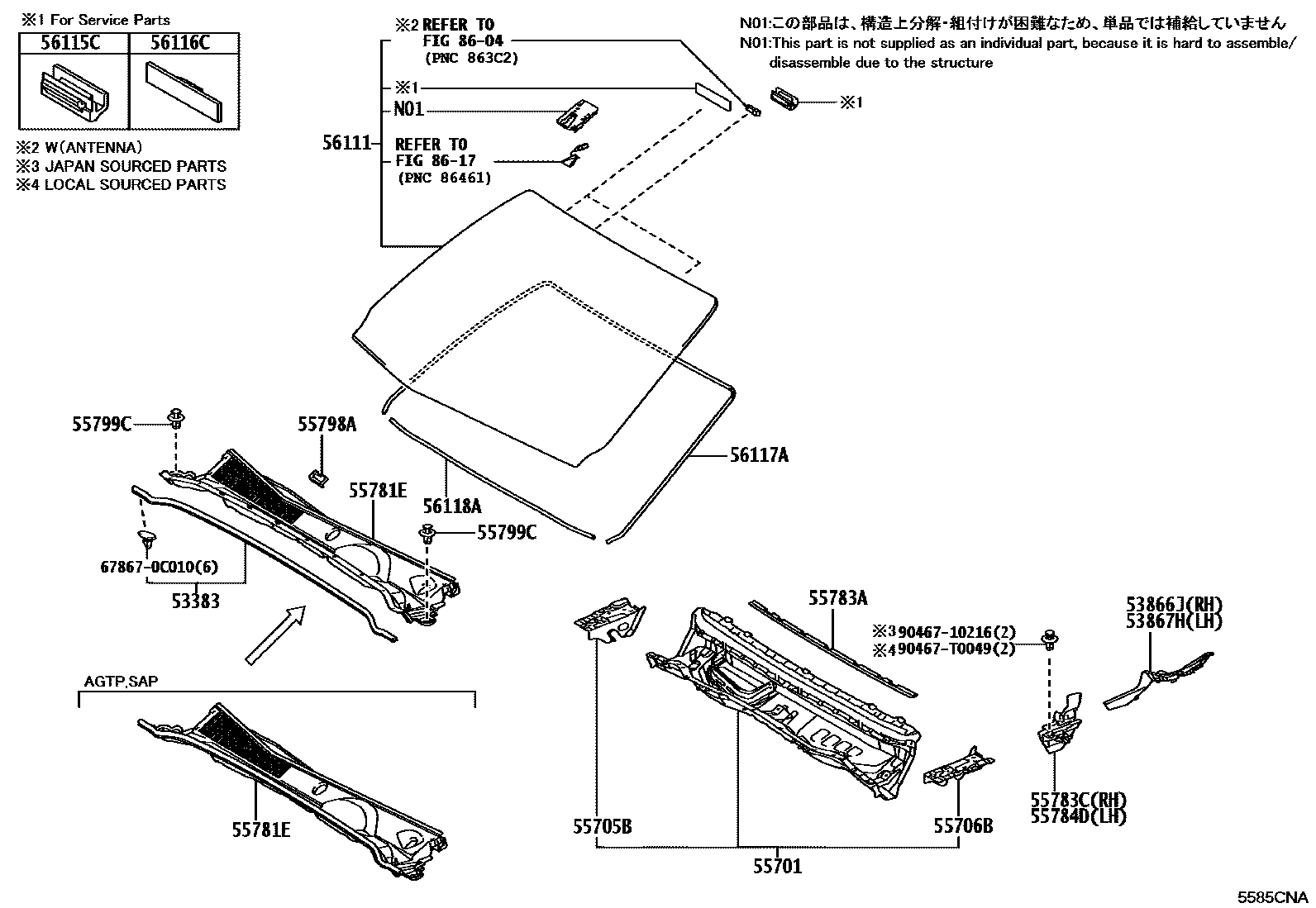

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(L),MADE IN IDN
(J)
(L)
56111GLASS, WINDSHIELD
main56101-0K361supersedes 56101-0KB80iGUN155..THP..L; GUN155..THP..S..GCC;GGN155,TGN156,166..THP..(L,S)202408
GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
ACTIVE SAFETY PACKAGE-WITHOUT; INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
main56101-0K471iGUN165..VNP..(L,S);GUN165..IDNP..L..VN;GUN15#,165,TGN156..LHD..IDNP..(L,S)..(GEN,PH,SA); TGN166..VN202409
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
main56101-0K480supersedes 56101-0KL20iGUN155..IDNP..L..GCC; TGN156,166..IDNP..GCC;GGN155,GUN155..IDNP..S..GCC202409
GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
main56101-0K760iGUN165..H..VN;GUN165..IDNP..S..VN;GGN155,GUN15#,166,TGN156,166..LHD..(IDNP,VNP)..6FC..(GEN,PH,VN)202409
ACTIVE SAFETY PACKAGE-WITHOUT
GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
ACTIVE SAFETY PACKAGE-WITH
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
BACK GLASS-FIX TYPE(GREEN,*HSEA)
main56101-0KB80iGGN155..THP..S; GUN155..THP..L; TGN156,166..THP..L; TGN156..THP..L;GUN155..THP..S..GCC202408
SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
EXPORT FROM SA&AUDIO-*DA(8INCH) & *BT; EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH; ASEAN GENERAL SPEC&ACTIVE SAFETY PACKAGE-WITH; BRUNEI SPEC&ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH
SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET)& DAB; UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
main56101-0KL20iGGN155..IDNP..S; GGN155..IDNP..S;TGN156..IDNP..L..GCC; GUN155..IDNP..L..GCC; GUN155..IDNP..S..GCC; TGN156..IDNP..L..GCC;GGN155,TGN166..IDNP..(L,S)..GCC202409
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
main56117-KK060iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; GGN155..GCC; GGN155..H..GCC; GGN155..S;TGN156,166..IDNP..L..GCC; GGN155..S;TGN156..IDNP..L..GCC; GUN155..S..GCC;TGN156..THP..L; GUN156..GCC; GUN156..GCC;GUN155..L..GCC; GUN156..L..ARL; GUN156..THP..GEN;GUN156..GCC,PH,VN;GUN155,165..H..TH;GUN156..RHD..6FC..(IDN,SA,TH);GUN166..(AGTP,IDNP,SAP,THP)..(H,S); TGN156,166..THP..L202408
L=2620; L=2620,ACTIVE SAFETY PACKAGE-WITH; L=2620,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; L=2620,GCC SPEC EURO4 2018MY; L=2620,GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH; L=2620,GCC SPEC EURO4 2022MY; L=2620,SAUDI ARABIA SPEC; L=2620,SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; L=2620,SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; L=2620,SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; L=2620,UAE SPEC; L=2620,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; L=2620,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
main56117-KK030iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; GGN155..GCC; GGN155..H..GCC; GGN155..S;TGN156,166..IDNP..L..GCC; GGN155..S;TGN156..IDNP..L..GCC; GUN155..S..GCC;TGN156..THP..L; GUN156..GCC; GUN156..GCC;GUN155..L..GCC; GUN156..L..ARL; GUN156..THP..GEN;GUN156..GCC,PH,VN;GUN155,165..H..TH;GUN156..RHD..6FC..(IDN,SA,TH);GUN166..(AGTP,IDNP,SAP,THP)..(H,S); TGN156,166..THP..L202408
L=1248; L=1248,ACTIVE SAFETY PACKAGE-WITH; L=1248,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE; L=1248,GCC SPEC EURO4 2018MY; L=1248,GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH; L=1248,GCC SPEC EURO4 2022MY; L=1248,SAUDI ARABIA SPEC; L=1248,SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; L=1248,SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; L=1248,SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB; L=1248,UAE SPEC; L=1248,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; L=1248,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
8604ANTENNA
8617PRE-COLLISION SYSTEM
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
