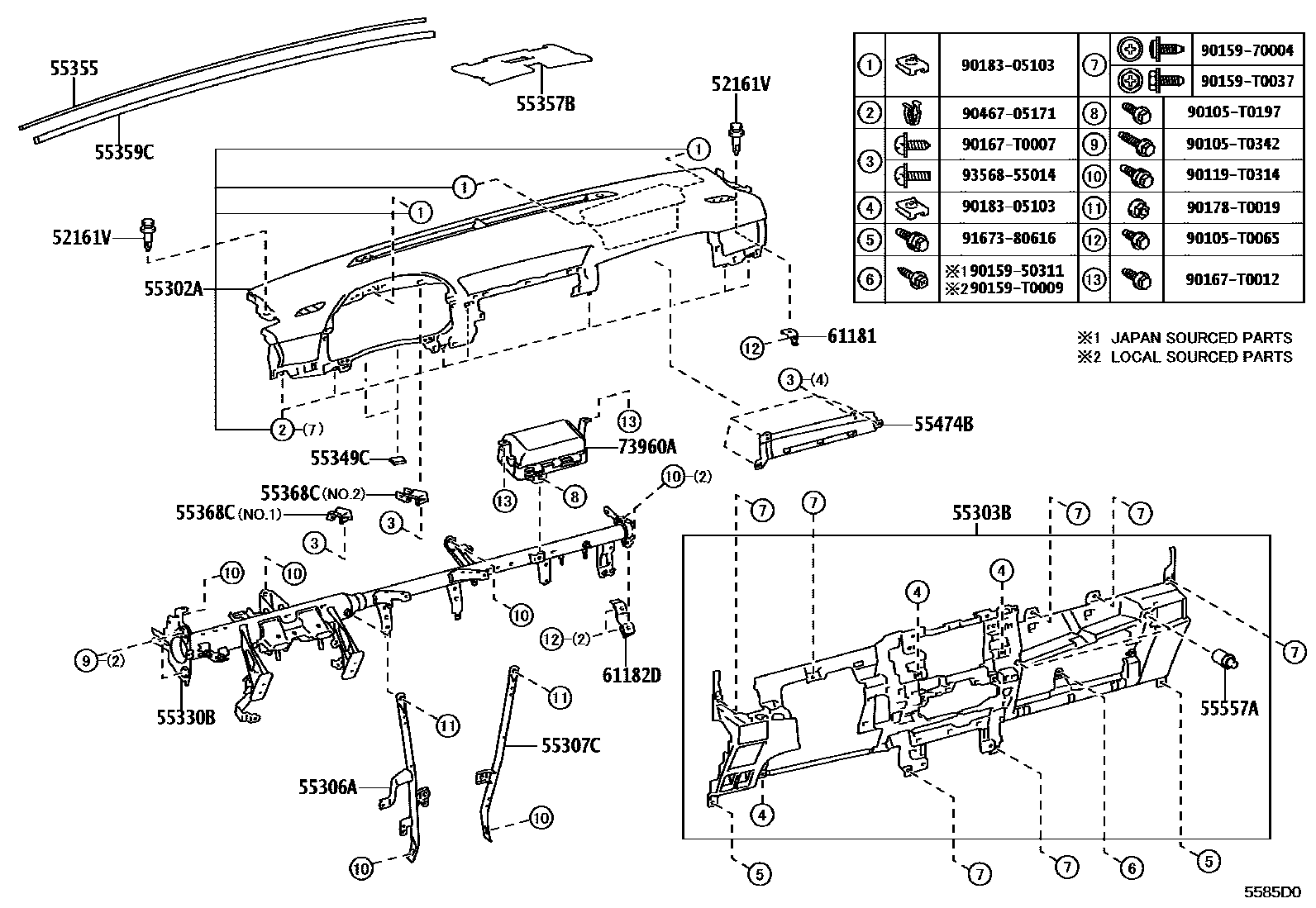

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
(L)
(J)
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
main55302-KK120-C0iGUN155,165..H..TH; GUN165..L..TH;GUN15#,165,TGN156,166..RHD..(ARL,GEN); GUN165..S..TH;GUN155..RHD..(L,S);GUN156,166,TGN166..IDN,KEN,TH;GUN165,TGN156..RHD..(IDN,MA,SA)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main55302-KK140-C0iGUN155..L..GEN;GUN15#,TGN156,166..(H,L)..GCC; GUN155..S..GCC;GUN155,TGN156..LHD..(5F,6FC)..GEN;GGN155,GUN165,TGN156..LHD..(H,S)..(GCC,GEN); GUN156..LHD..(IDNP,THP)..GEN202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main55302-KK220-C0supersedes 55302-KK140-C0iGUN156..CAMP; GUN156..IDNP..VN;GGN155,GUN166,TGN166..H..LA; GUN156..PH;GUN156..VNP; TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN)202409
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,3#; SPEAKER-11SPEAKER & JBL,BLACK,TRIM2#; SPEAKER-11SPEAKER & JBL,BLACK,TRIM2#,3#
GR SPORT & ACCESSORY,BLACK,TRIM0#,2#,3#; MLM PACKAGE & ACCESSORY,BLACK,TRIM0#,2#,3#; MLM PACKAGE & ACCESSORY,BLACK,TRIM0#,3#; SPEAKER-11SPEAKER & JBL,BLACK,TRIM2#,4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
main55303-KK030-C0iGUN15#,16#..H..TH; GUN165..L..TH;GUN15#,165,TGN156,166..RHD..(ARL,GEN); GUN165..S..TH;GUN165..IDN,SA;GUN156,166,TGN166..IDN,KEN;GUN155..RHD..(L,S)..(KEN,SA,TH)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main55303-KK040-C0iGUN156..PH;GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN); TGN166..AGTP,VNP;GUN156,165..(L,S)..(LA,PH,VN);GUN156..LHD..(IDNP,SAP)..(SA,VN);GGN155,GUN155,166,TGN156..LHD..(LA,SA)202409
BLACK,TRIM2#; BLACK,TRIM2#,3#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
EXCEPT MADE IN TH
EXCEPT MADE IN TH
MADE IN THAILAND
MADE IN THAILAND
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
EXCEPT MADE IN TH
EXCEPT MADE IN TH
MADE IN THAILAND
MADE IN THAILAND
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-KK540iGUN155,165..LHD..6F;TGN156..L..(GEN,LA);GUN156..LHD..SAP..6F;GGN155,GUN156,16#,TGN166..(AGTP,IDNP)..(BZAGT,LA,SA)202409
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55357BCUSHION, INSTRUMENT PANEL, NO.3
55359CCOSHION, INSTRUMENT PANEL, NO.5
55368CBRACKET, METER MOUNTING
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL
main55474-KK120-C0iGUN155,165..H..TH; GUN165..L..TH;GUN15#,165,TGN156,166..RHD..(ARL,GEN); GUN165..S..TH;GUN155..RHD..(L,S);GUN156,166,TGN166..IDN,KEN,TH;GUN165,TGN156..RHD..(IDN,MA,SA)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main55474-KK130-C0iGUN156..PH;GUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN); TGN166..AGTP,VNP;GUN156,165..(L,S)..(LA,PH,VN);GUN156..LHD..(IDNP,SAP)..(SA,VN);GGN155,GUN155,166,TGN156..LHD..(LA,SA)202409
BLACK,TRIM2#; BLACK,TRIM2#,3#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
61181BRACKET, INSTRUMENT PANEL SIDE
61182DBRACKET, INSTRUMENT PANEL SIDE
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
90105T0065
main90105-T0065
90105T0197
main90105-T0197
90105T0342
main90105-T0342
90119T0314
main90119-T0314
9015950311
main90159-50311
9015970004
main90159-70004
90159T0009
main90159-T0009
90159T0037
main90159-T0037
90167T0007
main90167-T0007
90167T0012
main90167-T0012
90178T0019
main90178-T0019
9018305103
main90183-05103
9046705171
main90467-05171
9167380616
main91673-80616
9356855014
main93568-55014
31 parts on this diagram · 8 diagrams in section
