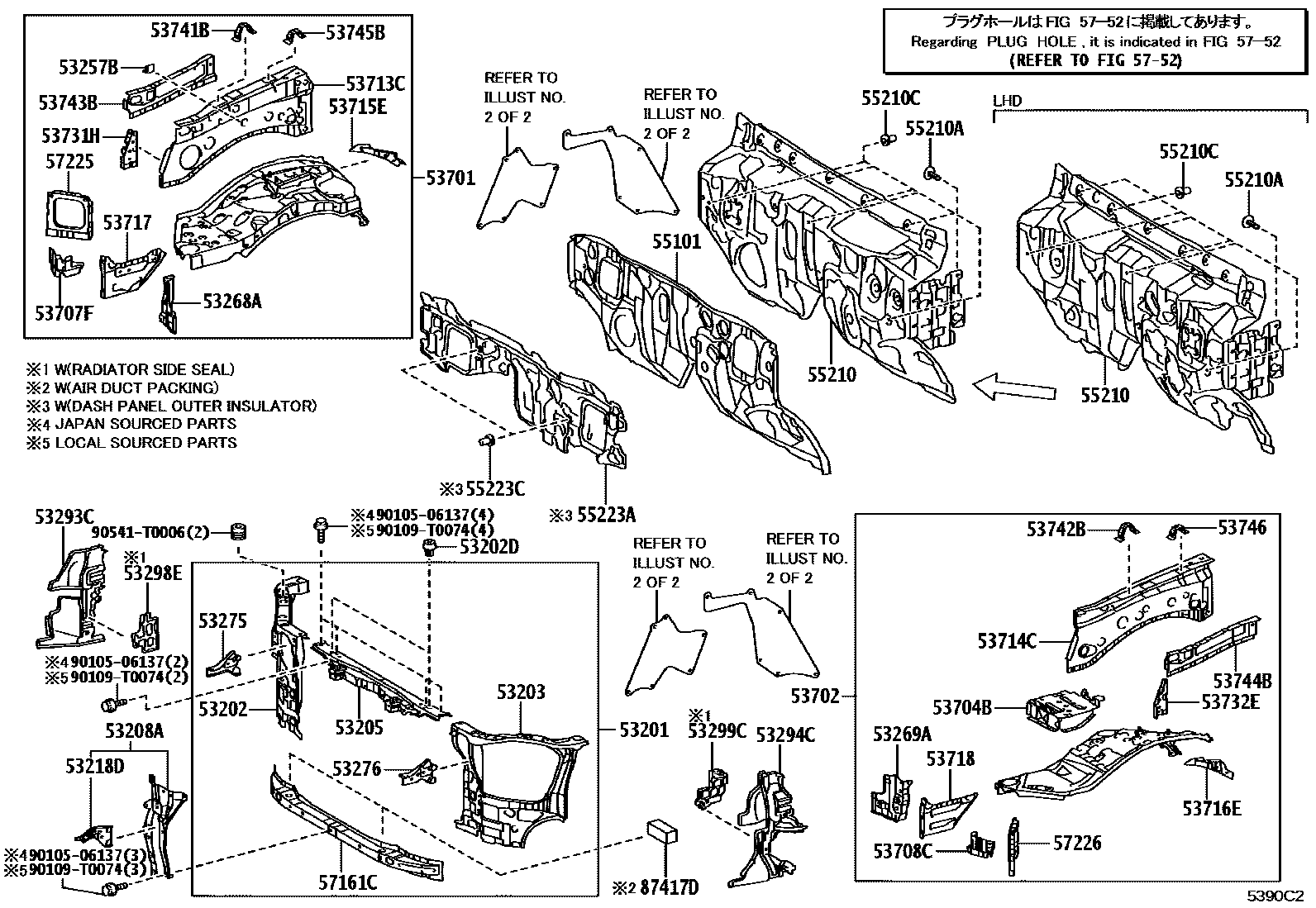

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53218DEXTENSION, HOOD LOCK BRACE
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-KK280iGUN155,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP;GGN155,GUN15#,16#..ARL,BZAGT,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN; TGN166..IDN;GUN156..6FC..KEN;GUN155,165..RHD..(SA,TH);GGN155,GUN166..H..(IDN,LA,PH); TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..(MAP,THP,VNP)..(GEN,MA,VN)202408
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM
main53293-YP170iGGN155,GUN156,166..AGTP..H; GUN156..6FC..DCRL..SA; GUN156..AGTP..H; GUN156..H..LA202411
FRONT BUMPER-PAINTED(GR SPORT); GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; GR SPORT & ACCESSORY,EXCEPT PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; GR SPORT,EXCEPT PLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPTPLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPTPLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; MLM BASIC PACKAGE,EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY,EXCEPT PLANT TASA
GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; GR SPORT & ACCESSORY,PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; GR SPORT,PLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANTTASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; MLM BASIC PACKAGE,PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; MLM PACKAGE & ACCESSORY,PLANT TASA
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-KK280iGUN155,16#..H..TH; GUN156..(CAMP,THP)..GEN; GUN156..TH; TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP;GGN155,GUN15#,16#..ARL,BZAGT,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN; TGN166..IDN;GUN156..6FC..KEN;GUN155,165..RHD..(SA,TH);GGN155,GUN166..H..(IDN,LA,PH); TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..(MAP,THP,VNP)..(GEN,MA,VN)202408
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM
main53294-YP170iGGN155,GUN156,166..AGTP..H; GUN156..6FC..DCRL..SA; GUN156..AGTP..H; GUN156..H..LA202411
FRONT BUMPER-PAINTED(GR SPORT); GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; GR SPORT & ACCESSORY,EXCEPT PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; GR SPORT,EXCEPT PLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPTPLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPTPLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; MLM BASIC PACKAGE,EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,EXCEPT PLANT TASA; MLM PACKAGE & ACCESSORY,EXCEPT PLANT TASA
GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; GR SPORT & ACCESSORY,PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANT TASA; GR SPORT&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; GR SPORT,PLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANTTASA; MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; MLM BASIC PACKAGE,PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),PLANT TASA; MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT,PLANT TASA; MLM PACKAGE & ACCESSORY,PLANT TASA
53298ESEAL, RADIATOR SIDE, RH
CENTRAL AND SOUTH AMERICA SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CENTRAL AND SOUTH AMERICA SPEC&GR SPORT&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CENTRAL AND SOUTH AMERICA SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18 ALUMINUM; CENTRAL AND SOUTH AMERICA SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18 ALUMINUM; CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS); CHILE SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CHILE SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE& DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CHILE SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; CHILE SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARDDIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; COSTA RICA SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARDDIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); COSTA RICA SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); COSTA RICA SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; COSTA RICA SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM; MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE &DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE& DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM
53299CSEAL, RADIATOR SIDE, LH
CENTRAL AND SOUTH AMERICA SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CENTRAL AND SOUTH AMERICA SPEC&GR SPORT&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CENTRAL AND SOUTH AMERICA SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18 ALUMINUM; CENTRAL AND SOUTH AMERICA SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-WITHOUT&TIRE & DISC WHEEL-265/60R18 ALUMINUM; CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS); CHILE SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CHILE SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE& DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); CHILE SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; CHILE SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARDDIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; COSTA RICA SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARDDIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); COSTA RICA SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); COSTA RICA SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; COSTA RICA SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); MLM BASIC PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM; MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&GR SPORT & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE &DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&GR SPORT&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE& DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); PERU SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&MLM BASIC PACKAGE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PERU SPEC&MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM
53701APRON SUB-ASSY, FRONT FENDER, RH
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-KK120iGUN15#,165..LHD..(CAMP,SAP,THP);GGN155,GUN156,166,TGN156,166..(SAP,THP)..(HTWC,MHV)202408
53704BSUPPORT SUB-ASSY, BATTERY, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-KK020iGUN15#,16#..RHD..(KENP,SAP,THP)..DCRL; GUN15#..LHD..SAP;GUN15#,16#..(AGTP,CAMP,MAP,THP)..(BZAGT,GCC,GEN,LA,MA);GGN155,GUN156,166,TGN156,166..(AGTP,MAP,SAP,THP)..(HTWC,MHV)202408
EXC PLANT TMMIN,TSAM
PLANT TMMIN,TSAM
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731HPATCH, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53741BPLATE, FENDER APRON REINFORCE, RH
53742BPLATE, FENDER APRON REINFORCE, LH
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
55101PANEL SUB-ASSY, DASH
main55101-KK240iGUN165..LHD..(H,S);GGN155,GUN15#,166,TGN156,166..LHD..(CAMP,IDNP,THP,VNP)..6FC202408
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
IVORY
55210CCLIP
main90467-T0032×6iGGN155,GUN15#,16#,TGN156,166..LHD; GUN15#,16#,TGN156,166..RHD..(IDNP,KENP,MAP,SAP,THP)202408
55223AINSULATOR, DASH PANEL, OUTER
55223CCLIP
main90467-T0032×2iTGN156..LA;TGN156..H,S;TGN166..GEN,IDN,LA,VN;GGN155,GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408
57161CMEMBER, FRONT CROSS
PLANT TSAM
main57161-KK040iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP; GGN155,GUN156,16#,TGN156,166..AGTP202412
EXCEPT PLANT TSAM
PLANT TSAM
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
5752HOLE PLUG
87417DPACKING, AIR DUCT
9010506137
main90105-06137
90109T0074
main90109-T0074
90541T0006
main90541-T0006
49 parts on this diagram · 2 diagrams in section
