RADIATOR GRILLE

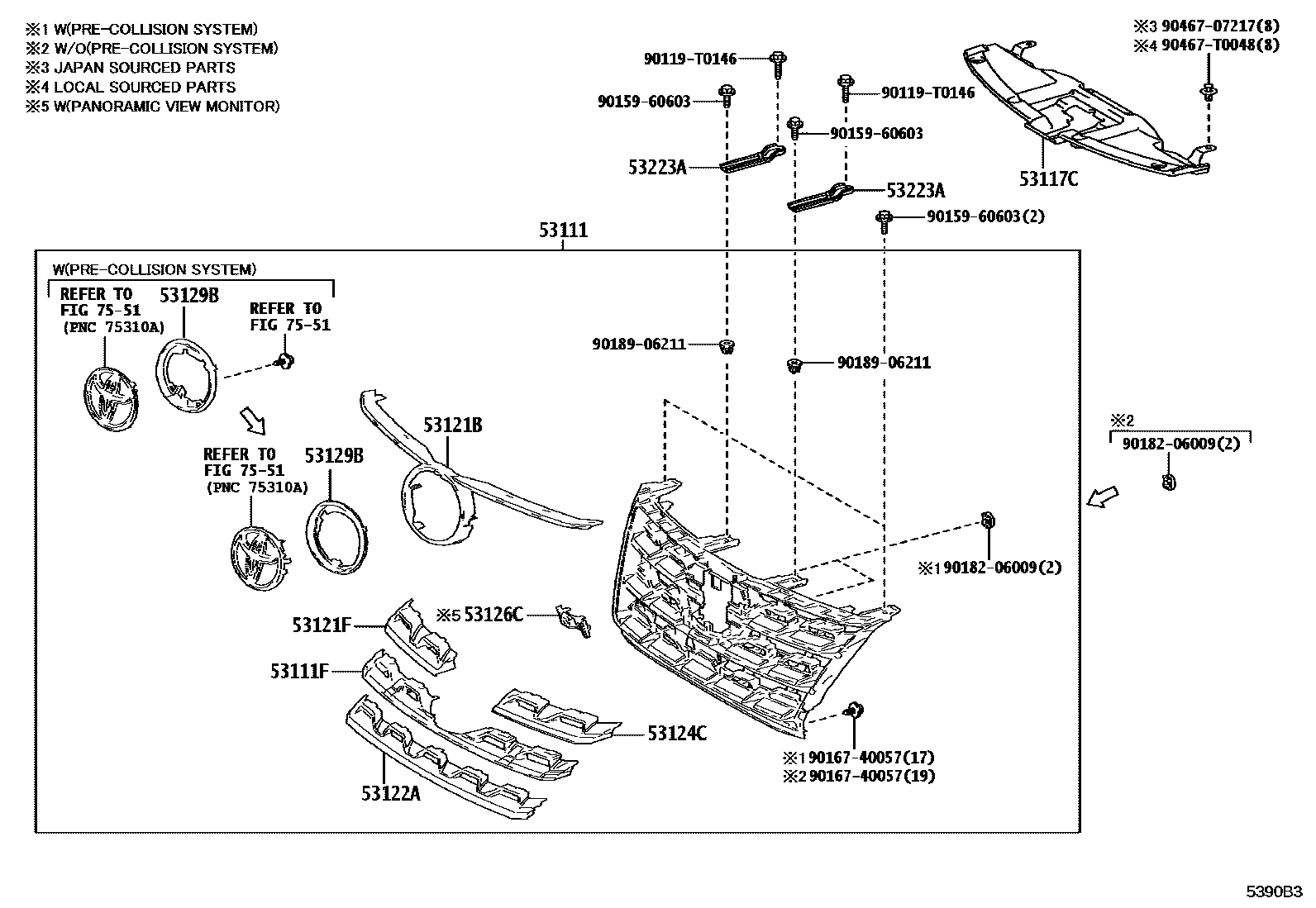

Parts diagram
53111GRILLE, RADIATOR
main53100-0KG50i202410
PLATED
main53100-0KL50i202408
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); PLATED,BACK MONITOR-WITH; PLATED,FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); PLATED,FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); PLATED,FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); PLATED,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53100-0KL61i202408
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITH; PLATED,ACTIVE SAFETY PACKAGE-WITH&BACK MONITOR-WITH
main53100-0KM70i202408
PLATED
main53100-0KM81i202408-202410
PLATED
main53100-0KP10i202411
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(GR SPORT); PLATED,FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); PLATED,MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); PLATED,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53100-0KP20i202411
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITHOUT; PLATED,FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53100-0KP80i202409
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); PLATED,FRONT BUMPER-PAINTED(GR SPORT); PLATED,FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); PLATED,FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53100-0KQ20i202409
PLATED; PLATED,FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53100-0KU70i202409
PLATED
main53100-0KU91i202409
PLATED; PLATED,MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM)
main53100-0K830i202408
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; PLATED,BACK MONITOR-WITH(*PVM); PLATED,FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH
main53100-0KF01i202411
PLATED,ACTIVE SAFETY PACKAGE-WITH
main53100-0KP30i202411
PLATED; PLATED,ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT); PLATED,ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); PLATED,ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); PLATED,ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); PLATED,FRONT BUMPER-PAINTED(GR SPORT); PLATED,FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); PLATED,FRONT BUMPER-PAINTED(MLM); PLATED,FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53100-0KP91i202409
PLATED,ACTIVE SAFETY PACKAGE-WITH
main53100-0KT80i202411
PLATED,FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
main53100-0KT91i202411
PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
main53100-0KU81i202409
PLATED; PLATED,FRONT BUMPER-PAINTED(MLM)
main53100-0KV20i202409
PLATED,BACK MONITOR-WITH(*PVM)
main53100-0KV30i202409
PLATED,BACK MONITOR-WITH(*PVM)
main53100-0KV41i202409
PLATED,ACTIVE SAFETY PACKAGE-WITH&BACK MONITOR-WITH(*PVM)
main53100-0KV90i202411
PLATED,BACK MONITOR-WITH(*PVM)
main53100-YP380i202408
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53100-YP411i202411
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT),MARK 53100-YP411; NO PAINT REQ.,FRONT BUMPER-PAINTED(GR SPORT),MARK 53100-YP411; NO PAINT REQ.,MLM BASIC PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP411; NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP411; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP411
main53100-YP441supersedes 53100-0KU81i202409
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53100-YP450i202409
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM),PLANT TMMIN; NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM),PLANT TMMIN
main53100-YP461i202409
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); NO PAINT REQ.,FRONT BUMPER-PAINTED(GR SPORT); NO PAINT REQ.,FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); NO PAINT REQ.,MLM BASIC PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)
main53100-YP480i202411
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53100-YP491i202411
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); NO PAINT REQ.,FRONT BUMPER-PAINTED(GR SPORT); NO PAINT REQ.,MLM BASIC PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)
main53100-YP820i202409
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM),PLANT TMV; NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM),PLANT TMV
main53100-YP850supersedes 53100-0KP30i202411
NO PAINT REQ.,MLM BASIC PACKAGE&ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP850; NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP850; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP850
main53100-YP860i202411
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT),MARK 53100-YP860; NO PAINT REQ.,FRONT BUMPER-PAINTED(GR SPORT),MARK 53100-YP860; NO PAINT REQ.,MLM BASIC PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP860; NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP860; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM),MARK 53100-YP860
53111FMOULDING, RADIATOR GRILLE, CENTER
main53124-0K350i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53124-0K380i202409
FRONT BUMPER-PAINTED(MLM)
main53124-0K410i202408-202410
main53124-0K420supersedes 53124-0K340i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53124-0K450i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53124-0K480i202410
main53124-0K340i202411
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53124-0K370i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED); FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
53117CRETAINER, RADIATOR GRILLE, NO.1
main53117-0K170i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53117-0K190i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53117-0K200i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53117-0K210i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
53121BMOULDING, RADIATOR GRILLE, UPPER
main53121-0K420i202408-202410
main53121-0K530i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53121-0K770i202409
FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53121-0KB20supersedes 53121-0KB30i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53121-0KB40i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53121-0KC70i202409
FRONT BUMPER-PAINTED(MLM)
main53121-0KB30i202411
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53121-0KC40i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED); FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
53121FMOULDING, RADIATOR GRILLE, UPPER RH
main53122-0K550i202409
FRONT BUMPER-PAINTED(MLM)
main53122-0K730i202408-202410
main53122-0K740supersedes 53122-0K770i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53122-0K750i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53122-0K780i202410
main53122-0K790i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53122-0K540i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED); FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
main53122-0K770i202411
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
53122AMOULDING, RADIATOR GRILLE, LOWER
main53125-0K320i202408
main53125-0K330supersedes 53125-0K420i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53125-0K360i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53125-0K390i202410
main53125-0K430i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53125-0K660i202409
FRONT BUMPER-PAINTED(MLM)
main53125-0K420i202411
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53125-0K650i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED); FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
53124CMOULDING, RADIATOR GRILLE, UPPER LH
main53123-0K660i202409
FRONT BUMPER-PAINTED(MLM)
main53123-0K730i202408-202410
main53123-0K740supersedes 53123-0K770i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53123-0K750i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53123-0K780i202409
FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53123-0K790i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53123-0K650i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED); FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
main53123-0K770i202411
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
53126CMOULDING, RADIATOR GRILLE, NO.6
main53126-0K410i202409
ACTIVE SAFETY PACKAGE-WITH&BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM)
main53126-0K440i202411
BACK MONITOR-WITH(*PVM)
53129BMOULDING, RADIATOR GRILLE, NO.9
main53129-0K140supersedes 53129-0K190i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53129-0K180i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main53129-0K210i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53129-0K280i202408
ACTIVE SAFETY PACKAGE-WITH; ACTIVE SAFETY PACKAGE-WITH&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&BACK MONITOR-WITH(*PVM)
main53129-0K330i202410
main53129-0K360i202409
main53129-0K190i202411
ACTIVE SAFETY PACKAGE-WITHOUT; FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53129-0K310i202411
ACTIVE SAFETY PACKAGE-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)
main53129-0K320i202411
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITHOUT&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53129-0K370i202409
FRONT BUMPER-PAINTED(MLM)
53223ABRACKET, RADIATOR GRILLE MOUNTING
main53115-0K070×2i202409
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53115-0K080×2i202408
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAYAUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM); FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH; FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
main53115-0K090×2i202411
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
7551EMBLEM & NAME PLATE
→ Go to FIG 75-51
90119T0146
main90119-T0146
9015960603
main90159-60603
9016740057
main90167-40057
9018206009
main90182-06009
9018906211
main90189-06211
9046707217
main90467-07217
90467T0048
main90467-T0048

18 parts on this diagram · 2 diagrams in section
