REAR BUMPER & BUMPER STAY

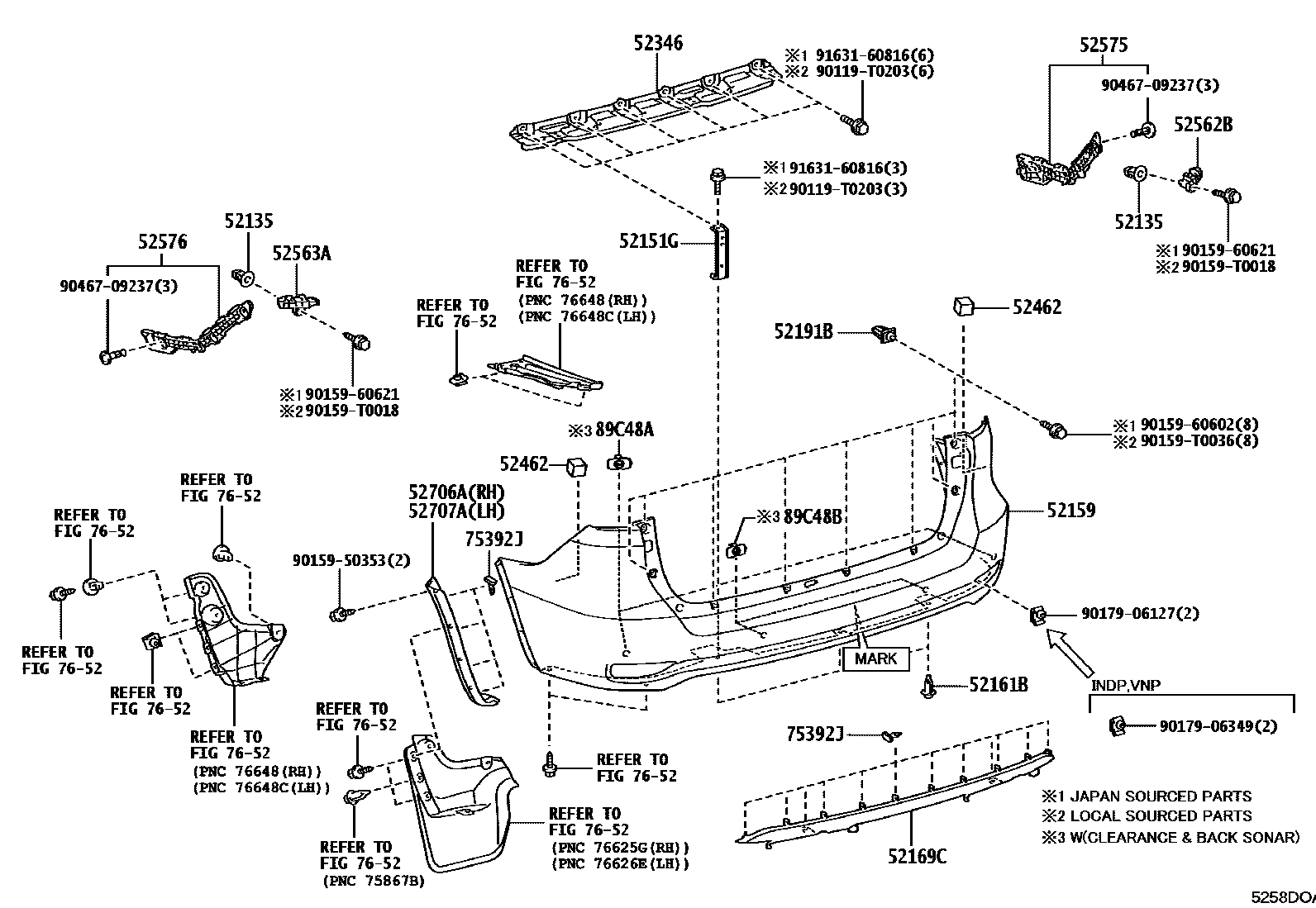

Parts diagram
52135GROMMET, REAR BUMPER STAY
main90189-06242×2i202408
(J); MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,(J); MLM BASIC PACKAGE,(J); MLM PACKAGE,(J)
main90189-T0016×2i202408
(L); MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE
52151GEXTENSION, REAR BUMPER
main52166-0K021×3i202408
main52166-0K031×3i202411
main52166-0K051×3i202409
52159COVER, REAR BUMPER
main52159-0K945i202411
PAINT REQ.; PAINT REQ.,GR SPORT&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52159-0K949i202408
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52159-0K951i202409
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
main52159-0K971i202411
PAINT REQ.; PAINT REQ.,ECUADOR SPEC&MLM BASIC PACKAGE; PAINT REQ.,GR SPORT; PAINT REQ.,GR SPORT & ACCESSORY; PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,MLM PACKAGE & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY&CLEARANCE & BACK SONAR-WITHOUT
main52159-0K972i202408
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,GR SPORT & ACCESSORY; PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52159-0K973i202409
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,GR SPORT; PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52159-0K948i202411
PAINT REQ.,CENTRAL AND SOUTH AMERICA SPEC&CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
main52159-0K970i202411
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&CLEARANCE & BACK SONAR-WITH
main52159-YP905i202408
PAINT REQ.,GR SPORT & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
main52159-YP906i202408
PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52159-YP908i202409
PAINT REQ.,GR SPORT; PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52159-YP910i202408
PAINT REQ.,MLM BASIC PACKAGE
main52159-YP912i202411
PAINT REQ.,MLM PACKAGE & ACCESSORY&CLEARANCE & BACK SONAR-WITHOUT
main52159-YP913i202411
PAINT REQ.,GR SPORT & ACCESSORY; PAINT REQ.,MLM PACKAGE & ACCESSORY
main52159-YP914i202411
PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITHOUT
main52159-YP915i202411
PAINT REQ.,ECUADOR SPEC&MLM BASIC PACKAGE; PAINT REQ.,GR SPORT; PAINT REQ.,MLM BASIC PACKAGE
main52159-YP916i202411
PAINT REQ.,MLM BASIC PACKAGE; PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE
main52159-YP917i202411
PAINT REQ.,GR SPORT&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE; PAINT REQ.,MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
52161BPIECE, REAR BUMPER
main52161-0K040×3i202408
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; MLM PACKAGE&REAR FOG LAMP-WITHOUT
main90467-T0041×3i202409
GR SPORT; MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE&REAR FOG LAMP-WITHOUT
52169CCOVER, REAR BUMPER, LOWER
main52169-0K040i202409
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE
main52169-0K170i202408
NO PAINT REQ.; NO PAINT REQ.,GR SPORT & ACCESSORY; NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE & ACCESSORY; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52169-0K180i202411
NO PAINT REQ.; NO PAINT REQ.,GR SPORT&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52169-0K200i202409
NO PAINT REQ.; NO PAINT REQ.,GR SPORT; NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52169-YP030i202408
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE & ACCESSORY; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52169-YP060i202409
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52169-YP070i202411
NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52169-YP150i202411
NO PAINT REQ.,ECUADOR SPEC&MLM BASIC PACKAGE,MARK=52169-YP150; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITHOUT,MARK=52169-YP150; NO PAINT REQ.,MLM BASIC PACKAGE,MARK=52169-YP150; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&CLEARANCE & BACK SONAR-WITHOUT,MARK=52169-YP150; NO PAINT REQ.,MLM PACKAGE & ACCESSORY,MARK=52169-YP150
main52169-YP902i202409
PAINT REQ.,GR SPORT
main52169-YP904i202411
PAINT REQ.,GR SPORT&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH
52191BGROMMET, REAR BUMPER STAY
main52191-0K010×8i202408
52346FRAME, BACK STEP, REAR
main52346-0K020i202408
main52346-0K050i202409
main52346-0K080i202411
main52346-0K090i202409
52462PAD, REAR BUMPER, RH
main52462-0K080×2i202408
NO PAINT REQ.; NO PAINT REQ.,GR SPORT & ACCESSORY; NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE & ACCESSORY; NO PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52462-0K090×2i202411
NO PAINT REQ.; NO PAINT REQ.,GR SPORT&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; NO PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52462-0K100×2i202409
NO PAINT REQ.; NO PAINT REQ.,GR SPORT; NO PAINT REQ.,MLM BASIC PACKAGE; NO PAINT REQ.,MLM PACKAGE; NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52462-0K120×2i202409
NO PAINT REQ.; NO PAINT REQ.,MLM PACKAGE
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-0K030i202408
main52562-0K040i202411
main52562-0K050i202409
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-0K030i202408
main52563-0K040i202411
main52563-0K050i202409
52575RETAINER, REAR BUMPER SIDE, RH
main52575-0K110i202408
main52575-0K120i202411
main52575-0K130i202409
52576RETAINER, REAR BUMPER SIDE, LH
main52576-0K110i202408
main52576-0K120i202411
main52576-0K130i202409
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
main52706-0K010i202408
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52706-0K020i202411
GR SPORT&CLEARANCE & BACK SONAR-WITH; GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM BASIC PACKAGE&REAR FOG LAMP-WITH; MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE&REAR FOG LAMP-WITH; MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52706-0K030i202411
ECUADOR SPEC&MLM BASIC PACKAGE; GR SPORT; GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITHOUT; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&CLEARANCE & BACK SONAR-WITHOUT
main52706-0K040i202409
GR SPORT; MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52706-0K060i202409
MLM PACKAGE
main52706-YP030i202408
MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52706-YP902i202409
GR SPORT
main52706-YP903i202411
GR SPORT&CLEARANCE & BACK SONAR-WITH; GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
main52707-0K010i202408
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52707-0K020i202411
GR SPORT&CLEARANCE & BACK SONAR-WITH; GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM BASIC PACKAGE&REAR FOG LAMP-WITH; MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE&REAR FOG LAMP-WITH; MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52707-0K030i202411
ECUADOR SPEC&MLM BASIC PACKAGE; GR SPORT; GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITHOUT; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&CLEARANCE & BACK SONAR-WITHOUT
main52707-0K040i202409
GR SPORT; MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE&REAR FOG LAMP-WITHOUT
main52707-0K060i202409
MLM PACKAGE
main52707-YP030i202411
ECUADOR SPEC&MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITHOUT; MLM BASIC PACKAGE&REAR FOG LAMP-WITH; MLM BASIC PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE & ACCESSORY&CLEARANCE & BACK SONAR-WITHOUT; MLM PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE&REAR FOG LAMP-WITH; MLM PACKAGE&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE; SUB-SAHARAN AFRICA SPEC(EURO 2)&MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH
main52707-YP902i202410
GR SPORT & ACCESSORY
main52707-YP903i202411
GR SPORT&CLEARANCE & BACK SONAR-WITH; GR SPORT&REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH; SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&CLEARANCE & BACK SONAR-WITH
75392JRETAINER, OUTSIDE MOULDING
main75392-0K010×20i202408
(L); CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT,(L); GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT; MLM PACKAGE&REAR FOG LAMP-WITHOUT; REAR FOG LAMP-WITHOUT,(L)
main75392-0K020×20i202409
MLM PACKAGE
main75392-35220×20i202408
(J); CLEARANCE & BACK SONAR-WITHOUT,(J); MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,(J); MLM BASIC PACKAGE,(J); REAR FOG LAMP-WITHOUT,(J)
7652SPOILER & SIDE MUDGUARD
→ Go to FIG 76-52
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-0K010×2i202408
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT
main89348-0K050×2i202408
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-0K010×2i202408
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT
main89348-0K020×2i202409
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT
main89348-0K050×2i202408
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM PACKAGE; MLM PACKAGE & ACCESSORY
90119T0203
main90119-T0203
9015950353
main90159-50353
9015960602
main90159-60602
9015960621
main90159-60621
90159T0018
main90159-T0018
90159T0036
main90159-T0036
9017906127
main90179-06127
9017906349
main90179-06349
9046709237
main90467-09237
9163160816
main91631-60816

28 parts on this diagram · 2 diagrams in section
