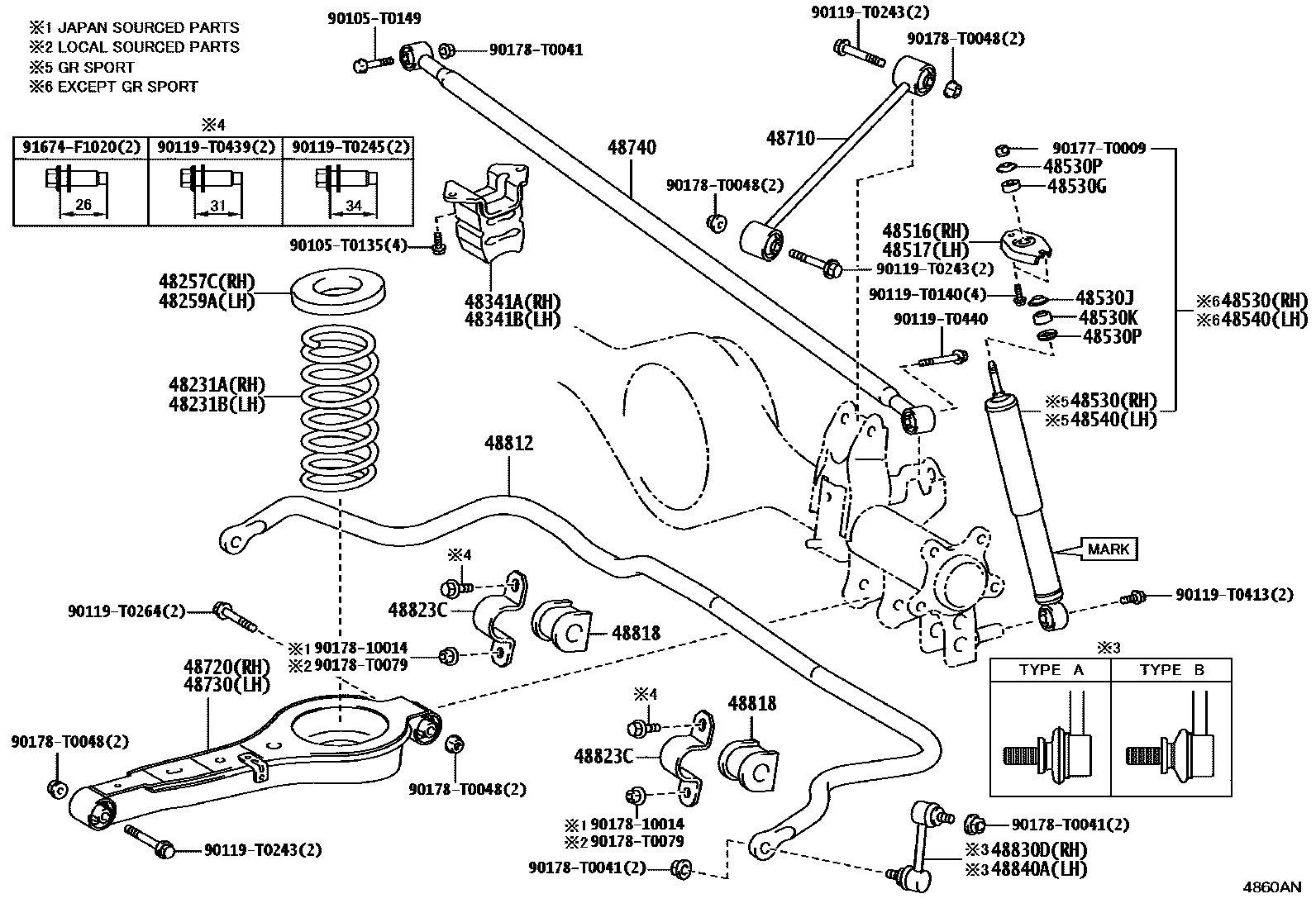

REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-0K290iGUN15#,16#..TH; GUN156..TH202408

GR SPORT & ACCESSORY

main48231-0K341iGGN155,GUN15#,165,TGN156,166..(CAMP,THP,VNP)..(ARL,GCC,GEN,VN)202408

main48231-0K350iGGN155,GUN156,16#,TGN156,166..AGTP; GUN156..BZAGT202411

GR SPORT & ACCESSORY; GR SPORT & ACCESSORY&REAR NO.2 SEAT-WITHOUT

main48231-0K360iGUN15#,16#,TGN156..KENP,SAP202411

main48231-0K370iGGN155,GUN15#,16#,TGN156,166..IDNP..(ARL,GCC,GEN,IDN,SA,VN); GUN156..IDNP..(IDN,VN)202409

GR SPORT

main48231-0K480iGUN15#,TGN156..MA202409

main48231-0K500iGUN156,16#..PH; GUN156..PH202409

GR SPORT

main48231-0K430iGUN156..BZAGT202411

GR SPORT & ACCESSORY&REAR NO.2 SEAT-WITHOUT; REAR NO.2 SEAT-WITHOUT

48231BSPRING, COIL, REAR LH

main48231-0K290iGUN15#,16#..TH; GUN156..TH202408

GR SPORT & ACCESSORY

main48231-0K341iGGN155,GUN15#,165,TGN156,166..(CAMP,THP,VNP)..(ARL,GCC,GEN,VN)202408

main48231-0K350iGGN155,GUN156,16#,TGN156,166..AGTP; GUN156..BZAGT202411

GR SPORT & ACCESSORY; GR SPORT & ACCESSORY&REAR NO.2 SEAT-WITHOUT

main48231-0K360iGUN15#,16#,TGN156..KENP,SAP202411

main48231-0K370iGGN155,GUN15#,16#,TGN156,166..IDNP..(ARL,GCC,GEN,IDN,SA,VN); GUN156..IDNP..(IDN,VN)202409

GR SPORT

main48231-0K480iGUN15#,TGN156..MA202409

main48231-0K500iGUN156,16#..PH; GUN156..PH202409

GR SPORT

main48231-0K430iGUN156..BZAGT202411

GR SPORT & ACCESSORY&REAR NO.2 SEAT-WITHOUT; REAR NO.2 SEAT-WITHOUT

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0K010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; GUN156..TH202408

GR SPORT & ACCESSORY

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0K010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; GUN156..TH202408

GR SPORT & ACCESSORY

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0K110iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,KENP,MAP,SAP,THP202408

main48341-0K130iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0K110iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,KENP,MAP,SAP,THP202408

main48341-0K130iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-0K010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48516-0K010iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09Z80iGUN15#,16#..TH; GUN156..TH202408

MARK 48530-0K090; MARK 48530-0K090,GR SPORT & ACCESSORY

main48530-09Z90iGGN155,GUN15#,16#,TGN156,166..IDNP..(ARL,GCC,GEN,IDN,SA,VN); GUN156..IDNP..(IDN,VN)202409

MARK 48530-0K060; MARK 48530-0K060,GR SPORT

main48530-8Z001iGUN15#,TGN156..MA202409

MARK 48530-0K080

main48530-8Z002iGGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,KENP,SAP,THP,VNP)..(ARL,BZAGT,GCC,GEN,KEN,LA,SA,VN)202408

MARK 48530-0K030

main48530-8Z049iGUN156,16#..PH; GUN156..PH202409

MARK 48530-0K140; MARK 48530-0K140,GR SPORT

main48530-YY110iGUN156..BZAGT202411

MARK 48530-YY110,GR SPORT & ACCESSORY

main48530-YY121iGUN156..AGTP..H202410

MARK 48530-YY120,GR SPORT & ACCESSORY

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-T1007×2iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,KENP,MAP,SAP,THP,VNP202408

main90948-T1008×2iGGN155,GUN15#,16#,TGN156,166..IDNP202409

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-T2005×2iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-T1010×2iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,KENP,MAP,SAP,THP,VNP202408

main90948-T1011×2iGGN155,GUN15#,16#,TGN156,166..IDNP202409

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-F2001×4iGUN15#,16#,TGN156..KENP,SAP; GUN156..6FC..DCRL..SA202411

GR SPORT

main90948-T2008×4iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,MAP,THP,VNP202408

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09Z80iGUN15#,16#..TH; GUN156..TH202408

MARK 48530-0K090; MARK 48530-0K090,GR SPORT & ACCESSORY

main48530-09Z90iGGN155,GUN15#,16#,TGN156,166..IDNP..(ARL,GCC,GEN,IDN,SA,VN); GUN156..IDNP..(IDN,VN)202409

MARK 48530-0K060; MARK 48530-0K060,GR SPORT

main48530-8Z001iGUN15#,TGN156..MA202409

MARK 48530-0K080

main48530-8Z002iGGN155,GUN15#,16#,TGN156,166..(AGTP,CAMP,KENP,SAP,THP,VNP)..(ARL,BZAGT,GCC,GEN,KEN,LA,SA,VN)202408

MARK 48530-0K030

main48530-8Z049iGUN156,16#..PH; GUN156..PH202409

MARK 48530-0K140; MARK 48530-0K140,GR SPORT

main48530-YY110iGUN156..BZAGT202411

MARK 48530-YY110,GR SPORT & ACCESSORY

main48530-YY121iGUN156..TH202408

MARK 48530-YY120,GR SPORT & ACCESSORY

48710ARM ASSY, UPPER CONTROL

main48710-0K110iGGN155,GUN15#,16#,TGN156,166..CAMP,KENP,MAP,SAP,THP202408

RH

main48710-0K120iGGN155,GUN15#,16#,TGN156,166..CAMP,KENP,MAP,SAP,THP202408

LH

main48710-0K130iGGN155,GUN156,16#,TGN156,166..AGTP202411

RH

main48710-0K140iGGN155,GUN156,16#,TGN156,166..AGTP202411

LH

main48710-0K150iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

RH

main48710-0K160iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

LH

48720ARM ASSY, LOWER CONTROL, RH

main48720-0K010iGGN155,GUN15#,16#,TGN156,166..IDNP202409

main48720-0K030iGUN15#,16#,TGN156..KENP,SAP202411

main48720-0K041iGGN155,GUN156,16#,TGN156,166..AGTP202411

main48720-0K050iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP,VNP202408

48730ARM ASSY, LOWER CONTROL, LH

main48720-0K010iGGN155,GUN15#,16#,TGN156,166..IDNP202409

main48720-0K030iGUN15#,16#,TGN156..KENP,SAP202411

main48720-0K041iGGN155,GUN156,16#,TGN156,166..AGTP202411

main48720-0K050iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP,VNP202408

48740ROD ASSY, REAR LATERAL CONTROL

main48740-0K070iGGN155,GUN15#,16#,TGN156,166..CAMP,KENP,MAP,SAP,THP202408

main48740-0K080iGGN155,GUN156,16#,TGN156,166..AGTP202411

main48740-0K090iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

48812BAR, STABILIZER, REAR

main48812-0K010iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP202408

main48812-0K020iGGN155,GUN156,16#,TGN156,166..AGTP202411

main48812-0K030iGUN15#,16#,TGN156..KENP,SAP202411

main48812-0K040iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202409

48818BUSH, STABILIZER, REAR

main48818-0K010×2iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

48823CCOVER, REAR STABILIZER BRACKET

main48823-KK010×2iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

48830DLINK ASSY, REAR STABILIZER, RH

main48830-0K010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408-202506

main48830-0K020iGGN155,GUN156,16#,TGN156,166..AGTP202411

TYPE B:REFER ILLUST.

48840ALINK ASSY, REAR STABILIZER, LH

main48830-0K010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408-202506

main48830-0K020iGGN155,GUN156,16#,TGN156,166..AGTP202411

TYPE B:REFER ILLUST.

90105T0135

main90105-T0135

90105T0149

main90105-T0149

90119T0140

main90119-T0140

90119T0243

main90119-T0243

90119T0245

main90119-T0245

90119T0264

main90119-T0264

90119T0413

main90119-T0413

90119T0439

main90119-T0439

90119T0440

main90119-T0440

90177T0009

main90177-T0009

9017810014

main90178-10014

90178T0041

main90178-T0041

90178T0048

main90178-T0048

90178T0079

main90178-T0079

91674F1020

main91674-F1020

38 parts on this diagram · 1 diagram in section
