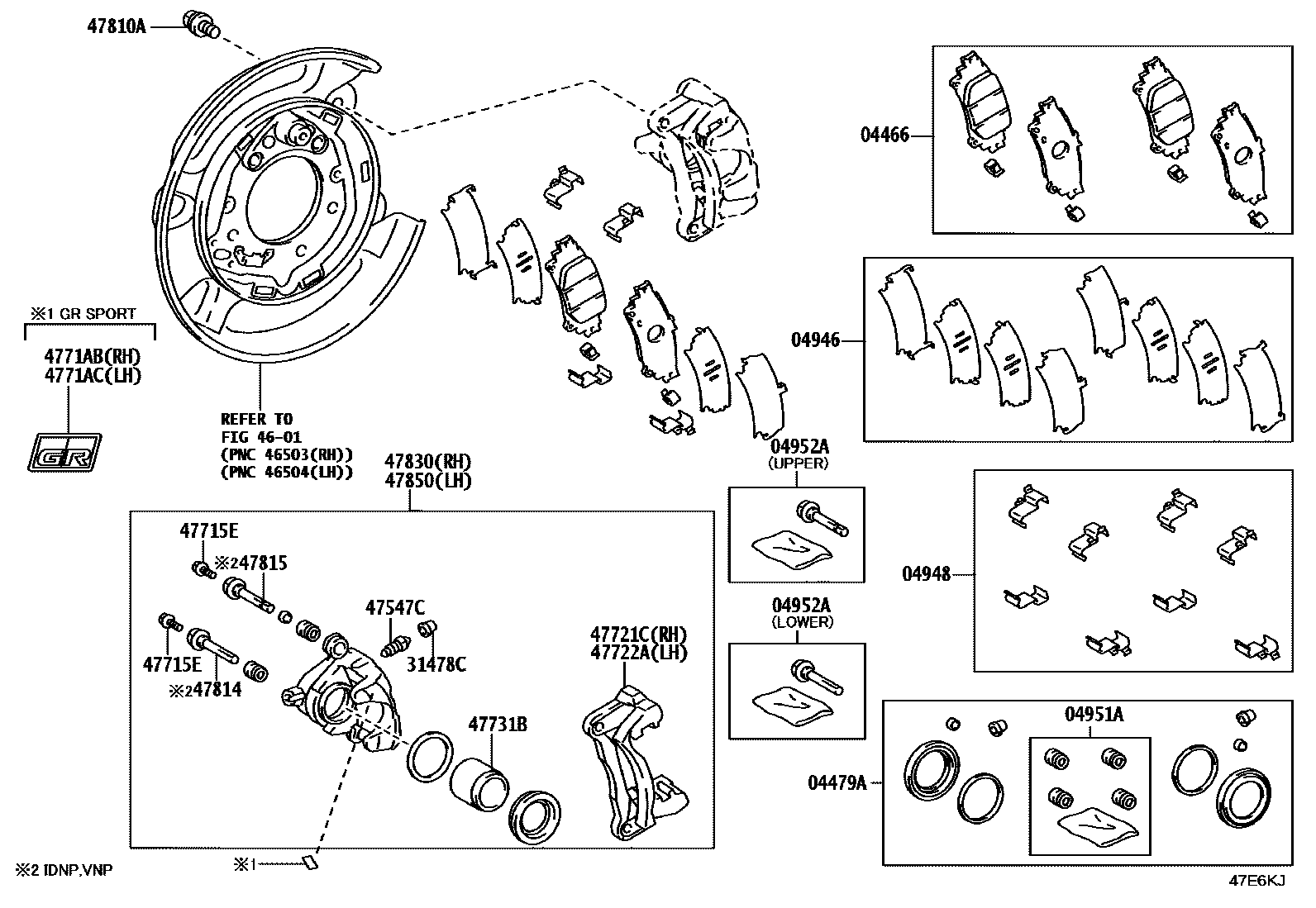

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK NS542; MARK AK NS542,GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
MARK AK PA561
04479ACYLINDER KIT, DISC BRAKE, REAR
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
04948FITTING KIT, DISC BRAKE, REAR
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
04951ABUSH KIT, DISC BRAKE, REAR
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT),LOWER SIDE; LOWER SIDE
UPPER SIDE
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT),LOWER SIDE; LOWER SIDE
UPPER SIDE
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
main31478-0D040×2iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP; GUN156..(IDNP,THP)..(IDN,PH,TH,VN); GUN156..TH202408
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
4601PARKING BRAKE & CABLE
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
main47547-27030×2iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP,THP,VNP; GUN156..(IDNP,THP)..(IDN,PH,TH,VN); GUN156..TH202408
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)
main90016-AA603×4iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP; GUN156..(IDNP,THP)..(IDN,PH,TH,VN); GUN156..TH202408
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
4771ABORNAMENT, BRAKE CALIPER MARK, RH
TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
4771ACORNAMENT, BRAKE CALIPER MARK, LH
TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47731BPISTON, REAR DISC BRAKE
main47831-0K010×2iGGN155,GUN15#,16#,TGN156,166..CAMP,MAP,THP; GUN156..(IDNP,THP)..(IDN,PH,TH,VN); GUN156..TH202408
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
main90119-T0495×4iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; GUN156..TH202408
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47830CYLINDER ASSY, DISC BRAKE, REAR RH
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
47850CYLINDER ASSY, DISC BRAKE, REAR LH
GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
20 parts on this diagram · 2 diagrams in section
