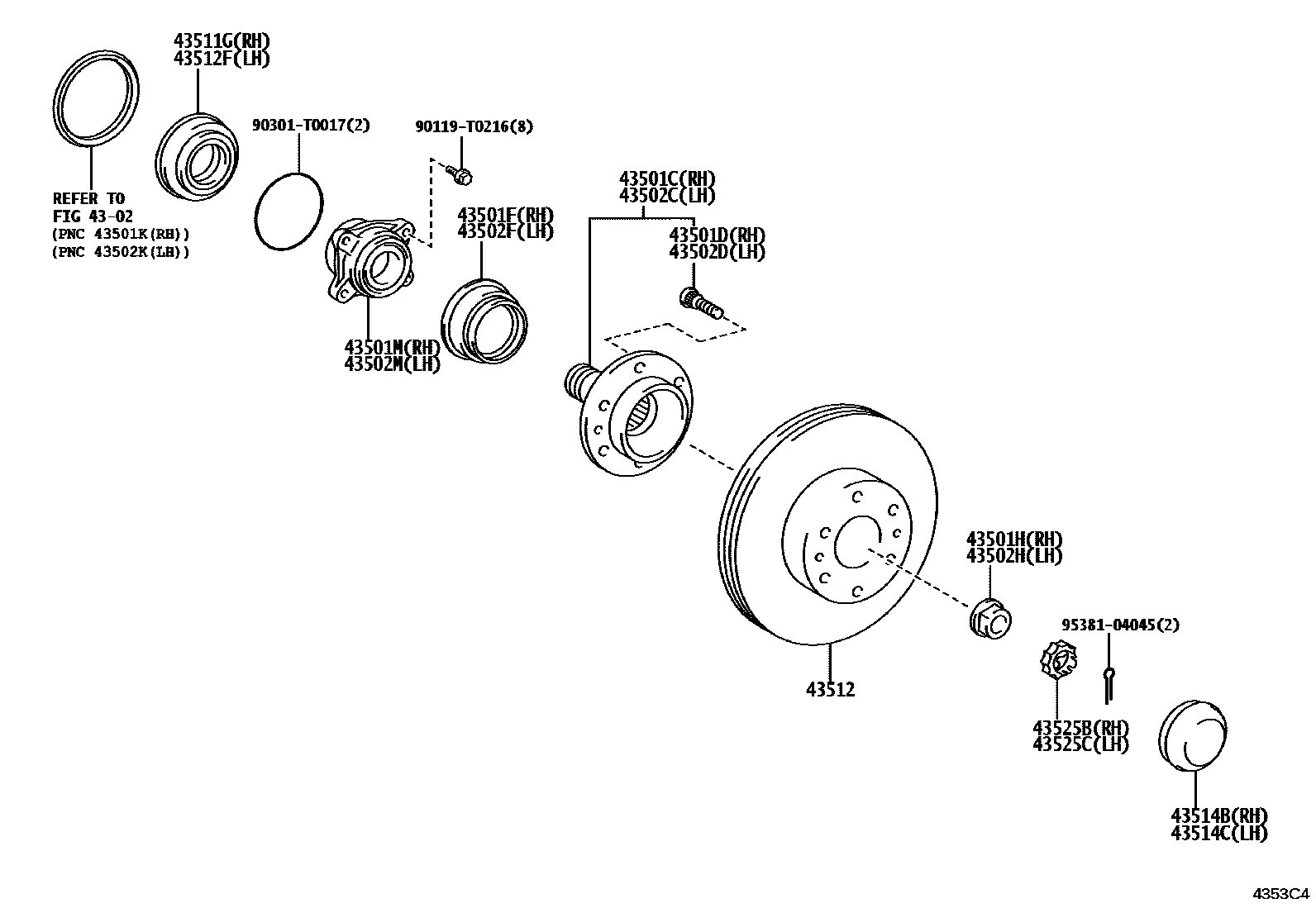

FRONT AXLE HUB

0001 1 0002 1

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK010iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

main43502-KK020iGUN16#,TGN166..AGTP,IDNP,SAP,THP,VNP202408

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02081×6iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-T0001iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-T0113iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-F0002iGUN15#,16#,TGN156..KENP,SAP202411

main90366-T0061iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,MAP,THP,VNP202408

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK010iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

main43502-KK020iGUN16#,TGN166..AGTP,IDNP,SAP,THP,VNP202408

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02081×6iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-T0001iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-T0113iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-F0002iGUN15#,16#,TGN156..KENP,SAP202411

main90366-T0061iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,MAP,THP,VNP202408

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90316-T0002iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43512DISC, FRONT

main43512-0K210×2iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP,THP,VNP202408

main43512-0K220×2iGGN155,GUN156,16#,TGN156,166..AGTP202411

main43512-0K250×2iGUN15#,16#,TGN156..KENP,SAP202411

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90316-T0002iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0K010iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0K010iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-71010iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-71010iGGN155,GUN15#,TGN156..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

90119T0216

main90119-T0216

90301T0017

main90301-T0017

9538104045

main95381-04045

21 parts on this diagram · 2 diagrams in section
