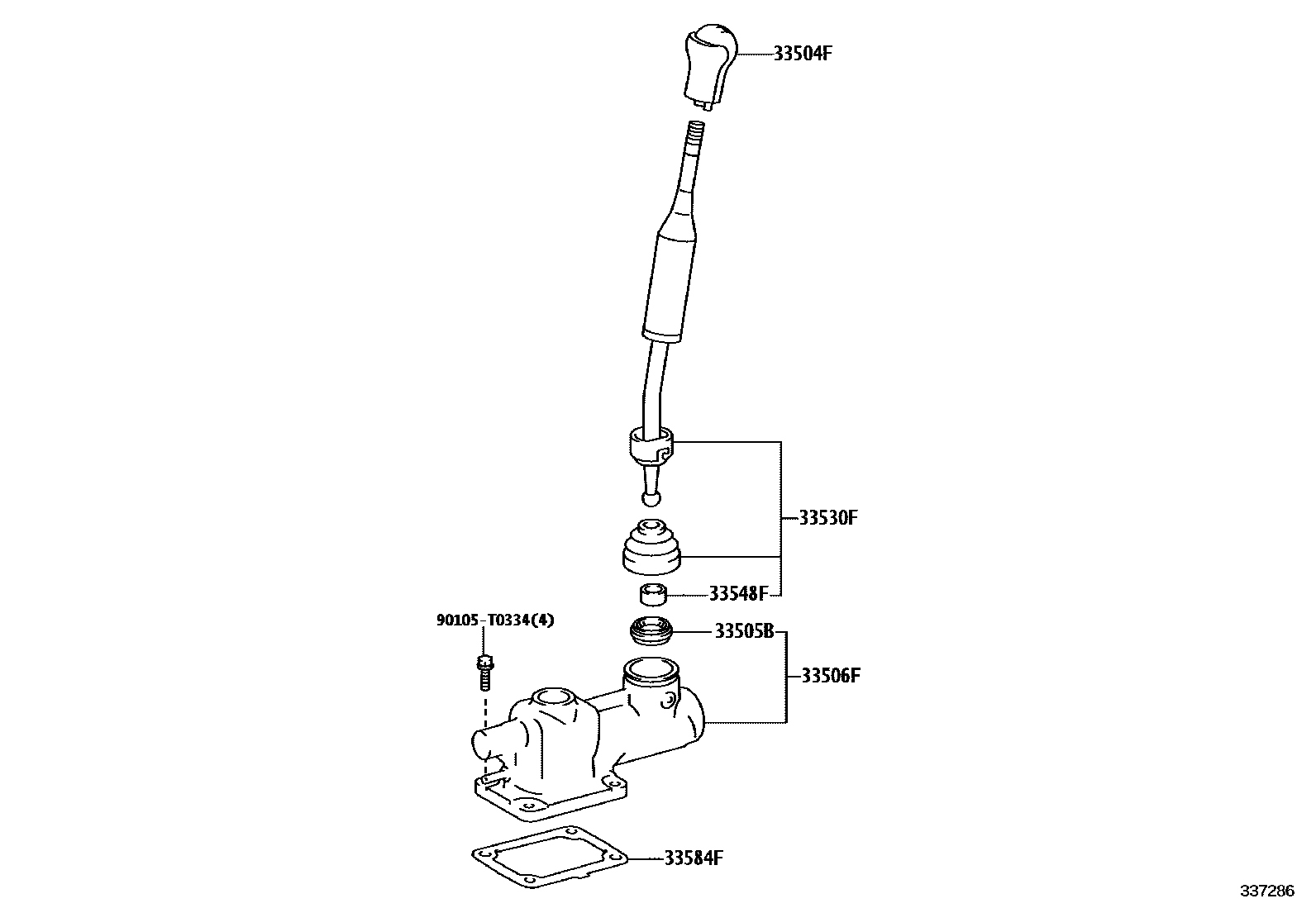

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#; STEERING WHEEL-LEATHER & WOOD LIKE,BLACK,TRIM2#
main33504-0K131-C0iGUN165..6FC..L..PH;GUN156,166,TGN156,166..LHD..6FC..(L,S)..(LA,SA);GUN155,165..(AGTP,KENP,MAP,SAP,VNP)..6FC..(L,S)202409
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
main33504-0K311-C1iGUN15#,16#..H..TH; GUN15#..H..GCC; GUN155..H..GEN;GUN155..S..GCC;GUN156..RHD..(H,S)..(ARL,GEN);GGN155,GUN165,TGN156,166..(H,S)..(GCC,GEN); GUN156..LHD..GEN; GUN156..TH; TGN166..IDN;TGN166..(AGTP,VNP)..6FC..(H,S);GGN155,GUN166,TGN156..H..(IDN,LA,MA);GUN156..(IDNP,KENP)..6FC..(IDN,KEN,VN);GUN155,165..(IDNP,THP)..6FC..S..(IDN,PH,SA,TH,VN)202408
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#; GR SPORT & ACCESSORY&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM0#,2#,3#
GR SPORT & ACCESSORY&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM2#
33505BSEAT SUB-ASSY, SHIFT LEVER
TYPE A:REFER 33-01; TYPE B:REFER 33-01
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE A:REFER 33-01; TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
90105T0334
main90105-T0334
7 parts on this diagram · 6 diagrams in section
