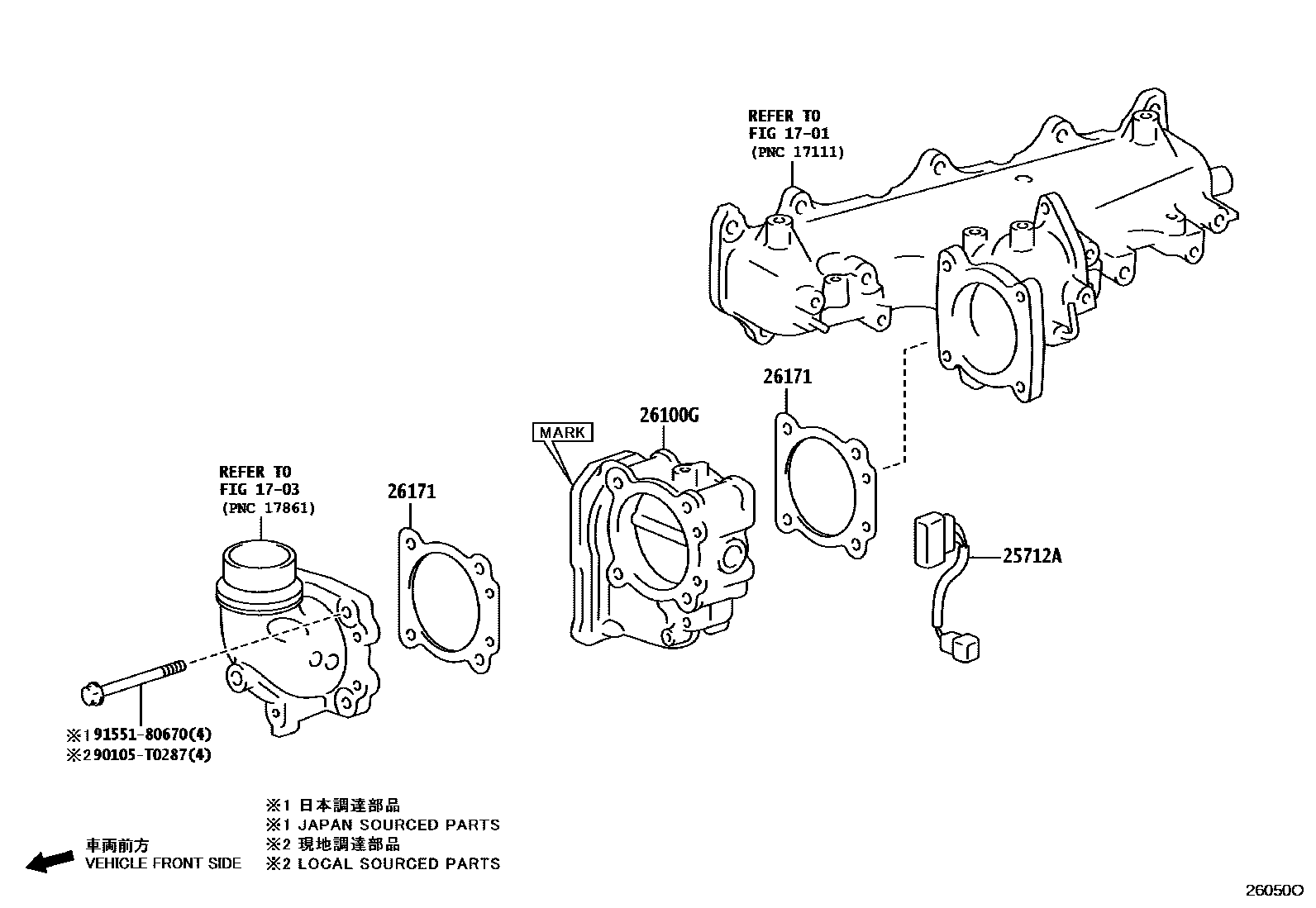

VENTURI
1701MANIFOLD
1703AIR CLEANER
25712AWIRE, EMISSION CONTROL VALVE
main25712-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC
26100GBODY ASSY, DIESEL THROTTLE
main26100-0E050i1GDFTV,2GDFTV..GUN15#,16#..(AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP)..DCRL; 1GDFTV..GUN156..THP..ARL202408
MARK=26100-0E050
MARK=26100-0E060
main26100-11040i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC
26171GASKET, VENTURI
main26171-0E030×2i1GDFTV,2GDFTV..GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 1GDFTV..GUN156..THP..ARL202408
THA SOURCED PARTS
IND SOURCED PARTS
main26171-11020×2i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC
90105T0287
main90105-T0287
9155180670
main91551-80670
7 parts on this diagram · 1 diagram in section
