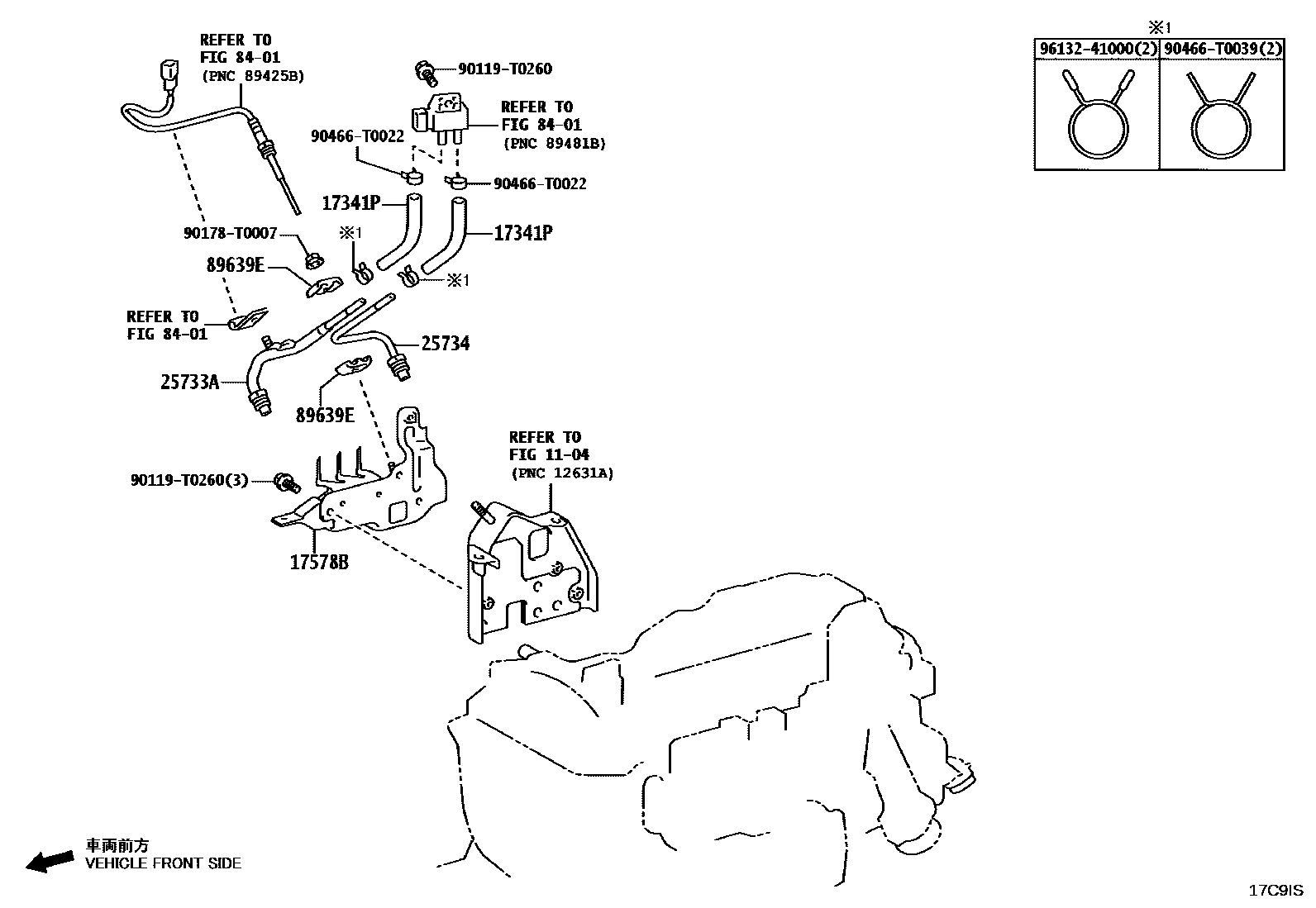

VACUUM PIPING
1104CYLINDER HEAD
17341PHOSE, AIR
main17341-0E010×2i1GDFTV..GUN156..6F..LA;2GDFTV..GUN155,165..THP..GEN; 1GDFTV..GUN156..THP..ARL; 2GDFTV..GUN155..(H,S)..GCC; 2GDFTV..GUN155..L..GCC;2GDFTV..GUN155,165..TH,VN;1GDFTV..GUN156,166..6FC..(ARL,BZAGT,GCC,LA,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); THA SOURCED PARTS
IND SOURCED PARTS
17578BCLAMP, PIPE
main17578-0E020i1GDFTV..GUN156..6F..LA;2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..(H,S)..GCC; 2GDFTV..GUN155..TH;2GDFTV..GUN155..L..GCC;1GDFTV,2GDFTV..GUN156,16#..ARL,BZAGT,GCC,TH,VN202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS)
25733APIPE, VACUUM, NO.1
main25733-0E010i1GDFTV..GUN156..6F..LA;2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..(H,S)..GCC; 2GDFTV..GUN155..L..GCC;2GDFTV..GUN155,165..TH,VN;1GDFTV..GUN156,166..6FC..(ARL,BZAGT,GCC,LA,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
25734PIPE, VACUUM, NO.2
main25734-0E010i1GDFTV..GUN156..6F..LA;2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..(H,S)..GCC; 2GDFTV..GUN155..L..GCC;2GDFTV..GUN155,165..TH,VN;1GDFTV..GUN156,166..6FC..(ARL,BZAGT,GCC,LA,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
8401SWITCH & RELAY & COMPUTER
89639ECLAMP
main89639-0K010×2iGUN155..(H,S)..GCC; GUN155..L..GCC;GUN155,165..TH,VN;GUN156,166..6FC..(ARL,BZAGT,GCC,LA,TH,VN); GUN156..6F..LA;GUN155,165..THP..GEN202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
90119T0260
main90119-T0260
90178T0007
main90178-T0007
90466T0022
main90466-T0022
90466T0039
main90466-T0039
9613241000
main96132-41000
12 parts on this diagram · 5 diagrams in section
