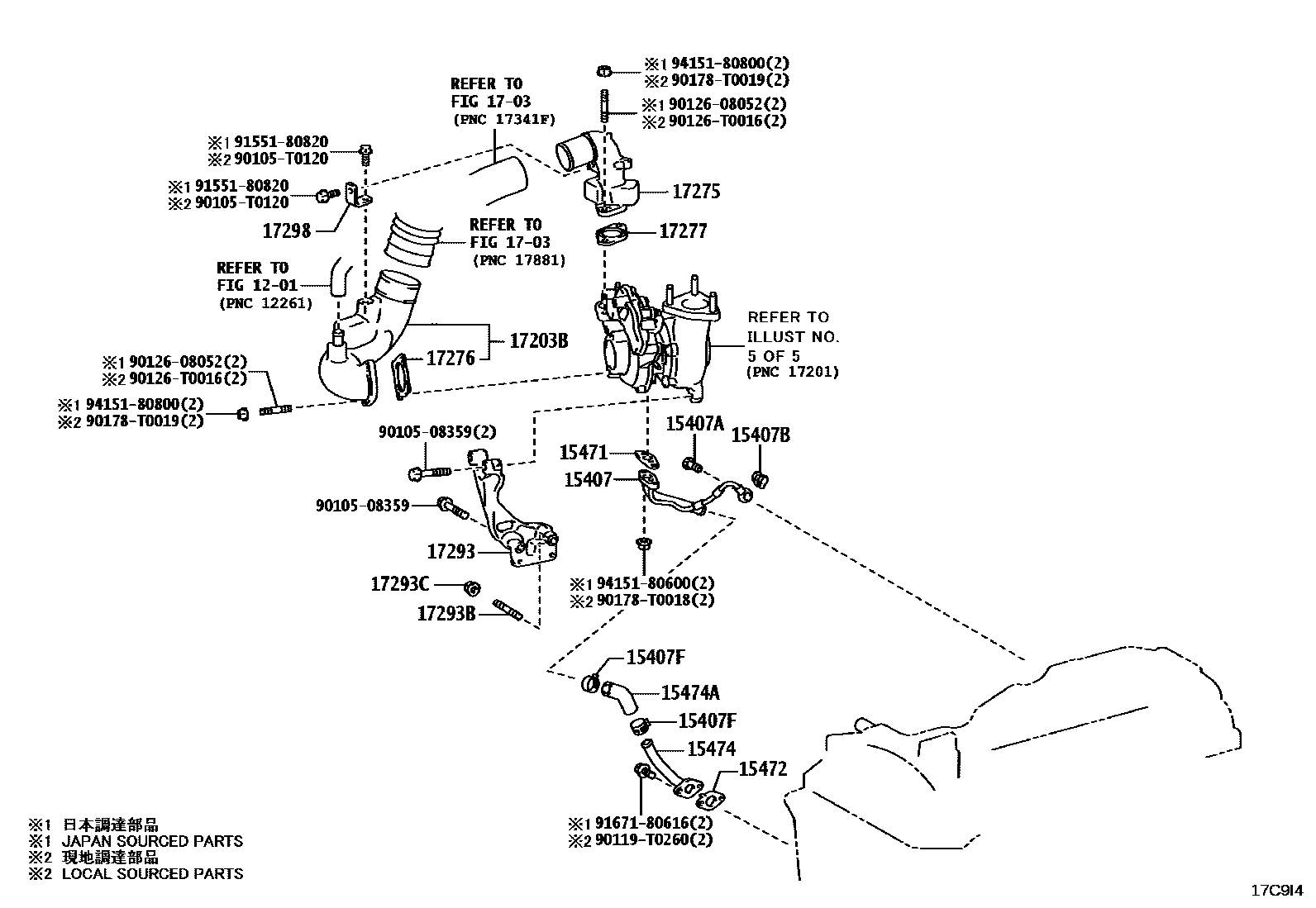

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
THA SOURCED PARTS
main96341-11200i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
15407BGASKET(FOR TURBO OIL INLET PIPE)
main90430-T0006i1GDFTV,2GDFTV..GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 1GDFTV..GUN156..THP..ARL202408
THA SOURCED PARTS
main90904-30004i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
THA SOURCED PARTS
IND SOURCED PARTS
main15471-11020i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
15472GASKET, TURBO OIL OUTLET, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
main15472-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
15474PIPE, TURBO OIL OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
15474AHOSE, TURBO OIL OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
main15491-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
17203BELBOW SUB-ASSY, COMPRESSOR INLET
THA SOURCED PARTS
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
main17203-0E050i1GDFTV..GUN156..6F..LA;1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN202408
THA SOURCED PARTS
IND SOURCED PARTS
main17203-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
17275ELBOW, COMPRESSOR OUTLET
main17275-0E040i2GDFTV..GUN155,165;1GDFTV..GUN156..6F..LA;1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN202408
THA SOURCED PARTS
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
IND SOURCED PARTS
main17275-11050i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
17276GASKET, COMPRESSOR INLET
THA SOURCED PARTS
main17276-26010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
17277GASKET, COMPRESSOR OUTLET
main17277-0E010i2GDFTV..GUN155,165;1GDFTV..GUN156..6F..LA;1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN202408
THA SOURCED PARTS
IND SOURCED PARTS
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
main17277-11030i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
17293STAY, TURBOCHARGER
THA SOURCED PARTS
IND SOURCED PARTS
main17293-11020i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
ARG SOURCED PARTS; CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,ARG SOURCED PARTS
17293BBOLT(FOR TURBOCHARGER STAY)
17293CNUT(FOR TURBOCHARGER STAY)
main90178-T0019×9supersedes 94151-80800i2GDFTV..GUN155..(H,S)..GCC; 2GDFTV..GUN155..(H,S)..GCC;1GDFTV..GUN156..LHD..6FC..SA;2GDFTV..GUN165..6FC..(PH,SA);2GDFTV..GUN165..GEN,IDN,LA,TH;1GDFTV,2GDFTV..GUN156,165..6F..(LA,VN);2GDFTV..GUN155..6FC..(GEN,KEN,MA,SA,TH);1GDFTV..GUN156,166..6FC..(ARL,GCC,GEN,KEN,MA,PH,TH,VN); 2GDFTV..GUN155..L..GCC; 2GDFTV..GUN155..LHD..L;2GDFTV..GUN165..6F..PH;2GDFTV..GUN165..6FC..VN;1GDFTV..GUN156,166..IDN202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main94151-80800×30i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC
17298STAY, COMPRESSOR ELBOW
THA SOURCED PARTS
IND SOURCED PARTS
main17298-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
9010508359
main90105-08359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
9012608052
main90126-08052
90126T0016
main90126-T0016
90178T0018
main90178-T0018
90178T0019
main90178-T0019
9155180820
main91551-80820
9167180616
main91671-80616
9415180600
main94151-80600
9415180800
main94151-80800
27 parts on this diagram · 8 diagrams in section
