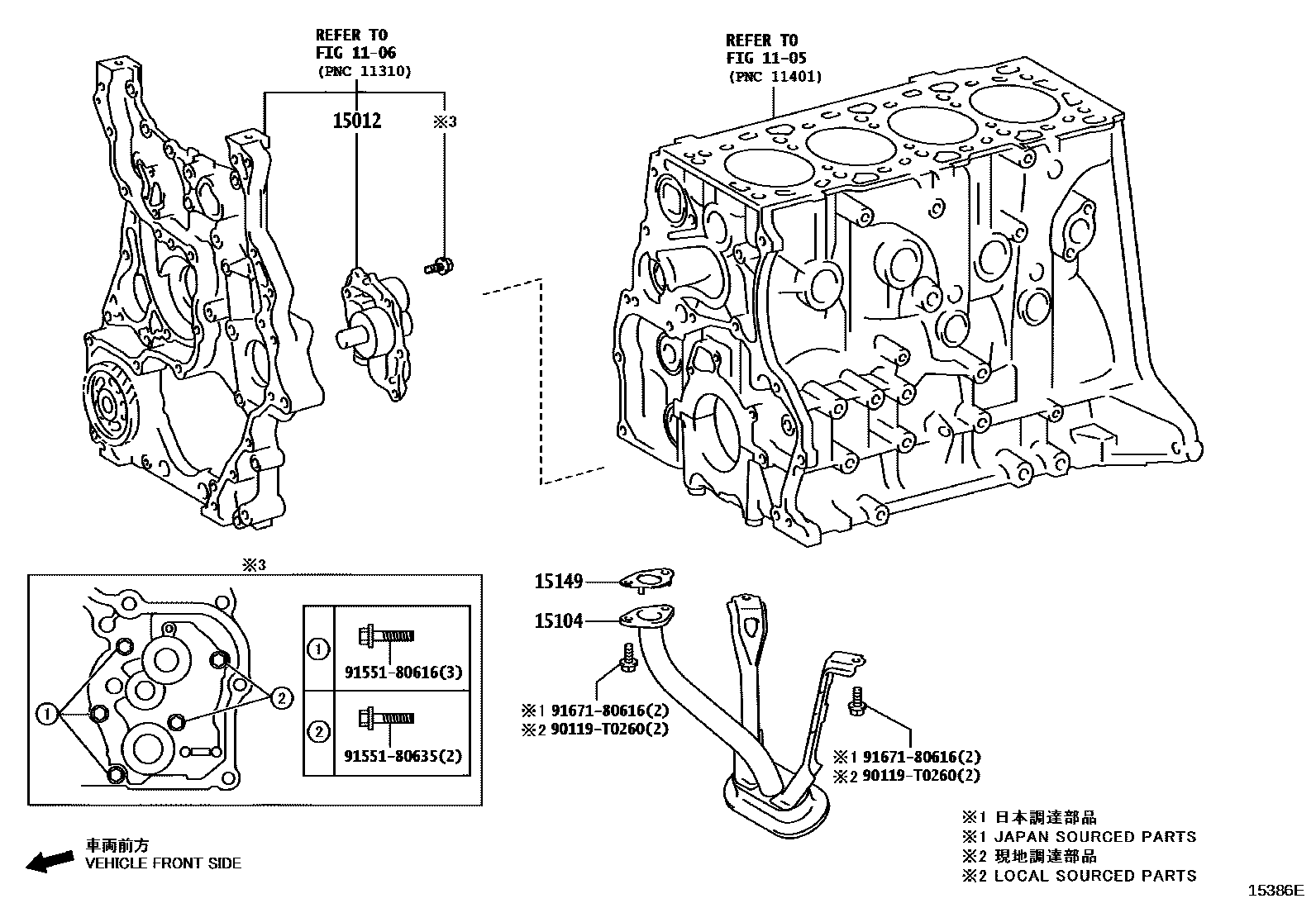

ENGINE OIL PUMP
1105CYLINDER BLOCK
1106TIMING GEAR COVER & REAR END PLATE
15012COVER SUB-ASSY, OIL PUMP
main15012-0E010i2GDFTV..GUN165..LA;1GDFTV..GUN156..6F..SA;1GDFTV..GUN156..(IDNP,THP)..GEN;2GDFTV..GUN155,165..RHD..(GEN,SA);1GDFTV,2GDFTV..GUN15#..LHD..6FC..SA202408-202504
15104STRAINER SUB-ASSY, OIL
main15104-08020i2GDFTV..GUN155,165;1GDFTV..GUN156..LHD..6FC..SA;1GDFTV..GUN156..(AGTP,SAP)..6F;1GDFTV..GUN156..(IDNP,KENP,THP)..(GEN,KEN,SA)202408
main15104-0E060i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..ARL; 1GDFTV..GUN156..THP..GEN202408
(L); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
main15104-11230i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..ARL; 1GDFTV..GUN156..THP..GEN202408
(J); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS
15149GASKET, OIL STRAINER FLANGE
main15149-0E010i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
IND SOURCED PARTS
90119T0260
main90119-T0260
9155180616
main91551-80616
9155180635
main91551-80635
9167180616
main91671-80616
9 parts on this diagram · 4 diagrams in section
