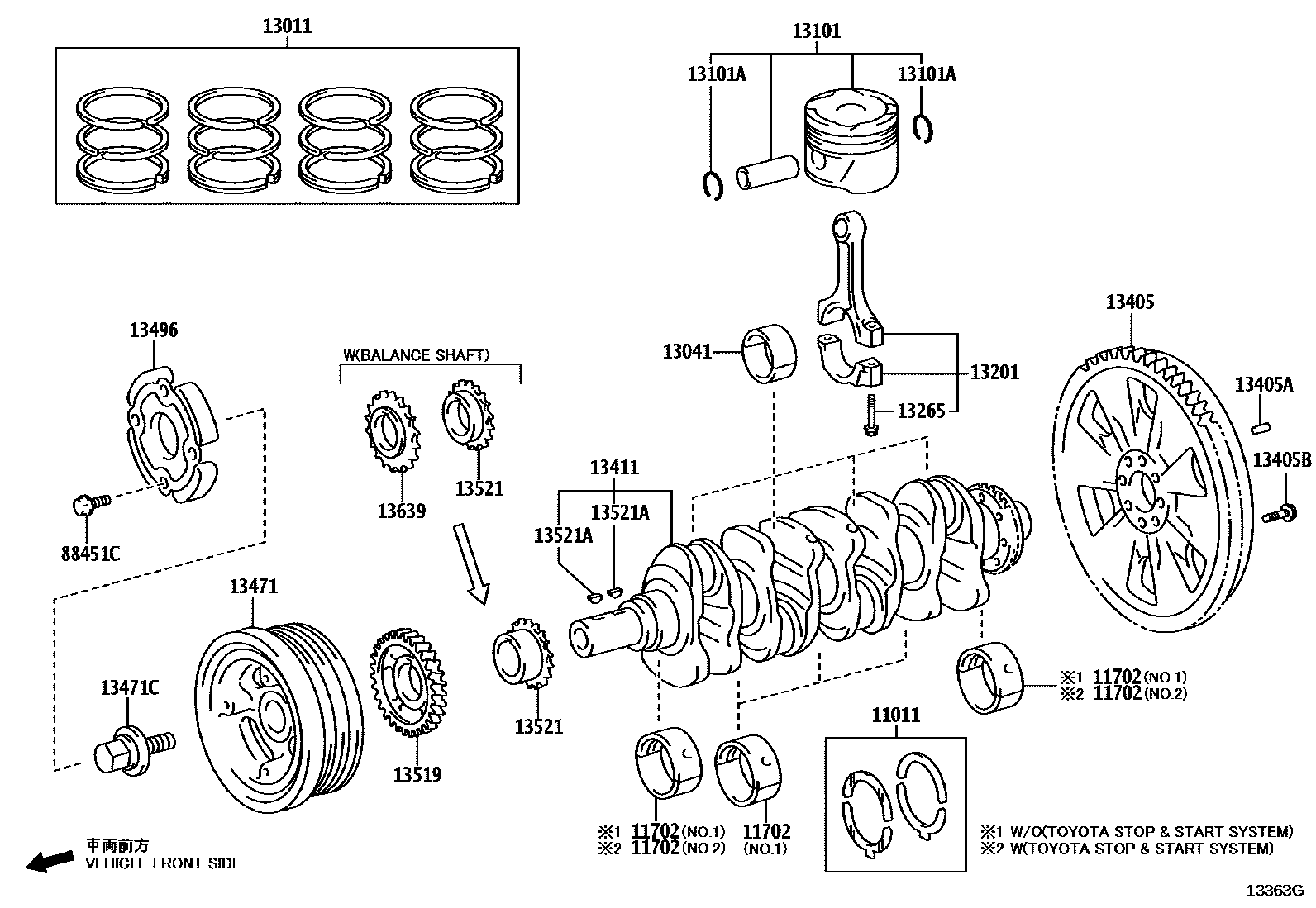

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,(L)
main11011-30010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
STD,(J); STD,EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); STD,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); STD,UAE SPEC,(J)
STD
11702BEARING SET, CRANKSHAFT
STD,MARK 1,NO.2,REFER R/M
STD,MARK 2,NO.2,REFER R/M
STD,MARK 3,NO.2,REFER R/M
STD,MARK 4,NO.2,REFER R/M
STD,MARK 5,NO.2,REFER R/M
main11701-0E010-02×3i1GDFTV..GUN156..GCC; 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN165..6F..IDN;2GDFTV..GUN155,165..LHD..(LA,SA);2GDFTV..GUN155,165..RHD..(GEN,SA);1GDFTV..GUN156,166..DCRL..(ARL,BZAGT,GCC,GEN,KEN,LA,MA,SA,VN); 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 2,NO.1,REFER R/M,*652; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 2,NO.1,REFER R/M,*652; MARK 2,NO.1,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 2,NO.1,REFER R/M,*652
main11701-0E010-03×3i1GDFTV..GUN156..GCC; 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN165..6F..IDN;2GDFTV..GUN155,165..LHD..(LA,SA);2GDFTV..GUN155,165..RHD..(GEN,SA);1GDFTV..GUN156,166..DCRL..(ARL,BZAGT,GCC,GEN,KEN,LA,MA,SA,VN); 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 3,NO.1,REFER R/M,*652; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 3,NO.1,REFER R/M,*652; MARK 3,NO.1,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 3,NO.1,REFER R/M,*652
main11701-0E010-04×5i1GDFTV..GUN156..GCC; 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN165..6F..IDN;2GDFTV..GUN155,165..LHD..(LA,SA);2GDFTV..GUN155,165..RHD..(GEN,SA);1GDFTV..GUN156,166..DCRL..(ARL,BZAGT,GCC,GEN,KEN,LA,MA,SA,VN); 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 4,NO.1,REFER R/M,*652; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,NO.1,REFER R/M,*652; MARK 4,NO.1,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 4,NO.1,REFER R/M,*652
main11701-0E010-05×5i1GDFTV..GUN156..GCC; 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN165..6F..IDN;2GDFTV..GUN155,165..LHD..(LA,SA);2GDFTV..GUN155,165..RHD..(GEN,SA);1GDFTV..GUN156,166..DCRL..(ARL,BZAGT,GCC,GEN,KEN,LA,MA,SA,VN); 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 5,NO.1,REFER R/M,*652; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,NO.1,REFER R/M,*652; MARK 5,NO.1,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 5,NO.1,REFER R/M,*652
main11701-0E010-06×3i1GDFTV..GUN156..GCC; 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN165..6F..IDN;2GDFTV..GUN155,165..LHD..(LA,SA);2GDFTV..GUN155,165..RHD..(GEN,SA);1GDFTV..GUN156,166..DCRL..(ARL,BZAGT,GCC,GEN,KEN,LA,MA,SA,VN); 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 6,NO.1,REFER R/M,*652; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,NO.1,REFER R/M,*652; MARK 6,NO.1,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 6,NO.1,REFER R/M,*652
MARK 2,NO.1,REFER R/M,*650
MARK 3,NO.1,REFER R/M,*650
MARK 4,NO.1,REFER R/M,*650
MARK 5,NO.1,REFER R/M,*650
MARK 6,NO.1,REFER R/M,*650
main11701-0E040-02×2i1GDFTV..GUN156..GCC; 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 2,NO.2,REFER R/M,*652; MARK 2,NO.2,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 2,NO.2,REFER R/M,*652
main11701-0E040-03×2i1GDFTV..GUN156..GCC; 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 3,NO.2,REFER R/M,*652; MARK 3,NO.2,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 3,NO.2,REFER R/M,*652
main11701-0E040-04×2i1GDFTV..GUN156..GCC; 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,NO.2,REFER R/M,*652; MARK 4,NO.2,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 4,NO.2,REFER R/M,*652
main11701-0E040-05×2i1GDFTV..GUN156..GCC; 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,NO.2,REFER R/M,*652; MARK 5,NO.2,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 5,NO.2,REFER R/M,*652
main11701-0E040-06×2i1GDFTV..GUN156..GCC; 2GDFTV..GUN165..LHD..6F;1GDFTV..GUN156..IDN,PH,TH;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN155,16#..6FC..(GCC,IDN,KEN,MA,PH,TH,VN)202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,NO.2,REFER R/M,*652; MARK 6,NO.2,REFER R/M,*652; TOYOTA STOP & START SYSTEM-WITH,MARK 6,NO.2,REFER R/M,*652
main11701-11030-02×3i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 2,NO.1,REFER R/M,*657; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 2,NO.1,REFER R/M,*657; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 2,NO.1,REFER R/M,*657; MARK 2,NO.1,REFER R/M,*657; UAE SPEC,MARK 2,NO.1,REFER R/M,*657
main11701-11030-03×3i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 3,NO.1,REFER R/M,*657; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 3,NO.1,REFER R/M,*657; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 3,NO.1,REFER R/M,*657; MARK 3,NO.1,REFER R/M,*657; UAE SPEC,MARK 3,NO.1,REFER R/M,*657
main11701-11030-04×3i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 4,NO.1,REFER R/M,*657; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,NO.1,REFER R/M,*657; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 4,NO.1,REFER R/M,*657; MARK 4,NO.1,REFER R/M,*657; UAE SPEC,MARK 4,NO.1,REFER R/M,*657
main11701-11030-05×3i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 5,NO.1,REFER R/M,*657; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,NO.1,REFER R/M,*657; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 5,NO.1,REFER R/M,*657; MARK 5,NO.1,REFER R/M,*657; UAE SPEC,MARK 5,NO.1,REFER R/M,*657
main11701-11030-06×3i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 6,NO.1,REFER R/M,*657; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,NO.1,REFER R/M,*657; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 6,NO.1,REFER R/M,*657; MARK 6,NO.1,REFER R/M,*657; UAE SPEC,MARK 6,NO.1,REFER R/M,*657
STD,MARK 1,NO.1,REFER R/M
STD,MARK 2,NO.1,REFER R/M
STD,MARK 3,NO.1,REFER R/M
STD,MARK 4,NO.1,REFER R/M
STD,MARK 5,NO.1,REFER R/M
STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 2,NO.2,REFER R/M,*657; STD,MARK 2,NO.2,REFER R/M,*657
STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 3,NO.2,REFER R/M,*657; STD,MARK 3,NO.2,REFER R/M,*657
STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,NO.2,REFER R/M,*657; STD,MARK 4,NO.2,REFER R/M,*657
STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,NO.2,REFER R/M,*657; STD,MARK 5,NO.2,REFER R/M,*657
STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,NO.2,REFER R/M,*657; STD,MARK 6,NO.2,REFER R/M,*657
U/S 0.25
13011RING SET, PISTON
STD,(L)
main13011-0E022i2GDFTV..GUN155,165..LHD..(LA,SA);1GDFTV,2GDFTV..GUN155,16#..RHD..6FC..DCRL..(GEN,SA);1GDFTV..GUN156..(AGTP,IDNP,SAP,THP)..DCRL..(BZAGT,GEN,SA)202408
STD
main13011-0E042i1GDFTV..GUN156..CAMP;2GDFTV..GUN165..6F..SA;1GDFTV..GUN156,166..MHV..SA;2GDFTV..GUN165..IDN,PH,TH,VN;2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,166..ARL,GCC,IDN,KEN,LA,MA,PH,TH,VN; 1GDFTV..GUN156..THP..GEN;1GDFTV..GUN156..RHD..6F..SA202408
STD,EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; STD,THA SOURCED PARTS
STD,IND SOURCED PARTS
main13011-11221i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
STD,EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; STD,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; STD,JAPAN SOURCED PARTS; STD,UAE SPEC,JAPAN SOURCED PARTS
STD
STD,(J)
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 2,THA SOURCED PARTS
MARK 3,THA SOURCED PARTS
MARK 4,THA SOURCED PARTS
MARK 5,THA SOURCED PARTS
MARK 6,THA SOURCED PARTS
main13041-0E021-02×4i1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,KEN,LA,MA,PH,SA,TH,VN; 1GDFTV..GUN156..THP..L;1GDFTV..GUN156,166..(H,S)..(ARL,IDN)202408
MARK 2; MARK 2,THA SOURCED PARTS
main13041-0E021-03×4i1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,KEN,LA,MA,PH,SA,TH,VN; 1GDFTV..GUN156..THP..L;1GDFTV..GUN156,166..(H,S)..(ARL,IDN)202408
MARK 3; MARK 3,THA SOURCED PARTS
main13041-0E021-04×4i1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,KEN,LA,MA,PH,SA,TH,VN; 1GDFTV..GUN156..THP..L;1GDFTV..GUN156,166..(H,S)..(ARL,IDN)202408
MARK 4; MARK 4,THA SOURCED PARTS
main13041-0E021-05×4i1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,KEN,LA,MA,PH,SA,TH,VN; 1GDFTV..GUN156..THP..L;1GDFTV..GUN156,166..(H,S)..(ARL,IDN)202408
MARK 5; MARK 5,THA SOURCED PARTS
main13041-0E021-06×4i1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,KEN,LA,MA,PH,SA,TH,VN; 1GDFTV..GUN156..THP..L;1GDFTV..GUN156,166..(H,S)..(ARL,IDN)202408
MARK 6; MARK 6,THA SOURCED PARTS
MARK 2,IND SOURCED PARTS
MARK 3,IND SOURCED PARTS
MARK 4,IND SOURCED PARTS
MARK 5,IND SOURCED PARTS
MARK 6,IND SOURCED PARTS
main13041-11051-02×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 2,JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 2,JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 2,JAPAN SOURCED PARTS; MARK 2,JAPAN SOURCED PARTS; UAE SPEC,MARK 2,JAPAN SOURCED PARTS
main13041-11051-03×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 3,JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 3,JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 3,JAPAN SOURCED PARTS; MARK 3,JAPAN SOURCED PARTS; UAE SPEC,MARK 3,JAPAN SOURCED PARTS
main13041-11051-04×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 4,JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 4,JAPAN SOURCED PARTS; MARK 4,JAPAN SOURCED PARTS; UAE SPEC,MARK 4,JAPAN SOURCED PARTS
main13041-11051-05×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 5,JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 5,JAPAN SOURCED PARTS; MARK 5,JAPAN SOURCED PARTS; UAE SPEC,MARK 5,JAPAN SOURCED PARTS
main13041-11051-06×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 6,JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 6,JAPAN SOURCED PARTS; MARK 6,JAPAN SOURCED PARTS; UAE SPEC,MARK 6,JAPAN SOURCED PARTS
MARK 1
MARK 2
MARK 3
MARK 4
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,IDN SOURCED PARTS
STD,THA SOURCED PARTS
STD,MARK 1,THA SOURCED PARTS
STD,MARK 2,THA SOURCED PARTS
STD,MARK 1,THA SOURCED PARTS
STD,MARK 2,THA SOURCED PARTS
STD,MARK 1,IND SOURCED PARTS
STD,MARK 2,IND SOURCED PARTS
main13101-11231-01×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
STD,EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 1,JAPAN SOURCEDPARTS; STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 1,JAPAN SOURCED PARTS; STD,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 1,JAPAN SOURCED PARTS; STD,MARK 1,JAPAN SOURCED PARTS; STD,UAE SPEC,MARK 1,JAPAN SOURCED PARTS
main13101-11231-02×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
STD,EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK 2,JAPAN SOURCEDPARTS; STD,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 2,JAPAN SOURCED PARTS; STD,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 2,JAPAN SOURCED PARTS; STD,MARK 2,JAPAN SOURCED PARTS; STD,UAE SPEC,MARK 2,JAPAN SOURCED PARTS
STD,MARK A
STD,MARK B
STD,MARK C
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
IDN SOURCED PARTS
THA SOURCED PARTS
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK A
MARK B
MARK C
main13201-11040-A0×4i2GDFTV..GUN155,165; 2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155..THP..L202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK A; MARK A; MARK A,(J)
main13201-11040-B0×4i2GDFTV..GUN155,165; 2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155..THP..L202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK B; MARK B; MARK B,(J)
main13201-11040-C0×4i2GDFTV..GUN155,165; 2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155..THP..L202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK C; MARK C; MARK C,(J)
MARK A,(J)
MARK B,(J)
MARK C,(J)
MARK A
MARK B
MARK C
13265BOLT, CONNECTING ROD
IDN SOURCED PARTS
THA SOURCED PARTS
13405FLYWHEEL SUB-ASSY
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main13405-11090i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
ARG SOURCED PARTS; CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,ARG SOURCED PARTS
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
L=15,OD=5,(J); L=15,OD=5,EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); L=15,OD=5,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); L=15,OD=5,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); L=15,OD=5,UAE SPEC,(J)
L=23,OD=8,(J)
L=22,OD=10,(L)
L=23,OD=8,(L)
L=15,OD=5,(L)
13405BBOLT, FLYWHEEL SETTING
main90105-13015×8i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
(J); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); UAE SPEC,(J)
(L)
(J)
(L)
13411CRANKSHAFT
main13401-0E010i2GDFTV..GUN155,165; 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS; THA SOURCED PARTS; UAE SPEC,THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
13471PULLEY, CRANKSHAFT
THA SOURCED PARTS
IND SOURCED PARTS
main13408-11061i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
main90119-18003i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
THA SOURCED PARTS
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
main13519-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 1GDFTV..GUN156..THP..ARL;2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155..THP..L202408
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS; THA SOURCED PARTS
IND SOURCED PARTS
main13519-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
THA SOURCED PARTS
IDN SOURCED PARTS
main13521-0E010i2GDFTV..GUN155,165;1GDFTV..GUN156..6F..(L,S);1GDFTV..GUN156..LHD..6FC..SA;1GDFTV..GUN156..(IDNP,KENP,THP)..6FC..(GEN,KEN)202408
THA SOURCED PARTS
main13521-0E030i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
main13521-11040i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
main13521-11050i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
main95161-30516i1GDFTV..GUN156..6F..LA;2GDFTV..GUN155,165..LHD..THP..(H,S); 1GRFE..GGN155..GCC,GEN,LA; 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
(J); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); UAE SPEC,(J)
13639SPROCKET, BALANCESHAFT TIMING
main13639-0E010i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
(L); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
main13639-11010i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
(J); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
88451CBOLT, FLANGE W/WASHER
20 parts on this diagram · 4 diagrams in section
