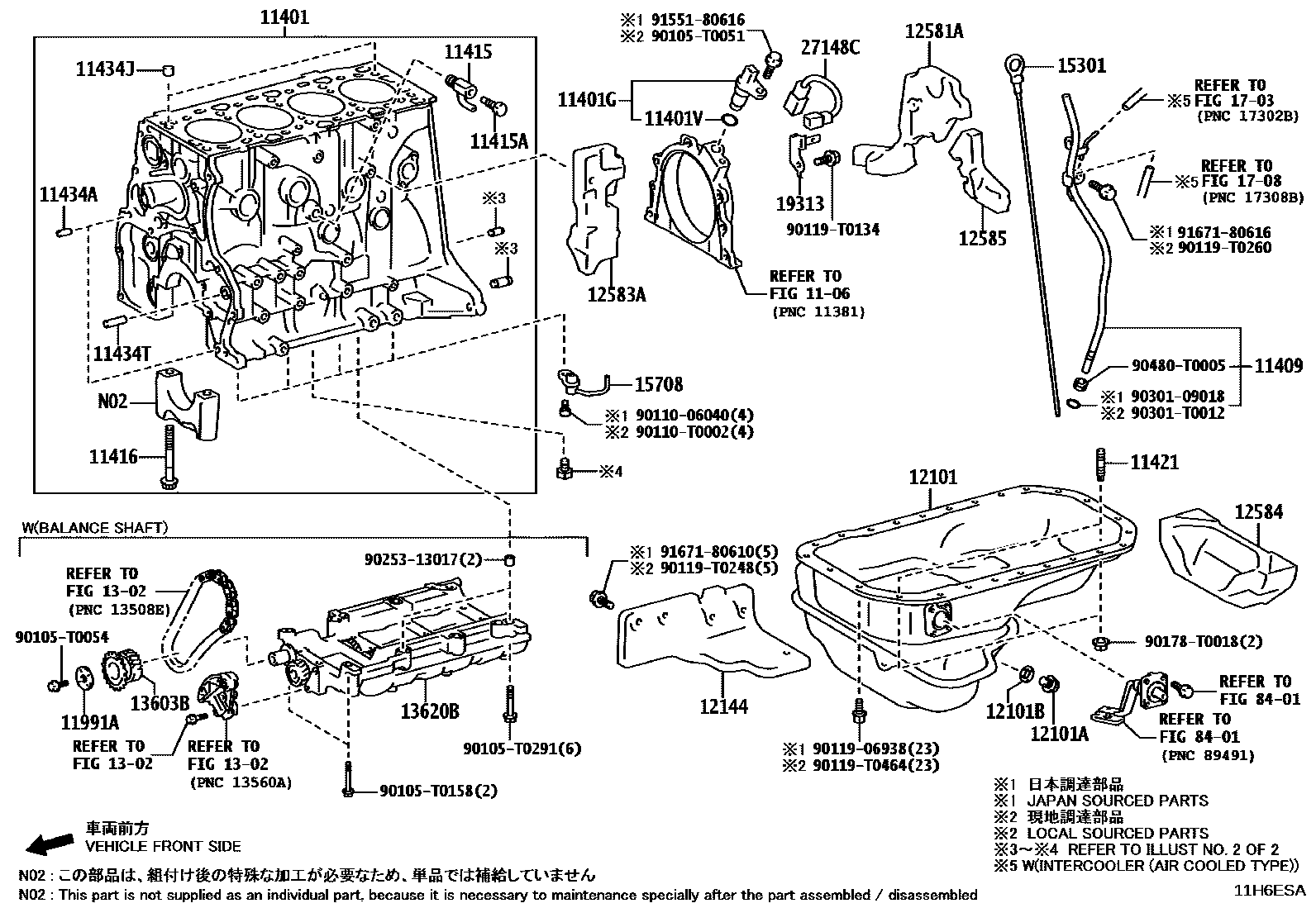

CYLINDER BLOCK
1106TIMING GEAR COVER & REAR END PLATE
11401BLOCK SUB-ASSY, CYLINDER
main11401-09851i1GDFTV..GUN156..6F..(L,S);1GDFTV..GUN156..LHD..6FC..SA;1GDFTV..GUN156..(IDNP,KENP,THP)..6FC..(GEN,KEN)202408
main11401-09861i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
main90301-14016i1G#,2GDFTV..GGN155,GUN15#,16#..AGTP,IDNP,KENP,MAP,SAP,THP,VNP; 2GDFTV..GUN155..THP..(H,S)..GCC202408
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
11409GUIDE SUB-ASSY, OIL LEVEL GAGE
main11409-0E011i1GDFTV..GUN156..CAMP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN166..(AGTP,IDNP,SAP,THP)..DCRL;1GDFTV..GUN156..RHD..6FC..DCRL..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN; 2GDFTV..GUN155,165;1GDFTV..GUN156..6F..(L,S);1GDFTV..GUN156..LHD..6FC..SA;1GDFTV..GUN156..(IDNP,KENP,THP)..6FC..(GEN,KEN)202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); THA SOURCED PARTS
IND SOURCED PARTS
THA SOURCED PARTS
BRAZIL SPEC&EXHAUST EMISSION CONTROL-L8,THA SOURCED PARTS
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
main90910-09087i1GDFTV,2GDFTV..GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 1GRFE..GGN155..GCC,GEN,LA;2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155..THP..L202408
(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main90910-T9001i1GDFTV,2GDFTV..GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 2TRFE..TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP202408
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
main90910-02191×10i1GDFTV..GUN156..6F..LA;2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
(J); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); UAE SPEC,(J)
(L)
(L)
11421BOLT, STUD(FOR OIL PAN)
main90126-06028×2i1G#,2GDFTV..GGN155,GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 2TRFE..TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP202408
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-08120×2i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
L=18,OD=8,(J); L=18,OD=8,EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); L=18,OD=8,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); L=18,OD=8,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); L=18,OD=8,UAE SPEC,(J)
L=18,OD=8,(L)
11434JPIN, RING (FOR CYLINDER HEAD SET)
main90253-15016×2i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
(J); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); UAE SPEC,(J)
(L)
IDN SOURCED PARTS
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
main90250-10030i1GDFTV,2GDFTV..GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 1GRFE..GGN155..GCC,GEN,LA; 2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155..THP..L202408
(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main90250-T0019i1GDFTV,2GDFTV..GUN15#,16#..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP; 1GDFTV..GUN156..6F..LA;1GDFTV..GUN156..THP..ARL202408
(L)
11991APLATE, BALANCESHAFT THRUST, NO.1
main11991-0E010i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
(L); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
main11991-11010i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
(J); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
12101PAN SUB-ASSY, OIL
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main12101-35100i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i1GRFE..GGN155..GCC,GEN,LA; 2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC; 2TRFE..TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP202408
(J); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); UAE SPEC,(J)
(L)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(L)
main90430-12031i1GRFE..GGN155..GCC,GEN,LA; 2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC; 2TRFE..TGN156,166..AGTP,IDNP,MAP,SAP,THP,VNP202408
(J); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); UAE SPEC,(J)
(L)
12144SILENCER, OIL PAN COVER
main12144-0C020i2TRFE..TGN156..H..GEN; 2TRFE..TGN156..LA,MA,SA,VN;2TRFE..TGN166..GEN,IDN,LA,VN; 2TRFE..TGN166..GEN202409
BRUNEI SPEC; CENTRAL AND SOUTH AMERICA SPEC
main12144-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC
12581AINSULATOR, CYLINDER BLOCK, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
main12581-11020i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
12583AINSULATOR, CYLINDER BLOCK, NO.3
THA SOURCED PARTS
IND SOURCED PARTS
main12583-11020i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
12584INSULATOR, CYLINDER BROCK, NO.4
ZAF SOURCED PARTS
THA SOURCED PARTS
12585INSULATOR, CYLINDER BROCK, NO.5
THA SOURCED PARTS
IND SOURCED PARTS
main12585-11020i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
1302CAMSHAFT & VALVE
13603BGEAR SUB-ASSY, BALANCESHAFT
main13603-0E010i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
(L); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
main13603-11010i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
(J); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
13620BBALANCER ASSY, ENGINE
main13620-11013i1GDFTV..GUN156..CAMP;1GDFTV..GUN166..AGTP,IDNP,SAP,THP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN156..RHD..6FC..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..GEN202408
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
15301GAGE SUB-ASSY, OIL LEVEL
THA SOURCED PARTS
IDN SOURCED PARTS
main15301-0E011i2GDFTV..GUN155,165;1GDFTV..GUN156..6F..(L,S);1GDFTV..GUN156..LHD..6FC..SA;1GDFTV..GUN156..(IDNP,KENP,THP)..6FC..(GEN,KEN)202408
THA SOURCED PARTS
main15301-0E040i1GDFTV..GUN156..CAMP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN166..(AGTP,IDNP,SAP,THP)..DCRL;1GDFTV..GUN156..RHD..6FC..DCRL..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..ARL;1GDFTV..GUN156,166..MHV..SA; 1GDFTV..GUN156..THP..GEN202408
(L); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L); THA SOURCED PARTS
main15301-11070i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
main15301-11100i1GDFTV..GUN156..CAMP;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN);1GDFTV..GUN166..(AGTP,IDNP,SAP,THP)..DCRL;1GDFTV..GUN156..RHD..6FC..DCRL..(ARL,IDN,MA,SA,TH); 1GDFTV..GUN156..THP..ARL;1GDFTV..GUN156,166..MHV..SA; 1GDFTV..GUN156..THP..GEN202408
(J); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J); JAPAN SOURCED PARTS
BRA SOURCED PARTS; CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,BRA SOURCED PARTS
15708NOZZLE SUB-ASSY, OIL, NO.1
(L)
IDN SOURCED PARTS
main15708-11010×4i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
(J)
1703AIR CLEANER
1708VACUUM PIPING
19313BRACKET, CRANK POSITION SENSOR HARNESS
THA SOURCED PARTS
IND SOURCED PARTS
main19313-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
27148CWIRE, CONNECTING
THA SOURCED PARTS
IND SOURCED PARTS
main27148-11010i2GDFTV..GUN155,165..LHD..THP..(H,S); 2GDFTV..GUN155,165..THP..GEN; 2GDFTV..GUN155..THP..(H,S)..GCC; 2GDFTV..GUN155..THP..L; 2GDFTV..GUN155..THP..S..GCC202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; UAE SPEC,JAPAN SOURCED PARTS
8401SWITCH & RELAY & COMPUTER
90105T0051
main90105-T0051
90105T0054
main90105-T0054
90105T0158
main90105-T0158
90105T0291
main90105-T0291
9011006040
main90110-06040
90110T0002
main90110-T0002
9011906938
main90119-06938
90119T0134
main90119-T0134
90119T0248
main90119-T0248
90119T0260
main90119-T0260
90119T0464
main90119-T0464
90178T0018
main90178-T0018
9025313017
main90253-13017
9030109018
main90301-09018
90301T0012
main90301-T0012
90480T0005
main90480-T0005
9155180616
main91551-80616
9167180610
main91671-80610
9167180616
main91671-80616
50 parts on this diagram · 5 diagrams in section
