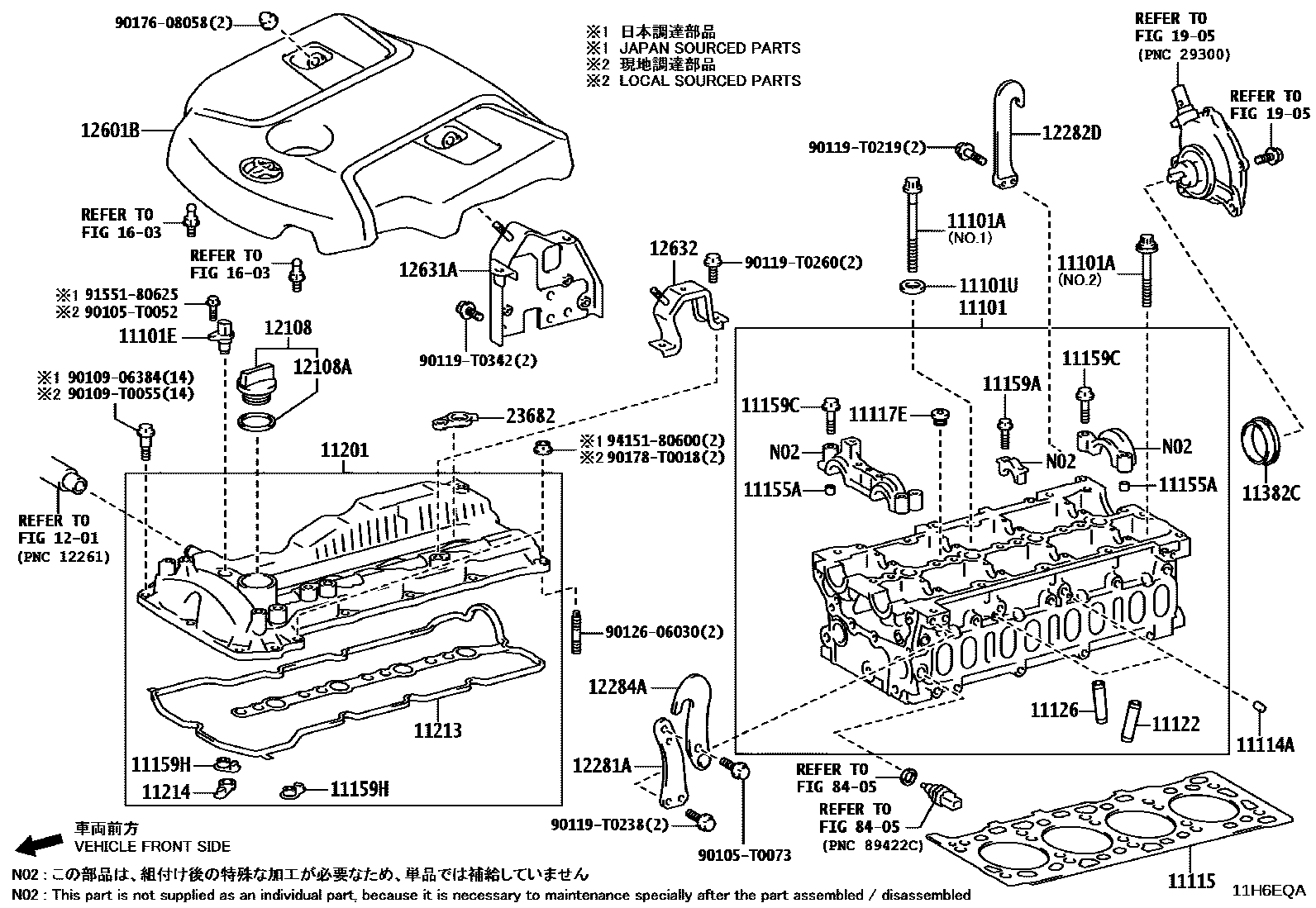

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
IND SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
11101ABOLT(FOR CYLINDER HEAD SET)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),NO.1
(J),NO.1
UAE SPEC,(J),NO.1
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J),NO.1
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J),NO.1
(J),NO.2
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),NO.2
(L),NO.1
(L),NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(L)
11114APIN, STRAIGHT
L=8,OD=5,(J)
L=8,OD=5,UAE SPEC,(J)
L=8,OD=5,GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
L=8,OD=5,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
L=8,OD=5,EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
(L)
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK D,(L)
MARK E,(L)
MARK A,(J)
UAE SPEC,MARK A,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK A,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK A,(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK A,(J)
MARK B,(J)
UAE SPEC,MARK B,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK B,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK B,(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK B,(J)
MARK C,(J)
UAE SPEC,MARK C,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK C,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK C,(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK C,(J)
MARK D,(J)
UAE SPEC,MARK D,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK D,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK D,(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK D,(J)
MARK E,(J)
UAE SPEC,MARK E,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK E,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK E,(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK E,(J)
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(L)
(L)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
O/S 0.05
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD
O/S 0.05
STD
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
NO.2
(J)
(L)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1,*651
NO.1,*652
(L)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
NO.1,*657
NO.2,*651
NO.2,*652
NO.2,*657
NO.3,*651
NO.3,*652
NO.3,*657
11201COVER SUB-ASSY, CYLINDER HEAD
IDN SOURCED PARTS
THA SOURCED PARTS
(L)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
JAPAN SOURCED PARTS
11213GASKET, CYLINDER HEAD COVER
IDN SOURCED PARTS
THA SOURCED PARTS
(L)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
JAPAN SOURCED PARTS
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
11382CRETAINER, CAMSHAFT OIL SEAL
(L)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
12281AHANGER, ENGINE, NO.1
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,ARG SOURCED PARTS
ARG SOURCED PARTS
JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
12282DHANGER, ENGINE, NO.2
IDN SOURCED PARTS
THA SOURCED PARTS
(L)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
12284AHANGER, ENGINE, NO.1 UPPER
(L)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
12601BCOVER SUB-ASSY, ENGINE, NO.1
(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
(L)
EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS)
12631ABRACKET, ENGINE COVER
main12631-0E010i2GDFTV..GUN155,165;1GDFTV..GUN156..6F..LA;1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN202408
THA SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12632BRACKET, ENGINE COVER, NO.2
main12632-0E010i2GDFTV..GUN155,165;1GDFTV..GUN156..6F..LA;1GDFTV..GUN156,166..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN202408
EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS)
1603
1905
23682GASKET, NOZZLE HOLDER
(L)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
main90109-06384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
main90119-T0238
90119T0260
main90119-T0260
90119T0342
main90119-T0342
9012606030
main90126-06030
9017608058
main90176-08058
90178T0018
main90178-T0018
9155180625
main91551-80625
9415180600
main94151-80600
43 parts on this diagram · 6 diagrams in section
