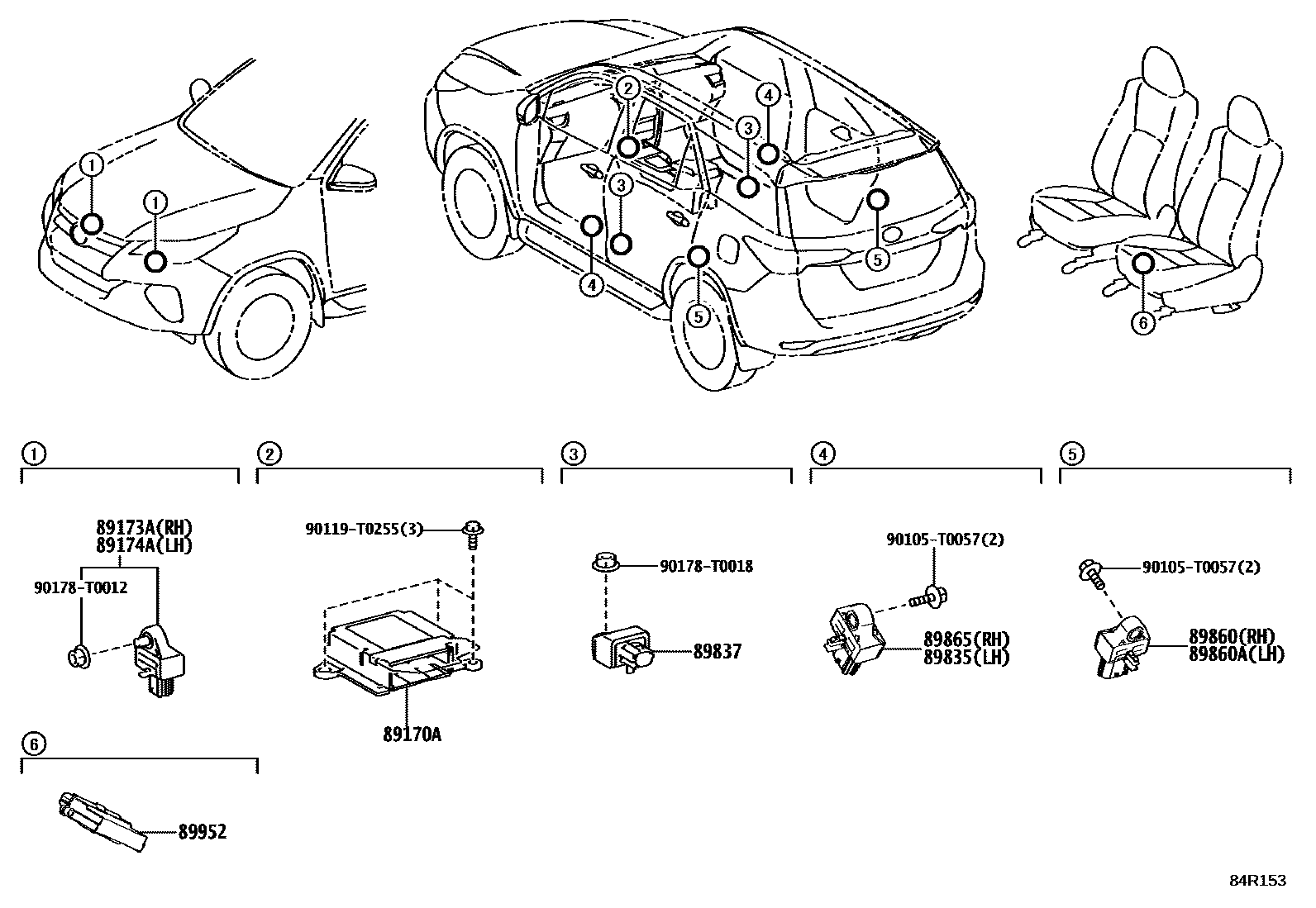

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0K630supersedes 89170-0KF60iGUN156..THP..GCC;GUN165..THP..GEN;GGN155,GUN155..LHD..THP..H202308-202407

main89170-0K640iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main89170-0KB50iGUN156,TGN156,166..PKN202412

main89170-0KB90iGUN155,16#..TH;GUN156..THP..(GEN,TH)202308-202407

main89170-0KF60iGGN155,GUN155,TGN156,166..THP..(L,S)..GCC; GGN155,GUN156..THP..H..GCC202308-202407

SRS AIR BAG-WITH(*DRP)

main89170-0KJ30iGUN156..THP..ARL202308-202407

main89170-0KJ80iGUN156,166..MHV..SA202402-202410

main89170-0KJ90iGUN156..MHV..IND202406-202409

main89170-0KK20iGUN156,166,TGN166..(DCRL,HTWC)..IND202310-202409

89173ASENSOR, AIRBAG, FRONT RH

main89173-09B20iGUN156,16#,TGN166..INDP,VNP202308-202409

TYPE A:REFER ILLUST.

89174ASENSOR, AIRBAG, FRONT LH

main89173-09B20iGUN156,16#,TGN166..INDP,VNP202308-202409

TYPE A:REFER ILLUST.

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-0K040iGUN155..IDNP..H..GCC;GGN155,GUN156..(CAMP,IDNP,MAP)..(H,L);GUN155,16#,TGN156,166..(IDNP,MAP)..(GEN,IDN,MA,PH,VN)202308-202408

89837SENSOR, FRONT FLOOR SIDE AIRBAG

main89837-0K010×2iGUN156..THP..ARL202308-202407

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0K070iGUN15#..KEN202308-202412

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0K070iGUN156..RHD..SA;GGN155,GUN16#,TGN166..LA,SA;GUN15#,TGN156..(AGTP,SAP)..(H,L)202308-202410

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-0K040iGUN156,16#,TGN166..INDP,VNP202308-202409

89952COMPUTER, OCCUPANT DETECTION

main89952-71010iGUN156..THP..ARL202308-202407

90105T0057

main90105-T0057

90119T0255

main90119-T0255

90178T0012

main90178-T0012

90178T0018

main90178-T0018

13 parts on this diagram · 1 diagram in section
