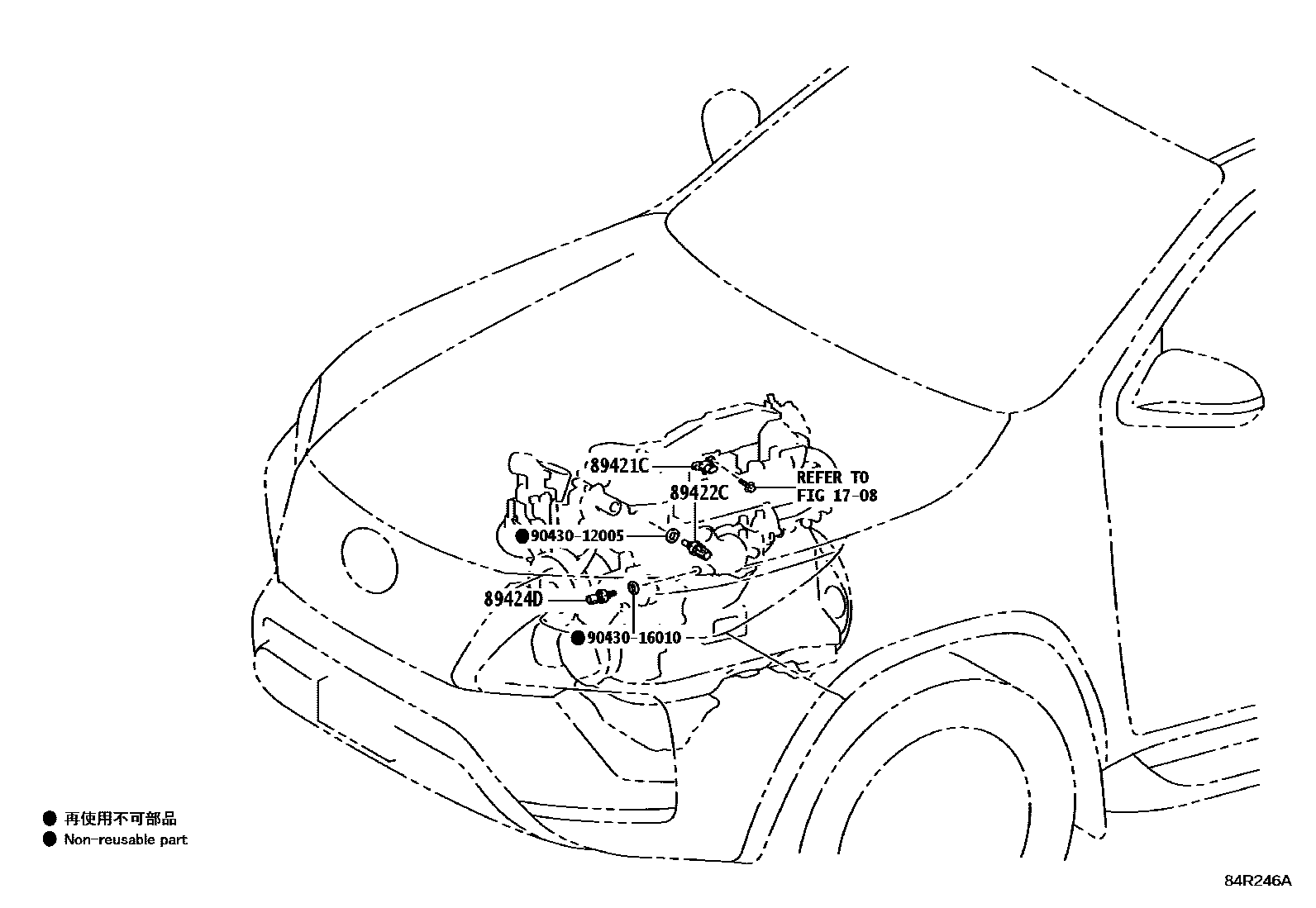

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1ENGINE ROOM 0002 1COWL

1708VACUUM PIPING

→ Go to FIG 17-08

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030iGUN15#,16#..THP202308-202412

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iGUN15#,16#..THP202308-202412

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iGUN15#,16#..CAMP,IDNP,MAP202308-202412

9043012005

main90430-12005

9043016010

main90430-16010

6 parts on this diagram · 2 diagrams in section
