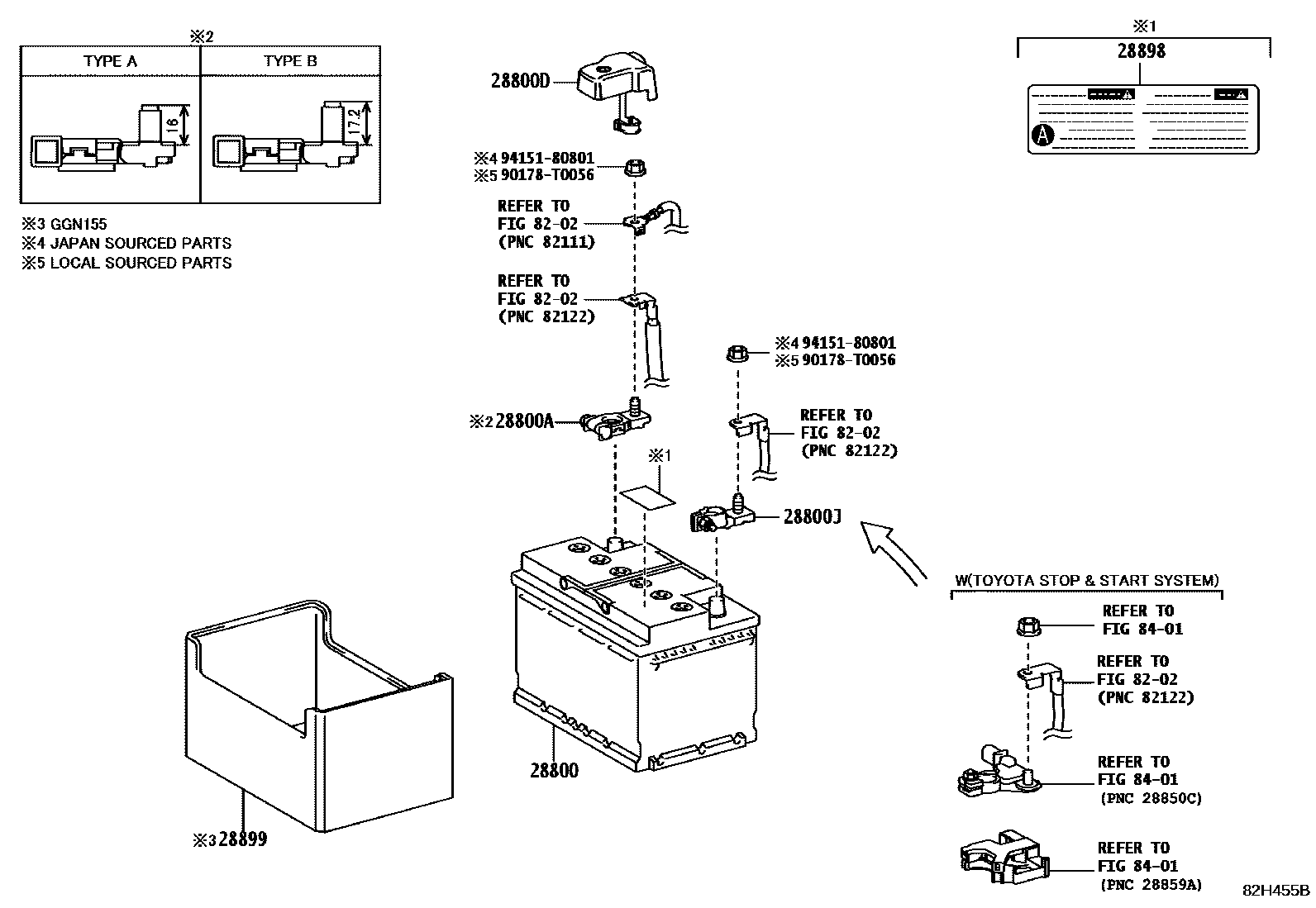

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 1/2 0004 1HV BATTERY 2/2

28800BATTERY

main28800-0C152i2TRFE..TGN156..IDNP..L..GCC202309-202409

LN2

main28800-0C241i2TRFE..TGN166..EPT202404

LN2,GS

main28800-0C251i2TRFE..TGN156,166..LA202311-202410

LN2

main28800-0C261i2TRFE..TGN156..SAP202402-202410

LN2

main28800-0L380i1GDFTV,2TRFE..GUN156,TGN156,166..PKN202412

80D26L

main28800-0L432i2TRFE..TGN156..IDNP..S..GCC;1G#,2GDFTV..GGN155,GUN15#,16#..IDNP202309-202408

LN3

main28800-0L461i1G#,2GDFTV..GGN155,GUN156,165..AGTP202311-202410

LN3

main28800-0L481i1GDFTV,2GDFTV..GUN15#,16#..SA202402-202403

LN3

main28800-0L482i1GDFTV,2GDFTV..GUN15#..KEN202404-202412

LN3

main28800-0L504i1GDFTV,2GDFTV..GUN15#,16#..TH202308-202407

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,FURUKAWA

main28800-0L504i1GDFTV..GUN156..CAMP202308-202408

LN3,FURUKAWA

main28800-0L521i1GDFTV,2GDFTV..GUN15#,16#..TH202308-202407

LN4

main28800-0L571i1GDFTV,2GDFTV..GUN15#,165..THP..(ARL,GEN)202308-202402

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA

main28800-0L571i1GDFTV,2GDFTV..GUN15#,165..THP..(ARL,GEN)202308-202402

LN3,YUASA

main28800-0L572i1GDFTV,2GDFTV..GUN15#,165..THP..(ARL,GEN)202403-202407

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA

main28800-0L572i1GDFTV..GUN156..CAMP202403-202408

LN3,YUASA

main28800-0L722i2TRFE..TGN156..THP..S;1G#,2GDFTV..GGN155,GUN15#..THP..GCC202308-202407

LN3

main28800-0L732i2TRFE..TGN156,166..THP..L202308-202407

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202412

TYPE A:REFER ILLUST.

main90982-05061i1GDFTV,2GDFTV..GUN15#..KEN202308-202412

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202412

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1G#,2GDFTV,2TRFE..GGN155,GUN15#,165,TGN156,166..THP..(ARL,GCC,GEN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main90982-06059i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202412

28898PLATE, BATTERY

main28897-36030i2TRFE..TGN156..IDNP..L..GCC;1G#,2GDFTV,2TRFE..GGN155,GUN15#,TGN156,166..THP..GCC202308-202408

28899INSULATOR, BATTERY

main28899-27020i1GRFE..GGN155..THP202308-202410

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178T0056

main90178-T0056

9415180801

main94151-80801

10 parts on this diagram · 4 diagrams in section
