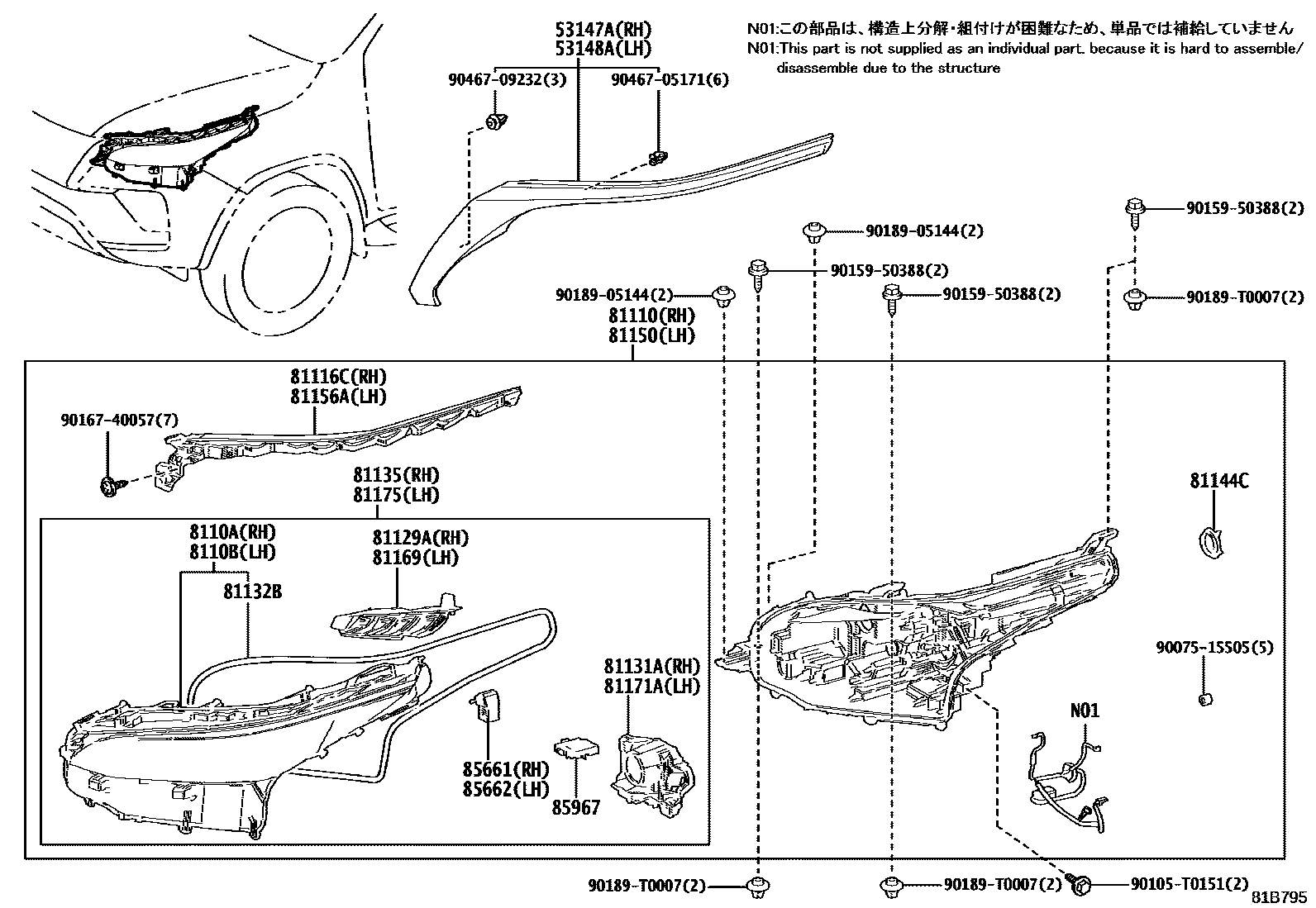

HEADLAMP
53147AGARNISH, HEADLAMP ORNAMENT, RH
main53147-0K020iGGN155,GUN15#,16#,TGN156..THP..(H,S); GUN15#,16#..H..TH; GUN155,165..TH; GUN156..(CAMP,THP)..GEN; GUN156..(MAP,THP)..(GEN,MA); GUN156..TH202308-202407
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE & ACCESSORY
main53147-0K150iGUN156,166,TGN166..IND; GUN156,166..6FC..DCRL..IND; GUN156..6FC..DCRL..IND202310-202409
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY
main53147-YP010iGUN15#,16#..H..TH; GUN156..TH; GUN156..THP..GEN; GUN165..TH;GUN155..H..TH202308-202407
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE & ACCESSORY
GR SPORT & ACCESSORY,PLANT TASA; GR SPORT,PLANT TASA; MLM BASIC PACKAGE,PLANT TASA; MLM PACKAGE & ACCESSORY,PLANT TASA
53148AGARNISH, HEADLAMP ORNAMENT, LH
MLM BASIC PACKAGE; MLM PACKAGE
main53148-0K150iGUN156,166,TGN166..IND; GUN156,166..6FC..DCRL..IND; GUN156..6FC..DCRL..IND202310-202409
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY
main53148-YP010iGUN15#,16#..H..TH; GUN156..TH; GUN156..THP..GEN; GUN165..TH;GUN155..H..TH202308-202407
GR SPORT & ACCESSORY; MLM BASIC PACKAGE; MLM PACKAGE; MLM PACKAGE & ACCESSORY
GR SPORT & ACCESSORY,PLANT TASA; GR SPORT,PLANT TASA; MLM BASIC PACKAGE,PLANT TASA; MLM PACKAGE & ACCESSORY,PLANT TASA
8110ALENS SUB-ASSY, HEADLAMP, RH
main8110A-0KL90iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..IDNP..(L,S)..(ARL,GCC,GEN,SA,VN)202309-202408
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
8110BLENS SUB-ASSY, HEADLAMP, LH
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81110HEADLAMP ASSY, RH
main81110-0KM20iGUN165..IDNP..L;GUN165..LHD..IDNP..S..(GEN,VN);GGN155,GUN15#,TGN156,166..LHD..IDNP..(L,S)202309-202408
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT); MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM)
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
HEADLAMP-LED & WITH(*DRL); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
HEADLAMP-LED & WITH(*DRL)
81116CBRACKET, HEADLAMP, RH
81129AREFLECTOR, HEADLAMP, RH
main81129-0KL40iGUN16#..TH;GUN156..THP..H;GUN155..THP..(GEN,TH);GGN155,GUN155..THP..H..GCC202308-202407
main81129-0KL90iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..IDNP..(L,S)..(ARL,GCC,GEN,SA,VN)202309-202408
81131AUNIT, HEADLAMP, RH
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
main81145-0KM20iGUN165..IDNP..L;GUN165..LHD..IDNP..S..(GEN,VN);GGN155,GUN15#,TGN156,166..LHD..IDNP..(L,S)202309-202408
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
81144CCOVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY
GR SPORT & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN); GR SPORT&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM BASIC PACKAGE&HEADLAMP-LED & WITH(SEQUENTIAL TURN); MLM PACKAGE & ACCESSORY&HEADLAMP-LED & WITH(SEQUENTIAL TURN)
HEADLAMP-LED & WITH(*DRL); MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
HEADLAMP-LED & WITH(*DRL)
81156ABRACKET, HEADLAMP, LH
81169REFLECTOR, HEADLAMP, LH
main81169-0KL90iGUN165..L..PH;GGN155,GUN15#,165,TGN156,166..IDNP..(L,S)..(ARL,GCC,GEN,SA,VN)202309-202408
81171AUNIT, HEADLAMP, LH
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED(MLM); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM)
81175UNIT ASSY, HEADLAMP, LH
main81185-0KM20iGUN165..IDNP..L;GUN165..LHD..IDNP..S..(GEN,VN);GGN155,GUN15#,TGN156,166..LHD..IDNP..(L,S)202309-202408
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY
MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85967COMPUTER, LIGHT CONTROL
GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY; MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
9007515505
main90075-15505
90105T0151
main90105-T0151
9015950388
main90159-50388
9016740057
main90167-40057
9018905144
main90189-05144
90189T0007
main90189-T0007
9046705171
main90467-05171
9046709232
main90467-09232
27 parts on this diagram · 6 diagrams in section
