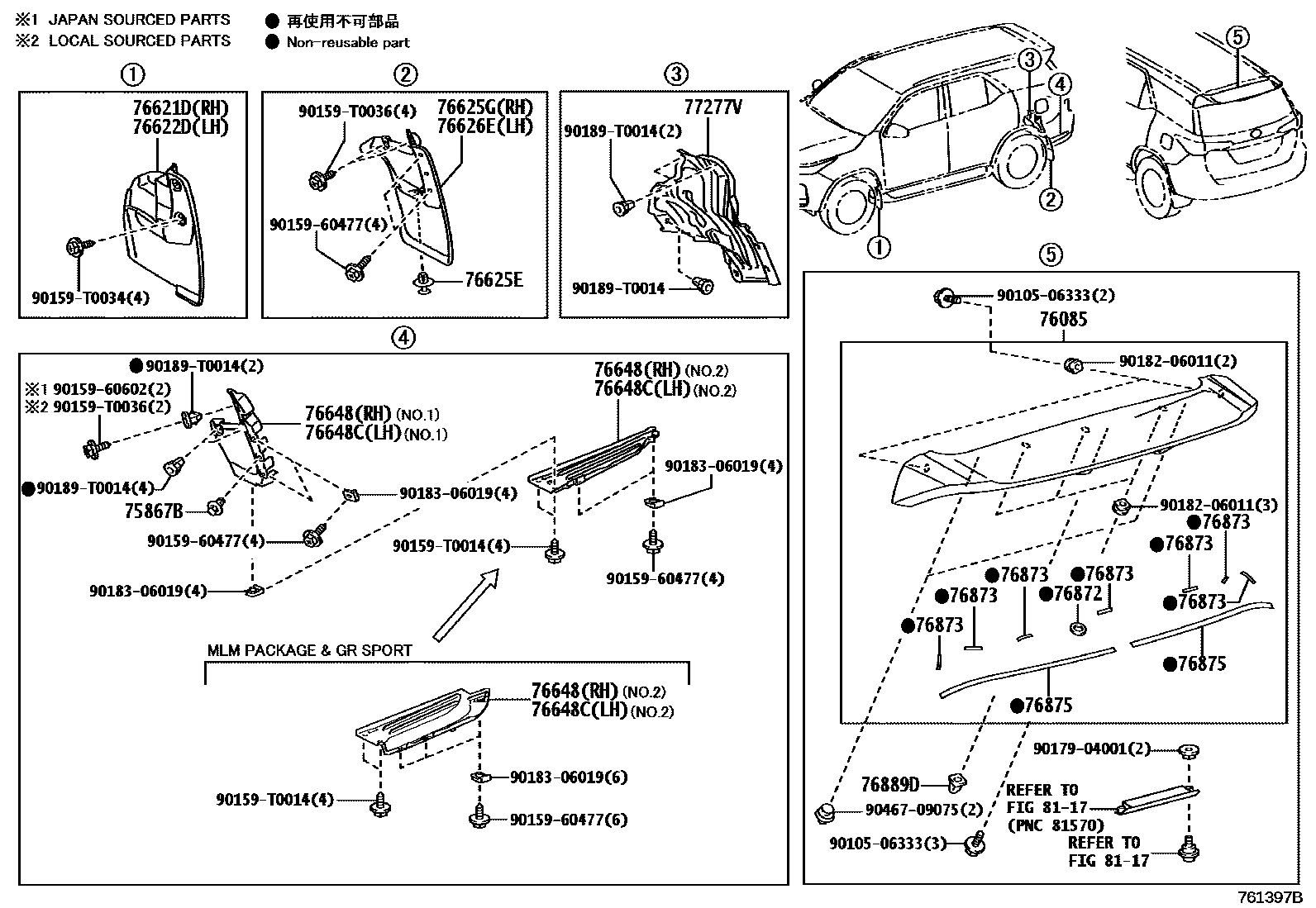

SPOILER & SIDE MUDGUARD
75867BCLIP, ROCKER PANEL MOULDING
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
PAINT REQ.,GR SPORT & ACCESSORY
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,GR SPORT & ACCESSORY
PAINT REQ.
76621DMUDGUARD, FRONT FENDER, RH
MUD GUARD-WITH(FRONT & REAR)
76622DMUDGUARD, FRONT FENDER, LH
MUD GUARD-WITH(FRONT & REAR)
76625ECLIP
76625GMUDGUARD, QUARTER PANEL, REAR RH
MUD GUARD-WITH(FRONT & REAR)
76626EMUDGUARD, QUARTER PANEL, REAR LH
MUD GUARD-WITH(FRONT & REAR)
76648SUPPORT, REAR BODY MUDGUARD, RH
NO.1
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT,NO.2
MLM BASIC PACKAGE,NO.2
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2
MLM PACKAGE & ACCESSORY,NO.2
GR SPORT & ACCESSORY,NO.2
NO.2
MLM PACKAGE,NO.2
MLM PACKAGE&REAR FOG LAMP-WITHOUT,NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
GR SPORT & ACCESSORY,NO.1
MLM PACKAGE & ACCESSORY,NO.1
NO.1
NO.2
NO.1
NO.2
76648CSUPPORT, REAR BODY MUDGUARD, LH
NO.1
NO.2
MLM PACKAGE,NO.2
MLM PACKAGE&REAR FOG LAMP-WITHOUT,NO.2
MLM PACKAGE & ACCESSORY,NO.2
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT,NO.2
MLM BASIC PACKAGE,NO.2
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,NO.2
GR SPORT & ACCESSORY,NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
GR SPORT & ACCESSORY,NO.1
NO.1
MLM PACKAGE & ACCESSORY,NO.1
NO.2
NO.1
NO.2
76872PROTECTOR, REAR SPOILER, NO.1
GR SPORT & ACCESSORY
GR SPORT & ACCESSORY
76873PROTECTOR, REAR SPOILER, NO.2
GR SPORT & ACCESSORY
GR SPORT & ACCESSORY
76875PROTECTOR, REAR SPOILER, NO.4
GR SPORT & ACCESSORY
GR SPORT & ACCESSORY
76889DCLIP, REAR SPOILER, NO.2
77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1
8117CENTER STOP LAMP
9010506333
main90105-06333
9015960477
main90159-60477
9015960602
main90159-60602
90159T0014
main90159-T0014
90159T0034
main90159-T0034
90159T0036
main90159-T0036
9017904001
main90179-04001
9018206011
main90182-06011
9018306019
main90183-06019
90189T0014
main90189-T0014
9046709075
main90467-09075
26 parts on this diagram · 1 diagram in section
