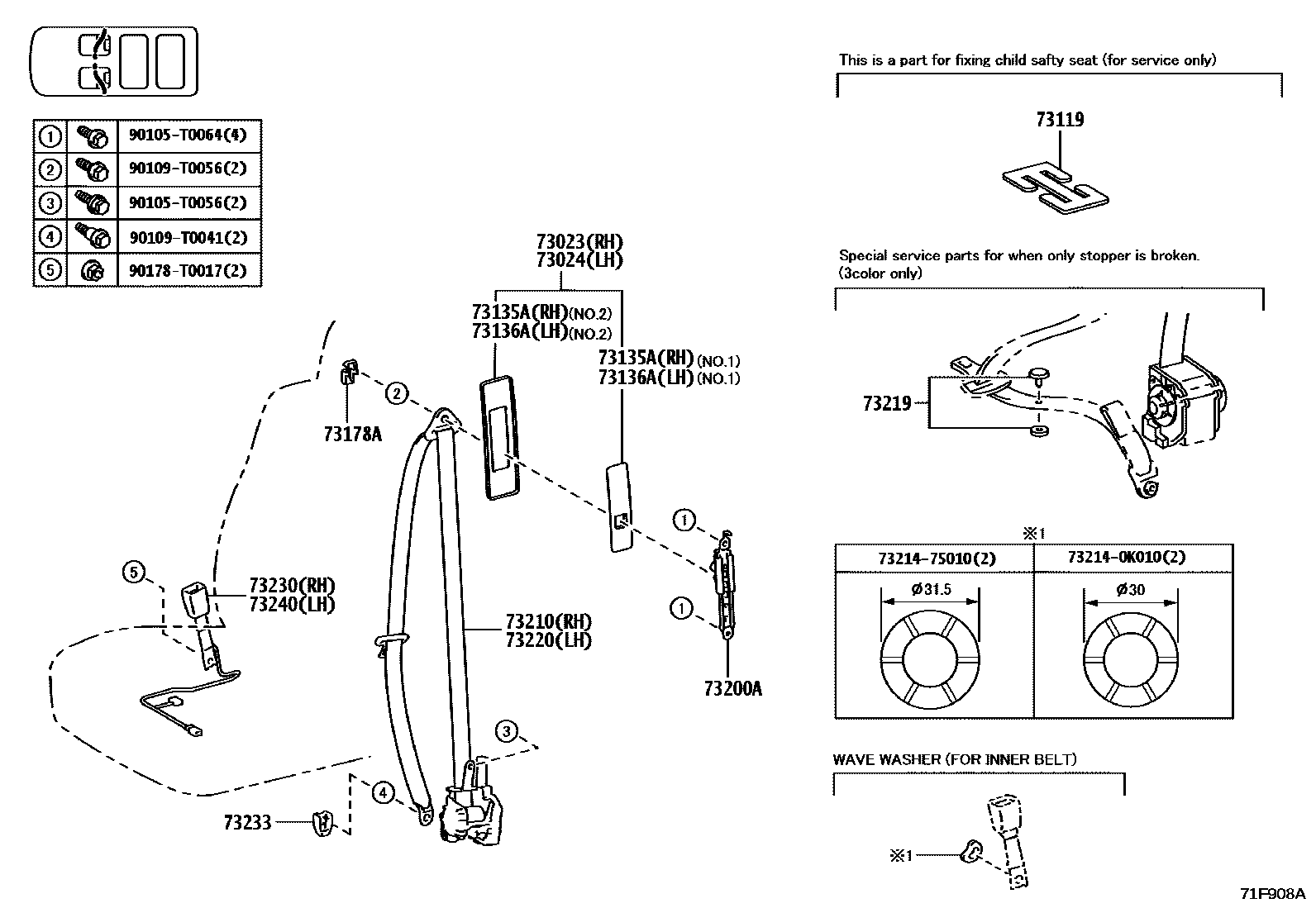

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-KK010-B0iGUN156..IDNP..(IDN,PH,VN)202308-202408

LT.GRAY,TRIM2#

main73023-KK010-C0iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM24

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73023-KK010-B0iGUN156..TH202308-202407

LT.GRAY,TRIM2#

main73023-KK010-C0iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM24

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGUN15#..KEN202308-202412

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-KK010-B0×2iGUN156..IDNP..(IDN,PH,VN)202309-202408

LT.GRAY,TRIM2#

main73023-KK010-C0×2iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM0#,3#

main73135-KK010-B0iGUN156..AGTP..H202308-202410

LT.GRAY,TRIM2#,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN156..LHD..(CAMP,IDNP)..GEN202308-202408

BLACK,TRIM0#,3#,NO.1:REFER ILLUST.

main73135-KK020-B0iGUN156..TH202308-202407

LT.GRAY,TRIM2#,4#,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM24,3#,NO.2:REFER ILLUST.

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73135-KK010-B0iGUN156..IDNP..(IDN,PH,VN)202308-202408

LT.GRAY,TRIM2#,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN156..TH202308-202407

BLACK,TRIM0#,24,3#,NO.1:REFER ILLUST.

main73135-KK020-B0iGUN156..IDNP..(IDN,PH,VN)202308-202408

LT.GRAY,TRIM2#,4#,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM24,3#,NO.2:REFER ILLUST.

73178ACAP, SEAT BELT ANCHOR COVER

main73178-KK010-B0×2iGUN156..AGTP..H202308-202410

LT.GRAY,TRIM2#

main73178-KK010-C0×2iGUN156..TH202308-202407

BLACK,TRIM0#,3#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0D051-B2×2iGUN156..TH202308-202407

LT.GRAY,TRIM2#

main73200-0D051-C0×2iGUN156..CAMP202308-202408

BLACK,TRIM0#,3#

main73200-0K030-B0×2iGUN156..IDNP..(IDN,PH,VN)202309-202408

LT.GRAY,TRIM2#

main73200-0K030-C0×2iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM0#,3#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0K840-C0iGUN156..TH202308-202407

BLACK/GRAY,TRIM22

main73210-0K840-C1iGUN156..MA202309-202408

BLACK/BLACK,TRIM3#

main73210-0K861-C0iGUN15#..KEN202402-202412

BLACK/GRAY,TRIM2#

main73210-0K861-C1iGUN156,166..RHD..SA202402-202410

BLACK/BLACK,TRIM3#

main73210-0K880-C0iGUN156..AGTP..H202311-202410

BLACK/GRAY,TRIM2#

main73210-0K880-C1iGUN156..H..LA202311-202410

BLACK/BLACK,TRIM0#,24

main73210-0K890-C0iGUN156..IDNP..(IDN,PH,VN)202309-202408

BLACK,TRIM2#,4#

main73210-0K890-C1iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM0#,3#

main73210-0KA01-C0iGUN156..6FC..DCRL..IND202310-202409

BLACK/LT.GRAY,TRIM22,4#

main73210-0KA01-C1iGUN156..6FC..DCRL..IND202310-202409

BLACK,TRIM24,3#

main73210-0KB40-C0iTGN156,166..PKN202412

BLACK,TRIM2#,4#

main73210-0KB40-C1iGUN156..PKN202412

BLACK,TRIM24,3#

73219STOPPER, TONGUE PLATE

main73219-33010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

BLACK

main73219-33020×2iGUN15#,TGN156..IDNP..SA202406-202408

GRAY

main73219-33030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0K550-C0iGUN156..TH202308-202407

BLACK/GRAY,TRIM22

main73220-0K550-C1iGUN156..THP..GEN;GUN155,16#..H..TH202308-202407

BLACK/BLACK,TRIM0#,24,3#

main73220-0K571-C0iGUN15#,16#,TGN156..SAP202402-202410

BLACK/GRAY,TRIM2#

main73220-0K571-C1iGUN156,166..RHD..SA202402-202410

BLACK/BLACK,TRIM3#

main73220-0K590-C0iGUN156..AGTP..H202311-202410

BLACK/GRAY,TRIM2#

main73220-0K590-C1iGUN156..H..LA202311-202410

BLACK/BLACK,TRIM0#,24

main73220-0K600-C0iGUN156..IDNP..(IDN,PH,VN)202309-202408

BLACK,TRIM2#,4#

main73220-0K600-C1iGUN156..IDNP..(IDN,VN)202309-202408

BLACK,TRIM0#,3#

main73220-0K611-C0iGUN156..MHV..IND202406-202409

BLACK/LT.GRAY,TRIM2#

main73220-0K611-C1iGUN156..6FC..DCRL..IND202310-202409

BLACK,TRIM24,3#

main73220-0K760-C0iTGN156,166..PKN202412

BLACK,TRIM2#,4#

main73220-0K760-C1iGUN156..PKN202412

BLACK,TRIM24,3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0K890-C0iTGN166..EPT202404

BLACK,TRIM2#

main73230-0KA60-C0supersedes 73230-0KF40-C0iGUN156,165,TGN156,166..AGTP..(L,S)202311-202410

BLACK,TRIM2#

main73230-0KC00-C0iGUN165..RHD..GEN202309-202408

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

main73230-0KC10-C0supersedes 73230-0KC20-C0iGUN156..THP..(L,S)202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

main73230-0KC20-C0iGUN156..S..ARL202308-202407

BLACK,TRIM2#,4#

main73230-0KC30-C0iGUN155..KEN202402-202412

BLACK,TRIM2#

main73230-0KC40-C0iGUN156..KEN202404-202412

BLACK,TRIM2#

main73230-0KC70-C0supersedes 73230-0KC00-C0iGUN15#,TGN156,166..RHD..GEN202309-202408

BLACK,TRIM2#,4#

main73230-0KD80-C0iTGN166..PKN202412

BLACK,TRIM2#,4#

main73230-0KD90-C0iTGN156..PKN202412

BLACK,TRIM2#,4#

main73230-0KE90-C0iTGN166..VNP202309-202409

BLACK,TRIM2#

main73230-0KF00-C0iGUN156..MHV..IND202406-202409

BLACK,TRIM2#

main73230-0KF20-C0iGGN155,GUN155,165,TGN156..LHD..THP..S202308-202407

BLACK,TRIM2#,4#

main73230-0KF30-C0iGUN165..THP..GEN202308-202407

BLACK,TRIM0#,2#,3#,4#

main73230-0KF40-C0iGUN156,165,TGN166..AGTP..6FC..L202311-202410

BLACK,TRIM2#

main73230-0KF50-C0iGUN165..LHD..IDNP..GEN202309-202408

BLACK,TRIM0#,2#,3#,4#

main73230-0KG50-C0supersedes 73230-0KA70-C0iGUN15#,TGN156..LHD..SAP202402-202410

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-KK010-C0×2iGUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC202308-202408

BLACK,TRIM0#,2#,3#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0KA00-C0supersedes 73230-0KA30-C0iGUN156,165,TGN156,166..AGTP..(L,S)202311-202410

BLACK,TRIM2#

main73230-0KA20-C0iGUN165..THP..GEN202308-202407

BLACK,TRIM0#,2#,3#,4#

main73230-0KA30-C0iGUN156,165,TGN166..AGTP..6FC..L202311-202410

BLACK,TRIM2#

main73230-0KA50-C0iGUN155..MA202309-202408

BLACK,TRIM2#

main73230-0KA70-C0iGUN15#,16#..RHD..SA202402-202410

BLACK,TRIM2#

main73230-0KE40-C0iTGN166..PKN202412

BLACK,TRIM2#,4#

main73230-0KE70-C0iTGN156..L..GEN;GGN155,GUN155,165,TGN156..LHD..IDNP..S..(GCC,GEN)202309-202408

BLACK,TRIM2#,4#

main73230-0KE80-C0iGUN165..LHD..IDNP..GEN202309-202408

BLACK,TRIM0#,2#,3#,4#

main73230-0KE90-C0iGUN165..RHD..GEN202309-202408

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

main73230-0KF60-C0iGUN15#,16#..H..TH202308-202407

BLACK,TRIM2#

main73230-0KF80-C0supersedes 73230-0KE90-C0iGUN15#,TGN156,166..RHD..GEN202309-202408

BLACK,TRIM2#,4#

main73230-0KG00-C0iGUN156,166..6FC..DCRL..IND202310-202409

BLACK,TRIM2#,4#

main73230-0KG10-C0iTGN156..PKN202412

BLACK,TRIM2#,4#

main73230-0KG20-C0supersedes 73230-0KG60-C0iGUN156..THP..(L,S)202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

main73230-0KG40-C0iGUN156..KEN202404-202412

BLACK,TRIM2#

main73230-0KJ10-C0iGGN155,GUN155,165,TGN156..LHD..THP..S202308-202407

BLACK,TRIM2#,4#

main73230-0KA40-C0supersedes 73230-0KA10-C0iGUN15#,TGN156..LHD..SAP202402-202410

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105T0056

main90105-T0056

90105T0064

main90105-T0064

90109T0041

main90109-T0041

90109T0056

main90109-T0056

90178T0017

main90178-T0017

20 parts on this diagram · 3 diagrams in section
