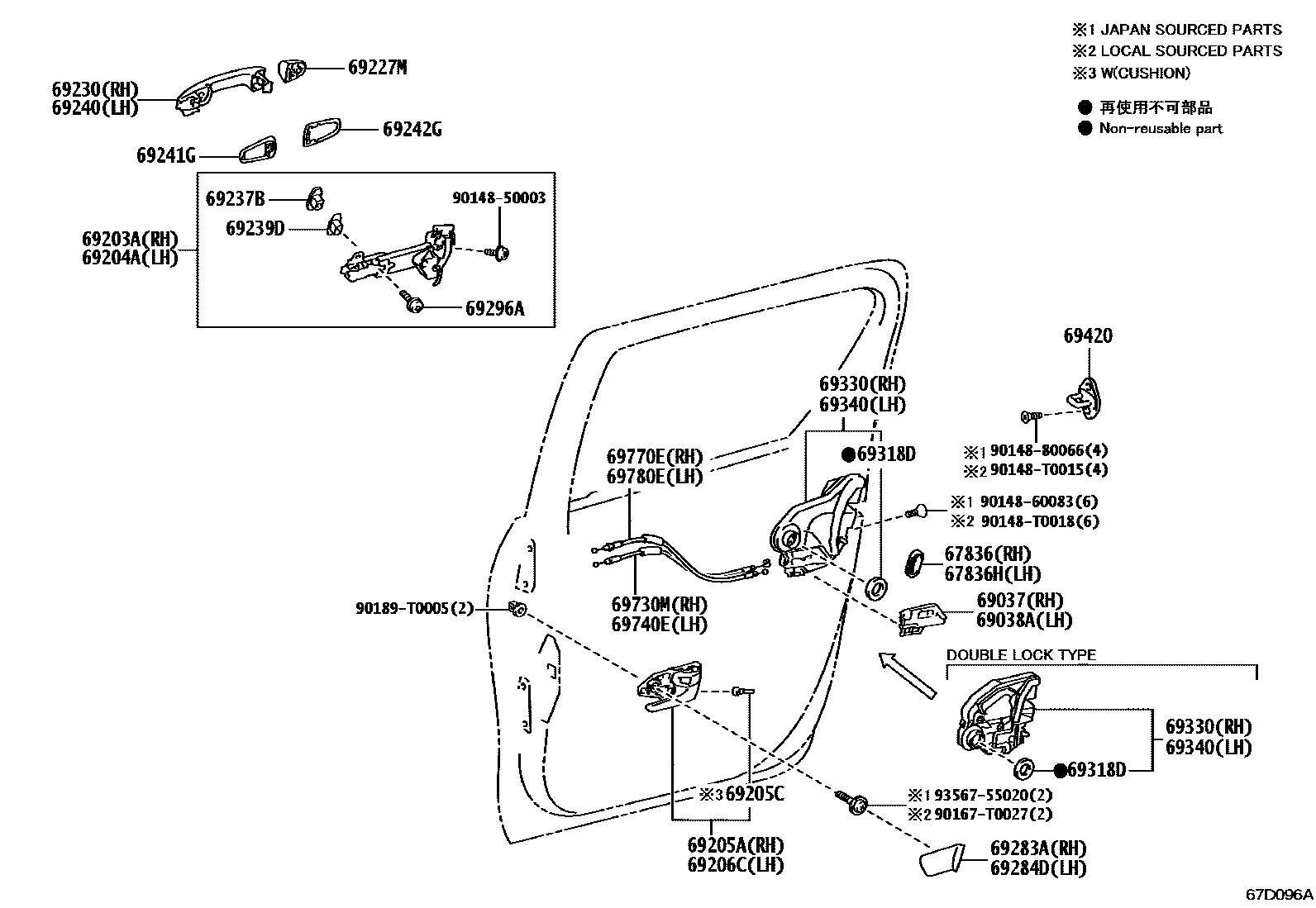

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-02030iGGN155,GUN155..THP..S..GCC; TGN156..THP..L;GGN155,GUN155,TGN166..THP..(L,S)..GCC; TGN156..THP..S;GUN156,16#..THP;GUN155..THP..(GEN,TH);GGN155,GUN155..THP..H..GCC202308-202407
(J); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),(J)
main67836-0K030iGUN15#,165..RHD..6FC..DCRL..SA; GUN155,16#..RHD..SA;GUN156..RHD..6FC..SA; GUN156..SAP..6F;GUN15#,TGN156..LHD..SAP..6FC202402-202410
(L); EXPORT FROM SA,(L)
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
main67836-02030iGGN155,GUN155..THP..S..GCC; TGN156..THP..L;GGN155,GUN155,TGN166..THP..(L,S)..GCC; TGN156..THP..S;GUN156,16#..THP;GUN155..THP..(GEN,TH);GGN155,GUN155..THP..H..GCC202308-202407
(J); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),(J)
main67836-0K030iGUN15#,165..RHD..6FC..DCRL..SA; GUN155,16#..RHD..SA;GUN156..RHD..6FC..SA; GUN156..SAP..6F;GUN15#,TGN156..LHD..SAP..6FC202402-202410
(L); EXPORT FROM SA,(L)
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#; BLACK,TRIM2#,3#
main69205-0K110-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
main69205-0K160-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-0K100-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
main69206-0K150-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
main69227-0K140×2iGUN155..L..GEN; GUN156..IDNP..(H,S);GUN165..LHD..IDNP..S;GGN155,GUN155,166,TGN156,166..IDNP..6FC; GUN165..IDNP..L..VN; GUN165..RHD..GEN202309-202408
*CR; *CR,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; *CR,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); *CR,WIRELESS DOOR LOCK-WITH(*SES)
*CR
*CR
PLATED
LESS COLOR; LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69227-0K908×2iGUN156..IDNP..(IDN,PH,VN); GUN165..RHD..IDNP;GUN15#,165,TGN156..IDNP..L..(ARL,GEN,PH,VN); TGN166..IDNP..VN202309-202408
LESS COLOR; LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69227-0K906×2iGUN15#,TGN156..LHD..SAP; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202402-202410
LESS COLOR; LESS COLOR,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
PLATED
PLATED
main69210-0K220supersedes 69210-0K902iGUN15#,16#..RHD..SA; GUN15#,TGN156..LHD..SAP; GUN15#,TGN156..LHD..SAP..6FC202402-202410
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K904iGUN156..IDNP..(IDN,PH,VN); GUN165..RHD..IDNP;GUN15#,165,TGN156..IDNP..L..(ARL,GEN,PH,VN); TGN166..IDNP..VN202309-202408
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K902iGUN15#,TGN156..LHD..SAP; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202402-202410
PAINT REQ.; PAINT REQ.,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69210-0K130iGUN155..L..GEN; GUN156..IDNP..(H,S);GUN165..LHD..IDNP..S;GGN155,GUN155,166,TGN156,166..IDNP..6FC; GUN165..IDNP..L..VN; GUN165..RHD..GEN202309-202408
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); PLATED,WIRELESS DOOR LOCK-WITH(*SES)
PLATED
PLATED
main69210-0K220supersedes 69210-0K902iGUN15#,16#..RHD..SA; GUN15#,TGN156..LHD..SAP; GUN15#,TGN156..LHD..SAP..6FC202402-202410
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K902iGUN15#,TGN156..LHD..SAP; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202402-202410
PAINT REQ.; PAINT REQ.,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-0K020-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main69283-0K050-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-0K010-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#
main69284-0K030-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM2#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
main69050-0K020iGGN155,GUN155..IDNP..S..GCC; GUN155..L..GEN; GUN156,16#..IDNP;GUN155..IDNP..SA;GGN155,GUN155..IDNP..H;TGN156,166..IDNP..(H,S)202309-202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES)
main69050-0K090iGUN156..L..BZAGT;GGN155,GUN156,165,TGN166..AGTP..H; GUN165,TGN166..L..LA202311-202410
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
69340LOCK ASSY, REAR DOOR, LH
main69060-0K070iGGN155,GUN155..IDNP..S..GCC; GUN155..L..GEN; GUN156,16#..IDNP;GUN155..IDNP..SA;GGN155,GUN155..IDNP..H;TGN156,166..IDNP..(H,S)202309-202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES)
main69060-0K090iGGN155,GUN155..THP..S..GCC; TGN156..THP..S;GUN156,16#..THP;GUN155..THP..(GEN,TH);GGN155,GUN155..THP..H..GCC202308-202407
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main69060-0K100iGUN156..L..BZAGT;GGN155,GUN156,165,TGN166..AGTP..H; GUN165,TGN166..L..LA202311-202410
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9356755020
main93567-55020
35 parts on this diagram · 1 diagram in section
