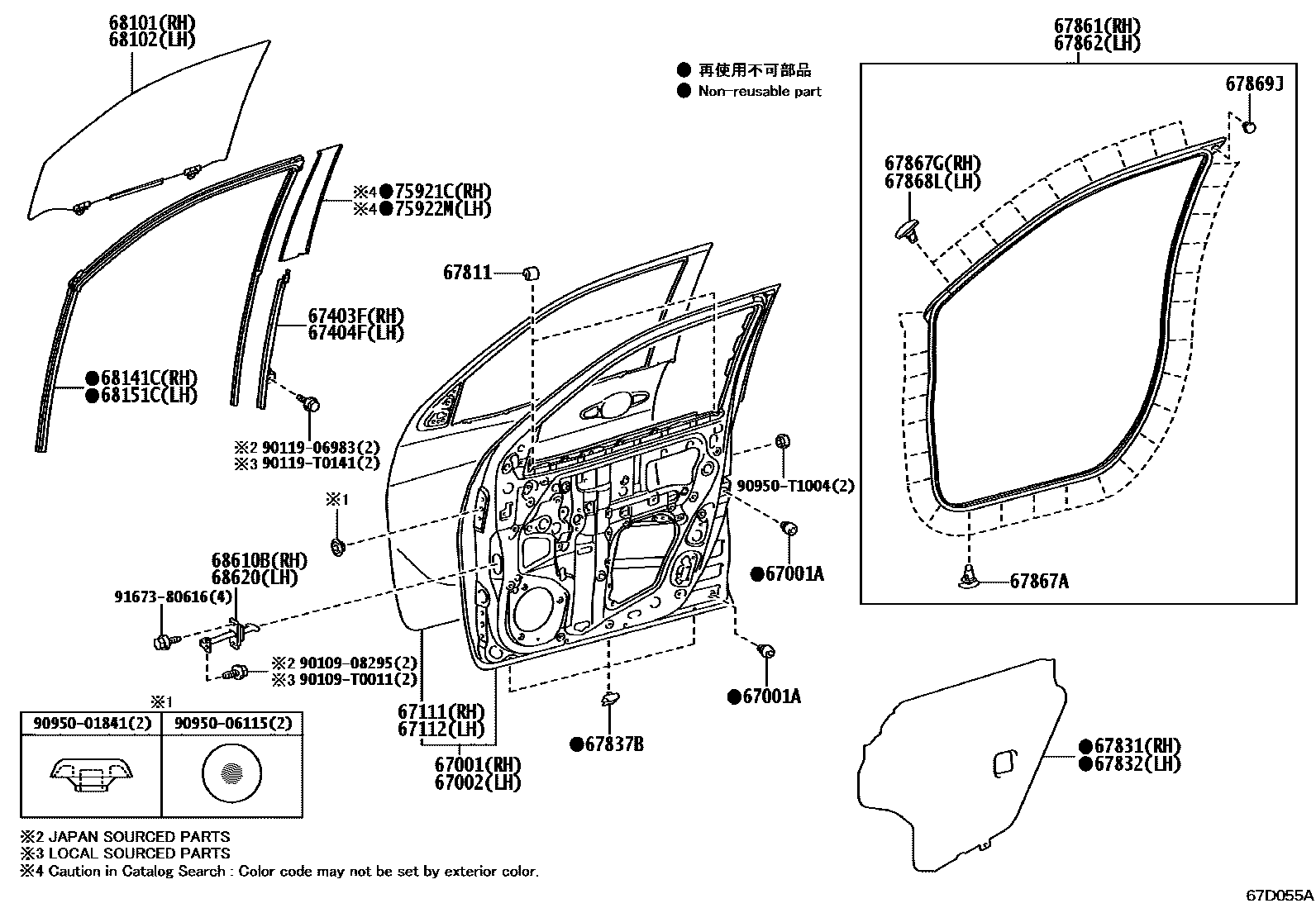

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK010iGUN156,16#,TGN166..INDP,VNP202308-202412

67001ACUSHION, FRONT DOOR PANEL

main90541-09131iGUN156,16#,TGN166..INDP,VNP202308-202412

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK010iGUN15#..KEN202308-202412

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK010iGUN15#..KEN202308-202412

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK010iGUN156,16#,TGN166..INDP,VNP202308-202412

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGGN155,GUN156,TGN156,166..EPT,PKN202308-202408

main67403-0K080iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main67403-0K090iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

main67403-0K100iGUN15#,16#,TGN156..KENP,SAP202310-202410

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGGN155,GUN156,TGN156,166..EPT,PKN202308-202408

main67404-0K080iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main67404-0K090iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

main67404-0K100iGUN15#,16#,TGN156..KENP,SAP202310-202410

67811PAD, FRONT DOOR SILENCER

main69759-0K030iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202410

main69759-0K060iGUN15#..KEN202402-202412

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K120iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

main67831-0K140iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main67831-0K150iGUN156,166,TGN166..IND202310-202409

main67831-0K160iGUN156,TGN156,166..PKN202412

main67831-0K200iGUN156,165,TGN166..VNP202401-202409

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K120iGUN15#..KEN202308-202412

main67832-0K140iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main67832-0K150iGUN156,166,TGN166..IND202310-202409

main67832-0K160iGUN156,TGN156,166..PKN202412

main67832-0K200iGUN156,165,TGN166..VNP202401-202409

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K093iGUN156..CAMP202308-202410

PLANT TMT

main67837-0K093iGUN156,166,TGN166..IND202310-202409

main67837-0K103iGUN15#,16#,TGN156..SAP202402-202412

main67837-0K113iGUN156,165,TGN166..VNP202309-202409

main67837-0K121iGGN155,GUN156,TGN156,166..EPT,PKN202308-202410

EXCEPT PLANT TMT

main67837-0K211iGUN15#,TGN156..MA202309-202408

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K121iGGN155,GUN156,TGN156,166..EPT,PKN202308-202408

main67861-0K151iGUN15#,16#,TGN156..SAP202402-202412

main67861-0K162iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main67861-0K191iGUN156,165,TGN166..VNP202401-202409

main67861-0K201iGUN156,166,TGN166..IND202310-202409

main67861-0K241iGUN15#,TGN156..MA202309-202408

main67861-0K320iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K121iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main67862-0K151iGUN15#..KEN202402-202412

main67862-0K162iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main67862-0K191iGUN156,165,TGN166..VNP202401-202409

main67862-0K201iGUN156,166,TGN166..IND202310-202409

main67862-0K241iGUN15#,TGN156..MA202309-202408

main67862-0K320iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202412

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202412

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0K010iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main9004A-46317iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main90467-06084iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202309-202412

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K180iGGN155,TGN156..IDNP..S..GCC202309-202408

BACK GLASS-FIX TYPE(GREEN,*HSEA)

main68101-0K250iGUN16#,TGN156,166..IDNP;GGN155,GUN155..IDNP..(L,S)..GCC;GGN155,GUN15#..IDNP..(ARL,GEN,IDN,PH,SA,VN)202309-202409

main68101-0K272iGUN16#,TGN156,166..THP;GUN155..THP..H..(GEN,TH);GGN155,GUN155..THP..(L,S);GUN156..THP..(ARL,GEN,TH)202308-202408

main68101-0K280iGUN15#,16#,TGN156..(KENP,SAP)..(DCRL,HTWC)202402-202410

main68101-0K290iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68101-0K330iGUN15#,TGN156..MA202309-202408

main68101-0K380iGGN155,GUN15#..THP..H..GCC202308-202407

main68101-0K400iGUN156,166,TGN166..IND202310-202409

main68101-0K460iGUN156,166..MHV..SA202402-202410

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K160iGGN155,TGN156..IDNP..S..GCC202309-202408

BACK GLASS-FIX TYPE(GREEN,*HSEA)

main68102-0K250iGUN16#,TGN156,166..IDNP;GGN155,GUN155..IDNP..(L,S)..GCC;GGN155,GUN15#..IDNP..(ARL,GEN,IDN,PH,SA,VN)202309-202409

main68102-0K272iGUN16#,TGN156,166..THP;GUN155..THP..H..(GEN,TH);GGN155,GUN155..THP..(L,S);GUN156..THP..(ARL,GEN,TH)202308-202408

main68102-0K280iGUN15#,16#,TGN156..(KENP,SAP)..(DCRL,HTWC)202402-202410

main68102-0K290iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68102-0K330iGUN15#,TGN156..MA202309-202408

main68102-0K370iGGN155,GUN15#..THP..H..GCC202308-202407

main68102-0K390iGUN156,166,TGN166..IND202310-202409

main68102-0K460iGUN156,166..MHV..SA202402-202410

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K070iGGN155,GUN156,TGN156,166..EPT,PKN202308-202408

main68141-0K090iGUN15#,16#,TGN156..KENP,SAP202402-202410

main68141-0K100iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68141-0K130iGUN156,165,TGN166..VNP202309-202409

main68141-0K140iGUN156,166,TGN166..IND202310-202409

main68141-0K150iGUN15#,TGN156..MA202309-202408

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K070iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main68151-0K090iGUN15#,16#,TGN156..KENP,SAP202402-202410

main68151-0K100iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68151-0K130iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

main68151-0K140iGUN156,166,TGN166..IND202310-202409

main68151-0K150iGUN15#,TGN156..MA202309-202408

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN15#,TGN156..CAMP,MAP202308-202408

main68610-0K100iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68610-0K110iGUN15#..KEN202310-202412

main68610-0K120iGUN156,165,TGN166..VNP202309-202409

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main68610-0K100iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68610-0K110iGUN15#,16#,TGN156..SAP202310-202412

main68610-0K120iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K030iGUN15#,TGN156..CAMP,MAP202308-202408

main75921-0K040iGGN155,GUN156,165,TGN156,166..LA202311-202410

main75921-0K090iGUN15#,16#,TGN156..KENP,SAP202402-202410

main75921-0K130iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main75921-0K140iGUN156,166,TGN166..IND202310-202409

main75921-0K150iGUN156,165,TGN166..VNP202401-202409

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K030iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main75922-0K040iGUN156..BZAGT202311-202410

main75922-0K090iGUN15#,16#,TGN156..KENP,SAP202402-202410

main75922-0K130iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main75922-0K140iGUN156,166,TGN166..IND202310-202409

main75922-0K150iGUN156,165,TGN166..VNP202401-202409

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

33 parts on this diagram · 2 diagrams in section
