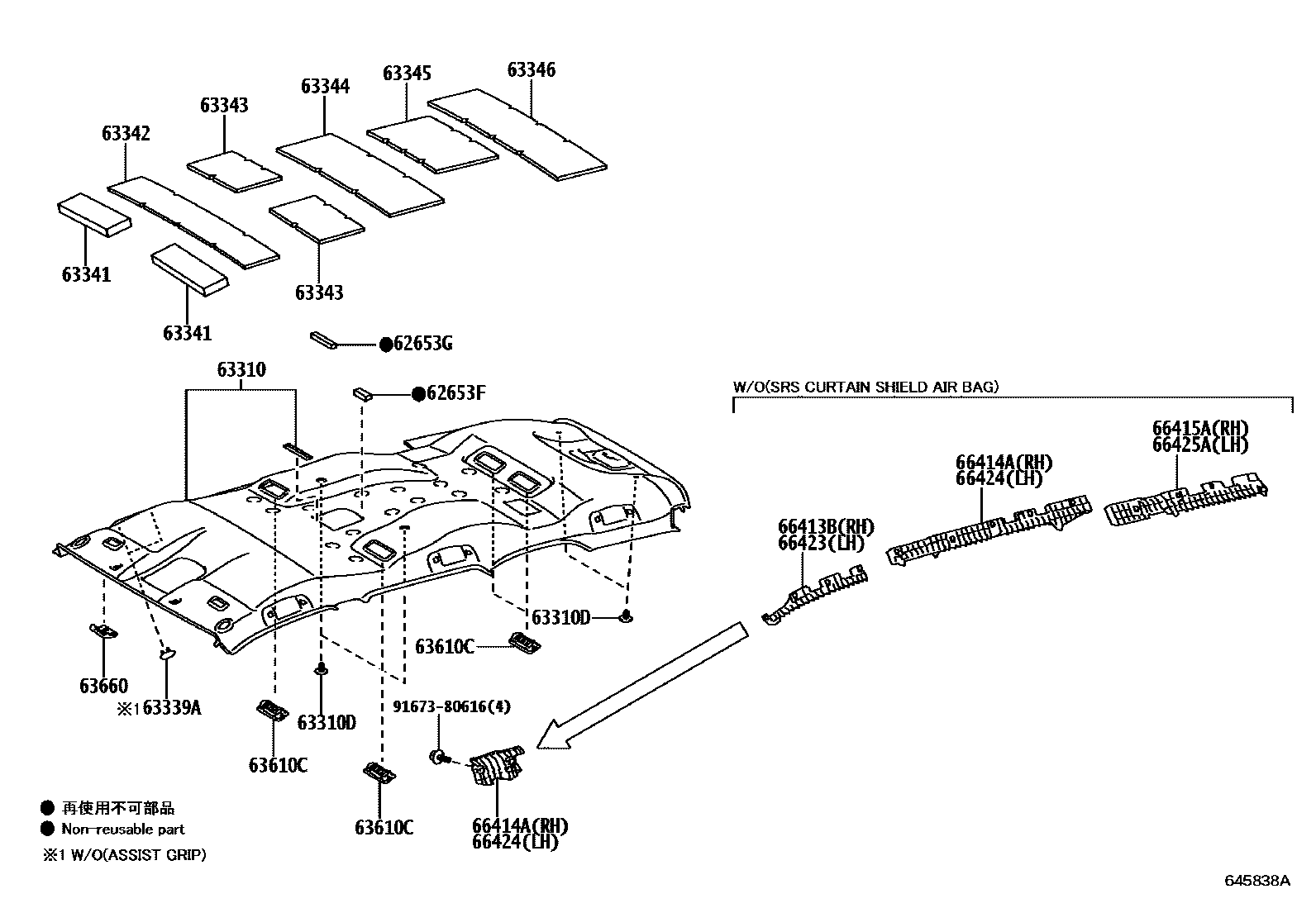

ROOF HEADLINING & SILENCER PAD
62653FPACKING (FOR ROOF HEADLINING)
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&DATA COMMUNICATION MODULE-WITH(AU-DCM),MADE IN INDONESIA; MADE IN INDONESIA
62653GPACKING,(FOR ROOF HEADLINING)
SRS AIR BAG-WITH(*DRP)
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22,4#
BLACK,TRIM24,3#
LT. GRAY,TRIM2#,4#
main63310-0KC71-B0iGUN15#..IDNP..H..GEN;GGN155,TGN156,166..IDNP..H..(GCC,GEN); GUN155..IDNP..H..GCC; GUN156..IDNP..(IDN,PH,VN); GUN156..IDNP..GCC; GUN166,TGN156,166..H..(IDN,PH,VN)202309-202408
GCC SPEC EURO4 2018MY,LT. GRAY,TRIM4#; GCC SPEC EURO4 2022MY,LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22; LT. GRAY,TRIM4#
main63310-0KC71-C0iGUN156..IDNP..(IDN,VN); GUN156..LHD..IDNP..GEN; GUN156..PH; GUN166..PH202309-202408
BLACK,TRIM0#,3#; BLACK,TRIM24; BLACK,TRIM24,3#; BLACK,TRIM3#
LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22,4#
BLACK,TRIM24,3#; BLACK,TRIM3#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM22; LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
main63310-0KL10-B0supersedes 63310-0KV30-B0iGUN15#,165,TGN156,166..IDNP..(L,S)..(IDN,PH,SA,VN); GUN155..IDNP..L..GCC; GUN155..L..GEN;TGN156,166..IDNP..L..GCC; TGN156..L..GEN;GUN165..RHD..GEN;GGN155,GUN155,TGN156..IDNP..S..GCC202309-202408
AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM4#; AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM4#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; LT. GRAY,TRIM22
BLACK,TRIM0#,24; BLACK,TRIM24
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
BLACK,TRIM3#
main63310-0KY40-B0supersedes 63310-0KY30-B0iGGN155..THP..H;GUN15#..THP..GEN; GUN155,16#..H..TH; GUN155..THP..H..GCC; GUN156..TH; GUN156..THP..GCC202308-202407
GCC SPEC EURO4 2018MY,LT. GRAY,TRIM4#; GCC SPEC EURO4 2022MY,LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM22; LT. GRAY,TRIM4#
BLACK,TRIM0#,24,3#; BLACK,TRIM0#,3#
main63310-0KY50-B0supersedes 63310-0KZ00-B0iGGN155,GUN155,TGN156..THP..S..GCC; GUN155,165..S..TH; GUN155..THP..L; TGN156,166..THP..L202308-202407
AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM4#; AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM4#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM4#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
main63310-0KY80-B0supersedes 63310-0KY90-B0iGUN156..H..ARL; GUN156..S..ARL; GUN156..THP..L202308-202407
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#,4#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&DATA COMMUNICATION MODULE-WITH(AU-DCM),LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM2#,4#
LT. GRAY,TRIM2#,4#
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM3#; AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM3#; BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM24
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLEBOX),BLACK,TRIM3#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGINGMARKET),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(8INCH) & *BT,BLACK,TRIM3#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGINGMARKET),BLACK,TRIM3#; FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),BLACK,TRIM3#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM3#
main63310-0KV30-B0iGGN155,GUN155..IDNP..S..GCC; GGN155..IDNP..S; GUN155..IDNP..L..GCC; TGN156,166..IDNP..L..GCC202309-202408
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM4#; LT. GRAY,TRIM4#
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
main63310-0KV60-B0supersedes 63310-0KV40-B0iGUN156..IDNP..(PH,VN); GUN156..IDNP..GCC; GUN166..PH202309-202408
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM22; GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM4#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24,3#; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM3#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#,4#; ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM22
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM24
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM4#
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; LT. GRAY,TRIM4#
main63310-0KZ00-B0supersedes 63310-0KY50-B0iGGN155..THP..S; GUN155..THP..L; GUN155..THP..S..GCC; TGN156,166..THP..L202308-202407
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM4#; LT. GRAY,TRIM4#; UAE SPEC,LT. GRAY,TRIM2#,4#
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0×4iGUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,16#..TH; GUN155..THP..S..GCC;GUN15#..THP..(ARL,GEN);GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..TH202308-202407
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
BLACK,TRIM0#,24,3#; BLACK,TRIM0#,3#
63339ACOVER, ROOF HEADLINING SERVICE HOLE
main63339-0D070-B1×2iGGN155,GUN155,TGN156..IDNP..S..GCC; GGN155..IDNP..H..GCC; GUN15#..IDNP..H..GCC; GUN155,TGN156,166..IDNP..L..GCC202308-202408
LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM4#; SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#; SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM4#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63344PAD, ROOF SILENCER, NO.4
63345PAD, ROOF SILENCER, NO.5
63346PAD, ROOF SILENCER, NO.6
63610CREGISTER ASSY, AIR OUTLET, NO.1
main63610-0K040-B0×4iGUN155,TGN156..IDNP..S..GCC;GUN15#,TGN156..IDNP..(5F,6FC)..(ARL,GEN);GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156..IDNP..(IDN,PH,VN); GUN156..IDNP..SA;GUN155,16#,TGN156,166..IDNP..(IDN,PH,SA,VN)202309-202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM22; LT.GRAY,TRIM4#
main63610-0K040-C0×4iGUN156..IDNP..(IDN,VN); GUN156..LHD..IDNP..GEN; GUN156..PH; GUN166..PH202309-202408
BLACK,TRIM0#,3#; BLACK,TRIM24; BLACK,TRIM24,3#; BLACK,TRIM3#
LT.GRAY,TRIM2#,4#
BLACK,TRIM3#
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
BLACK,TRIM3#
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
main63359-0K040-B0iGGN155..IDNP..GCC;GUN155..IDNP..S..GCC; GGN155..IDNP..H..GCC; GGN155..IDNP..S; GUN156..IDNP..ARL; GUN156..IDNP..GCC;GUN155..IDNP..L..GCC; TGN156,166..IDNP..L..GCC202308-202408
AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,4#; AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#,4#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM4#; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT.GRAY,TRIM2#,4#; AUDIO-AVN(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM4#
LT.GRAY,TRIM2#
BLACK,TRIM3#
66413BSPACER, SIDE RAIL, FRONT RH
SRS AIR BAG-WITH(*DRP)
main66413-KK020iGGN155,GUN15#,TGN156,166..IDNP..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202309-202408
SRS AIR BAG-WITH(*DRP)
66414ASPACER, SIDE RAIL, REAR RH
main66414-KK050iGGN155,GUN15#,TGN156,166..IDNP..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202309-202408
SRS AIR BAG-WITH(*DRP)
66415ASPACER, SIDE RAIL, REAR NO.2 RH
SRS AIR BAG-WITH(*DRP)
main66415-KK040iGGN155,GUN15#,TGN156,166..IDNP..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202309-202408
SRS AIR BAG-WITH(*DRP)
66423SPACER, SIDE RAIL, FRONT LH
main66423-KK020iGGN155,GUN15#,TGN156,166..IDNP..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202309-202408
SRS AIR BAG-WITH(*DRP)
66424SPACER, SIDE RAIL, REAR LH
main66424-KK050iGGN155,GUN15#,TGN156,166..IDNP..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202309-202408
SRS AIR BAG-WITH(*DRP)
66425ASPACER, SIDE RAIL, REAR NO.2 LH
main66425-KK040iGGN155,GUN15#,TGN156,166..IDNP..(L,S)..(GCC,SA); GUN16#,TGN166..IDN,PH;GGN155,GUN15#..IDNP..H..GCC202309-202408
SRS AIR BAG-WITH(*DRP)
9167380616
main91673-80616
20 parts on this diagram · 1 diagram in section
