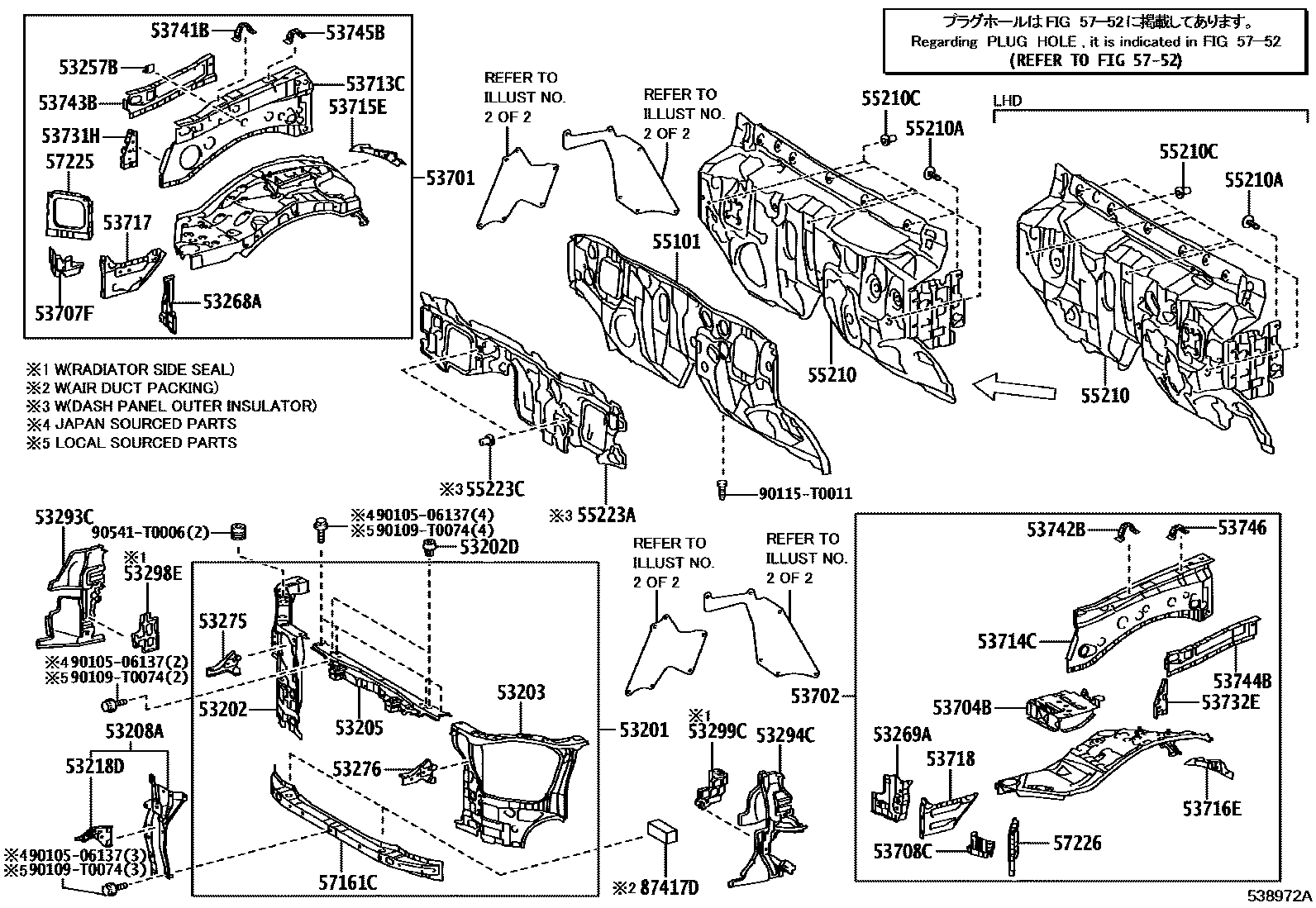

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK040iGUN156,165,TGN166..VNP202309-202409

main53201-KK050iGGN155,GUN15#,16#,TGN156,166..AGTP,KENP,SAP202311-202410

main53201-KK060iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main53201-KK070iGUN156,166,TGN166..IND202310-202409

main53201-KK210iGGN155,TGN166..EPT202412

main53201-KK220iGUN156,TGN156,166..PKN202412

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040×2iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main53203-KK060iGGN155,GUN156,TGN156,166..EPT,PKN202412

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK020iGUN156,165,TGN166..VNP202309-202409

main53205-KK040iGUN156..CAMP202308-202408

main53205-KK050iGUN156,TGN156,166..PKN202311

main53205-KK080iGUN156,166,TGN166..IND202310-202409

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iGGN155,GUN15#,16#,TGN156,166..AGTP,KENP,SAP202308-202410

main53208-KK080iGUN156,166,TGN166..IND202310-202409

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010×2iGUN156..CAMP202308-202408

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGUN15#..KEN202308-202412

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iGUN15#..KEN202308-202412

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGUN15#..KEN202308-202412

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,KENP,SAP202308-202410

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK280iGUN156..TH202308-202407

MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM

main53293-KK300iGGN155,GUN15#..IDNP..GCC202308-202408

main53293-YP170iGUN156..H..BZAGT202311-202410

GR SPORT,EXCEPT PLANT TASA

main53293-YP240iGUN156..H..BZAGT202311-202410

MLM BASIC PACKAGE,PLANT TASA

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK280iGUN156..TH202308-202407

MLM PACKAGE & ACCESSORY&TIRE & DISC WHEEL-265/60R18 ALUMINUM

main53294-KK300iGGN155,GUN15#..THP..GCC202308-202407

main53294-YP170iGUN15#,16#..H..TH202308-202407

GR SPORT & ACCESSORY

main53294-YP240iGUN156..H..BZAGT202311-202410

MLM BASIC PACKAGE,PLANT TASA

53298ESEAL, RADIATOR SIDE, RH

main53298-KK010iGGN155,TGN156,166..IDNP,MAP202308-202408

53299CSEAL, RADIATOR SIDE, LH

main53299-KK010iTGN166..INDP,VNP202308-202409

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK100iGUN15#..LHD..SAP202402-202410

main53701-KK170iTGN156..SAP202402-202410

main53701-KK300iGUN15#..KEN202402-202412

main53701-KK330iGUN156,165..VNP202309-202409

main53701-KK340iGUN15#,16#..RHD..IDNP202309-202408

main53701-KK390iGUN156..CAMP202308-202408

main53701-KK410iTGN156,166..LHD..IDNP202309-202408

sub53701-KK740

main53701-KK420iTGN156,166..RHD..IDNP202309-202408

main53701-KK490iGUN156,166..IND202308-202409

main53701-KK610iTGN166..EPT202308

main53701-KK620iTGN156..MA202309-202408

main53701-KK800iGGN155,GUN156,165..AGTP202311-202410

main53701-KK810iTGN156,166..LA202311-202410

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK070iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202309-202408

sub53702-KK320

main53702-KK080iGUN15#,TGN156..MA202309-202408

sub53702-KK300

main53702-KK120iGUN156..CAMP202308-202408

main53702-KK200iGUN15#,16#,TGN156,166..RHD..IDNP202309-202408

main53702-KK240iGUN15#..KEN202308-202412

main53702-KK340iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK010iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202309-202408

main53704-KK020iGGN155,GUN156,TGN156,166..EPT,PKN202308

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK020iGGN155,GUN156,TGN156,166..EPT,PKN202308

main53713-KK040iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK020iGGN155,TGN166..EPT202308

EXC PLANT TMMIN,TSAM

main53714-KK030iGUN15#..KEN202308-202412

PLANT TMMIN,TSAM

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53717PLATE, FENDER APRON, RH

main53717-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

53718PLATE, FENDER APRON, LH

main53718-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iGUN15#..KEN202308-202412

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

55101PANEL SUB-ASSY, DASH

main55101-KK050iGUN156,TGN166..LHD..(AGTP,SAP)..MTM202311-202410

main55101-KK080iGGN155,GUN15#,165,TGN156,166..LHD..(AGTP,SAP)..6FC202308-202410

main55101-KK091iGUN156,165..RHD..6F..(KEN,SA)202402-202410

main55101-KK121iGUN15#,16#..RHD..6FC..DCRL..(KEN,SA)202402-202410

main55101-KK141iGUN156,166..MHV..SA202402-202410

main55101-KK220iGUN165..VNP..L202309-202409

main55101-KK230iGUN165..6F..PH202309-202408

main55101-KK240iGUN156,165,TGN166..VNP..6FC202309-202409

main55101-KK250iGUN165..6FC..L..PH202309-202408

main55101-KK261iGUN156,166,TGN166..MTM..IND202309-202409

main55101-KK280iGUN15#,16#..RHD202308-202309

main55101-KK281iGUN156,TGN156,166..PKN202309

main55101-KK311iGUN156..MHV..IND202406-202409

55210INSULATOR ASSY, DASH PANEL

main55210-0K360iGGN155,GUN15#,165,TGN156,166..LHD..THP202308-202407

main55210-KK151iGUN15#,16#..RHD..THP202308-202407

main55210-KK161iGUN156,166,TGN166..IND202310-202409

main55210-KK170iGUN156,165,TGN166..VNP202309-202409

main55210-KK180iGUN156,TGN156,166..PKN202309

main55210-KK191iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main55210-KK212iGUN15#,TGN156..LHD..SAP202402-202410

main55210-KK221iGUN15#..KEN202402-202412

55210ACLIP

main90467-T0004-A0×2iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

IVORY

55210CCLIP

main90467-06197×6iGUN156,166,TGN166..IND202310-202409

(J)

main90467-T0032×7iGUN15#,16#..RHD..SA202308-202410

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K030iGUN15#,16#,TGN156,166..RHD..IDNP202309-202408

main55223-0K040iGGN155,GUN15#,16#..LHD..IDNP;TGN156,166..LHD..IDNP..(H,S)202309-202408

main55223-0K050iGUN156,165,TGN166..VNP202401-202409

main55223-KK030iGGN155,GUN15#,165,TGN156,166..LHD..(AGTP,SAP)202311-202410

main55223-KK040iGUN15#..KEN202402-202412

main55223-KK051iGGN155,TGN166..EPT202308

main55223-KK061iGUN15#,16#..RHD..THP202308-202407

main55223-KK070iGUN156,166,TGN166..IND202310-202409

55223CCLIP

main90467-T0032×2iGUN15#..KEN202308-202412

57161CMEMBER, FRONT CROSS

main57161-KK010iGUN156,TGN156,166..PKN202308

main57161-KK020iGUN15#,16#,TGN156..KENP,SAP202402-202410

PLANT TSAM

main57161-KK040iGGN155,TGN166..EPT202412

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202410

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202410

5752

87417DPACKING, AIR DUCT

main87417-0K020×2iTGN156,166..LA202308-202410

main87417-0K040×2iTGN156,166..IDNP;GGN155..IDNP..GCC202309-202408

main87417-0K090×2iTGN156..MA202309-202408

9010506137

main90105-06137

90109T0074

main90109-T0074

90115T0011

main90115-T0011

90541T0006

main90541-T0006

50 parts on this diagram · 2 diagrams in section
