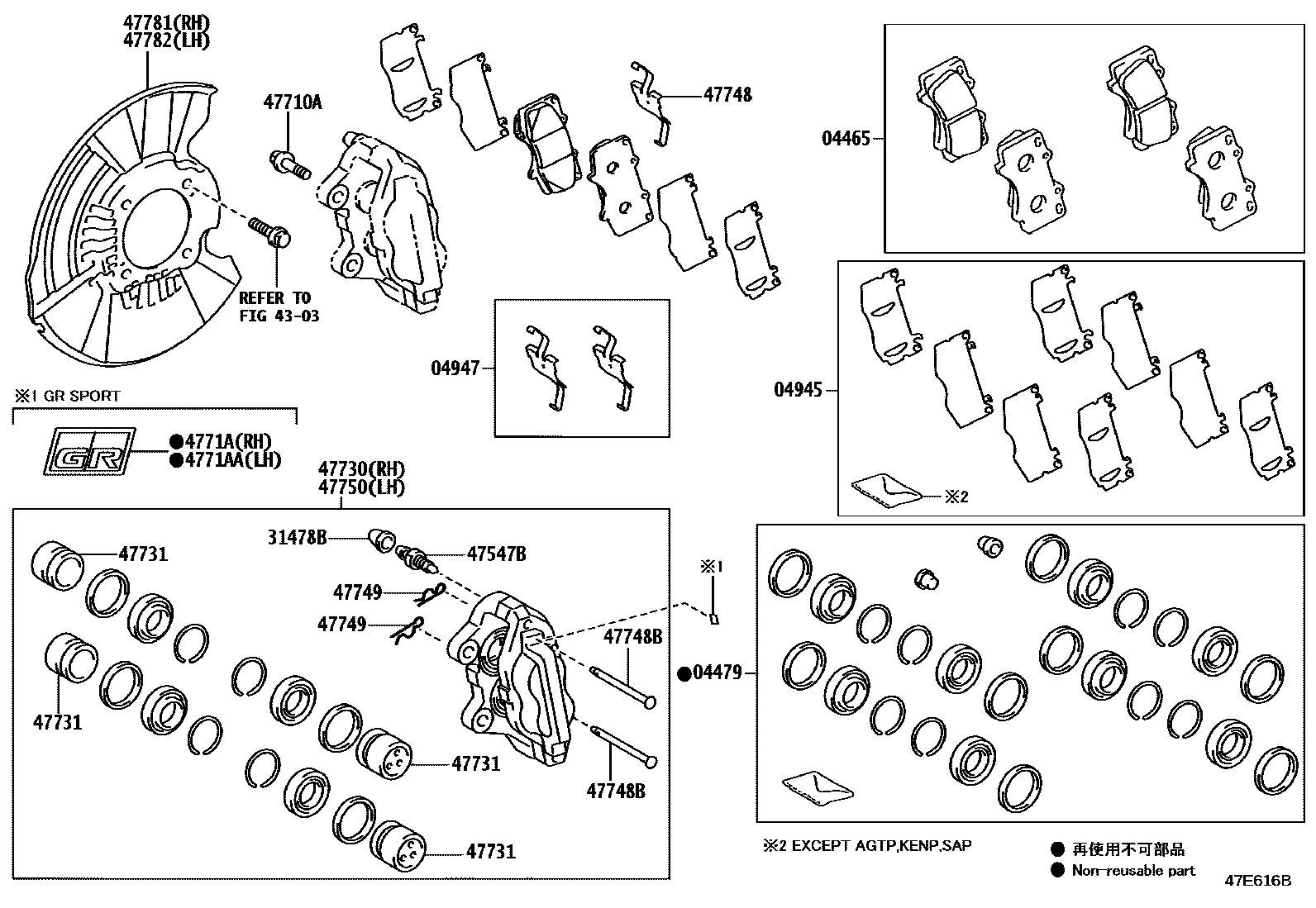

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K590iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

MARK ADVICS VC084H

main04465-0K600iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K221iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main04478-0K250iGUN15#..KEN202308-202412

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K351iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main04945-0K380iGUN15#..KEN202311-202412

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K110iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main04947-71010iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040×2iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

main90016-AJ102×2iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212×4iGGN155,GUN156,TGN156,166..EPT,PKN202412

*14-1.5PX35.5-31

main90105-T0322×4iGUN156,16#,TGN166..INDP,VNP202308-202409

*14-1.5PX35-30.5

4771AORNAMENT, BRAKE CALIPER MARK, RH

main4771A-0K030iGUN156..TH202308-202407

GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)

4771AAORNAMENT, BRAKE CALIPER MARK, LH

main4771A-0K040iGUN156..6FC..DCRL..IND202310-202409

GR SPORT & ACCESSORY&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K330iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main47730-0K340iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main47730-0K370iGUN15#..KEN202402-202412

main47730-0K450iGUN156..IDNP..(IDN,PH,VN)202309-202408

GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)

47731PISTON, FRONT DISC BRAKE

main47731-0K130×8iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main47731-0K300×8iGGN155,GUN156,TGN156,166..EPT,PKN202308

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0K330×2iGUN15#,16#,TGN156..KENP,SAP202402

main47748-71040×2iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90016-AE602×4iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main90069-35001×4iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

47749CLIP, PIN HOLD

main47743-0K300×4iGGN155,GUN15#,16#,TGN156,166..CAMP,EPTP,IDNP,INDP,KENP,MAP,PKNP,SAP,THP,VNP202308

main90069-49007×4iGGN155,GUN156,165,TGN156,166..AGTP202311

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K330iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main47750-0K340iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main47750-0K370iGUN15#,16#,TGN156..SAP202402-202410

main47750-0K450iGUN156..IDNP..(IDN,PH,VN)202309-202408

GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0K183iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main47781-0K193iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main47781-0K201iGUN15#,16#,TGN156..KENP,SAP202402

main47781-0K241iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main47781-0K251iGUN156,166,TGN166..IND202310-202409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0K183iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main47782-0K193iGGN155,TGN166..EPT202408

main47782-0K201iGUN15#,16#,TGN156..KENP,SAP202402

main47782-0K241iGUN156,165,TGN166..VNP202309-202409

main47782-0K251iGUN156,166,TGN166..IND202310-202409

18 parts on this diagram · 1 diagram in section
