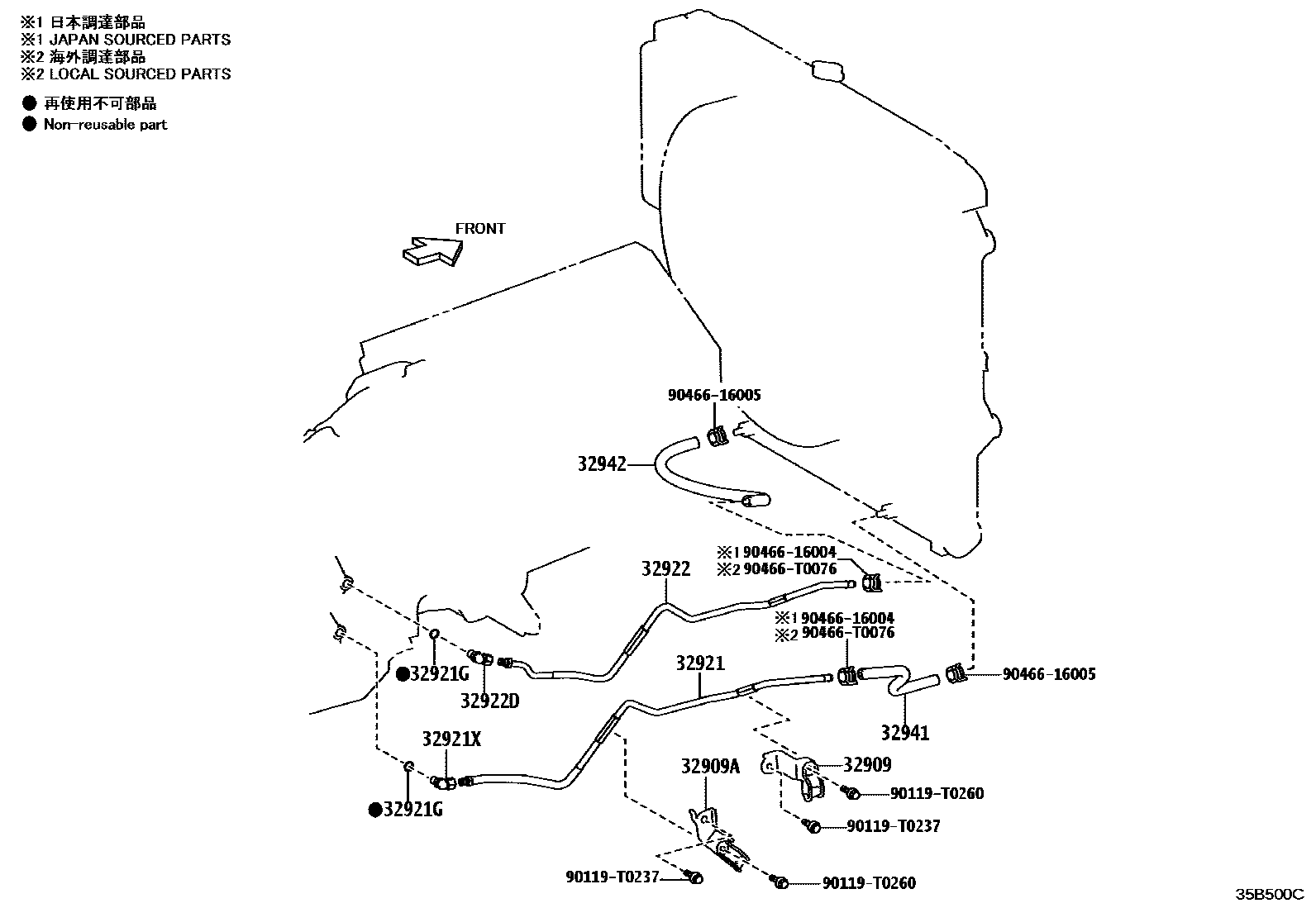

OIL COOLER & TUBE (ATM)

0001 1AC60F 0002 1AC60E,AC60F 0003 1AC60E,AC60F

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-KK030iGUN156,16#..(INDP,VNP)..6FC202308-202412

main32909-KK090iTGN166..(INDP,VNP)..6FC202308-202410

main32909-KK110iGGN155..IDNP202308-202410

32909ACLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2

main32909-KK020iGUN15#,16#..(CAMP,IDNP,MAP)..6FC202308-202412

main32909-KK080iTGN156,166..THP202308-202410

main32909-KK100iGGN155..IDNP202308-202410

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K090iGUN15#..6FC..KEN202308-202412

main32921-0K110iTGN156,166..(AGTP,SAP)..6FC202308-202410

main32921-0K120iGGN155..EPT202308-202410

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030iGUN156,165..THP..(ARL,GCC,GEN)202308-202412

TYPE A:REFER 35-01

main90301-11030iGUN156,165..THP..(ARL,GCC,GEN)202308-202407

TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01

main90301-11030iGUN156,165..THP..(ARL,GCC,GEN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90301-T0069iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC202308-202409

TYPE B:REFER 35-01

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16009iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K090iGUN15#..6FC..KEN202308-202412

main32922-0K110iTGN156,166..(IDNP,MAP)..6FC202308-202410

main32922-0K120iGGN155..IDNP202308-202410

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-16009iTGN166..IDNP202308-202412

32941HOSE, OIL COOLER INLET, NO.1

main32941-0K010iGUN156,16#..(INDP,VNP)..6FC202308-202412

main32941-0K030iTGN166..(INDP,VNP)..6FC202308-202410

main32941-0K040iGGN155..IDNP202308-202410

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0K010iGUN15#,16#..THP202308-202412

main32942-0K030iTGN156,166..EPT,PKN202309-202410

main32942-0K040iGGN155..THP202308-202410

main32942-0K060iTGN156,166..THP202308-202407

90119T0237

main90119-T0237

90119T0260

main90119-T0260

9046616004

main90466-16004

9046616005

main90466-16005

90466T0076

main90466-T0076

14 parts on this diagram · 3 diagrams in section
