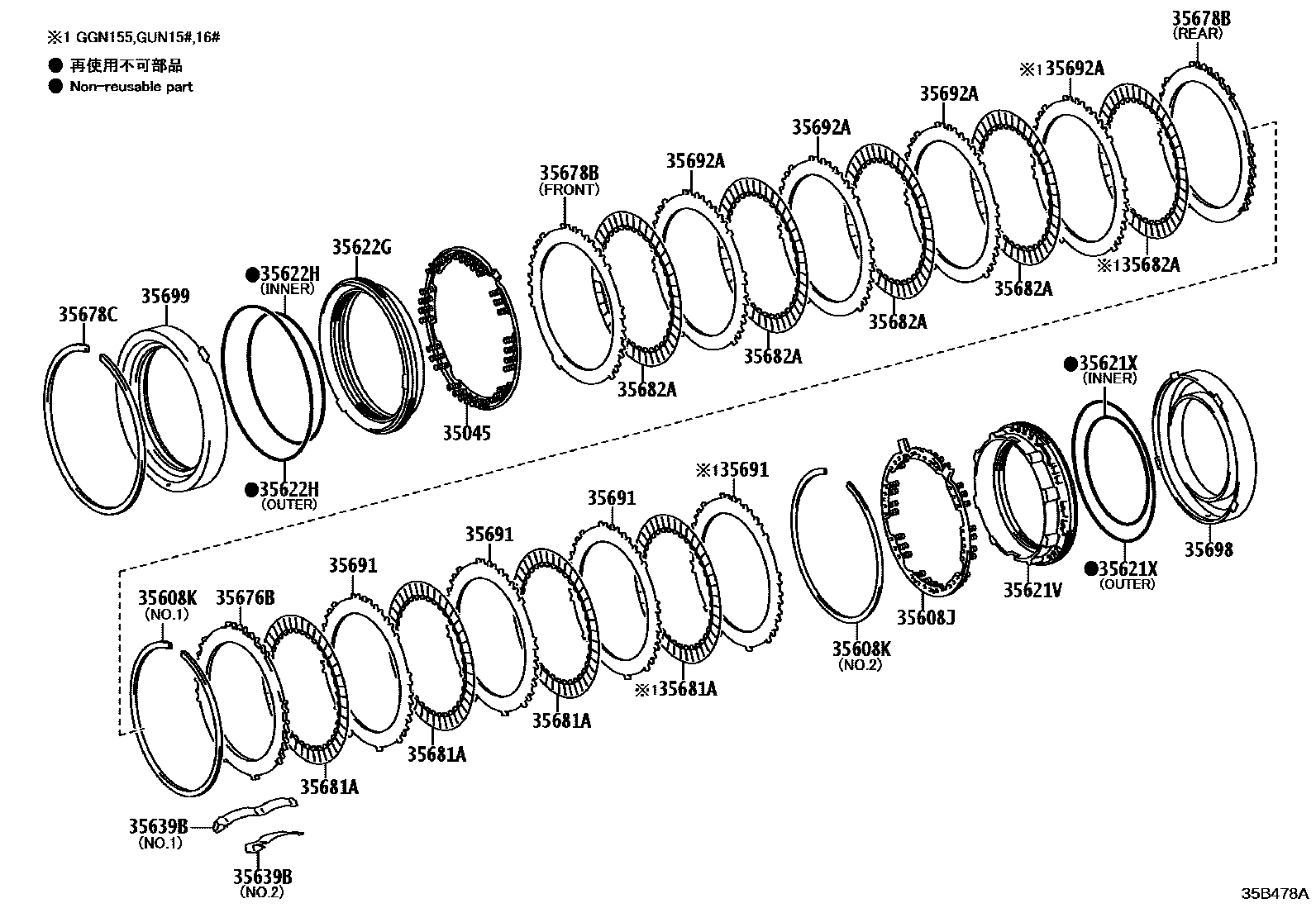

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
TYPE B:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
T/P A:REF.35-01,NO.1; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.2; TOYOTA STOP & START SYSTEM-WITH,T/P A:REF.35-01,NO.2; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.2
T/P B:REF.35-01,NO.2
T/P B:REF.35-01,NO.1
35621VPISTON, BRAKE, NO.1
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35621XRING, O (FOR BRAKE PISTON NO.1)
T/P A:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITH,T/P A:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
T/P A:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
T/P B:REF35-01,INNER
T/P B:REF35-01,OUTER; T/P B:SEE35-01,OUTER
35622GPISTON, BRAKE, NO.2
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
TYPE A:REFER 35-01
35622HRING, O (FOR BRAKE PISTON NO.2)
T/P A:REF35-01,INNER
T/P A:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
T/P B:REF35-01,OUTER
T/P B:REF35-01,INNER
35639BSPRING, BRAKE PLATE STOPPER
main35639-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T/P A:REF.35-01,NO.1; T/P B:REF.35-01,NO.1; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.2; T/P B:REF.35-01,NO.2
35676BFLANGE, BRAKE, NO.1
main35676-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=4.9,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=4.9,TYPE A:REFER 35-01; T=4.9,TYPE B:REFER 35-01
main35676-71020iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=5.0,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.0,TYPE A:REFER 35-01; T=5.0,TYPE B:REFER 35-01
main35676-71030iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=5.1,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.1,TYPE A:REFER 35-01; T=5.1,TYPE B:REFER 35-01
main35676-71040iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=5.2,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.2,TYPE A:REFER 35-01; T=5.2,TYPE B:REFER 35-01
main35676-71050iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=5.3,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.3,TYPE A:REFER 35-01; T=5.3,TYPE B:REFER 35-01
main35676-71060iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=5.4,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.4,TYPE A:REFER 35-01; T=5.4,TYPE B:REFER 35-01
main35676-71070iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=5.5,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.5,TYPE A:REFER 35-01; T=5.5,TYPE B:REFER 35-01
T=5.6,TYPE A:REFER 35-01; T=5.6,TYPE B:REFER 35-01
main35676-71090iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=5.7,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.7,TYPE A:REFER 35-01; T=5.7,TYPE B:REFER 35-01
T=5.8,TYPE A:REFER 35-01; T=5.8,TYPE B:REFER 35-01
35678BFLANGE, BRAKE, NO.2
main35678-71010iGUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN); GUN156..TH; GUN156..TH;GGN155,GUN155,16#,TGN156,166..THP; GUN156..THP..(ARL,GCC,GEN); GUN156..THP..GCC202308-202407
T=3.8,T/P A:REF35-01,REAR; T=3.8,T/P B:REF35-01,FRONT; T=3.8,T/P B:REF35-01,REAR; T=3.8,TOYOTA STOP & START SYSTEM-WITH,T/P B:REF35-01,REAR; T=3.8,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,REAR; T=3.8,TOYOTA STOP & START SYSTEM-WITHOUT,T/P B:REF35-01,FRONT
main35678-71020iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=2.0,T/P A:REF35-01,FRONT; T=2.0,T/P B:REF35-01,FRONT; T=2.0,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71030iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=2.1,T/P A:REF35-01,FRONT; T=2.1,T/P B:REF35-01,FRONT; T=2.1,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71040iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=2.2,T/P A:REF35-01,FRONT; T=2.2,T/P B:REF35-01,FRONT; T=2.2,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71050iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC; GGN155,GUN15#,16#,TGN156,166..IDNP..6FC202308-202408
T=2.3,T/P A:REF35-01,FRONT; T=2.3,T/P B:REF35-01,FRONT
main35678-71060iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=2.4,T/P A:REF35-01,FRONT; T=2.4,T/P B:REF35-01,FRONT; T=2.4,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71070iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=2.5,T/P A:REF35-01,FRONT; T=2.5,T/P B:REF35-01,FRONT; T=2.5,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.6,T/P A:REF35-01,FRONT
main35678-71090iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=2.7,T/P A:REF35-01,FRONT; T=2.7,T/P B:REF35-01,FRONT; T=2.7,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71100iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=2.8,T/P A:REF35-01,FRONT; T=2.8,T/P B:REF35-01,FRONT; T=2.8,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
(L),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 35-01
35681ADISC, BRAKE, NO.1
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35682ADISC, BRAKE, NO.2
TYPE B:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35691PLATE, BRAKE, NO.1
TYPE B:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35692APLATE, BRAKE, NO.2
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35698CYLINDER, BRAKE, NO.1
TYPE A:REFER 35-01; TYPE B:REFER 35-01
35699CYLINDER, BRAKE, NO.2
main35699-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
17 parts on this diagram · 1 diagram in section
