GEAR SHIFT FORK & LEVER SHAFT (MTM)

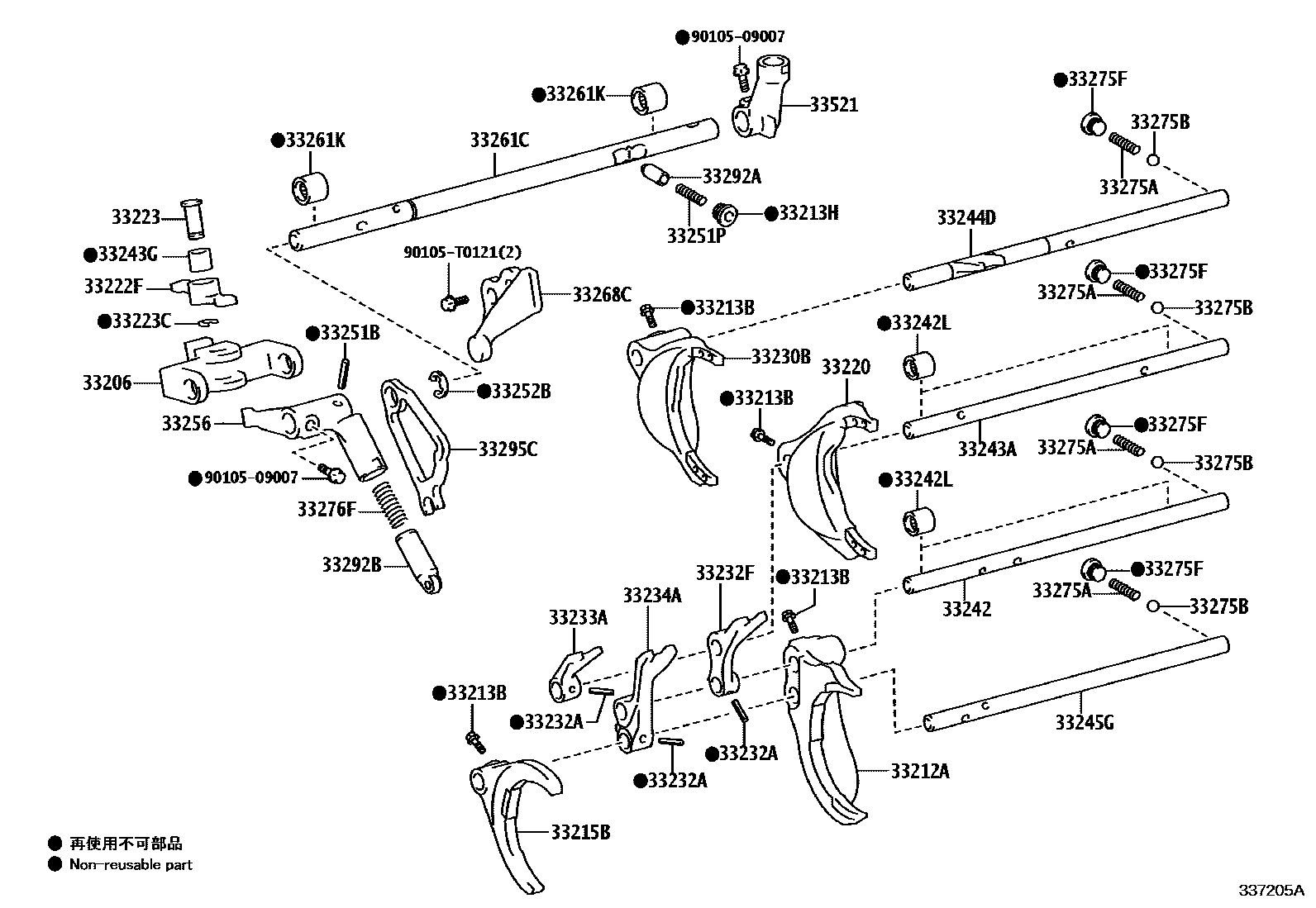

Parts diagram
33206PLATE SUB-ASSY, SHIFT INTERLOCK
main33206-0K010i202309-202412
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33212AFORK, GEAR SHIFT, NO.1
main33212-0K030i202309-202403
TYPE B:REFER 33-01
main33212-0K040i202309-202410
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33212-0K050i202310-202409
TYPE A:REFER 33-01
main33212-0K060i202403-202408
TYPE B:REFER 33-01
33213BBOLT(FOR SHIFT FORK SET)
main90105-06077×2i202310-202409
TYPE A:REFER 33-01
main90105-T0157×2i202309-202410
TYPE B:REFER 33-01
33213HPLUG, W/HEAD STRAIGHT SCREW, NO.2
main90341-16013i202309-202410
TYPE A:REFER 33-01
main90341-T0016i202309-202410
TYPE B:REFER 33-01
33215BFORK, GEAR SHIFT, NO.4
main33215-0K010i202309-202412
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33220FORK ASSY, GEAR SHIFT, NO.2
main33220-0K010i202309-202408
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33222FARM, SHIFT
main33222-0K010i202309-202409
TYPE A:REFER 33-01
33223PIVOT, SHIFT ARM
main33223-0K030i202309-202408
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)
main90520-14003i202309-202408
TYPE A:REFER 33-01
main90520-T0238i202309-202408
TYPE B:REFER 33-01
33230BFORK ASSY, GEAR SHIFT, NO.3
main33230-0K010i202309-202409
TYPE A:REFER 33-01
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
main90254-05019×3i202309-202410
TYPE A:REFER 33-01
main90254-T0006×3i202309-202412
TYPE B:REFER 33-01
33232FHEAD, GEAR SHIFT, NO.1
main33232-0K012i202309-202410
TYPE A:REFER 33-01
main33232-0K022i202309-202408
TYPE B:REFER 33-01
33233AHEAD, GEAR SHIFT, NO.2
main33233-0K011i202309-202412
TYPE A:REFER 33-01
main33233-0K021i202309-202412
TYPE B:REFER 33-01
33234AHEAD, GEAR SHIFT, NO.3
main33235-0K011i202309-202412
TYPE A:REFER 33-01
main33235-0K021i202309-202410
TYPE B:REFER 33-01
33242SHAFT, GEAR SHIFT FORK, NO.1
main33242-0K071i202309-202408
TYPE B:REFER 33-01
main33242-0K083i202309-202409
TYPE A:REFER 33-01
main33242-0K092i202309-202409
TYPE B:REFER 33-01
main33242-0K111i202310-202409
TYPE A:REFER 33-01
33242LBEARING (FOR SHIFT FORK SHAFT)
main90369-T0010×4i202309-202410
TYPE A:REFER 33-01
33243ASHAFT, GEAR SHIFT FORK, NO.2
main33243-0K040i202309-202409
TYPE B:REFER 33-01
main33243-0K051i202309-202412
TYPE A:REFER 33-01
main33243-0K061i202309-202412
TYPE B:REFER 33-01
main33243-0K070i202310-202409
TYPE A:REFER 33-01
33243GBEARING ( FOR SHIFT FORK SHAFT)
main90364-16010i202309-202408
TYPE A:REFER 33-01
main90364-T0042i202309-202412
TYPE B:REFER 33-01
33244DSHAFT, GEAR SHIFT FORK, NO.3
main33244-0K090i202309-202409
TYPE A:REFER 33-01
33245GSHAFT, GEAR SHIFT FORK, NO.4
main33245-0K052i202309-202409
TYPE A:REFER 33-01
main33245-0K061i202309-202410
TYPE B:REFER 33-01
33251LEVER, SHIFT & SELECT
main33251-0K070i202310-202409
TYPE B:REFER 33-01
main33251-0K080i202309-202408
TYPE B:REFER 33-01
main33251-0K130i202310-202409
TYPE A:REFER 33-01
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
main90254-05016i202309-202412
L=25.5,TYPE A:REFER 33-01
main90254-T0004i202309-202410
L=25.5,TYPE B:REFER 33-01
33251PSPRING (FOR SHIFT & SELECT LEVER)
main90501-T0040i202309-202408
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33252BRING, E (FOR SHIFT INNER LEVER)
main90523-T0004i202309-202410
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33256LEVER, SELECT INNER
main33256-0K010i202309-202409
TYPE A:REFER 33-01
33261CSHAFT, SHIFT & SELECT LEVER
main33261-0K041i202309-202410
TYPE A:REFER 33-01
main33261-0K051i202309-202408
TYPE A:REFER 33-01
main33261-0K060i202309-202410
TYPE B:REFER 33-01
main33261-0K070i202309-202408
TYPE B:REFER 33-01
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
main90364-T0044×2i202309-202409
TYPE B:REFER 33-01
main90364-T0058×2i202309-202410
TYPE A:REFER 33-01
33268CSTOPPER, SHIFT INTERLOCK PLATE
main33268-0K010i202309-202412
TYPE A:REFER 33-01
sub33268-0K020
main33268-0K030i202309-202412
TYPE B:REFER 33-01
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
main90501-16199×3i202309-202410
L=35.09,TYPE B:SEE 33-01,(J)
main90501-T0039×4i202309-202408
L=15.35,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90501-T0052×3i202310-202409
L=35.09,TYPE A:REFER 33-01
main90501-T0062×3i202309-202408
L=35.09,TYPE B:SEE 33-01,(L)
33275BBALL, SHAFT DETENT
main90360-10003×3i202309-202408
TYPE A:SEE 33-01,(J)
main90360-T0008×4i202309-202410
TYPE B:REFER 33-01
main90360-T0013×4i202309-202409
TYPE A:SEE 33-01,(L)
33275FPLUG (FOR SHIFT DETENT BALL)
main90341-12014×4i202309-202409
TYPE A:REFER 33-01
main90341-T0014×4i202309-202409
TYPE B:REFER 33-01
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
main90501-T0041i202309-202409
TYPE A:REFER 33-01
33292APIN, LOCK BALL
main33292-0K011i202309-202409
TYPE A:REFER 33-01
33292BPIN, LOCK BALL NO.2
main33292-0K020i202309-202408
TYPE B:REFER 33-01
main33292-71010i202309-202412
TYPE A:REFER 33-01
33295CCAM, SHIFT & SELECT
main33295-0K010i202309-202409
TYPE A:REFER 33-01
33521HOUSING, SHIFT LEVER
main33521-0K160i202309-202412
TYPE A:REFER 33-01
main33521-0K170i202309-202410
TYPE A:REFER 33-01
main33521-0K180i202309-202410
TYPE B:REFER 33-01
main33521-0K190i202309-202409
TYPE B:REFER 33-01
main33521-0K220i202309-202408
TYPE B:REFER 33-01
9010509007
main90105-09007
90105T0121
main90105-T0121

38 parts on this diagram · 4 diagrams in section
