31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-T0214×3i202309-202408

*12-1.25PX55-30,NO.1:REFER ILLUST.

main90119-T0215i202309-202410

*12-1.25PX60-30,NO.2:REFER ILLUST.

main90119-T0227×5i202309-202408

*12-1.25PX50-30

31111HOUSING, CLUTCH

main31111-0K020i202310-202409

TYPE A:REFER 33-01

main31111-0K100i202309-202409

TYPE B:REFER 33-01

main31111-0K140i202309-202410

TYPE A:REFER 33-01

main31111-0K150i202309-202410

TYPE B:REFER 33-01

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-0K030i202311-202410

main33019-0K070i202309-202408

main33019-0K090i202402-202410

main33019-0K100i202311-202410

main33019-0K110i202309-202408

main33019-0K120i202309-202408

main33019-0K130i202310-202409

main33019-0K140i202310-202409

main33019-0K180i202310-202409

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-0K071i202309-202410

TYPE A:REFER 33-01

main33101-0K081i202309-202408

TYPE B:REFER 33-01

main33101-0K091i202310-202409

TYPE A:REFER 33-01

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i202309-202408

TYPE B:REFER 33-01

main90341-18033i202309-202410

T/P A:SEE 33-01,NO.2,T/P B:SEE 33-01,NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i202309-202408

TYPE B:REFER 33-01

main90430-T0011i202310-202409

TYPE A:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i202309-202408

TYPE A:REFER 33-01

main90341-18034i202309-202409

TYPE B:REFER 33-01

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i202309-202408

TYPE B:REFER 33-01

main90430-T0011i202310-202409

TYPE A:REFER 33-01

33111CASE, MANUAL TRANSMISSION

main33101-0K011i202310-202409

TYPE A:REFER 33-01

main33101-0K031i202309-202408

TYPE B:REFER 33-01

33111CPLUG(FOR TRANSMISSION CASE)

main90331-30004i202309-202410

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main96411-41800×3i202309-202408

OD=18,TYPE B:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-11003×2i202309-202408

L=11,OD=11,T/PA:SEE33-01NO.2(J),T/P B:SEE 33-01,NO.2

main90250-12002×2i202309-202408

L=16,OD=12,TYPE B:REFER 33-01

main90250-T0020×2i202309-202408

L=16,OD=12,T/P B:SEE 33-01,NO.1

main90250-T0029×2i202309-202412

L=11,OD=11,T/PA:SEE33-01NO.2(L)

33111MPIN, RING(FOR TRANSMISSION CASE)

main90253-11021×2i202309-202412

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90253-15001×2i202309-202408

TYPE B:SEE 33-01,(J)

main90253-T0011×2i202309-202408

TYPE B:SEE 33-01,(L)

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×2i202309-202408

L=14,OD=15,TYPE B:REFER 33-01,TYPE A:SEE 33-01,(J)

main90253-T0011×2i202309-202409

L=14,OD=15,TYPE A:SEE 33-01,(L)

3312

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K012i202310-202409

TYPE A:REFER 33-01

main33018-0K071i202309-202408

TYPE B:REFER 33-01

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-T0066i202309-202409

TYPE A:REFER 33-01

main90311-T0094i202310-202409

TYPE A:REFER 33-01

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010i202310-202409

TYPE A:REFER 33-01

main33151-0K040i202309-202409

TYPE B:REFER 33-01

33449BMAGNET, TRANSMISSION

main33449-35030i202310-202409

TYPE A:REFER 33-01

main33449-60010i202309-202409

TYPE A:REFER 33-01

3512ABRACKET, TRANSMISSION BREATHER, NO.1

main3512A-0K010i202311-202410

main3512A-0K020i202311-202410

main3512A-0K100i202309-202409

main3512A-0K110i202309-202408

main3512A-0K140i202310-202409

IND SOURCED PARTS

main3512A-0K210i202402-202410

8401

876160K010CLAMP, COOLING UNIT CASE

main87616-0K010

9011908332

main90119-08332

90119T0138

main90119-T0138

90119T0224

main90119-T0224

90119T0295

main90119-T0295

90119T0296

main90119-T0296

90119T0297

main90119-T0297

9094901C99

main90949-01C99

91611G0820

main91611-G0820

9161261045

main91612-61045

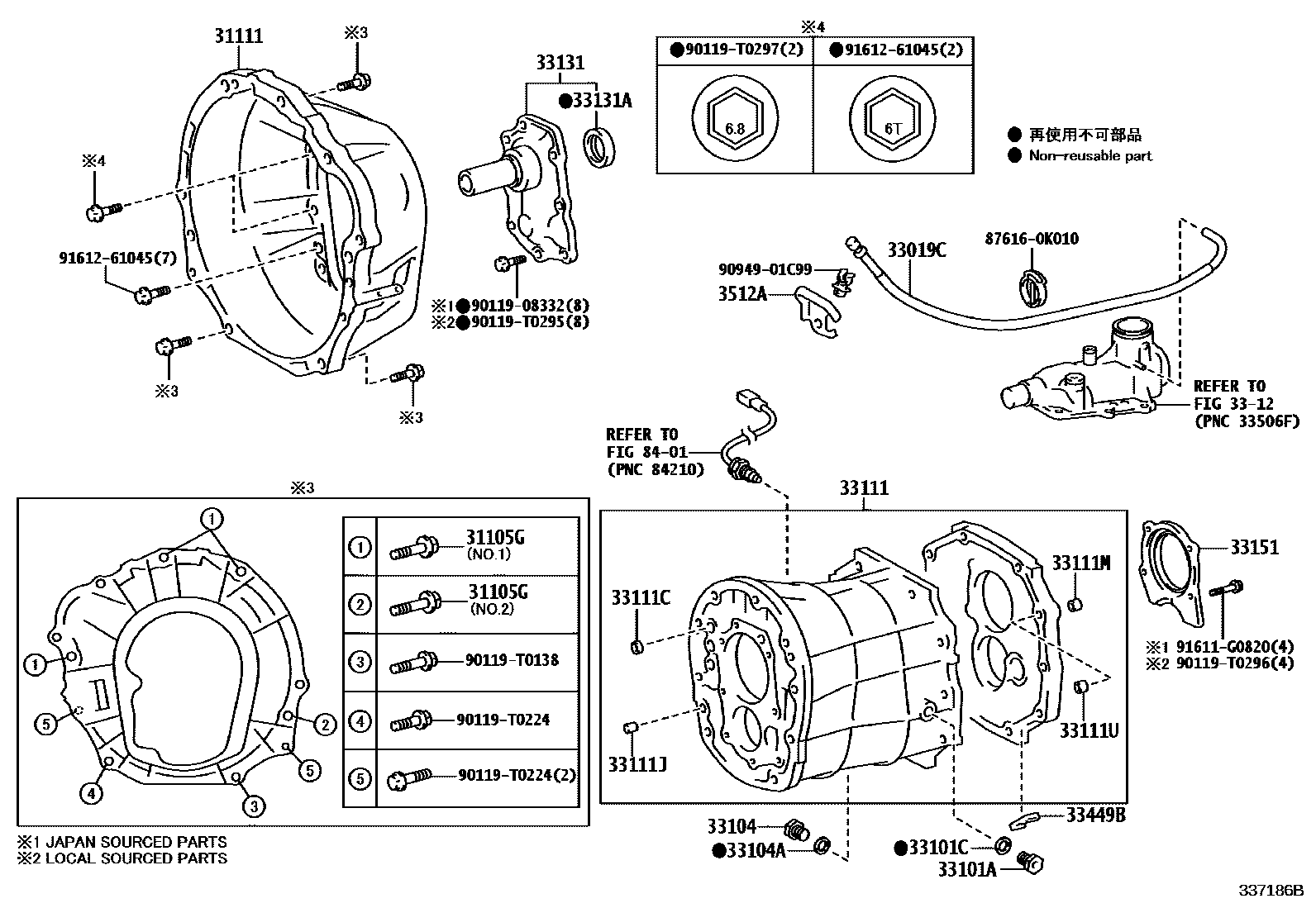

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
