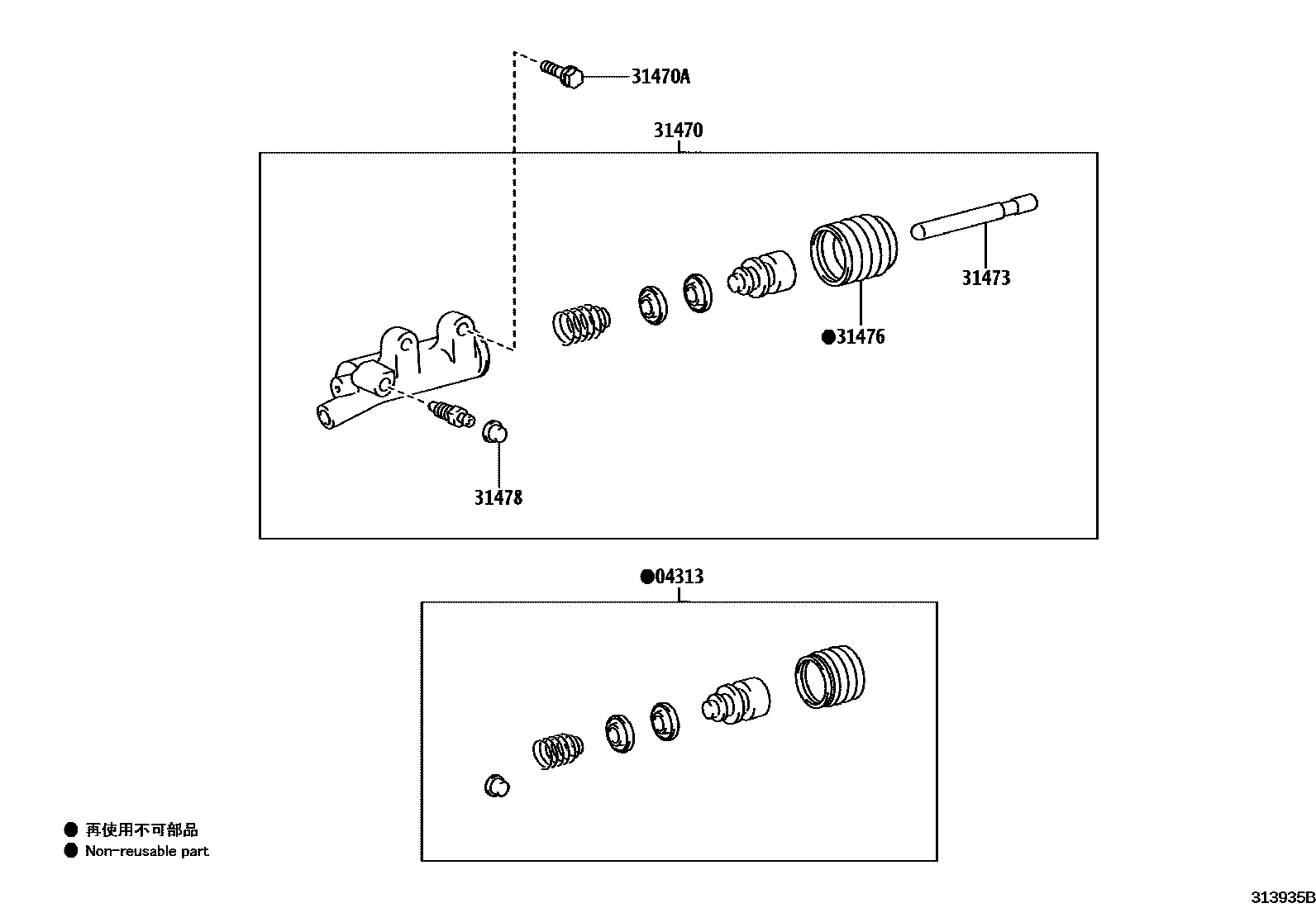

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K080iGUN156,165..(AGTP,SAP)..6F202309-202412

main04313-0K090iTGN166..5F..IND202309-202410

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K090iTGN156..L..GEN202309-202410

main31470-0K100iGUN156,16#..(INDP,VNP)..6F202309-202412

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221iGUN156,165,TGN166..(AGTP,SAP)..MTM202309-202412

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-0K010iTGN166..S..LA202309-202410

main31473-0K030iGUN156..6F..KEN202309-202412

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iGUN15#,165,TGN156..IDNP..MTM202309-202412

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGUN15#,165,TGN156..IDNP..MTM202309-202412

6 parts on this diagram · 2 diagrams in section
