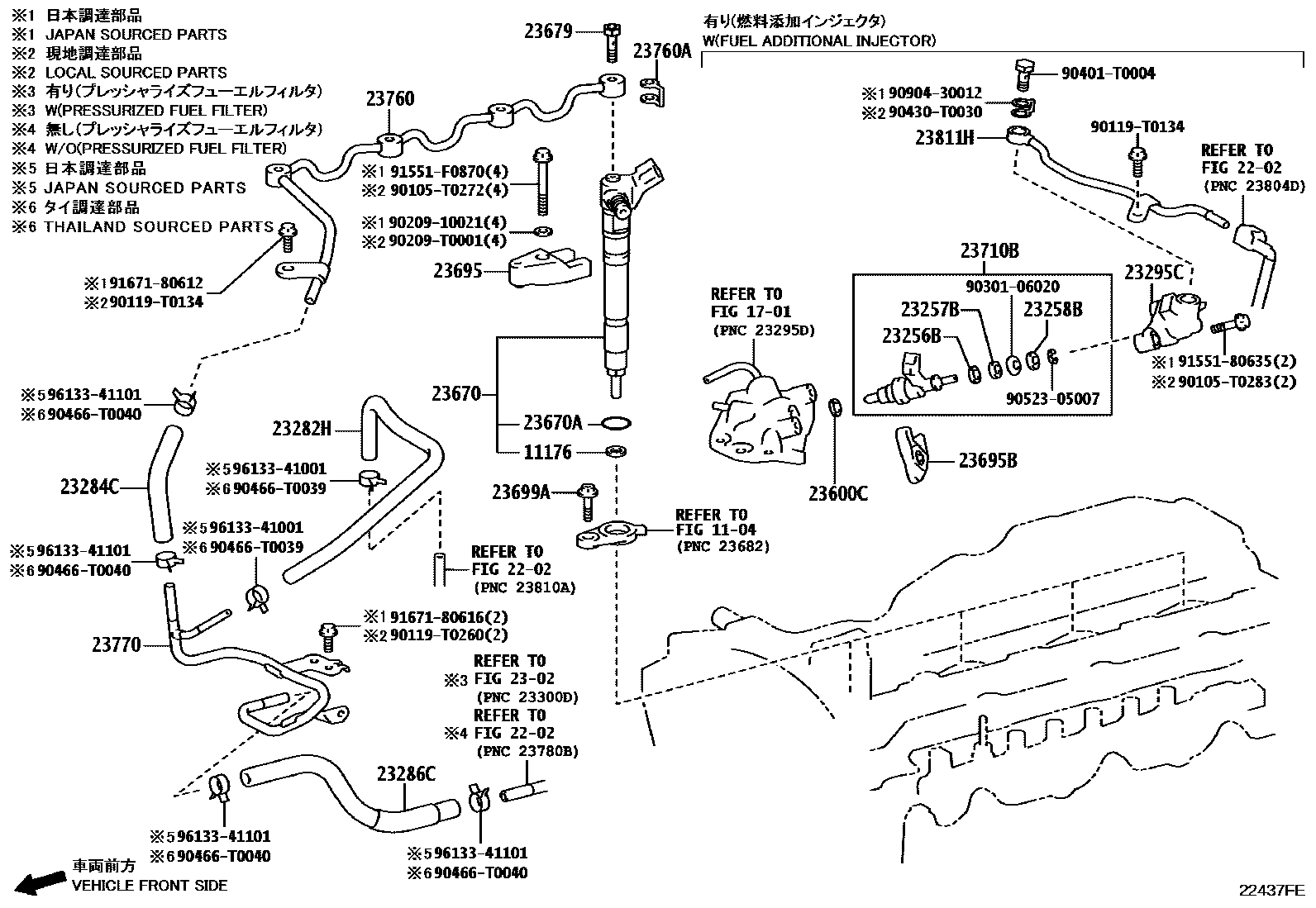

INJECTION NOZZLE
1104
11176SEAT, INJECTION NOZZLE
(L)
(J)
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
23257BRING, FUEL INJECTOR BACK-UP, NO.2
main23257-74010i2GDFTV..GUN155..IDNP..L..GCC;1GDFTV,2GDFTV..GUN156,165..IDNP..(ARL,GCC,VN)202308-202408
23258BRING, FUEL INJECTOR BACK-UP, NO.3
main23258-28011i2GDFTV..GUN155..IDNP..L..GCC;1GDFTV,2GDFTV..GUN156,165..IDNP..(ARL,GCC,VN)202308-202408
23282HHOSE, FUEL, NO.4
THA SOURCED PARTS
IND SOURCED PARTS
23284CHOSE, FUEL, NO.5
THA SOURCED PARTS
IND SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
23286CHOSE, FUEL, NO.6
THA SOURCED PARTS
IND SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
23295CHOLDER, INJECTOR
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
23600CGASKET(FOR HOLDER & NOZZLE SET)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
IND SOURCED PARTS
23670INJECTOR ASSY
THA SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
23670ARING, O(FOR INJECTOR ASSY)
main96721-19017×4i1GDFTV,2GDFTV..GUN155,16#..IDNP,MAP;1GDFTV..GUN156..(CAMP,IDNP,MAP)..6FC202308-202408
23679SCREW, INJECTOR FOLLOW
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
23695CLAMP, NOZZLE HOLDER, NO.1
(L)
(J)
23695BCLAMP, NOZZLE HOLDER, NO.2
main23695-0E020i2GDFTV..GUN155..IDNP..L..GCC;1GDFTV,2GDFTV..GUN156,165..IDNP..(ARL,GCC,VN)202308-202408
(L)
(J)
23699ASEAT, NOZZLE HOLDER CLAMP
THA SOURCED PARTS
IND SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
23760PIPE ASSY, NOZZLE LEAKAGE
THA SOURCED PARTS
IND SOURCED PARTS
23760AGASKET
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(L)
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
THA SOURCED PARTS
23811HPIPE, FUEL, NO.1
main23811-08010i2GDFTV..GUN155..IDNP..L..GCC;1GDFTV,2GDFTV..GUN156,165..IDNP..(ARL,GCC,VN)202308-202408
IND SOURCED PARTS
90105T0272
main90105-T0272
90105T0283
main90105-T0283
90119T0134
main90119-T0134
90119T0260
main90119-T0260
9020910021
main90209-10021
90209T0001
main90209-T0001
9030106020
main90301-06020
90401T0004
main90401-T0004
90430T0030
main90430-T0030
90466T0039
main90466-T0039
90466T0040
main90466-T0040
9052305007
main90523-05007
9090430012
main90904-30012
9155180635
main91551-80635
91551F0870
main91551-F0870
9167180612
main91671-80612
9167180616
main91671-80616
9613341001
main96133-41001
9613341101
main96133-41101
43 parts on this diagram · 1 diagram in section
