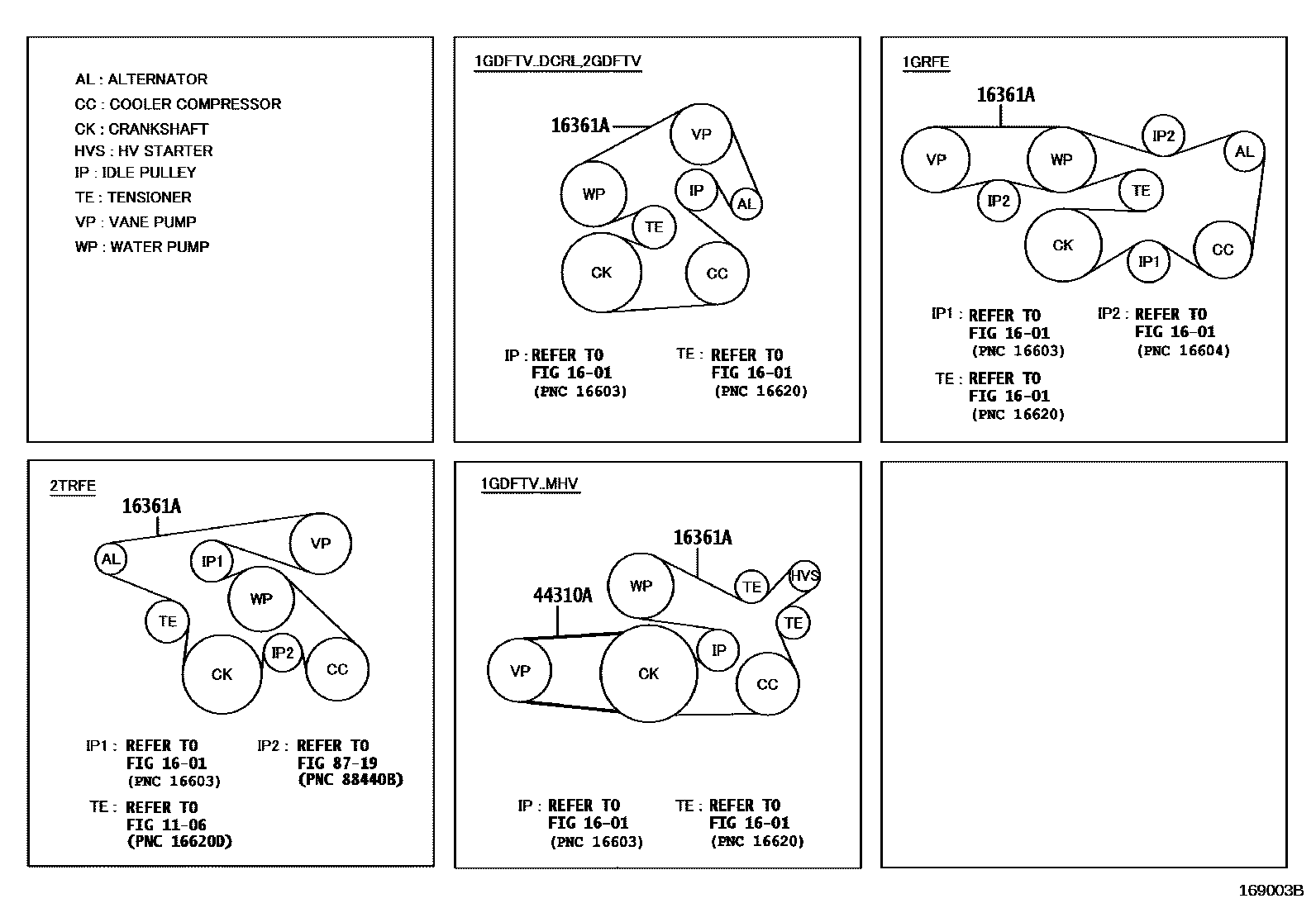

V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02708i2TRFE..TGN166..EPT202308

main90916-02786i1GDFTV..GUN156,166..MHV..SA202402-202410

main90916-T2024i2TRFE..TGN156,166..PKN202309

main90916-T2033i1GDFTV,2GDFTV..GUN15#,16#..(AGTP,SAP)..DCRL202308-202410

main99367-H2120i1GRFE..GGN155..EPT202308

44310ABELT, V(FOR VANE PUMP)

main90916-T2050iGUN156..MHV..IND202402-202409

L=902

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

5 parts on this diagram · 1 diagram in section
