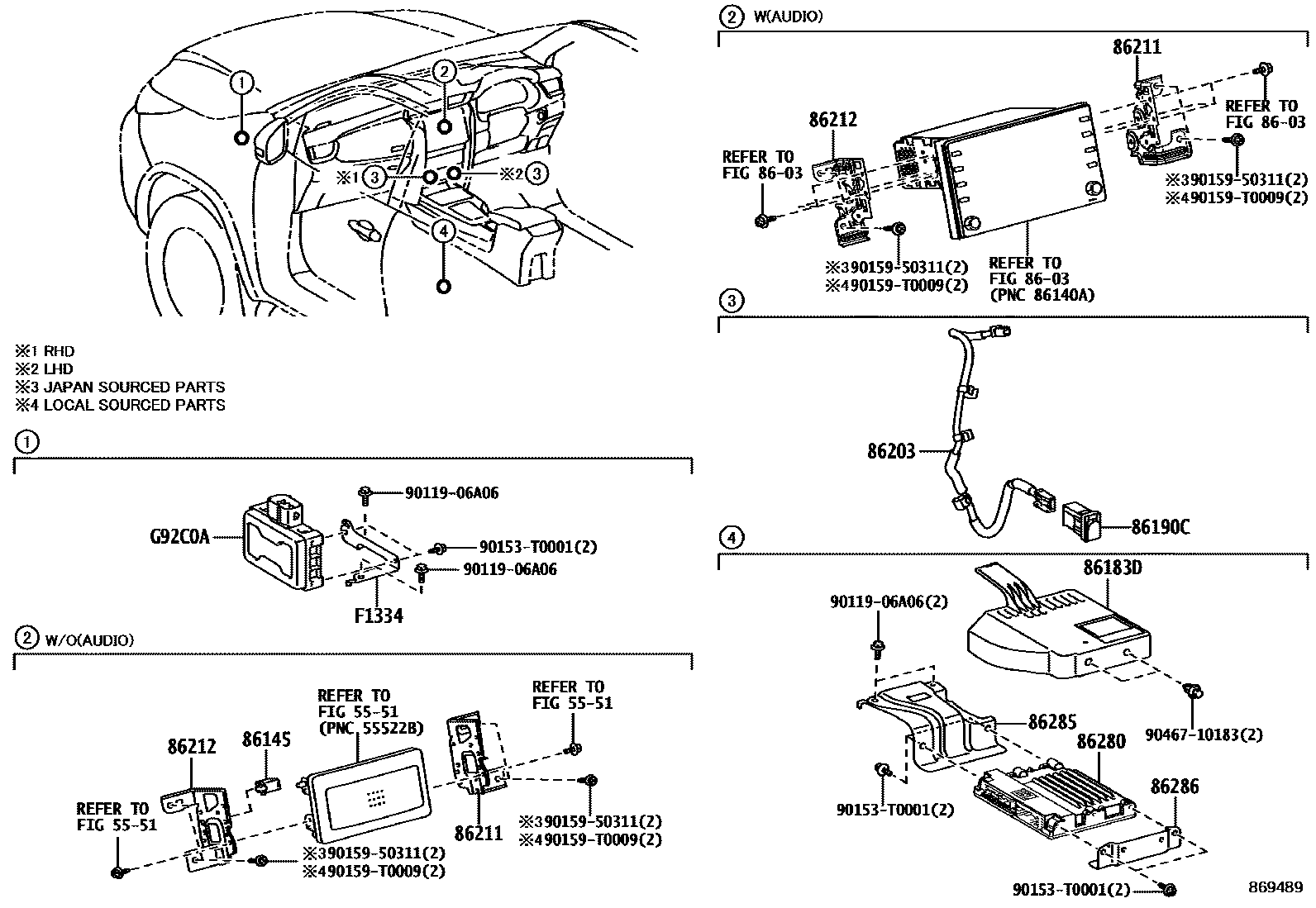

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86145CONNECTOR, ANTENNA MALE

main86145-52010iGUN15#,TGN156..IDN,MA;GGN155,GUN166..GEN,IDN;GUN165,TGN166..IDNP..(IDN,VN);GUN155,165,TGN156..L..(GEN,PH); GUN156..LHD..IDNP..GEN;TGN156..IDNP..6FC..(H,L);GGN155,GUN155,165,TGN166..IDNP..(L,S)..GCC; TGN156..H..GEN;GUN156..LHD..IDNP..GEN202209-202308

AUDIO-WITHOUT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

86183DCOVER, AUDIO AMPLIFIER

main86183-0K020iGUN156..PH202209-202308

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0K100iGGN155,GUN156,166..THP;GUN155,165,TGN156..THP..(H,S)202208-202307

main86190-0K110iGGN155..IDNP..GCC;GUN165..S..(GEN,PH);TGN156..IDNP..(H,S);GUN156..IDNP..(ARL,GCC,GEN,PH,VN);GUN155,166,TGN166..IDNP..H..(GCC,GEN,PH); GUN155..IDNP..S..GCC;TGN156..IDNP..L..GCC; GUN165,TGN166..IDNP..S..VN; TGN156..IDNP..L..GCC;GUN155,165,TGN166..IDNP..(L,S)..GCC202209-202308

AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT

86203WIRE, RADIO

main86203-71180iGUN15#..LHD..IDNP..H;GUN165..LHD..S..(GEN,PH);GGN155,GUN166,TGN156..IDNP..(H,S)..(GCC,PH,VN)202208-202308

main86203-71190iGUN156,166..RHD..SA202208-202401

86211BRACKET, RADIO, NO.1

main86211-KK060iGUN156,TGN156,166..PKN202209

main86211-KK080iGUN156,166,TGN156,166..(6F,6FC)..LA; GUN156..6FC..H..BZAGT202209-202310

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86211-KK090iTGN166..S..LA;GGN155,GUN165..LA;GUN156,TGN156..BZAGT202208-202310

86212BRACKET, RADIO, NO.2

main86212-KK060iGUN156,TGN156,166..PKN202209

main86212-KK080iGUN156,166,TGN156,166..(6F,6FC)..LA; GUN156..6FC..H..BZAGT202209-202310

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86212-KK090iGUN156,16#,TGN166..(INDP,VNP)..H202208-202309

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0K060supersedes 86280-0K110iGUN156..PH202209-202308

main86280-0K090iGGN155,GUN156,165,TGN166..AGTP..6FC..H; GUN156..6F..BZAGT202211-202310

P/N LABEL=862800K090; SPEAKER-11SPEAKER & JBL,P/N LABEL=862800K090

main86280-0K100iGUN156,166..RHD..6FC..SA202301-202401

SPEAKER-11SPEAKER & JBL

main86280-0K110iGUN156..VNP202301-202305

SPEAKER-6SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-KK010iGUN156..PH202209-202308

86286BRACKET, AMPLIFIER, NO.2

main86286-KK010iGUN156..PH202209-202308

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334KK010iGUN156,166..TH; GUN156..TH202208-202301

GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iGUN156,166..TH; GUN156..TH202208-202301

GR SPORT & ACCESSORY; MLM PACKAGE & ACCESSORY

9011906A06

main90119-06A06

90153T0001

main90153-T0001

9015950311

main90159-50311

90159T0009

main90159-T0009

9046710183

main90467-10183

18 parts on this diagram · 1 diagram in section
