AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0K420iLAN155202301-202401

main89170-0K630iGUN15#,16#..RHD..SA202208-202403

main89170-0K640iGUN156..AGTP202211-202310

main89170-0KB50iGUN156,TGN156,166..PKNP202305

main89170-0KB90iGUN166..TH;GUN165..PH,TH;GUN165..IDNP..L..VN;GUN15#..IDN,MA,PH,TH,VN202208-202307

ASEAN GENERAL SPEC

main89170-0KB90iGUN166..TH;GUN165..PH,TH;GUN165..IDNP..L..VN;GUN15#..IDN,MA,PH,TH,VN202208-202307

CAMBODIA SPEC

main89170-0KB90iTGN156..L..GEN;GUN165..RHD..IDNP;TGN166..IDNP..(IDN,VN);GGN155,GUN166..GEN,IDN,PH;GUN165,TGN156..(IDNP,MAP)..6FC..(MA,VN)202208-202309

main89170-0KF60iGGN155..IDNP..H..GCC202208-202308

SRS AIR BAG-WITH(*DRP)

main89170-0KF60iGUN15#,TGN156..LHD..SA202208-202403

main89170-0KJ30iGUN156..IDNP..ARL202208-202308

main89170-0KK20iGUN166,TGN166..IND202210-202309

89173ASENSOR, AIRBAG, FRONT RH

main89173-09B20iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202403

89174ASENSOR, AIRBAG, FRONT LH

main89173-09B20iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202208-202403

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-0K040iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202208-202403

89837SENSOR, FRONT FLOOR SIDE AIRBAG

main89837-0K010iGUN156..THP..ARL202208-202308

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0K070iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202208-202403

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0K070iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202208-202403

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-0K040iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202208-202403

89952COMPUTER, OCCUPANT DETECTION

main89952-71010iGUN156..THP..ARL202208-202308

90105T0057

main90105-T0057

90119T0255

main90119-T0255

90178T0012

main90178-T0012

90178T0018

main90178-T0018

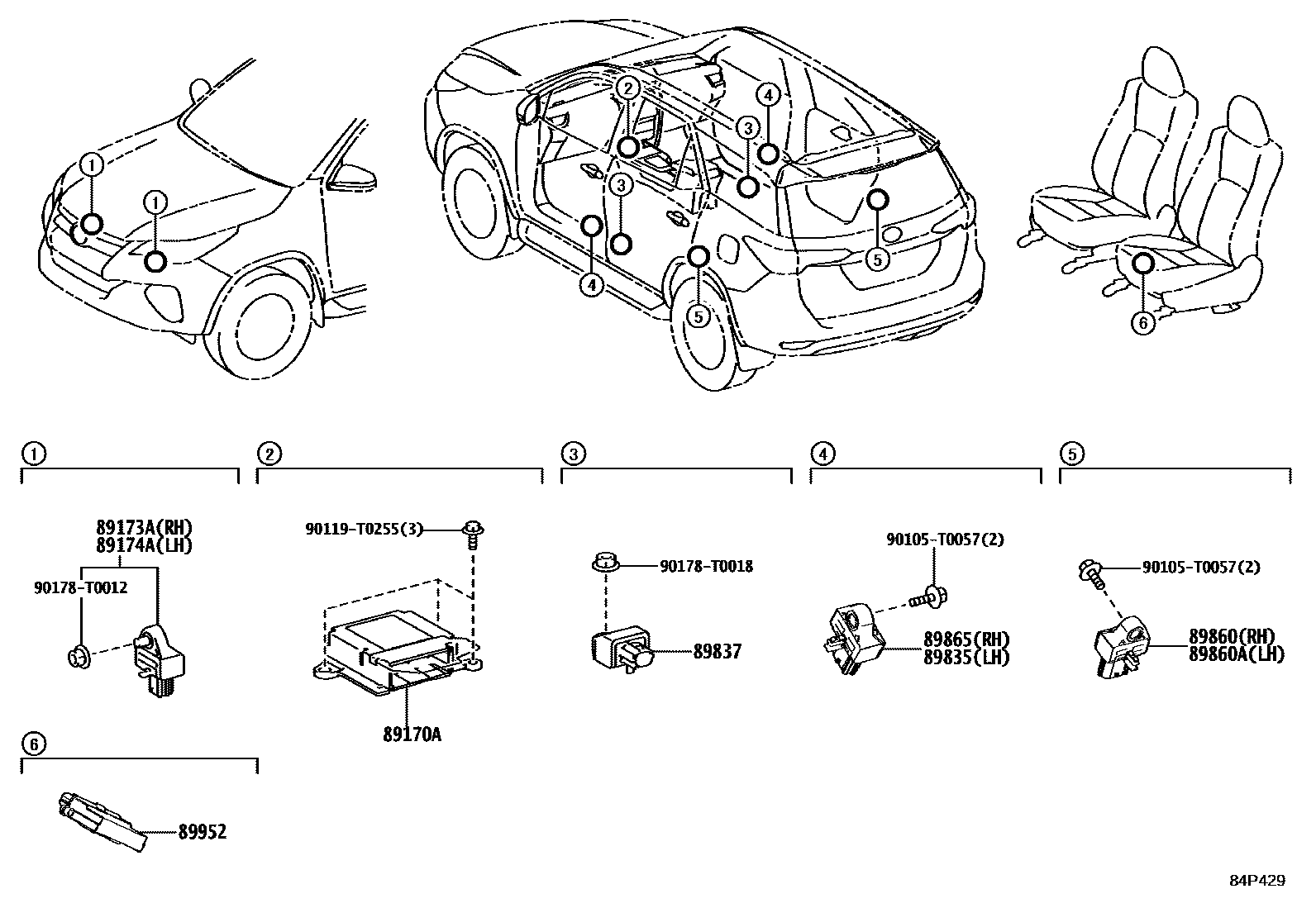

13 parts on this diagram · 1 diagram in section
